Oxford Baby Richmond 4-in-1 Convertible Crib Instruction Manual

Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Oxford Baby Richmond 4-in-1 Convertible Crib. Please read all instructions carefully before assembly and keep this manual for future reference. This crib is designed to convert from a crib to a toddler bed, daybed, and full-size bed, adapting to your child's growth.

Image: The Oxford Baby Richmond 4-in-1 Convertible Crib in Brushed Gray, presented as part of a complete nursery furniture set.

Important Safety Information

WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death.

• Always provide the supervision necessary for the continued safety of your child.
• Do not use this crib if any parts are missing, damaged, or broken. Contact Oxford Baby for replacement parts and instructional literature if needed. Do not substitute parts.
• Ensure all assembly fittings are tightened properly. Periodically check all fasteners for tightness.
• The crib mattress support must be in the lowest position when a child is able to pull to a standing position.
• Do not place the crib near a window where cords from blinds or drapes could strangle a child.
• Do not place items with a string or cord around a child's neck, such as hood strings or pacifier cords. Do not suspend strings over a crib or attach strings to toys.
• This product is GREENGUARD GOLD Certified, ensuring low chemical emissions for improved indoor air quality.
• Maximum weight recommendation for the crib is 50 pounds.

Image: Certifications for quality, safety, and durability, including ASTM International, CPSC, and GREENGUARD GOLD.

Setup: Crib Assembly

Assembly of the Oxford Baby Richmond 4-in-1 Convertible Crib requires two adults. Please ensure all hardware is present before beginning. A Phillips head screwdriver and an Allen wrench (often included) may be required.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratching. Verify all hardware listed in the parts list (not provided in this manual, refer to your product's included sheet) is present.
2. Attach End Panels: Secure the side rails to the headboard and footboard using the provided bolts and barrel nuts. Do not overtighten.
3. Install Mattress Support: Insert the mattress support frame into the designated slots on the end panels. Ensure it is level and securely fastened at the desired height. For infants, the highest position is typically used. For children who can sit up or pull to a standing position, the lowest position is required.
4. Final Tightening: Once all components are assembled, carefully tighten all bolts and fasteners. Do not overtighten, as this can damage the wood.
5. Inspect: Before placing a child in the crib, thoroughly inspect the crib to ensure all parts are correctly assembled and secure.

Note: Specific assembly steps and diagrams are typically included in the physical instruction manual provided with your product. This section provides general guidance.

Image: The Richmond crib fully assembled in its standard crib configuration.

Operating: Conversion Instructions

The Oxford Baby Richmond crib is designed to convert into a toddler bed, daybed, and full-size bed. Conversion kits are sold separately and are required for the toddler and full-size bed configurations.

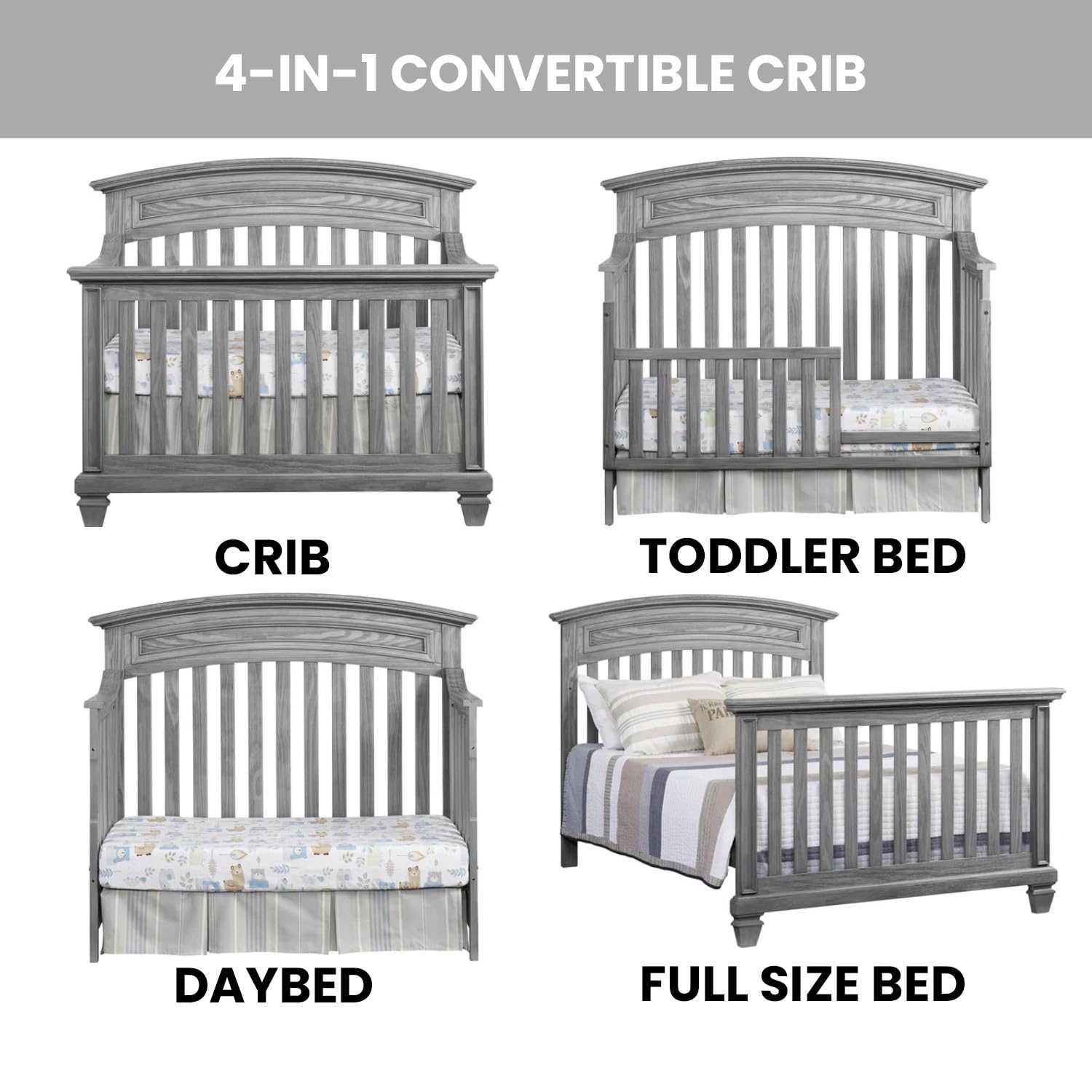

Image: Visual representation of the 4-in-1 conversion capability of the Richmond crib.

Mattress Height Adjustment

The crib features 3 levels of mattress height adjustments. To adjust the mattress height:

1. Remove the mattress and mattress support.
2. Relocate the mattress support frame to the desired height setting. Ensure all four corners are securely seated.
3. Re-insert the mattress. Always use the lowest mattress position once your child can pull themselves to a standing position.

Converting to Toddler Bed

To convert the crib into a toddler bed, you will need the Oxford Baby Toddler Guard Rail (sold separately).

1. Remove the front side rail of the crib.
2. Attach the Toddler Guard Rail to the existing end panels using the provided hardware from the conversion kit.
3. Ensure the guard rail is securely fastened and stable.

Converting to Daybed

To convert the crib into a daybed:

1. Remove the front side rail of the crib. No additional parts are typically required for this conversion.
2. Ensure the mattress support is in the lowest position for safety.

Converting to Full-Size Bed

To convert the crib into a full-size bed, you will need the Oxford Baby Full-Size Bed Conversion Kit (sold separately).

1. Disassemble the crib, retaining the headboard and footboard.
2. Attach the full-size bed rails from the conversion kit to the headboard and footboard.
3. Install the mattress support slats or frame provided with the conversion kit.
4. Place a standard full-size mattress and box spring (if applicable) onto the support system.

It is highly recommended to purchase conversion accessories within a year of your initial crib purchase to avoid stock issues or product discontinuation.

Maintenance

Proper maintenance ensures the longevity and safety of your crib.

• Cleaning: Wipe the crib surfaces with a damp cloth. Avoid using abrasive cleaners or strong chemicals, as these can damage the finish.
• Inspections: Periodically check all screws, bolts, and fasteners to ensure they are tight and secure. Loose hardware can pose a safety hazard.
• Storage: If storing the crib, do so in a dry, temperature-controlled environment to prevent warping or damage to the wood.
• Repairs: Do not attempt to repair damaged parts yourself. Contact Oxford Baby for genuine replacement parts.

Troubleshooting

If you encounter any issues with your Oxford Baby Richmond crib, refer to the following common solutions:

• Crib feels wobbly: Check all bolts and fasteners. Ensure they are tightened securely. Do not overtighten.
• Squeaking noises: Inspect joints for loose connections. A small amount of silicone-based lubricant (avoid petroleum-based products) can be applied to metal-on-metal contact points, but ensure it is safe for baby products and wipe off any excess.
• Difficulty converting: Ensure all original crib hardware has been removed before attempting conversion. Refer to the specific conversion kit instructions for detailed steps.
• Missing parts: If you believe parts are missing, do not proceed with assembly. Contact Oxford Baby customer support immediately.

Specifications

Image: Dimensions and mattress height adjustment points of the Richmond crib.

Warranty Information

The Oxford Baby Richmond 4-in-1 Convertible Crib is backed by a 1 Year Limited Manufacturer’s Warranty. This warranty covers manufacturing defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For specific warranty terms and conditions, or to make a claim, please refer to the warranty documentation included with your product or contact Oxford Baby customer service.

Customer Support

For assistance with assembly, missing parts, warranty claims, or any other inquiries regarding your Oxford Baby Richmond 4-in-1 Convertible Crib, please contact Oxford Baby customer service.

Contact Information:

• Visit the official Oxford Baby website for support resources.
• Refer to the contact details provided in the packaging or on the product's official website.

Please have your model number (17011530) and proof of purchase ready when contacting support.
