Westinghouse UTO2501
Westinghouse 1/4 HP Submersible Utility Pump
Model: UTO2501
Instruction Manual
Introduction
This manual provides essential information for the safe and efficient operation and maintenance of your Westinghouse 1/4 HP Submersible Utility Pump. Please read this manual thoroughly before installation and use, and keep it for future reference.

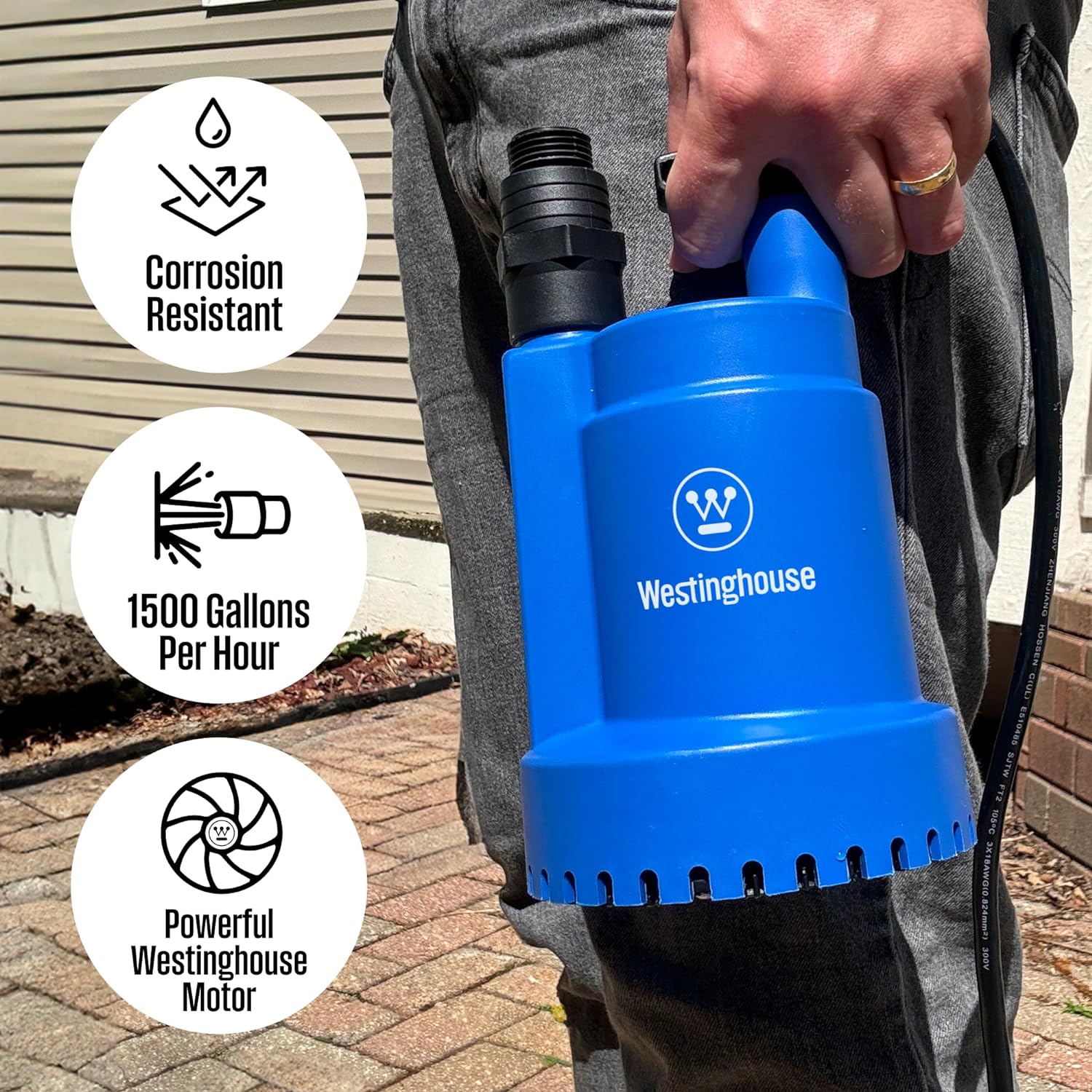

The Westinghouse 1/4 HP Submersible Utility Pump is designed for efficient water removal from various indoor and outdoor areas. It features a robust build with a full corrosion-resistant shell, stainless steel shaft, and environmental thermoplastic construction. With a flow rate of 1,500 GPH (25 gallons per minute) and a maximum lift capacity of 28 feet, it is ideal for draining hot tubs, swimming pools, garden ponds, basements, cellars, and other flooded areas. The pump also includes a removable bottom screen to filter debris and protect the pump from damage, ensuring a longer service life.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Ensure the power source matches the pump's requirements (115 Volts). Do not operate the pump with a damaged cord or plug. Keep children and pets away from the operating pump. Always disconnect power before performing any maintenance or cleaning.
Setup
Before initial use, ensure all components are present and undamaged. The pump is designed for easy setup and portability.
Connecting the Discharge Hose
The pump is equipped with a 1-1/4" NPT discharge port and includes a 3/4" garden hose adapter for versatile connections. Choose the appropriate hose size for your application.
- For 1-1/4" NPT connection: Securely attach a compatible discharge hose directly to the pump's threaded outlet.
- For 3/4" garden hose connection: Thread the included 3/4" garden hose adapter onto the pump's 1-1/4" NPT outlet, then connect your standard garden hose to the adapter.
Power Connection
The pump operates on 115 Volts. Ensure you have a suitable grounded electrical outlet available. The pump comes with a 10-foot 115V power cord.
Pump Placement
Place the pump directly into the water source you intend to drain. Ensure the pump is stable and upright. The pump can effectively remove water down to 1/8 inch from the surface.
Operating Instructions
The Westinghouse 1/4 HP Submersible Utility Pump is designed for straightforward operation.
Starting the Pump
- Ensure the discharge hose is securely connected and directed to a suitable drainage area.
- Place the pump into the water to be removed. The pump must be fully submerged for optimal operation and cooling.
- Plug the pump's power cord into a grounded 115V electrical outlet. The pump will begin operating immediately.
Stopping the Pump
To stop the pump, simply unplug the power cord from the electrical outlet. The pump will cease operation.
Typical Applications
This versatile utility pump is suitable for a wide range of water removal tasks:
- Draining hot tubs and swimming pools.
- Emptying garden ponds.
- Removing standing water from basements, cellars, and window wells.
- General utility pumping for flooded areas.
Product Overview Video
Video 1: An official overview of the Westinghouse 1/4 HP Submersible Water Pump, demonstrating its features and typical use cases.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your pump.
Cleaning the Bottom Screen
The pump features a removable bottom screen designed to filter debris and protect the impeller. Periodically inspect and clean this screen, especially after pumping water with significant particulate matter.
- Unplug the pump from the power source.
- Remove the bottom screen by twisting or unlatching it (refer to product diagram for specific mechanism).
- Rinse the screen thoroughly with clean water to remove any accumulated debris.
- Reattach the screen securely before next use.
Storage
When not in use, store the pump in a clean, dry location, protected from freezing temperatures. Ensure all water is drained from the pump and hose before storage.
Troubleshooting
This section addresses common issues you might encounter with your utility pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start. | No power, tripped circuit breaker, faulty outlet. | Check power connection, reset circuit breaker, test outlet with another device. |
| Low or no water flow. | Clogged intake screen, kinked hose, air lock, pump not fully submerged. | Clean intake screen, straighten hose, ensure pump is fully submerged, prime pump if necessary. |
| Pump runs but no water is discharged. | Air lock, discharge hose blocked, pump not submerged enough. | Ensure pump is fully submerged, check for blockages in hose, tilt pump to release trapped air. |
| Pump cycles on and off frequently. | Water level too low for continuous operation, debris interfering with float switch (if applicable). | Ensure sufficient water level for continuous operation. This model does not have a float switch, so this issue is less likely unless an external one is used. |
If the problem persists after attempting these solutions, please contact Westinghouse customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Westinghouse |
| Model Number | UTO2501 |
| Part Number | WH25U |
| Power Source | Corded Electric |
| Voltage | 115 Volts |
| Horsepower | 1/4 HP |
| Maximum Flow Rate | 1500 GPH (25 Gallons Per Minute) |
| Maximum Lifting Height | 28 Feet |
| Material | Thermoplastic |
| Product Dimensions | 5"L x 5"W x 9"H |
| Item Weight | 5.99 pounds |
| Discharge Port | 1-1/4" NPT (includes 3/4" garden hose adapter) |
| Pumps down to | 1/8" from surface |
Warranty and Support
For warranty information or technical support, please contact Westinghouse customer service. Keep your purchase receipt as proof of purchase.
