Tuzliufi Voltage Regulator Rectifier Z955 Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Tuzliufi Voltage Regulator Rectifier, Model Z955. This component is designed to convert alternating current (AC) generated by the engine's stator into direct current (DC) and regulate the voltage to ensure stable power supply to the battery and electrical system of your outboard motor.

Please read this manual thoroughly before installation and operation to ensure safe and correct usage. Keep this manual for future reference.

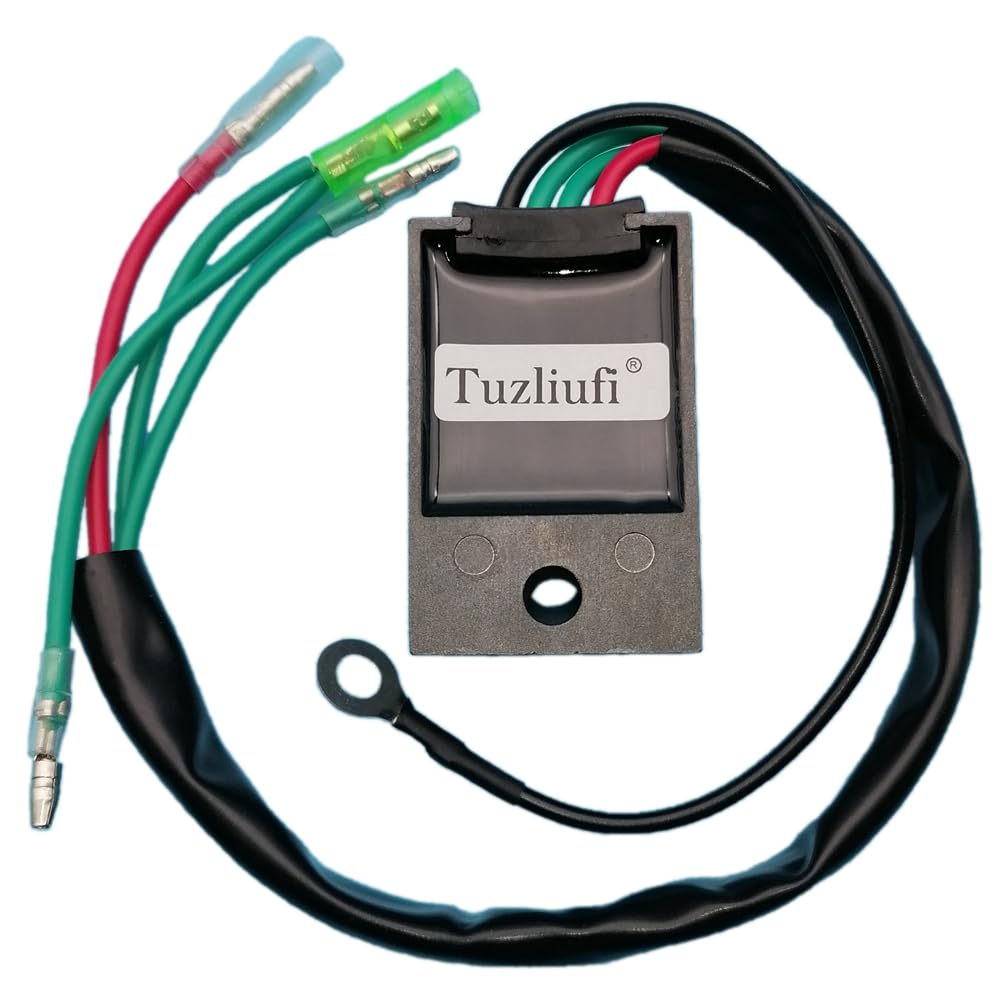

Image 1: Overview of the Tuzliufi Voltage Regulator Rectifier Z955. This image displays the main unit with its attached wiring harness, providing a general view of the product's appearance and components.

2. Compatibility

The Tuzliufi Voltage Regulator Rectifier (Model Z955) is a replacement part compatible with specific Yamaha Outboard models. It is designed to replace original parts with numbers 68T-81960-00 and 68T-81960-00-00.

Important Note: This item is a replacement part and not an Original Equipment Manufacturer (OEM) part. Please ensure that the images and specifications provided in this manual match your existing part before purchase and installation. Compatibility is crucial for proper function and safety.

Compatible Yamaha Outboard Models:

• 8HP T8 Series (2001-2010):
  • T8DELH (2008, 2010)
  • T8DEXH (2008, 2009, 2010)
  • T8DPLH (2007, 2008, 2010)
  • T8DPLR (2010)
  • T8DPXH (2007, 2009)
  • T8DPXR (2009, 2010)
  • T8ELHA (2002)
  • T8ELHB (2003)
  • T8ELHC (2004)
  • T8ELHD (2005)
  • T8EXHC (2004)
  • T8PLH (2005, 2006)
  • T8PLHD (2005)
  • T8PLR (2005, 2006)
  • T8PLRB (2003)
  • T8PLRD (2005)
  • T8PLRZ (2001)
  • T8PXRA (2002)
  • T8PXRB (2003)
  • T8PXRD (2005)
  • T8PXRZ (2001)
  • T8PXH (2006)
  • T8PXHA (2002)
  • T8PXHB (2003)
  • T8PXHZ (2001)
• 9.9HP F9.9 & T9.9 Series (2007-2022):
  • F9.9FELR (2008, 2009)
  • F9.9LEB (2013, 2014, 2015, 2019, 2020, 2021, 2022)
  • F9.9LEHB (2013, 2014)
  • F9.9FMSH (2007)
  • F9.9SEHB (2014)
  • T9.9GELH (2010)
  • T9.9GEXH (2007, 2010)
  • T9.9GPLH (2008)
  • T9.9GPLR (2010)
  • T9.9GPXH (2007, 2008)
  • T9.9GPXR (2008, 2010)
  • T9.9LEHA (2011, 2012)
  • T9.9LEHB (2013, 2014, 2015, 2016)
  • T9.9LPA (2011)
  • T9.9LPB (2014, 2016, 2017, 2020, 2022)
  • T9.9LPHA (2012)
  • T9.9LPHB (2013, 2016, 2017, 2020, 2021)
  • T9.9LWHB (2017, 2019, 2020, 2021, 2022)
  • T9.9XEHA (2011)
  • T9.9XPA (2012)
  • T9.9XPB (2014, 2015, 2017, 2018, 2020, 2021)
  • T9.9XPHA (2011, 2012)
  • T9.9XEHB (2013)
  • T9.9XPHB (2015, 2016, 2018, 2019, 2020, 2021, 2022)
  • T9.9XWHB (2017, 2020, 2022)

3. Specifications

Dimensions:

Image 2: Overall dimensions including wiring. The total length of the wiring harness is approximately 12.9 inches (33 cm). The main body to the end of the shortest wire is 7.48 inches (19 cm), and to the end of the longest wire is 5.9 inches (15 cm).

Image 3: Rectifier body length and width. The length of the rectifier body is approximately 2.21 inches (5.61 cm). The width of the mounting hole is approximately 0.27 inches (0.68 cm).

Image 4: Rectifier body width and height. The width of the rectifier body is approximately 1.55 inches (3.93 cm) and its height is approximately 1.37 inches (3.47 cm).

Image 5: Rectifier body thickness. The thickness of the rectifier body is approximately 0.86 inches (2.18 cm).

4. Installation

Installation of a voltage regulator rectifier requires basic electrical knowledge and caution. If you are unsure about any step, it is recommended to seek assistance from a qualified marine technician.

Safety Precautions:

• Always disconnect the battery's negative terminal before beginning any electrical work on your outboard motor to prevent electrical shock or damage to components.
• Ensure the engine is off and cooled down.
• Wear appropriate personal protective equipment, including safety glasses.
• Verify that the replacement part matches the original in terms of connectors and mounting points.

Installation Steps:

1. Locate the Old Rectifier: Identify the existing voltage regulator rectifier on your Yamaha outboard motor. It is typically mounted near the engine block or under the cowling.
2. Disconnect Wiring: Carefully disconnect the electrical connectors from the old rectifier. Note the position and color of each wire for correct re-connection.
3. Remove Old Rectifier: Unbolt or unmount the old rectifier from its position.
4. Mount New Rectifier: Secure the new Tuzliufi Z955 rectifier in the same location using the existing mounting hardware. Ensure it is firmly attached to prevent vibration damage.
5. Connect Wiring: Connect the wires from the new rectifier to the corresponding terminals on your outboard motor. Refer to the wiring diagram of your specific outboard model if available. The Tuzliufi Z955 typically features 4 cables.

Image 6: Rectifier showing 4 cables. This image highlights the four-cable configuration of the rectifier, which is crucial for correct electrical connection.

Image 7: Connector types and wire length. This image details the types of connectors (male and female) and their approximate dimensions, with a male connector shown at 0.24 inches (0.61 cm).

6. Reconnect Battery: Once all connections are secure and verified, reconnect the battery's negative terminal.
7. Test System: Start the engine and check the battery charging voltage with a multimeter. The voltage should be stable and within the manufacturer's specifications for your outboard motor (typically around 13.5V to 14.5V at idle to mid-range RPMs).

5. Operating

The Tuzliufi Voltage Regulator Rectifier operates automatically once installed correctly. Its primary function is to:

• Convert AC to DC: Transform the alternating current produced by the engine's stator into direct current suitable for the electrical system.
• Regulate Voltage: Maintain a consistent output voltage to prevent overcharging or undercharging of the battery.
• Protect Electrical Components: Safeguard the battery and other electrical components from voltage spikes and fluctuations.

No user intervention is required for its operation after proper installation. The system should function seamlessly, providing reliable power to your outboard motor's electrical system.

6. Maintenance

While the voltage regulator rectifier is a sealed unit and requires minimal maintenance, periodic checks can help ensure its longevity and optimal performance:

• Visual Inspection: Periodically inspect the rectifier and its wiring for any signs of corrosion, fraying, loose connections, or physical damage.
• Clean Connections: Ensure all electrical connections are clean and free of dirt or salt buildup. Use a dielectric grease on connections to prevent corrosion.
• Check Mounting: Verify that the rectifier remains securely mounted to prevent vibration-induced damage.
• Monitor Battery Voltage: Regularly check your battery's voltage to ensure it is charging correctly. Consistent overcharging or undercharging can indicate an issue with the rectifier or other charging system components.

7. Troubleshooting

If you experience issues with your outboard's electrical system, the voltage regulator rectifier may be a contributing factor. Here are some common symptoms and troubleshooting steps:

If troubleshooting steps do not resolve the issue, or if you suspect a serious electrical problem, consult a professional marine technician.

8. Support

For further assistance or inquiries regarding the Tuzliufi Voltage Regulator Rectifier Z955, please refer to the seller's contact information or the platform where the product was purchased. Ensure you have your product model number (Z955) and purchase details available when seeking support.
