1. Introduction
Thank you for choosing the GIKPAL YCQQJ01 Triple Swing Set. This outdoor swing set is designed to provide a fun and engaging play experience for children aged 3 to 8 years. It features a robust metal frame and includes a saucer swing, a swing seat, and a tree swing disc, accommodating multiple children simultaneously. Please read this manual thoroughly before assembly and use to ensure safe operation and longevity of the product.

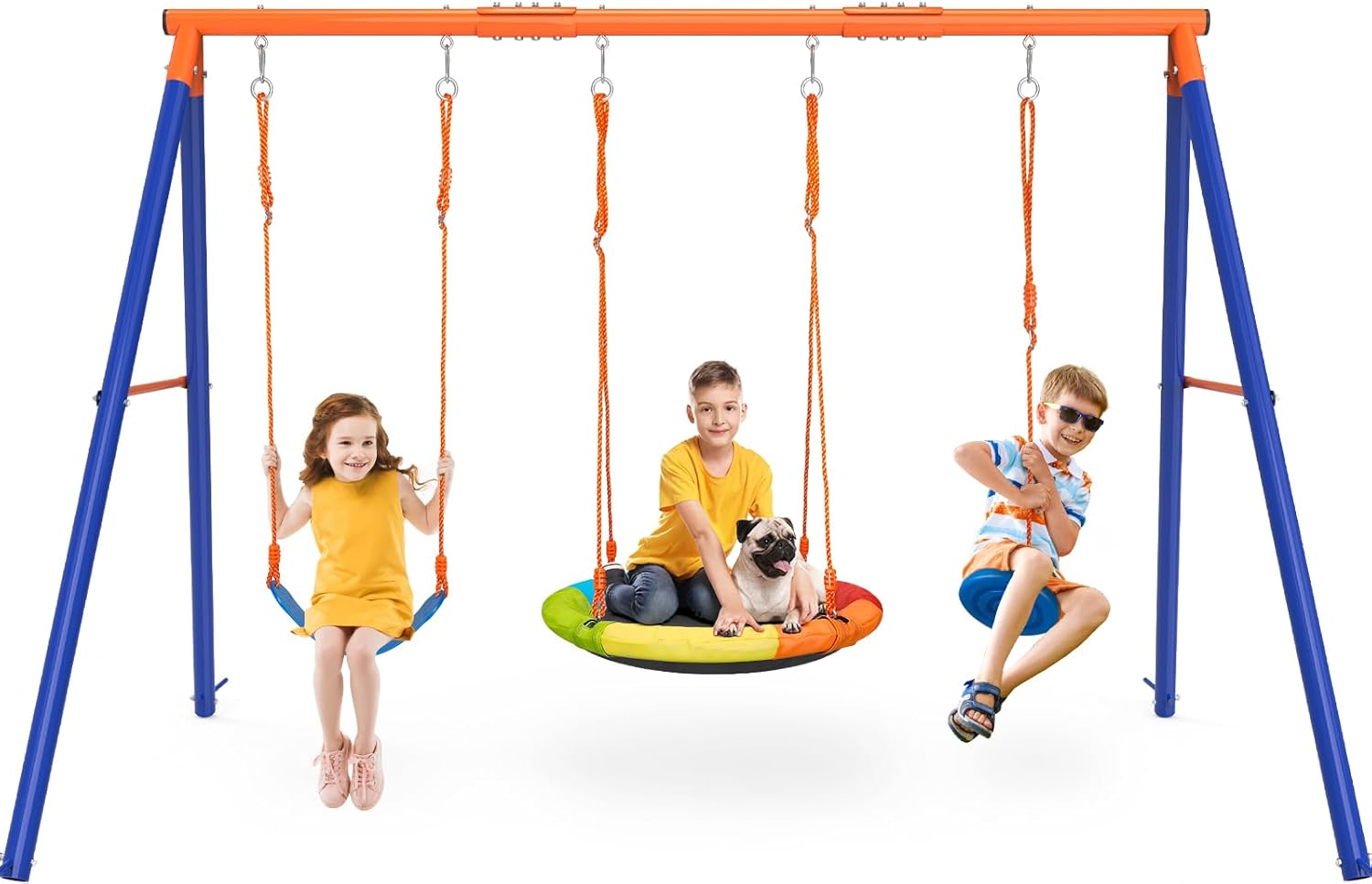

Image: The GIKPAL Triple Swing Set in use, showing children enjoying the various swing types.
2. Safety Information
Your child's safety is paramount. Adhere to all safety guidelines to prevent injury.
- Age and Weight Limits: This swing set is recommended for children aged 3 to 8 years. Each individual swing has a weight capacity of up to 165 pounds. The entire swing set has a maximum weight capacity of 440 pounds. Do not exceed these limits.
- Adult Supervision: Always ensure children are supervised by an adult while using the swing set.
- Proper Installation: Ensure the swing set is assembled correctly and securely anchored to the ground using the provided durable metal ground stakes.
- Clearance Area: Maintain a safe clearance area around the swing set, free from obstacles such as fences, trees, or other play equipment.
- Regular Inspection: Before each use, inspect all components for wear, damage, or loose connections. Pay close attention to ropes, chains, and frame integrity.
- Protective Features: The swing set features rubber-covered swing chains and child-friendly bolt caps for enhanced protection. Ensure these are in place and undamaged.
- Weather Conditions: Do not use the swing set during adverse weather conditions such as strong winds, heavy rain, or lightning.
3. Components Overview
The GIKPAL YCQQJ01 Triple Swing Set includes the following main components:
- Heavy-Duty Steel Frame: An A-shaped frame with a weather-resistant powder-coated finish, designed for stability and durability.
- Saucer Swing: One large saucer swing, providing a comfortable and spacious seating option.
- Swing Seat: One U-shaped swing seat for traditional swinging.
- Tree Swing Disc: One disc swing for dynamic play.
- Adjustable Ropes: All swings feature adjustable ropes for customizable height.
- Ground Stakes: Durable metal stakes for securing the frame to the ground.
Image: Illustration of the 3-in-1 design, showcasing the belt swing, tree swing disc, and saucer swing.
4. Setup and Assembly
Assembly of the GIKPAL YCQQJ01 Swing Set is designed to be straightforward. It is recommended to have at least two adults for assembly.
4.1. Preparation
- Unpack all components and verify against the parts list (refer to the included physical manual for a detailed list).
- Ensure you have the necessary tools (e.g., wrench, hammer).
- Choose a level, soft surface for installation, such as grass or wood chips, away from any hazards.
4.2. Frame Assembly
- Begin by assembling the A-frame structures. Connect the leg poles to the top bar using the reinforced metal gaskets and bolts.
- Attach the stable connecting rods between the A-frame legs for additional stability.
- Ensure all bolts are tightened securely, and child-friendly bolt caps are placed over exposed bolts.
Image: Detail of the sturdy A-frame structure.
Image: Stable connecting rods for enhanced frame stability.
Image: Reinforced metal gasket for secure connections.
4.3. Swing Attachment
- Attach the saucer swing, swing seat, and tree swing disc to the top bar using the provided hooks and adjustable ropes.
- Adjust the rope lengths to a suitable height for the intended users, ensuring feet can touch the ground when seated.
4.4. Ground Anchoring
- Once the frame is fully assembled and positioned, use the durable metal ground stakes to anchor each leg firmly into the ground.
- Drive the stakes into the ground at a 45-degree angle for maximum stability.
Image: Proper installation of durable metal ground stakes.
5. Operating Instructions
To ensure a safe and enjoyable experience, follow these operating guidelines:
- Supervision: Always ensure an adult is present to supervise children during play.
- Single User Per Swing: Only one child should use each swing type (saucer, seat, disc) at a time, except for the saucer swing which can accommodate multiple children within its weight limit.
- Proper Seating: Children should sit properly on the swings, holding onto the ropes or chains firmly.
- Avoid Over-Swinging: Do not allow children to swing excessively high or to twist the ropes, as this can cause instability or damage.
- Footwear: Encourage children to wear appropriate footwear to prevent slips and provide protection.
6. Maintenance
Regular maintenance will extend the life of your GIKPAL swing set and ensure continued safety.
- Monthly Inspection: At least once a month, check all nuts, bolts, and connections for tightness. Tighten any loose hardware.
- Rope and Chain Check: Inspect ropes and chains for fraying, wear, or damage. Replace any worn components immediately.
- Frame Integrity: Examine the metal frame for any signs of rust, cracks, or structural damage. The frame is constructed with weather-resistant stainless steel and powder coating for durability.
- Cleaning: Clean the swing set periodically with mild soap and water. Avoid harsh chemicals that could damage the finish.
- Ground Anchoring: Ensure ground stakes remain firmly in place. Re-secure if they become loose.
Image: Layers of the weather-resistant stainless steel frame construction.
7. Troubleshooting
Here are solutions to common issues you might encounter:
- Issue: Loose Connections: If the swing set feels wobbly or parts are loose, check all bolts and nuts. Tighten them securely using appropriate tools.
- Issue: Squeaking Noises: Apply a small amount of lubricant (e.g., silicone spray) to moving parts, such as swing hangers, to eliminate squeaking.
- Issue: Misaligned Holes During Assembly: In rare cases, some holes for bolts may not align perfectly. If this occurs, carefully use a drill to slightly widen or adjust the hole to allow for proper bolt insertion. Do not force components together.
- Issue: Swing Height Adjustment: If a swing is too high or too low, adjust the rope length by following the instructions in the assembly section or the physical manual.
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | GIKPAL |
| Model Number | YCQQJ01 |
| Product Dimensions (L x W x H) | 124.4"D x 68.5"W x 72.8"H |
| Frame Material | Metal (Heavy-Duty Steel) |
| Finish Type | Powder Coated |
| Item Weight | 43.6 pounds |
| Individual Swing Weight Capacity | 165 pounds per seat |
| Total Swing Set Weight Capacity | 440 pounds |
| Recommended Age | 3-8 years |
| Assembly Required | Yes |
Image: Detailed product dimensions and weight capacities.
9. Warranty Information
The GIKPAL YCQQJ01 Triple Swing Set comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper assembly, misuse, neglect, accidents, or unauthorized modifications.
10. Customer Support
If you have any questions regarding the assembly, operation, maintenance, or troubleshooting of your GIKPAL YCQQJ01 Triple Swing Set, please do not hesitate to contact GIKPAL customer service. Refer to the contact information provided with your purchase documentation or visit the official GIKPAL website for support.
