1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your BIVVI Tilt Out Laundry Hamper Sorter Cabinet. Please read these instructions carefully before assembly and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Image 1.1: Front view of the BIVVI Tilt Out Laundry Hamper Sorter Cabinet. This image displays the cabinet's two tilt-out doors and semi-circular handles, showcasing its compact and functional design.
2. Safety Information
- Always follow all assembly instructions carefully to prevent injury or damage to the product.
- Ensure the anti-tipping device is securely installed to a wall stud or appropriate anchor point to prevent the cabinet from tipping over, especially in households with children or pets.
- Do not overload the laundry hampers or the top surface of the cabinet. Refer to the 'Specifications' section for maximum load capacities.
- Keep the cabinet away from open flames, excessive heat sources, and prolonged direct sunlight.
- Avoid exposing the cabinet to excessive moisture or standing water, despite its waterproof surface, to maintain its structural integrity.
- Do not allow children to climb on or play with the cabinet.

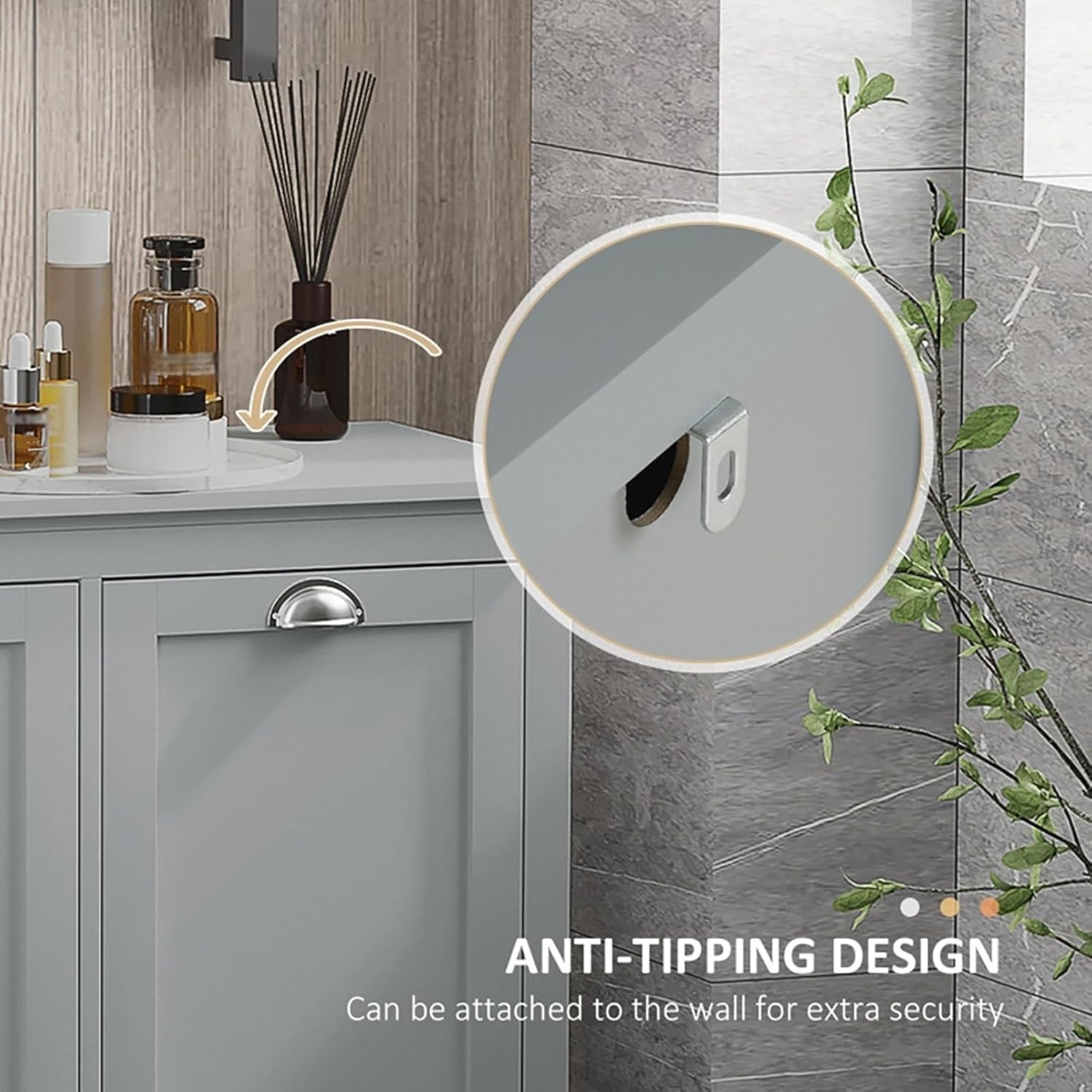

Image 2.1: Detail of the anti-tipping design. This image highlights the bracket on the back of the cabinet, which is designed to be secured to a wall for enhanced stability and safety.
3. Package Contents
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 1 x BIVVI Tilt Out Laundry Sorter Cabinet Unit (main frame)
- 2 x Independent Tilt-Out Laundry Baskets (integrated into doors)
- Assembly Hardware (screws, dowels, cam locks, etc.)
- Anti-Tipping Hardware (wall anchor, strap/bracket)
- 1 x Instruction Manual (this document)
4. Setup and Assembly
Assembly is required for this product. It is recommended to have two people for easier and safer assembly. A Phillips head screwdriver and a hammer may be required (not included).
4.1. Preparation
- Clear a spacious, clean, and flat area for assembly.
- Unpack all components and lay them out, comparing them against the parts list in the manual.
- Keep all hardware organized and within reach.
4.2. Assembly Steps
Follow the detailed step-by-step diagrams provided in the included paper manual for precise assembly. General steps include:
- Assemble the side panels to the base and top panels using the provided hardware.
- Attach the back panel to stabilize the frame.
- Assemble the tilt-out door mechanisms and attach them to the main cabinet frame.
- Install the semi-circular handles onto the tilt-out doors.
- Attach the anti-tipping hardware to the back of the cabinet and secure it to a wall.
5. Operating Instructions
The BIVVI Tilt Out Laundry Hamper Sorter Cabinet is designed for convenient and discreet laundry storage.
5.1. Using the Tilt-Out Hampers
- To access a laundry hamper, gently pull the semi-circular handle on the front of the desired door. The door will tilt forward, providing access to the integrated laundry basket.
- Place dirty clothes into the basket. The two independent compartments allow for easy sorting of laundry, such as separating lights from darks.
- To close the hamper, push the door back into the upright position until it is flush with the cabinet frame. Ensure it is fully closed to maintain a tidy appearance.
Image 5.1: Operation of the tilt-out hampers. This image demonstrates both cabinet doors tilted open, revealing the internal laundry baskets and illustrating the ease of access for sorting clothes.
6. Maintenance
Proper care and maintenance will extend the life of your BIVVI laundry cabinet.
- Cleaning: Wipe all surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth. Avoid harsh chemicals or abrasive cleaning tools.
- Moisture Protection: While the cabinet features a waterproof surface, it is important to wipe up any spills or moisture promptly to prevent damage to the MDF material.
- Hardware Check: Periodically check all screws, hinges, and connections to ensure they remain tight. Tighten any loose hardware as needed.
- Anti-Tipping Device: Regularly inspect the anti-tipping device to ensure it is still securely attached to both the cabinet and the wall.
7. Troubleshooting
If you encounter any issues with your BIVVI Tilt Out Laundry Hamper Sorter Cabinet, refer to the following common problems and solutions:
- Cabinet is Wobbly:
- Ensure all assembly screws are fully tightened.
- Verify that the cabinet is placed on a level surface.
- Confirm the anti-tipping device is properly installed and secured to the wall.
- Tilt-Out Doors Do Not Close or Open Smoothly:
- Check for any obstructions inside the hamper or around the door mechanism.
- Ensure the hinges and pivot points are free of debris and properly aligned.
- Verify that the assembly of the tilt-out mechanism was performed correctly according to the manual.
- Damage to Surface:
- Minor scratches can sometimes be touched up with furniture repair pens matching the grey finish.
- For significant damage, contact customer support for advice.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | BIVVI |
| Model Name | Tilt-Out Laundry Sorter Cabinet |
| Model Number | laundry-hampers |
| Color | Grey |
| Product Dimensions (W x D x H) | 30" x 15.75" x 27.5" |
| Compartment Dimensions (W x D x H) | 11.75" x 12.75" x 17.75" (each) |
| Material | MDF (Engineered Wood) |
| Max Load (Total) | 132 lbs |
| Max Load (Each Tier/Hamper) | 11 lbs |
| Special Feature | Waterproof (surface) |
| Mounting Type | Floor Mount (with anti-tipping wall attachment) |
Image 8.1: Product dimensions. This diagram illustrates the overall width (30"), depth (15.75"), and height (27.5") of the cabinet, along with maximum load capacities.
9. Warranty and Support
9.1. Warranty Information
Specific warranty details for the BIVVI Tilt Out Laundry Hamper Sorter Cabinet may vary. Please refer to your purchase documentation or contact the seller directly for comprehensive warranty terms and conditions.
9.2. Customer Support
Should you have any questions regarding the assembly, operation, or maintenance of your BIVVI laundry hamper cabinet, please do not hesitate to contact our customer support team. We are committed to providing assistance and will respond to inquiries promptly.
