perfektGarten 46.7 cm Lawn Mower Blade Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your perfektGarten 46.7 cm lawn mower blade. Please read these instructions carefully before use and retain them for future reference. Proper installation and maintenance are crucial for optimal performance and safety.

2. Product Overview

The perfektGarten 46.7 cm lawn mower blade is a high-quality replacement component designed for specific Mr Gardener lawn mower models. It features a high-wing design for efficient grass collection and a geometry optimized for effective cutting, even with side-discharge mowers. The blade is constructed from certified 50CrV4 steel, ensuring durability and a long service life.

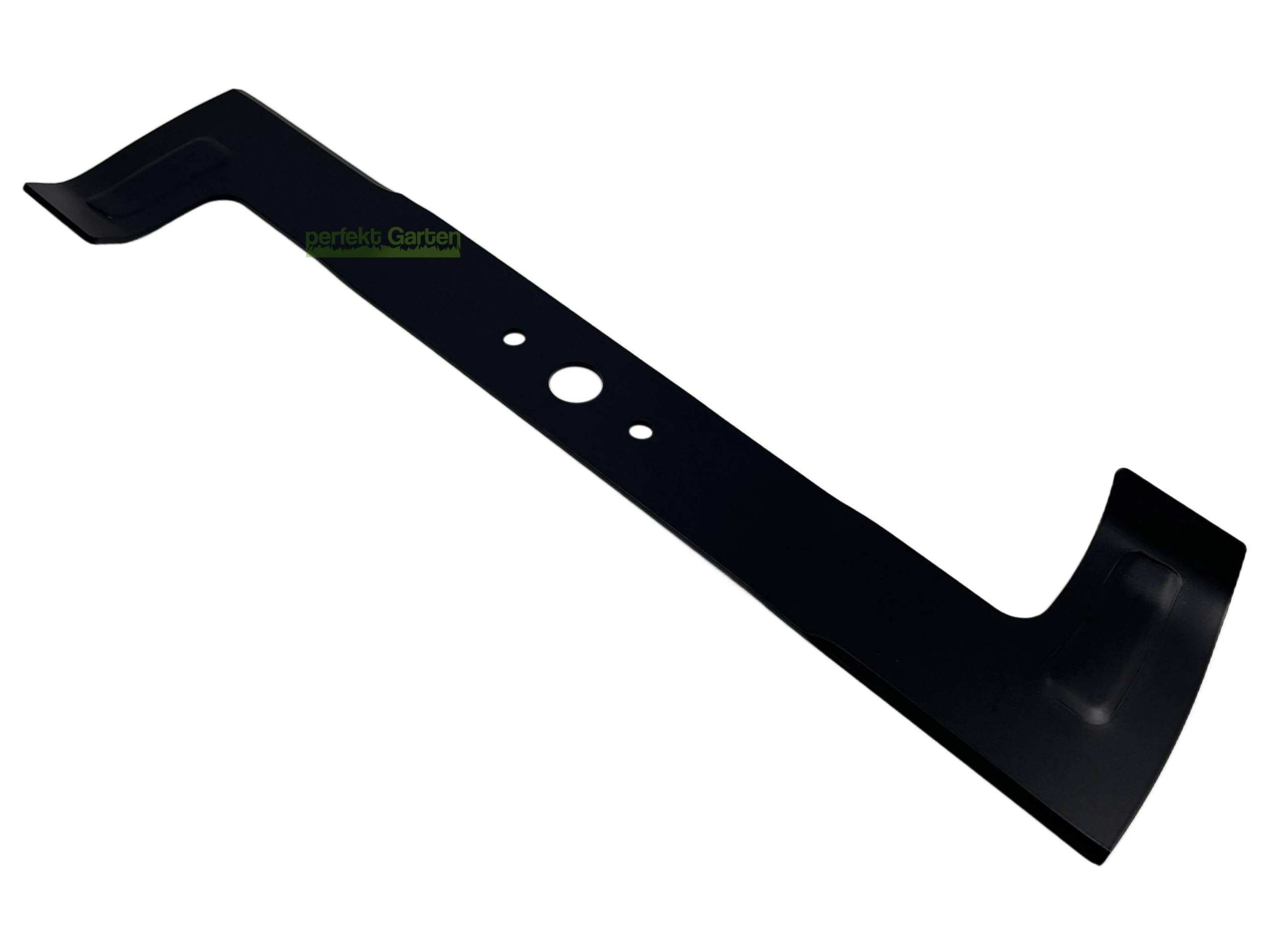

Figure 1: perfektGarten 46.7 cm Lawn Mower Blade. This image shows the black metal blade with its distinctive high-wing curve and mounting holes.

3. Compatibility

This blade is compatible with the following Mr Gardener lawn mower models:

• Mr Gardener 1647 P
• Mr Gardener 4047 P
• Mr Gardener 4047 P2
• Mr Gardener 4047 T
• Mr Gardener 4547 TE
• Mr Gardener 4047 T2

Always verify the dimensions of your existing blade against the specifications provided in Section 6 to ensure proper fitment.

4. Setup and Installation

Safety First: Always disconnect the spark plug wire (for gasoline mowers) or remove the battery/unplug the power cord (for electric mowers) before performing any maintenance or installation. Wear heavy-duty gloves to protect your hands from sharp edges.

1. Prepare the Mower: Tilt the mower onto its side with the carburetor/air filter facing upwards to prevent fuel or oil leakage. Secure the mower to prevent it from tipping over.
2. Remove Old Blade: Use a block of wood to wedge between the old blade and the mower deck to prevent the blade from turning. Using a wrench, loosen the blade bolt(s) by turning counter-clockwise. Remove the old blade, washer(s), and bolt(s). Note the orientation of the old blade for correct installation of the new one.
3. Clean Mounting Area: Clean any grass clippings or debris from the blade mounting area on the mower shaft.
4. Install New Blade: Position the new perfektGarten blade onto the mower shaft, ensuring the cutting edges face the correct direction (typically towards the ground when the mower is upright). The high-wing side should face upwards towards the mower deck. Align the center hole and any outer holes with the corresponding pins or bolts on the mower.
5. Secure Blade: Reinstall the washer(s) and blade bolt(s). Use the block of wood again to secure the blade. Tighten the blade bolt(s) securely with a wrench, turning clockwise. Refer to your mower's specific manual for torque specifications if available.
6. Final Check: Ensure the blade is firmly attached and spins freely without wobbling. Reconnect the spark plug wire or power source.

5. Operating Considerations

Once the new blade is installed, operate your lawn mower according to its manufacturer's instructions. A sharp, balanced blade like the perfektGarten blade ensures a clean cut, which promotes healthier grass and reduces strain on your mower's engine. Avoid mowing over rocks, roots, or other hard objects that can damage the blade.

6. Maintenance

Regular inspection and maintenance of your blade will extend its lifespan and maintain cutting performance.

• Cleaning: After each use, disconnect the power source and carefully clean grass clippings and debris from the blade and underside of the mower deck.
• Inspection: Periodically inspect the blade for signs of wear, nicks, bends, or cracks. A damaged blade can cause vibration, poor cutting, and be dangerous. Replace severely damaged blades immediately.
• Sharpening: The blade can be sharpened using a file or grinding wheel. Maintain the original cutting angle. After sharpening, ensure the blade is properly balanced to prevent excessive vibration. An unbalanced blade can damage the mower.
• Replacement: For optimal performance and safety, it is recommended to replace your lawn mower blade at least once per season, or more frequently if it shows significant wear or damage.

7. Specifications

The perfektGarten 46.7 cm lawn mower blade (Model 311) features the following dimensions:

Figure 2: Technical diagram illustrating the blade's dimensions, including length (L), center hole (ZB), outer hole (AL), and distance between holes (AB).

8. Warranty and Support

For warranty information or technical support regarding your perfektGarten lawn mower blade, please contact the retailer or manufacturer directly. Ensure you have your purchase details and product model number (311) available when contacting support.
