ECO-WORTHY 12V 280Ah LiFePO4 Lithium Battery User Manual

1. Introduction

Thank you for choosing the ECO-WORTHY 12V 280Ah LiFePO4 Lithium Battery. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your battery. Please read this manual thoroughly before use and keep it for future reference.

This battery is designed for a wide range of applications including RVs, off-grid solar systems, home backup, UPS systems, and marine use, offering superior performance and a long cycle life compared to traditional lead-acid batteries.

Image 1.1: The ECO-WORTHY 12V 280Ah LiFePO4 Lithium Battery, showcasing its compact design and branding.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to the battery and connected equipment:

• Do not short-circuit the battery terminals.
• Do not expose the battery to fire or extreme heat.
• Do not immerse the battery in water.
• Use only compatible chargers designed for LiFePO4 batteries.
• Ensure proper ventilation during charging and discharging.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling the battery.
• Keep out of reach of children.

3. Product Overview

The ECO-WORTHY 12V 280Ah LiFePO4 battery is engineered for high performance and durability. It features a built-in Battery Management System (BMS) for optimal safety and longevity.

3.1 Key Features

• Lightweight and Easy Installation: Significantly lighter than lead-acid batteries of the same capacity, making transport and installation more convenient.
• Long Cycle Life: Offers over 6,000 deep charge/discharge cycles, providing a lifespan of up to 15 years.
• High Energy Density: Delivers 3,584 Wh of energy.
• Expandable Capacity: Supports unlimited parallel connections for increased capacity, and up to 4 series connections (4S4P for 16 batteries total) for higher voltage systems.
• Built-in BMS: Ensures protection against overcharge, over-discharge, overcurrent, and short circuits.
• Excellent Low Temperature Performance: Capable of discharging at temperatures as low as -20°C without damage.

3.2 Dimensions and Weight

The battery's physical specifications are crucial for planning installation space.

• Dimensions (L x W x H): 53.3 x 24.1 x 22.4 cm (20.98 x 9.49 x 8.82 inches)
• Weight: 28.5 kg (62.83 lbs)

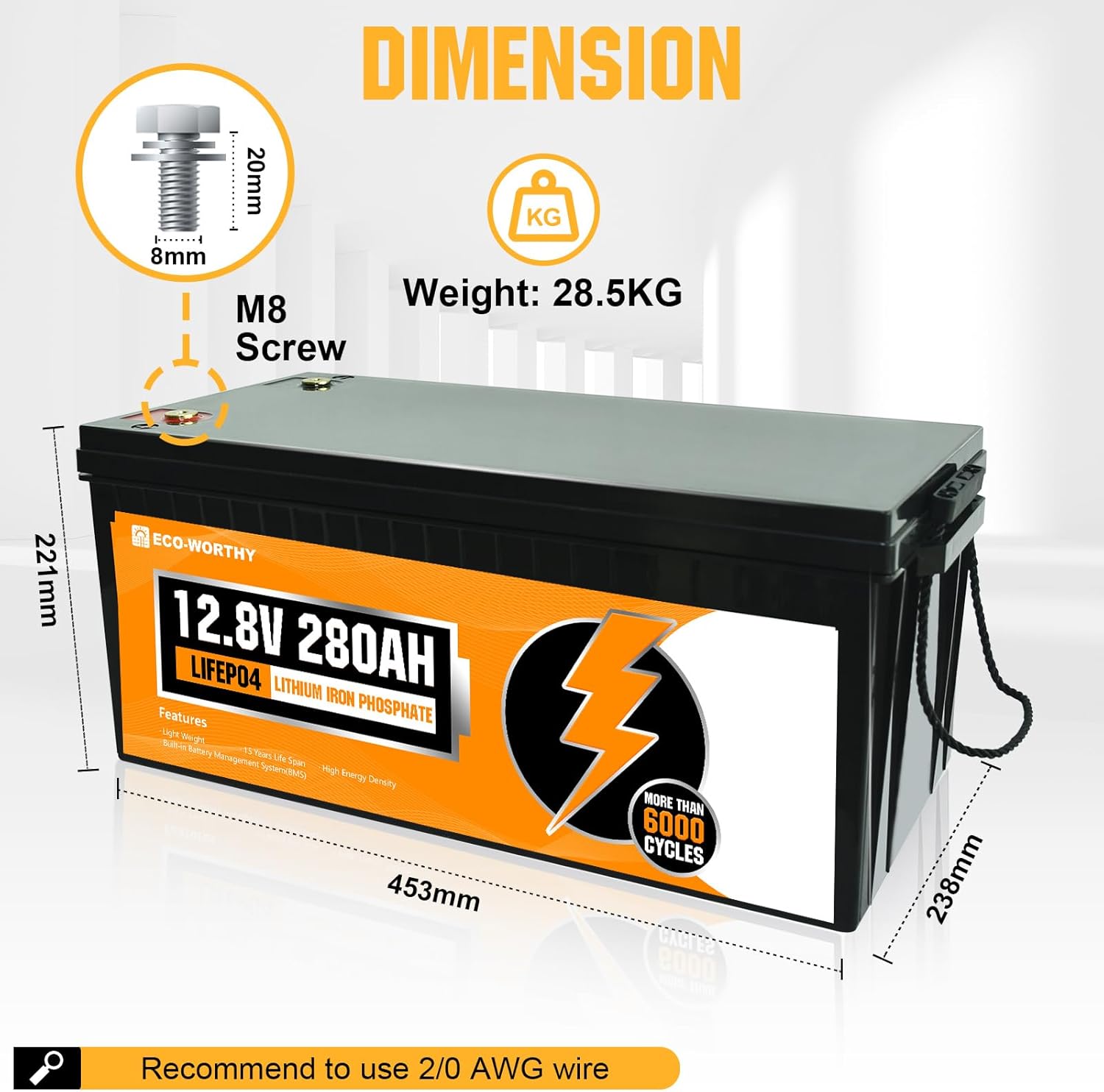

Image 3.1: Detailed dimensions of the ECO-WORTHY 12V 280Ah LiFePO4 battery, including M8 screw size.

3.3 Internal Components

The battery is constructed with high-quality Grade A cells and a robust 200A BMS for reliable performance and safety.

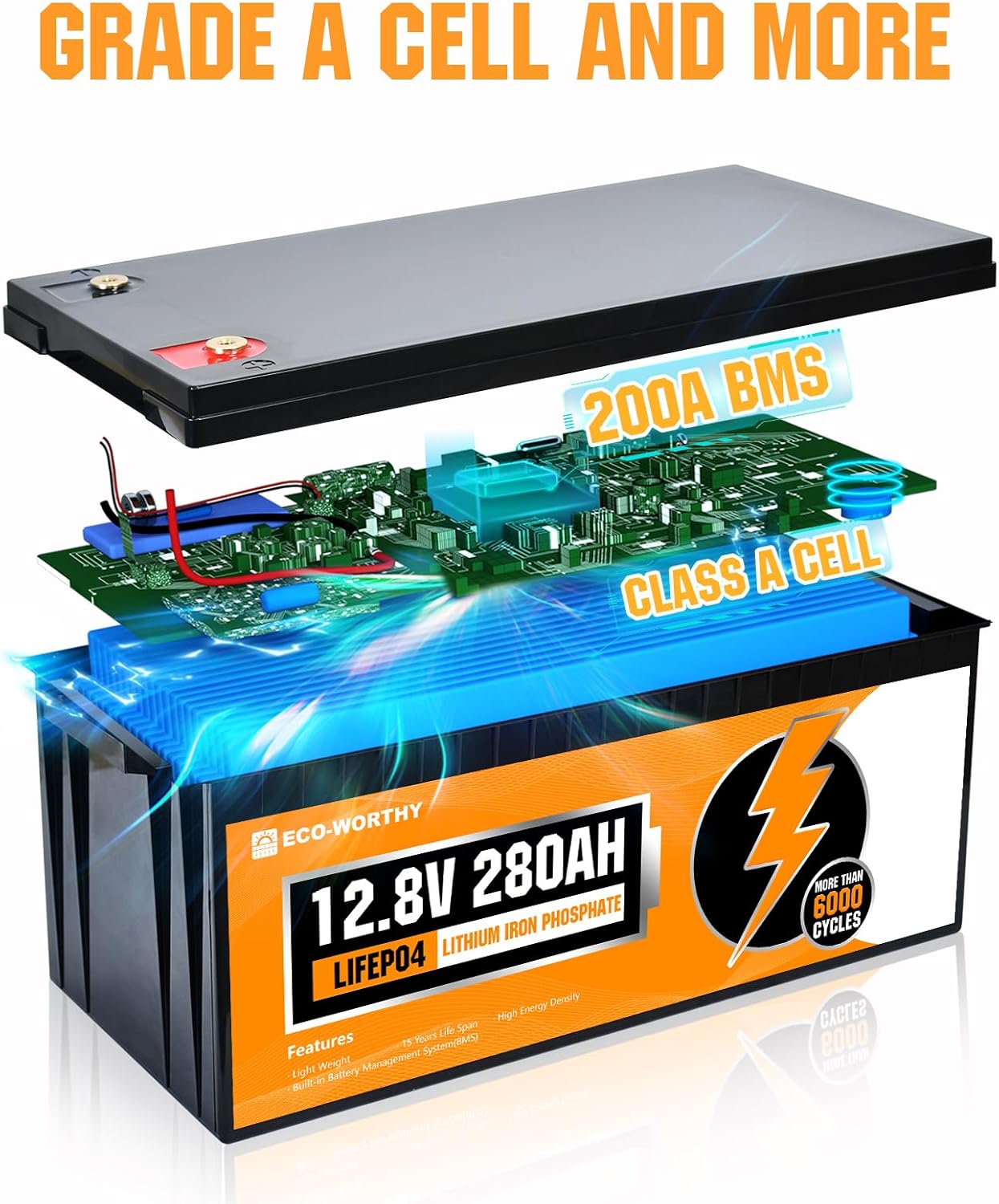

Image 3.2: An exploded view illustrating the internal structure, highlighting the 200A BMS and Grade A cells.

4. Setup and Installation

Proper setup is essential for the battery's performance and safety.

4.1 Connection Guidelines

This battery can be connected in parallel for increased capacity and in series for higher voltage applications. For parallel connections, there is no limit to the number of batteries. For series connections, up to 4 batteries can be connected (4S).

Image 4.1: Illustration of a battery bank setup, demonstrating how multiple batteries can be connected for expanded capacity up to 57.34 kWh.

Important Note: Using a single large capacity battery like the 280Ah model can prevent the 'battery barrel effect' often seen with multiple smaller batteries connected in parallel, which can lead to energy loss if capacities differ.

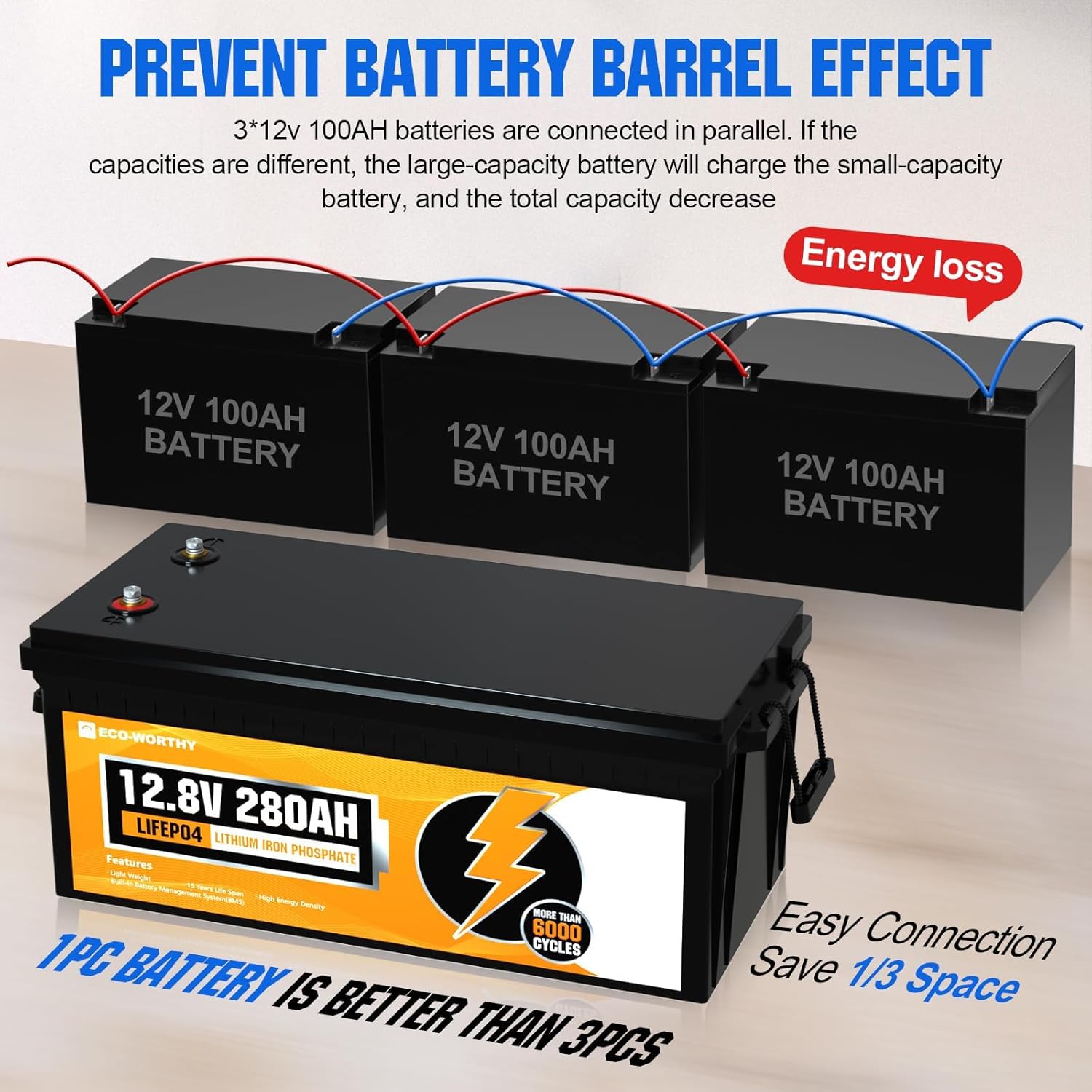

Image 4.2: Visual explanation of how a single 280Ah battery is more efficient and space-saving than three 100Ah batteries in parallel, avoiding energy loss.

4.2 Wiring Recommendations

It is recommended to use 2/0 AWG wire for connections to ensure optimal current flow and minimize resistance.

5. Operating the Battery

Understanding how to charge and utilize your battery effectively is key to maximizing its performance.

5.1 Charging Recommendations

The ECO-WORTHY 12V 280Ah LiFePO4 battery can be charged using various methods:

• Dedicated LiFePO4 Charger: A 12V 20A LiFePO4 battery charger will fully charge the battery in approximately 14 hours.
• Solar Panel System: A 600W solar panel setup can charge the battery in about 6 hours.
• DC Generator: A 20A DC generator can charge the battery in approximately 14 hours.

Ensure the charging voltage is set to 14.6V and the battery mode is set to Lithium or LiFePO4 on your charger or charge controller.

Image 5.1: Visual guide to the three primary charging methods: dedicated charger, solar panel with charge controller, and DC generator with DC-DC charger.

5.2 Discharge Performance

The battery provides 3,584 Wh of reliable energy, suitable for powering various household appliances and devices.

Image 5.2: Examples of household appliances and their estimated run times with the 3584Wh battery, such as a refrigerator (150W) for 80-95 hours or a coffee maker (2000W) for 88-99 cups.

The battery exhibits excellent performance even in low temperatures, capable of discharging down to -20°C without damage. The recommended charging temperature range is 0°C to 55°C.

Image 5.3: Illustration highlighting the battery's ability to discharge effectively at -20°C, emphasizing its high-quality cells.

5.3 Applications

This versatile battery is suitable for a wide array of applications:

• Recreational Vehicles (RVs) and Campers
• Off-grid Solar Energy Systems
• Uninterruptible Power Supplies (UPS)
• Golf Carts
• Marine Applications (Boats, Caravans)
• Home Backup Power

Image 5.4: Collage depicting diverse applications for the ECO-WORTHY LiFePO4 battery, including camping, marine, golf carts, and personal mobility devices.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your LiFePO4 battery.

• Regular Inspection: Periodically check the battery terminals for corrosion and ensure connections are secure.
• Cleanliness: Keep the battery clean and free from dust and debris. Use a dry cloth for cleaning.
• Temperature Control: Operate and store the battery within the recommended temperature ranges (Discharge: -20°C to 60°C; Charge: 0°C to 55°C; Storage: -10°C to 50°C).
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place. Recharge every 3-6 months to prevent self-discharge.
• BMS Protection: The integrated BMS protects the battery from common issues, but it is still important to follow charging and discharging guidelines.

7. Troubleshooting

If you encounter issues with your ECO-WORTHY LiFePO4 battery, consider the following common troubleshooting steps:

• Battery Not Charging:
  • Verify that the charger is compatible with LiFePO4 batteries and is properly connected.
  • Check the charging voltage and current settings.
  • Ensure the battery temperature is within the charging range (0°C to 55°C).
• Battery Not Discharging/No Output:
  • Check all connections for looseness or corrosion.
  • Ensure the load is within the battery's maximum continuous discharge current (200A) and peak current (850A).
  • The BMS may have activated a protection mode (e.g., over-discharge, overcurrent). Disconnect the load and attempt to recharge the battery to reset the BMS.
• Reduced Capacity:
  • Ensure the battery is being fully charged.
  • Verify that the ambient temperature is suitable for optimal performance.

If problems persist after following these steps, please contact ECO-WORTHY customer support for further assistance.

8. Specifications

Detailed technical specifications for the ECO-WORTHY 12V 280Ah LiFePO4 Battery:

Image 8.1: A visual representation of the battery's safety features and key specifications, emphasizing the role of the BMS.

9. Warranty and Support

ECO-WORTHY stands behind the quality of its products. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official ECO-WORTHY website.

If you require technical assistance, have questions about installation, or need to report an issue, please contact ECO-WORTHY customer support. Our team is dedicated to providing prompt and helpful service.

Contact Information: Please visit ECO-WORTHY's official store page or their dedicated support channels for the most up-to-date contact details.
