HOMCOM Portable Electric Clothes Dryer

1. Introduction

Thank you for purchasing the HOMCOM Portable Electric Clothes Dryer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, follow these basic precautions:

• Read all instructions before using the appliance.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they emit vapors that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door to the drying compartment.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this manual.
• Always disconnect the appliance from the power supply before cleaning or performing any maintenance.
• Ensure the power cord is not damaged and is properly grounded.

Figure 2.1: Automatic Safety Stop Feature. The dryer automatically stops operation if the door is opened during a cycle, enhancing user safety, especially around children.

3. Product Overview

3.1 Components

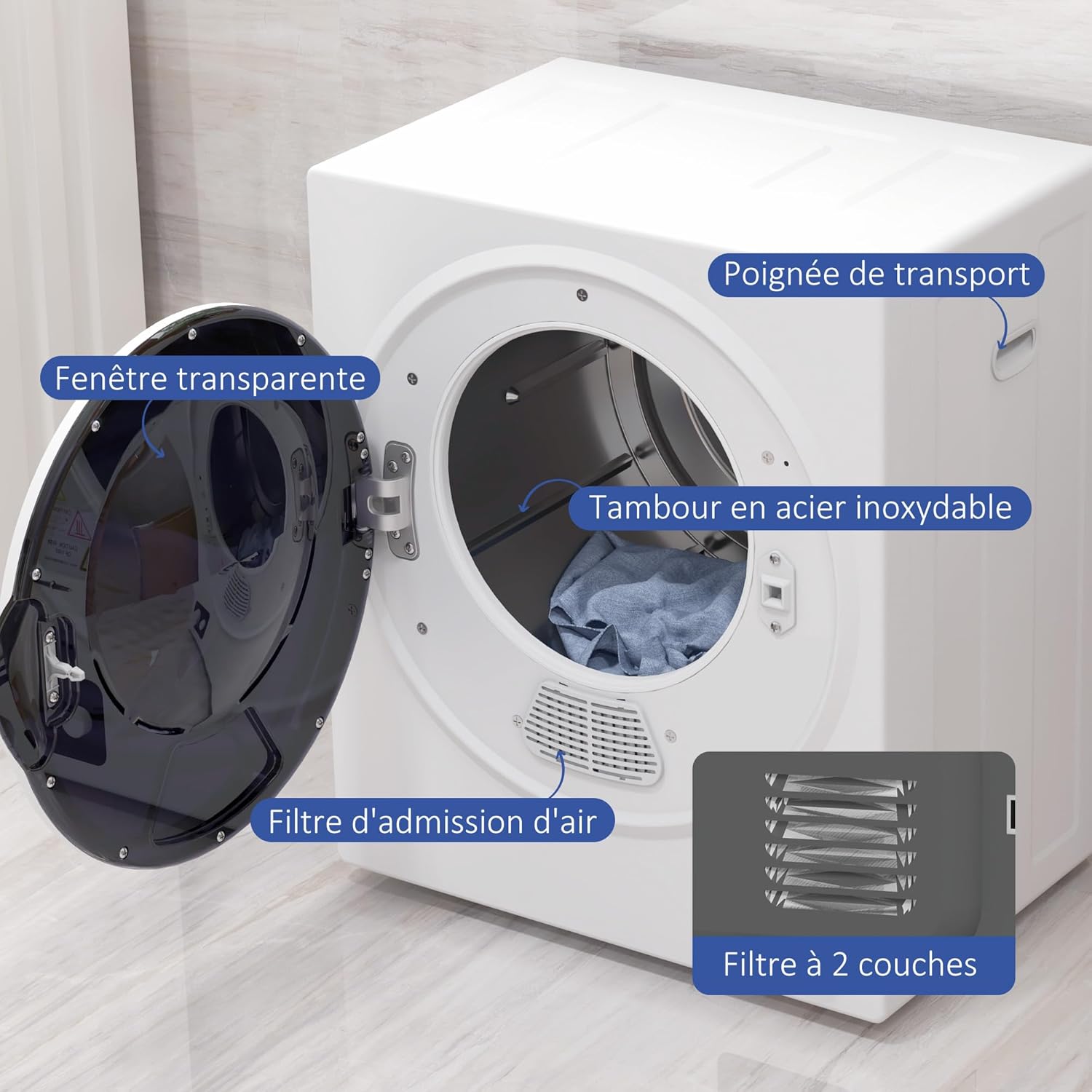

Figure 3.1: Key Components. This diagram highlights the main parts of the dryer, including the transparent viewing window, transport handle, durable stainless steel drum, and the two-layer lint filter system.

• Transparent Window: Allows observation of the drying process.
• Transport Handle: Integrated handle for easier portability.
• Stainless Steel Drum: Durable interior for efficient drying.
• Air Intake Filter: Collects lint and debris, ensuring clean air circulation.
• Two-Layer Filter: An advanced filtration system to effectively capture lint.

3.2 Specifications

Figure 3.2: Product Dimensions. This image illustrates the compact dimensions of the dryer, making it suitable for various living spaces.

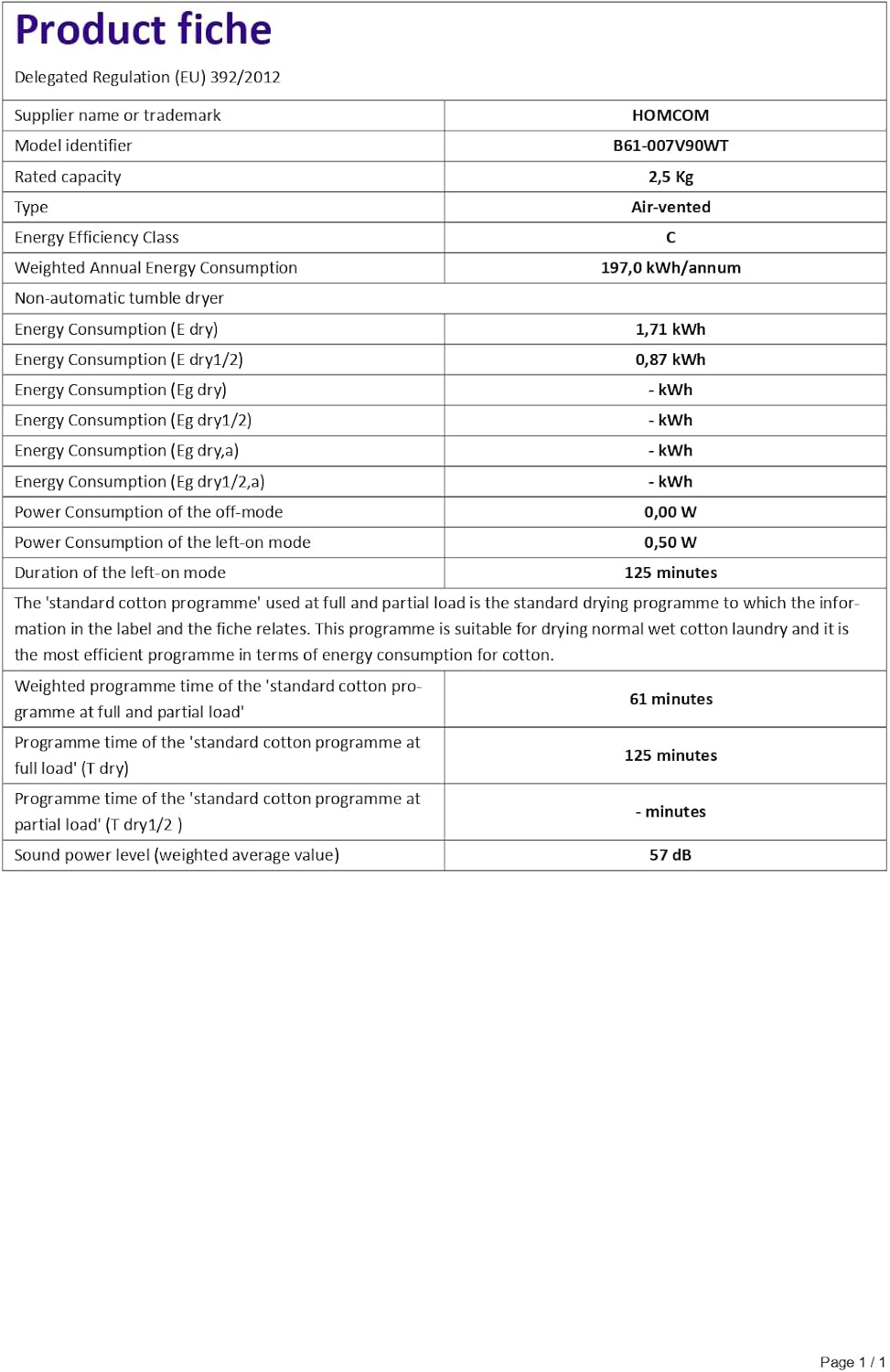

Figure 3.3: Product Fiche. Detailed technical specifications and energy efficiency information for the dryer.

4. Setup and Installation

4.1 Placement Options

The HOMCOM Portable Electric Clothes Dryer offers versatile placement options to suit your living space:

• Freestanding: Place the dryer on a sturdy, level floor.
• Stackable: It can be stacked on top of a washing machine. Ensure the washing machine is stable and can support the dryer's weight.
• Wall-Mounted: The dryer can be mounted on a wall using the included brackets and screws. Ensure the wall is strong enough to support the appliance.

Figure 4.1: Versatile Placement Options. The dryer can be used freestanding, stacked on a washing machine, or wall-mounted to save space.

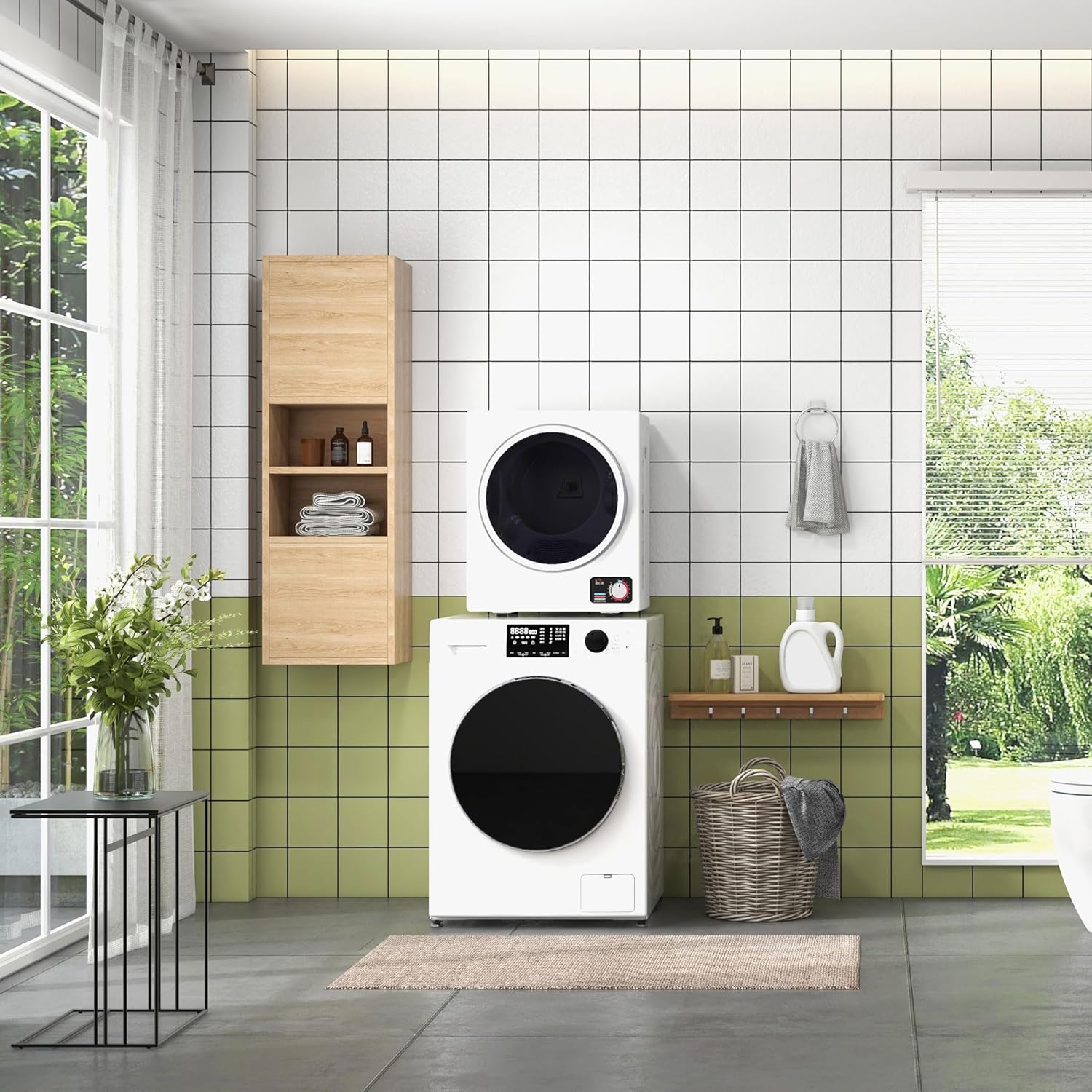

Figure 4.2: Stacked Placement Example. An example of the dryer placed on a sturdy surface above a washing machine, demonstrating a common space-saving setup.

Figure 4.3: Laundry Room Setup. Another view of the dryer integrated into a laundry room, showcasing its compact design.

4.2 Installation Steps

1. Unpacking: Carefully remove the dryer from its packaging. Inspect for any shipping damage.
2. Positioning: Choose a suitable location based on the placement options above. Ensure adequate ventilation around the dryer.
3. Leveling: Ensure the dryer is level to prevent excessive vibration and noise during operation. Adjust the feet if necessary.
4. Power Connection: Plug the dryer into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements.
5. Wall Mounting (Optional): If wall-mounting, follow the instructions provided with the mounting brackets. Securely attach the brackets to a wall stud or use appropriate wall anchors.

5. Operating Instructions

5.1 Control Panel

Figure 5.1: Control Panel. The main control dial allows selection of drying modes and time settings.

The dryer features a simple rotary dial for selecting drying modes and time. The dial includes settings for different drying intensities and durations.

5.2 Drying Modes

This electric dryer offers 4 distinct drying programs to meet various fabric needs:

Figure 5.2: Drying Modes and Durations. A visual guide to the available drying programs and their recommended time ranges.

• Air Dry (0-80 minutes): For delicate items or refreshing clothes without heat.
• Anti-Wrinkle (30-60 minutes): Helps reduce wrinkles in fabrics.
• Warm (60-120 minutes): Suitable for everyday items requiring moderate heat.
• Hot (120-200 minutes): For heavier fabrics and items requiring thorough drying.

Note on capacity: To optimize drying speed, do not load more than 2.5 kg of dry clothes at a time.

5.3 Loading the Dryer

1. Sort laundry by fabric type and desired drying mode.
2. Open the dryer door.
3. Place items loosely into the drum. Do not overload the dryer, as this can hinder drying performance and cause wrinkles.
4. Close the dryer door firmly.

5.4 Starting a Cycle

1. Ensure the dryer is plugged in and the door is closed.
2. Turn the control dial to select the desired drying mode and time.
3. The dryer will begin operation.

5.5 Ending a Cycle

The dryer will automatically stop when the selected time has elapsed. Carefully open the door and remove your dry laundry. For best results, remove items promptly to minimize wrinkling.

6. Maintenance

6.1 Cleaning the Lint Filter

The two-layer filter effectively traps lint. For optimal drying performance and to prevent fire hazards, clean the lint filter after every load.

1. Ensure the dryer is unplugged.
2. Open the dryer door.
3. Locate the lint filter, typically at the bottom of the drum opening.
4. Remove the filter and gently peel off any accumulated lint.
5. Rinse the filter with water if necessary, and ensure it is completely dry before reinserting.
6. Reinsert the clean filter firmly into its slot.

6.2 General Cleaning

• Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
• Interior Drum: Occasionally wipe the interior drum with a damp cloth. If stains occur, use a mild soap solution and rinse thoroughly.
• Ventilation: Ensure the air intake and exhaust vents are clear of obstructions.

7. Troubleshooting

Before contacting customer support, please refer to the following common issues and their solutions:

8. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact HOMCOM customer service. Keep your proof of purchase for any warranty claims.

Manufacturer: HOMCOM

Model Number: B61-007V90WT
