FRESQA Lithium Electric Lawn Mower User Manual

Introduction

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your FRESQA Lithium Electric Lawn Mower. Please read this manual thoroughly before using the product to ensure proper handling and to maximize its lifespan.

The FRESQA Lithium Electric Lawn Mower is a multifunctional handheld tool designed for trimming lawns, shrubs, and garden branches. It features a powerful brushless motor, adjustable length, and multiple cutting attachments for various tasks.

Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or damage to the product.

• Wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and sturdy footwear.
• Ensure the work area is clear of debris, rocks, and other objects that could be thrown by the blade.
• Keep children and bystanders at a safe distance from the operating area.
• Do not operate the mower in wet conditions or rain.
• Always disconnect the battery before performing any maintenance, cleaning, or blade changes.
• Use only FRESQA approved replacement parts and accessories.
• Familiarize yourself with the location and function of the safety switch and start switch before operation.

Figure 1: Location of the Safety Switch and Start Switch on the handle for safe operation.

Product Components

The FRESQA Lithium Electric Lawn Mower comes with several key components and accessories to facilitate various trimming tasks.

Figure 2: Overview of the main components including the main unit, alloy saw blade, straight blades, beating grass heads, internal hexagonal wrench, and battery with charger.

• Main Unit: Handheld motor and shaft assembly.
• Alloy Saw Blade: 1 piece, suitable for cutting crops and shrubs.
• Straight Blade: 2 pieces, suitable for cutting complex terrain weeds.
• Beating Grass Heads: 5 pieces, suitable for cutting soft and tender grass.
• Internal Hexagonal Wrench: For assembly and adjustments.
• Lithium Batteries: 2 original 10 lithium batteries (1500mAh battery cell each).
• Battery Charger: For fast charging of the lithium batteries.

Setup and Assembly

The FRESQA Lithium Electric Lawn Mower requires some assembly before first use. Follow these steps carefully.

1. Charge the Battery: Before initial use, fully charge both lithium batteries using the provided charger. Insert the battery into the charger and plug the charger into a standard power outlet. The charging indicator will show when charging is complete.
2. Attach the Handle: Secure the auxiliary handle to the main shaft at a comfortable position for optimal balance and control.
3. Install the Protective Barrier: Attach the sharp blade protective barrier to the cutting head assembly. This prevents grass and debris from splashing during operation.
4. Select and Install Cutting Attachment:
   • For heavy-duty cutting (crops, shrubs), install the Alloy Saw Blade.
   • For complex terrain weeds, install the Straight Blade.
   • For soft grass, install the Beating Grass Head.
   Ensure the chosen attachment is securely fastened using the internal hexagonal wrench.
5. Adjust Length: The trimmer's length can be adjusted from 100 cm to 135 cm. Use the length adjustment buckle on the shaft to set the desired height for comfortable operation and precise trimming.
6. Adjust Head Angle: The cutting head angle can be adjusted to reach difficult areas, such as under trees or around flower beds. Press the adjustment button near the cutting head and pivot to the desired angle, then release to lock.

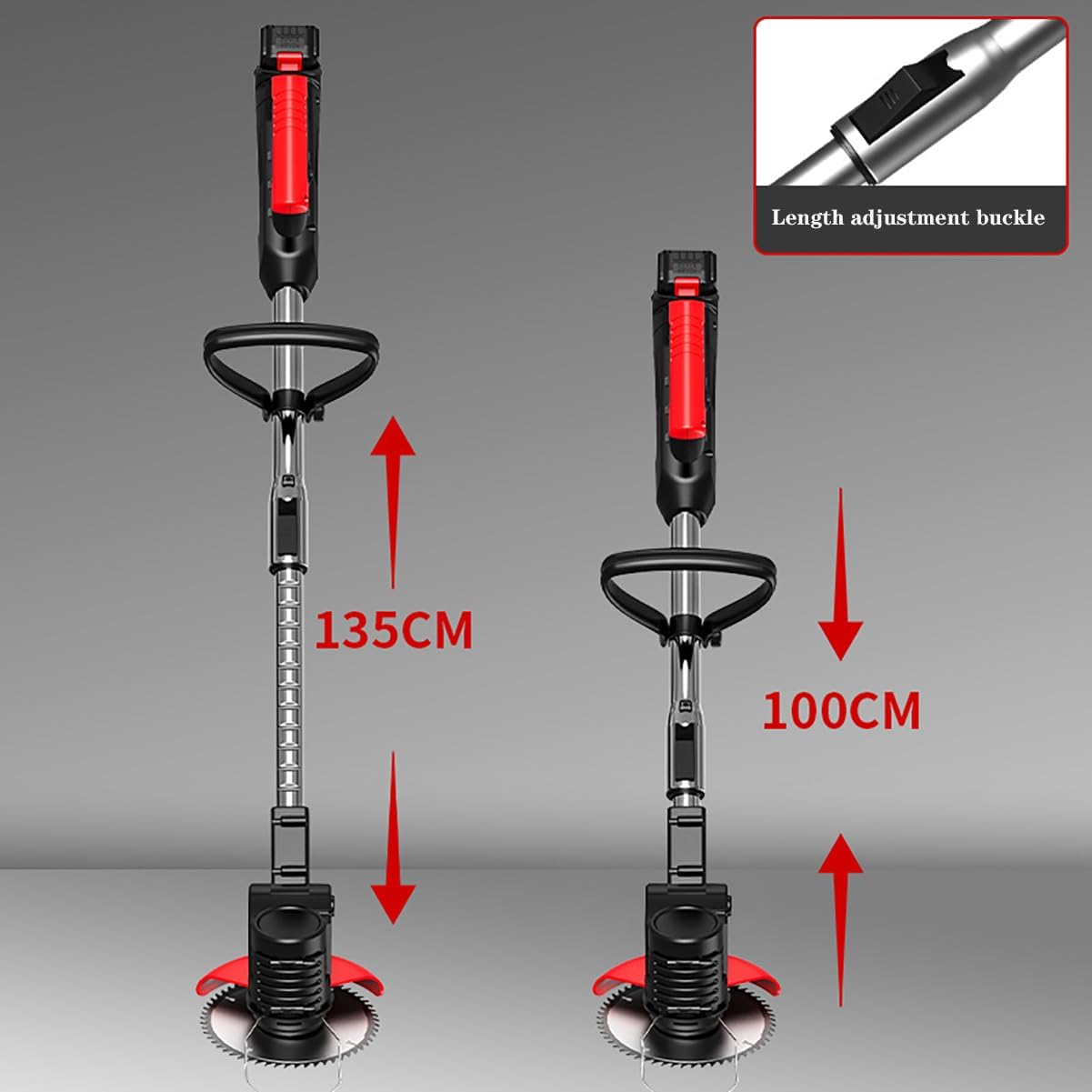

Figure 3: Illustration of the adjustable length feature, showing the mower at 100cm and 135cm.

Figure 4: Detail of the adjustable head mechanism, allowing trimming under trees and in corner flower beds.

Operating Instructions

Follow these steps for safe and effective operation of your FRESQA Lithium Electric Lawn Mower.

1. Insert Battery: Ensure the battery is fully charged and securely inserted into the battery compartment on the mower.
2. Power On: To start the mower, first press and hold the safety switch, then press the start switch. Release the safety switch once the motor begins to run.
3. Mowing Technique:
   • Move the mower slowly and steadily across the area to be trimmed.
   • For best results, cut only a small amount of grass at a time.
   • Avoid hitting hard objects, as this can damage the blade or motor.
   • Utilize the adjustable head for precise trimming in tight spaces or around obstacles.
4. Power Off: Release the start switch to turn off the mower. Always remove the battery when not in use or before performing any adjustments or maintenance.

Figure 5: The FRESQA Lithium Electric Lawn Mower in operation, demonstrating its handheld design for garden and lawn trimming.

Figure 6: Internal view highlighting the brushless all-copper motor, providing strong power, stable output, and higher efficiency.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawn mower.

• Cleaning: After each use, remove the battery and clean the mower, especially the cutting head and protective barrier, from grass clippings and debris. Use a dry cloth or soft brush. Do not use water or harsh chemicals.
• Blade Inspection: Regularly inspect the cutting blades for sharpness and damage. Replace dull or damaged blades immediately to ensure efficient cutting and prevent strain on the motor.
• Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Storage: Store the mower in a dry, secure location, out of reach of children.

Troubleshooting

This section addresses common issues you might encounter with your FRESQA Lithium Electric Lawn Mower.

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty and Support

For warranty information or technical support, please contact FRESQA customer service. Keep your purchase receipt as proof of purchase.

Contact information for support is typically found on the product packaging or the manufacturer's official website.
