FVSTR Electric Hot Water Heater User Manual

1. Product Overview

The FVSTR Electric Hot Water Heater is a compact, tank-storage unit designed to provide immediate hot water at various points of use. Its small footprint makes it suitable for installation in tight spaces such as under sinks or in RVs. This model, FR06601, features a 2.16-gallon capacity and operates on a standard 120-volt electrical connection with a 1500-watt heating element.

Image 1.1: Front view of the FVSTR Electric Hot Water Heater, showing the digital display and temperature control knob.

Key Features:

• Point of Use Design: Provides hot water instantly where needed, ideal for kitchens, bathrooms, and small commercial settings.
• Compact and Durable: Space-saving design with stainless steel construction for longevity and corrosion resistance.
• Adjustable Thermostat: Allows precise temperature control for comfort and energy efficiency.
• Easy Installation: Designed for straightforward setup in various locations, including under sinks or wall-mounted.
• Built-in Drain Valve: Simplifies maintenance and water drainage.
• Standard Electrical Connection: Operates on 120V, 1500W, fitting most residential and light commercial environments without specialized electrical work.
• Multiple Protections: Includes Anti-Freezing Protection, IPX4 Waterproofing, Grounding Protection, Overheat Protection, Pressure Release, and Burn Dry Protection.

Image 1.2: Visual representation of the multiple safety features, including easy installation, IPX4 waterproof, grounding protection, overheat protection, pressure release, burn dry protection, space saving, and instant hot water.

Image 1.3: Diagram illustrating the durable design and excellent insulation features, including Anode Magnesium Rod, Enamel Coating, CPC-Free Foam, Low Carbon Stainless Steel, and High Temperature Calcination Coating.

2. Safety Information

Please read all safety instructions carefully before installation and operation to prevent injury or property damage. Keep this manual for future reference.

• Electrical Safety: Ensure the unit is connected to a properly grounded 120-volt electrical outlet. Do not use extension cords.
• Water Filling: Before initial use, or after the unit has been drained, you must fully fill the water heater tank with water before turning on the power. Failure to do so can cause damage to the heating element (dry burn).
• Temperature and Pressure Relief (T&P) Valve: The included T&P relief valve is a critical safety component. It must be installed correctly and maintained to prevent excessive pressure buildup. Do not block or tamper with the T&P valve.
• Drainage: If the unit will not be used for an extended period, drain the water from the tank to prevent freezing and potential damage.
• Installation: Installation should be performed by a qualified professional if you are unsure about plumbing or electrical connections.
• Maintenance: Regular maintenance, including draining and flushing the tank, is recommended to prolong the unit's operational life and ensure safe operation.

3. Installation

The FVSTR Electric Hot Water Heater is designed for versatile installation, typically under a sink or wall-mounted. Ensure you have all included components before beginning installation.

Included Components:

• FVSTR Electric Hot Water Heater Unit
• 2 Water Inlet Pipes
• Hanging Plate (for wall mounting)
• Safety Valve (T&P Relief Valve)
• Screws
• Drip Pipe
• Tee Valve
• Instruction Manual (this document)

Installation Steps:

1. Choose Location: Select a suitable location, either under a sink or on a wall, ensuring sufficient space and access for plumbing and electrical connections. Refer to the product dimensions.


Image 3.1: Diagram showing the product dimensions: approximately 12.95 inches in width, 12.95 inches in height, and 11.5 inches in depth.

2. Mounting:
   • Under Sink (Floor-Mounted): Place the unit on a stable, level surface directly under the sink.
   • Wall-Mounted: Use the provided hanging plate and screws to securely mount the unit to a sturdy wall surface, ensuring it is level.

Image 3.2: Illustration demonstrating two installation types: wall-mounted (under a cabinet) and floor-mounted (next to a sink).
3. Plumbing Connections:
   • Connect the cold water supply line to the blue inlet port (Cold Water Inlet, 1/2" NPT) on the top of the unit.
   • Connect the hot water outlet line to the red outlet port (Hot Water Outlet, 1/2" NPT) on the top of the unit.
   • Install the provided T&P relief valve into the designated port. Connect a discharge line from the T&P valve to a suitable drain. A drain pan is recommended (not included).
   • Refer to the connection diagrams for single or dual sink setups.

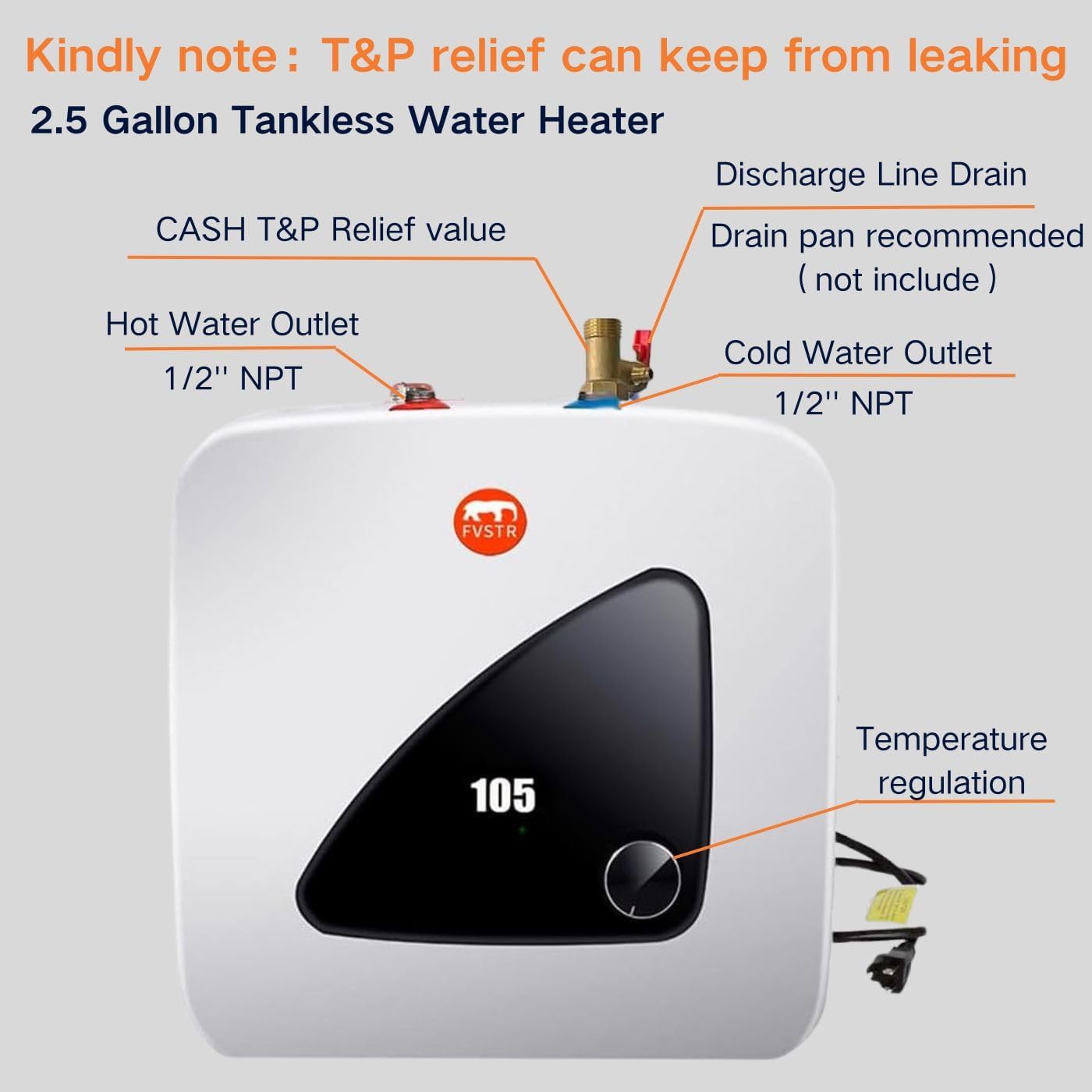

Image 3.3: Detailed diagram showing the hot water outlet, cold water inlet, T&P relief valve, discharge line drain, and temperature regulation knob.


Image 3.4: Diagrams illustrating plumbing configurations for connecting the water heater to one sink or two sinks.
4. Fill Tank: Once plumbing connections are secure, open the hot water faucet at the tap and allow water to flow through the heater until all air is purged and a steady stream of water comes out. This ensures the tank is completely filled.
5. Electrical Connection: After the tank is completely filled with water, plug the unit into a standard 120-volt grounded electrical outlet.

4. Operating Instructions

Once installed and filled, operating your FVSTR Electric Hot Water Heater is straightforward.

Initial Startup:

• Ensure the tank is fully filled with water before plugging in the unit.
• Upon plugging in, the unit will begin heating the water. The initial heating cycle may take several hours to reach the desired temperature, especially during the first use.

Adjusting Temperature:

The unit is equipped with an adjustable thermostat. Use the control knob on the front panel to set your desired water temperature. The digital display will show the current temperature.

• Rotate the knob to increase or decrease the temperature setting.
• The temperature range is typically between 80°F and 167°F (approximately 27°C to 75°C).

Image 4.1: The water heater providing hot water for various daily tasks such as dish washing, vegetable washing, face washing, salon use, and teeth brushing.

5. Maintenance

Regular maintenance ensures the longevity and efficient operation of your water heater.

• Draining the Tank: The unit features a built-in drain valve for easy water drainage. This is important if the unit will be stored in an unheated area during freezing temperatures or if it will not be used for a long period.
  1. Disconnect the power supply to the unit.
  2. Turn off the cold water supply to the unit.
  3. Open a hot water faucet in your sink to relieve pressure and allow air into the system.
  4. Open the drain valve on the water heater and allow all water to drain out.
  5. Once drained, close the drain valve and the hot water faucet.
• T&P Valve Inspection: Periodically inspect the Temperature and Pressure Relief (T&P) valve to ensure it is not corroded or blocked. Test the valve annually by lifting the lever to ensure water flows freely.
• Anode Rod Inspection: While not easily accessible for routine user inspection, the anode magnesium rod helps reduce corrosion. If you notice a significant decrease in hot water output or unusual odors, professional inspection of the anode rod may be necessary.
• Cleaning: Keep the exterior of the unit clean with a damp cloth. Do not use abrasive cleaners.

6. Troubleshooting

This section provides solutions to common issues you might encounter. For problems not listed here, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or service inquiries, please contact FVSTR customer service. Keep your purchase receipt as proof of purchase.

Manufacturer: FVSTR

Please refer to the product packaging or the official FVSTR website for the most up-to-date contact information and warranty details.
