Sundown Audio NS-12v6 12-inch Nightshade Subwoofer

1. Introduction

The Sundown Audio NS-12v6 Nightshade subwoofer is engineered for high-performance audio systems. This 12-inch, dual 1-ohm subwoofer is designed to deliver powerful and accurate bass response with a robust power handling capacity. This manual provides essential information for the proper installation, operation, and maintenance of your NS-12v6 subwoofer.

Figure 1.1: Sundown Audio NS-12v6 12-inch Nightshade Subwoofer.

2. What's in the Box

Upon unpacking, please verify that all items are present and in good condition. If any items are missing or damaged, contact your retailer immediately.

• 1 x Sundown Audio NS-12v6 12-inch Subwoofer

3. Features

The NS-12v6 Nightshade subwoofer incorporates several design elements for enhanced performance and durability:

• Size: This 12-inch model is designed for integration into various audio systems and installation spaces.
• Power Handling: The Nightshade v.6 is rated for 3000W RMS power handling, suitable for high-powered audio systems.
• Improved Heat Dissipation: Features cast aluminum heat-sinking around the motor for enhanced long-term heat dissipation, maintaining optimal performance during extended use.
• Efficient Motor Venting: Incorporates a revised motor venting layout with vertical slits for improved heat management.
• Voice Coil: Equipped with a 3-inch dual voice coil, contributing to its power handling and sound quality.
• Magnet Structure: Utilizes a triple stack magnet for powerful and accurate bass reproduction.
• Suspension Design: Features a high excursion suspension design, allowing for greater air movement and deeper bass.
• Enclosure Compatibility: Designed to perform effectively in both sealed and ported enclosures, offering installation flexibility.

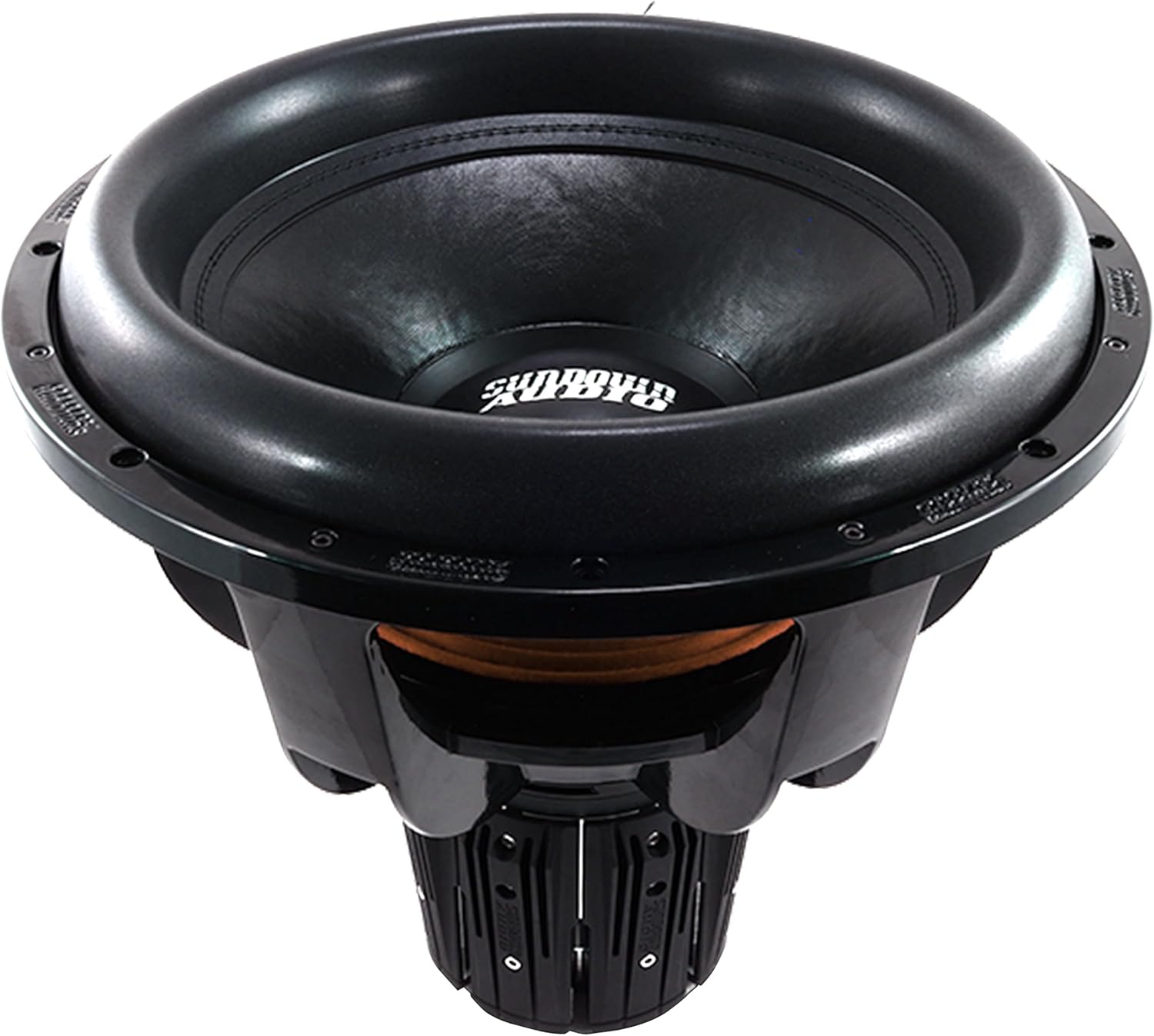

Figure 3.1: Top view of the NS-12v6 subwoofer, highlighting the cone and surround.

4. Setup and Installation

Proper installation is crucial for optimal performance and longevity of your subwoofer. It is recommended that installation be performed by a qualified professional.

4.1 Enclosure Requirements

The NS-12v6 is compatible with both sealed and ported enclosures. Consult with an audio specialist or refer to Sundown Audio's recommended enclosure specifications for optimal performance based on your desired sound characteristics.

• Subwoofer Cutout Diameter: 11.09 inches
• Subwoofer Mounting Depth: 12 inches

4.2 Wiring

This subwoofer features a dual 1-ohm voice coil. Ensure your amplifier is stable at the impedance presented by your wiring configuration. Incorrect wiring can damage the subwoofer and/or amplifier. Refer to your amplifier's manual for compatible impedance loads.

4.3 Mounting

Securely mount the subwoofer within the enclosure using appropriate fasteners. Ensure there is adequate clearance for the subwoofer's excursion and proper ventilation for the motor structure.

Figure 4.1: Rear view of the NS-12v6 subwoofer, showing the motor and terminals.

5. Operating Instructions

Once installed, operate your subwoofer responsibly to prevent damage and ensure long-term performance.

• Power Matching: Ensure your amplifier's output power is appropriately matched to the subwoofer's 3000W RMS rating. Underpowering can be as damaging as overpowering, leading to clipping and distortion.
• Gain Settings: Set amplifier gain levels carefully. Do not use the gain control as a volume knob. It should be set to match the output voltage of your head unit.
• Break-in Period: Allow a break-in period of several hours of moderate listening before operating the subwoofer at high power levels. This allows the suspension components to loosen and settle.
• Listen for Distortion: If you hear any distortion, reduce the volume immediately. Continued operation with audible distortion can cause permanent damage to the subwoofer.

6. Maintenance

The NS-12v6 subwoofer requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Cleaning: Keep the subwoofer cone and surround free of dust and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or excessive moisture.
• Inspection: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or terminals. Ensure all mounting screws remain tight.
• Environmental Conditions: Avoid exposing the subwoofer to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.

7. Troubleshooting

If you experience issues with your subwoofer, consult the following basic troubleshooting steps:

• No Sound:
  • Check all wiring connections from the amplifier to the subwoofer.
  • Verify the amplifier is powered on and receiving a signal from the head unit.
  • Ensure the amplifier is not in protection mode.
• Distorted Sound:
  • Reduce the volume level.
  • Check amplifier gain settings; they may be set too high.
  • Inspect the subwoofer cone and surround for any physical damage.
• Weak Bass:
  • Verify correct wiring polarity (+/-).
  • Check amplifier settings, including low-pass filter and bass boost.
  • Ensure the enclosure is properly sealed (if applicable) and free of air leaks.

If these steps do not resolve the issue, contact your authorized Sundown Audio dealer or technical support for further assistance.

8. Specifications

Detailed technical specifications for the Sundown Audio NS-12v6 12-inch Nightshade Subwoofer:

9. Warranty and Support

The Sundown Audio NS-12v6 subwoofer comes with a 1 Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper installation, abuse, accident, neglect, or unauthorized modification.

For warranty claims or technical support, please contact your authorized Sundown Audio dealer or visit the official Sundown Audio website for contact information.
