OLONETO 5000W Wind Turbine Generator Kit with Hybrid Charge Controller User Manual (120V Model)

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your OLONETO 5000W Wind Turbine Generator Kit with Hybrid Charge Controller. Please read this manual thoroughly before attempting any installation or operation. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your wind power system.

The OLONETO 5000W Wind Turbine Generator Kit is designed for off-grid green power production, featuring a robust wind turbine and a hybrid charge controller to manage energy flow. This system is engineered for reliability and efficiency in various environmental conditions.

2. Safety Instructions

Warning: Installation and maintenance of wind turbines involve working at heights and with electrical systems. Serious injury or death can result if proper safety precautions are not followed. Always consult with qualified professionals for installation and complex maintenance tasks.

• Professional Installation Recommended: Due to the complexity and potential hazards, professional installation by certified technicians is strongly recommended.
• Electrical Safety: Ensure all electrical connections are made by a qualified electrician. Disconnect all power sources before performing any wiring or maintenance. Use appropriate personal protective equipment (PPE).
• Working at Heights: When working on the turbine tower, use appropriate fall protection equipment and follow all local safety regulations.
• Wind Conditions: Do not attempt installation or maintenance during high winds, storms, or adverse weather conditions.
• Blade Safety: The turbine blades can rotate at high speeds. Keep clear of the rotating blades at all times. Ensure the turbine is braked or secured before approaching.
• Grounding: Ensure the entire system, including the turbine tower and controller, is properly grounded according to local electrical codes.
• Component Handling: The turbine components can be heavy. Use proper lifting techniques and equipment to prevent injury.

3. Product Overview

The OLONETO 5000W Wind Turbine Generator Kit consists of a wind turbine, a hybrid charge controller, and associated components designed for efficient energy conversion.

Figure 3.1: Complete OLONETO 5000W Wind Turbine Generator Kit, showing the wind turbine, hybrid charge controller, and dump load unit against a clear sky background.

Key Features:

• Durable Construction: Steel housing ensures small size, light weight, aesthetic appearance, and low operational vibration.
• High-Performance Generator: Features 42NSH magnetic steel for stronger magnetism and higher temperature resistance. F-class enameled wire withstands 150 degrees Celsius, ensuring coil operational safety.
• Corrosion Resistance: The body shell is dacromet coated and double anti-corrosion painted, providing rust-free operation over an extended period.
• Optimized Blades: Enhanced fiberglass turbine blades with an optimized aerodynamic and structural design, allowing for lower start-up wind speeds and higher wind energy utilization.
• Automatic Yaw Tail Rudder: This horizontal swing-tail wind turbine automatically yaws in high winds and returns to a safe position, enhancing its anti-typhoon capacity.

Figure 3.2: Detailed view of the wind turbine components, including the blade attachment hub and the tail rudder mechanism, highlighting the robust construction.

Components Included:

• 1 x Wind Turbine Generator
• 3 x Turbine Blades
• 1 x User Manual (this document)
• 1 x PWM Hybrid Charge Controller

Figure 3.3: The OLONETO Hybrid Charge Controller (blue unit) and the associated dump load unit (white unit), typically included in the kit.

Hybrid Charge Controller Overview:

The hybrid charge controller manages the power generated by the wind turbine and, if applicable, solar panels, directing it to the battery bank and dump load as needed. It features an LCD display and control buttons for monitoring and configuration.

Figure 3.4: Product overview diagram of the hybrid charge controller, indicating various terminals and control elements.

4. Setup and Installation

The installation of the OLONETO 5000W Wind Turbine Generator Kit requires careful planning and execution. It is crucial to select an appropriate site and ensure all components are securely mounted and correctly wired.

4.1 Site Selection:

• Choose a location with unobstructed wind flow, away from buildings, trees, and other obstacles that could create turbulence or block wind.
• Ensure the site is accessible for installation and future maintenance.
• Verify the ground stability for the tower foundation.

4.2 Assembly Steps (General Guidance):

1. Tower Erection: Install the wind turbine tower according to manufacturer guidelines and local building codes. Ensure it is securely anchored and properly grounded.
2. Turbine Assembly: Attach the generator body to the tower. Carefully mount the three fiberglass blades to the generator hub. Ensure all bolts are tightened to the specified torque.
3. Tail Rudder Installation: Secure the tail rudder to the turbine body. This component is crucial for the turbine's yawing mechanism.

Figure 4.1: Technicians performing the installation of the wind turbine on a rooftop, demonstrating the scale and effort involved in the assembly process.

4. Electrical Wiring:
   • Connect the wind turbine output cables to the "Wind turbine terminal" (③) on the hybrid charge controller.
   • Connect the battery bank to the "Battery terminal" (①) on the hybrid charge controller. Ensure correct polarity.
   • If using solar panels, connect them to the "PV Panel terminal" (②).
   • Connect the dump load unit to the designated terminals on the controller.
   • Ensure all connections are secure and insulated.
5. System Grounding: Properly ground the entire system as per local electrical codes to protect against lightning and electrical faults.

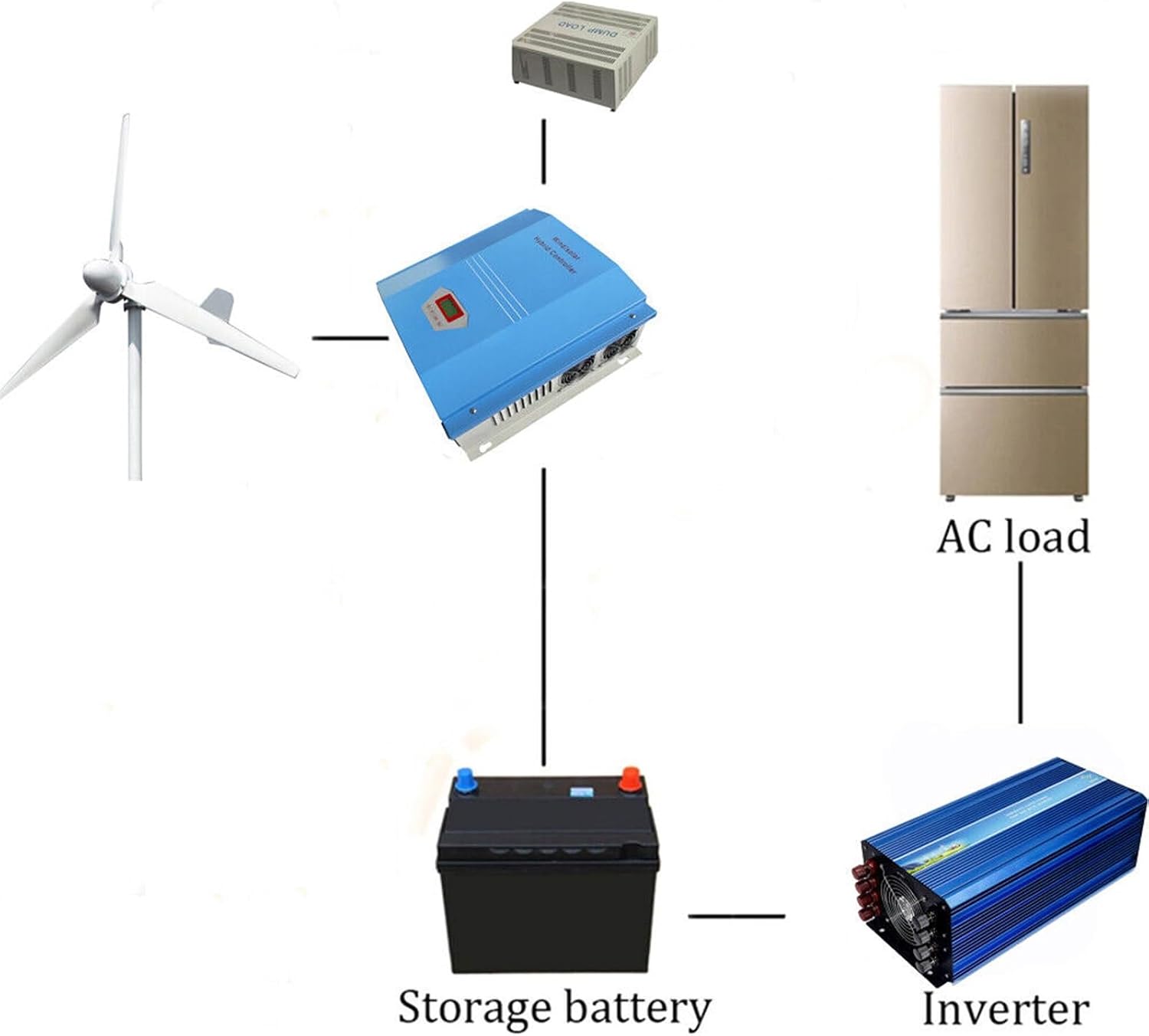

Figure 4.2: Schematic diagram illustrating the typical connections for the OLONETO wind power system, including the wind turbine, hybrid controller, storage battery, inverter, and AC load.

5. Operating Instructions

Once installed, the OLONETO Wind Turbine Generator Kit operates largely automatically. However, understanding its basic operation and monitoring is important.

5.1 Initial Power-Up:

1. After all wiring is complete and verified, connect the battery bank to the hybrid charge controller.
2. The LCD display (⑩) on the controller should illuminate, showing system status.
3. Release the brake on the wind turbine (if applied during installation). The turbine blades will begin to rotate when sufficient wind is present.

5.2 Monitoring System Status:

Use the LCD display and control keys (⑥, ⑦, ⑧, ⑨) on the hybrid charge controller to monitor various parameters such as battery voltage, wind turbine output, and charging status.

5.3 Braking the Turbine:

In situations of extremely high winds, during maintenance, or for emergency shutdown, activate the brake button (④) on the hybrid charge controller. This will electrically brake the wind turbine, slowing its rotation.

Caution: Do not rely solely on the electrical brake for prolonged periods in very high winds. For extended shutdowns or severe weather, mechanical braking or securing the blades may be necessary.

6. Maintenance

Regular maintenance ensures the long-term performance and safety of your OLONETO Wind Turbine Generator Kit.

6.1 Routine Checks (Monthly/Quarterly):

• Visual Inspection: Check the turbine blades for any cracks, chips, or damage. Inspect the tower for corrosion, loose bolts, or structural integrity issues.
• Electrical Connections: Verify that all wiring connections at the turbine, controller, and battery bank are secure and free from corrosion.
• Controller Status: Monitor the hybrid charge controller's display for any error codes or unusual readings.
• Battery Bank: Check battery terminals for corrosion and ensure proper ventilation if using lead-acid batteries.

6.2 Annual Maintenance:

• Lubrication: The generator uses grease for lubrication. Consult a professional for periodic lubrication checks and replenishment if necessary.
• Blade Cleaning: Clean the turbine blades to remove dirt, debris, or ice buildup, which can affect aerodynamic efficiency.
• Yaw Mechanism: Inspect the automatic yaw tail rudder for smooth operation and ensure it moves freely.
• Structural Integrity: A thorough inspection of the tower and foundation by a qualified professional is recommended.

Note: Always engage the turbine brake and ensure it is fully stopped and secured before performing any hands-on maintenance.

7. Troubleshooting

This section addresses common issues you might encounter with your wind turbine system. For complex problems, contact technical support.

7.1 Turbine Not Generating Power:

• No Wind: Verify sufficient wind speed (start wind speed: 3m/s).
• Brake Engaged: Check if the brake button (④) on the controller is activated.
• Loose Connections: Inspect all electrical connections from the turbine to the controller and battery.
• Controller Error: Check the LCD display (⑩) for any error codes. Refer to the controller's specific manual for error code interpretations.

7.2 Low Power Output:

• Insufficient Wind: Ensure the average wind speed is adequate for rated power generation.
• Blade Damage/Dirt: Inspect blades for damage or excessive dirt/ice accumulation.
• Obstructions: Check for new obstructions (e.g., growing trees, new buildings) that might be blocking wind flow.
• Battery Health: A degraded battery bank can affect charging efficiency.

7.3 Unusual Noise or Vibration:

• Loose Components: Immediately shut down and brake the turbine. Inspect blades, hub, and tower connections for any loose bolts or components.
• Blade Imbalance: Damaged or unevenly dirty blades can cause imbalance.
• Bearing Issues: If noise persists after checking external components, internal bearing issues may be present, requiring professional service.

8. Specifications

The following table details the technical specifications for the OLONETO 5000W Wind Turbine Generator Kit (120V Model).

Note: Some specifications provided in the source data, such as "Product Dimensions" and "Item Weight", may refer to individual components or packaging rather than the complete system. Please verify with the physical product and packaging for the most accurate and up-to-date information.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact OLONETO customer service. Typically, products are covered against manufacturing defects for a specified period from the date of purchase.

For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact OLONETO customer support through their official website or the contact information provided with your product packaging.

Contact Information: Please refer to your purchase invoice or the OLONETO official website for the most current customer support contact details.
