1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch KIL82NSE0 Series 2 built-in single-door refrigerator with freezer compartment. Please read this manual thoroughly before using the appliance and keep it for future reference.
Your Bosch refrigerator is designed to offer optimal food preservation with features like the Multi Box XXL, efficient LED lighting, and intelligent Inverter Technology for stable temperatures and optimized energy consumption.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the appliance is properly grounded before use.
- Do not damage the refrigerant circuit.
- Only qualified personnel should perform repairs or maintenance.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances in the appliance.
- Unplug the appliance before cleaning or maintenance.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
3.1 Installation Dimensions
Ensure the cabinet dimensions meet the requirements for proper ventilation and fit.
Figure 3.1: Recommended installation dimensions in millimeters. Minimum air outlet of 200 cm² and plinth ventilation of 200 cm² are required for optimal performance. The recommended cabinet height is 1772 mm (+8 mm tolerance) with a minimum width of 560 mm and depth of 550 mm.
3.2 Door Hinge Installation
The appliance uses a sliding hinge system. Refer to the diagram for correct gap measurements to ensure smooth door operation and prevent collisions with adjacent furniture.
Figure 3.2: Diagram illustrating the recommended distances for flat hinges (F, R, X in mm) to ensure proper door opening and prevent damage to the appliance or kitchen furniture. The table provides specific values for different hinge settings.
3.3 Initial Cleaning
Before first use, clean the interior of the refrigerator with a mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners or solvents.
4. Operating Instructions
Familiarize yourself with the controls and features of your Bosch refrigerator.
4.1 Temperature Control
The refrigerator's temperature can be adjusted using the control panel located inside the appliance. The intelligent inverter compressor continuously regulates its power to maintain a stable temperature and optimize energy consumption.
Figure 4.1: Close-up of the internal temperature control panel, showing settings for "super" cooling and temperature options from 2°C to 8°C. A 3-second press activates certain functions.
4.2 Multi Box XXL
The Multi Box XXL is a spacious drawer designed for convenient storage of large quantities of frozen goods and bulky food items. This feature provides extra space for fresh produce, helping to keep fruits and vegetables fresh for longer.
Figure 4.2: The Multi Box XXL drawer, shown filled with various fruits and vegetables, highlighting its large capacity for fresh food storage.
4.3 LED Lighting
The refrigerator is equipped with LED lighting that provides clear and pleasant illumination. The light intensity gradually increases as the door opens, ensuring perfect visibility of all shelves without harsh glare.
Figure 4.3: An interior shot of the refrigerator, demonstrating the bright and even illumination provided by the LED light strip, ensuring visibility across all shelves.
4.4 Door Open Alarm
An acoustic signal will alert you if the refrigerator door remains open for too long. This feature helps prevent energy waste and ensures your food stays fresh by maintaining the internal temperature.
Figure 4.4: An image of the refrigerator with an overlay icon representing the door open alarm, indicating that an audible alert will sound if the door is left ajar.
5. Maintenance
Regular maintenance ensures the optimal performance and longevity of your appliance.
5.1 Cleaning
- Always unplug the refrigerator before cleaning.
- Clean the interior and exterior surfaces with a soft cloth and a mild, non-abrasive detergent.
- Remove shelves and drawers for thorough cleaning. They can be washed with warm soapy water.
- Ensure all parts are completely dry before placing them back into the refrigerator.
- Clean the door seals regularly to ensure a tight seal.
5.2 Defrosting
This appliance features an automatic defrosting system for the refrigerator compartment, minimizing the need for manual defrosting. The freezer compartment also has an automatic defrosting system.
6. Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not cool | Power cord not plugged in; circuit breaker tripped; temperature setting too high. | Check power connection; reset circuit breaker; lower temperature setting. |
| Door alarm sounds frequently | Door not closed properly; door seal dirty or damaged; too much food blocking door. | Ensure door is fully closed; clean or inspect door seal; rearrange food items. |
| Unusual noises | Appliance not level; items inside vibrating; normal operating sounds (e.g., refrigerant flow). | Adjust leveling feet; secure loose items; normal sounds are not a fault. |
7. Specifications
Detailed technical specifications for the Bosch KIL82NSE0 refrigerator.
| Specification | Value |
|---|---|
| Brand | Bosch |
| Model Number | KIL82NSE0 |
| Product Dimensions (D x W x H) | 54.8 x 54.1 x 177.2 cm |
| Weight | 54 kg |
| Total Capacity | 280 Liters |
| Refrigerator Capacity | 246 Liters |
| Freezer Capacity | 34 Liters |
| Energy Efficiency Rating | E |
| Annual Energy Consumption | 177 kWh/annum |
| Noise Level | 35 dB(A) |
| Defrost System | Automatic |
| Installation Type | Built-in |
| Number of Doors | 1 |
| Special Features | Multi Box XXL, Super Cooling, Intelligent Inverter Technology |
7.1 Energy Label Information
For detailed energy information and product data sheet, scan the QR code on the energy label or visit the EPREL database using the link below:

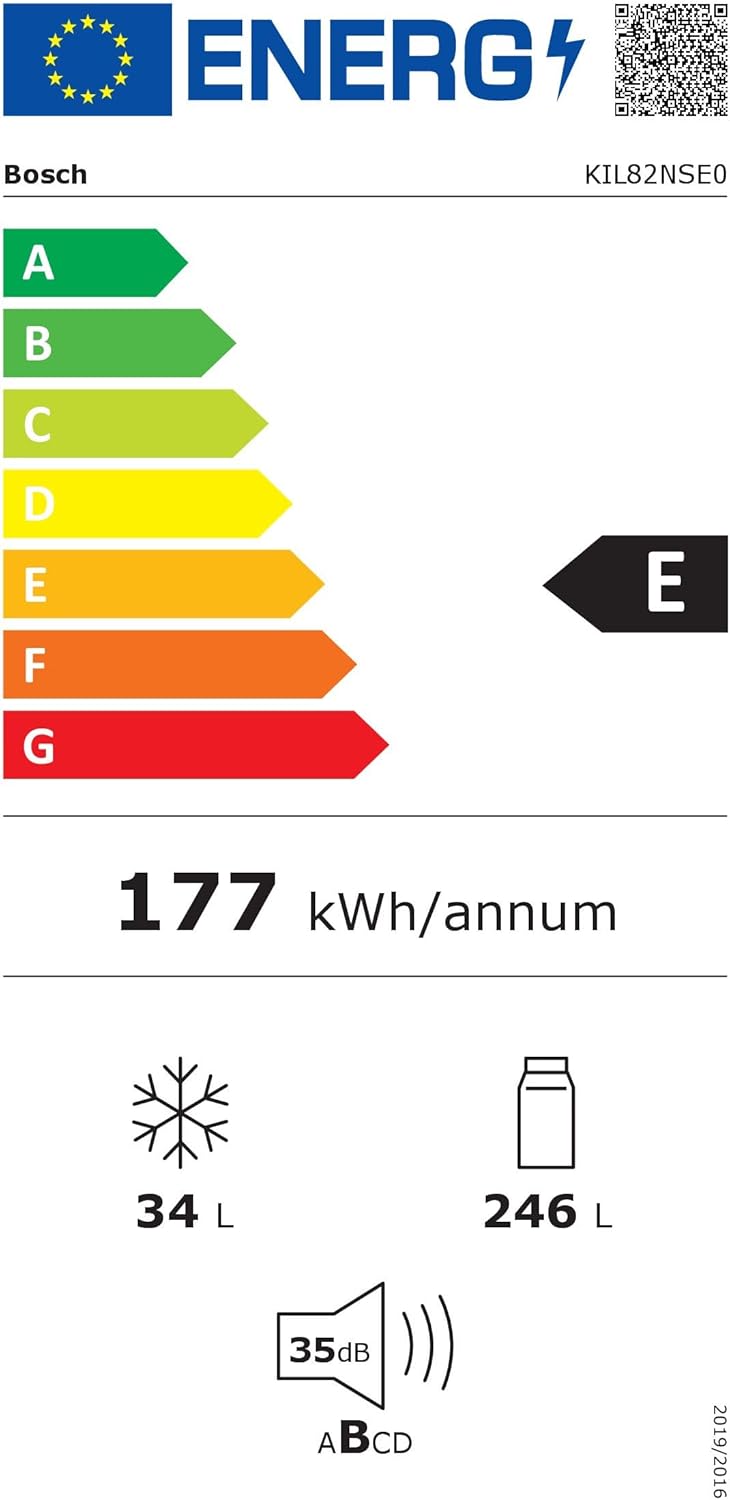

Figure 7.1: The official EU energy label for the Bosch KIL82NSE0, showing an energy efficiency class of E, annual energy consumption of 177 kWh, 34 liters freezer capacity, 246 liters refrigerator capacity, and a noise level of 35 dB(A).
8. Warranty and Support
Your Bosch KIL82NSE0 refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions.
For technical assistance, spare parts, or to schedule a service appointment, please contact Bosch customer support or visit the official Bosch website. Ensure you have your model number (KIL82NSE0) and serial number ready when contacting support.
You can find more information and support on the official Bosch website: www.bosch-home.com
