Slime 20503 Heavy Duty Flat Tire Repair Reamer Plugger Kit Instruction Manual

Product Overview

The Slime 20503 Heavy Duty Flat Tire Repair Reamer Plugger Kit is a comprehensive 40-piece solution designed for repairing punctures in tubeless off-road tires. This kit provides the necessary tools and materials to perform effective temporary repairs, allowing you to quickly address flat tires on ATVs, wheelbarrows, lawn mowers, and similar equipment.

Image: The complete Slime 20503 Heavy Duty Flat Tire Repair Kit, neatly organized within its durable hardshell case.

Kit Contents

The 40-piece kit includes the following components:

• 1 x T-handle Reamer Tool (68mm reach depth)
• 1 x T-handle Plugger Tool (68mm reach depth)
• 3 x Tubes of Plug Bond (rubber cement)
• 30 x Heavy Duty Black Tire Strings (repair plugs)
• 1 x Pliers
• 1 x Utility Knife
• 1 x Pair of Work Gloves

Image: All 40 pieces of the Slime tire repair kit, including tools, plugs, and accessories, displayed outside the case.

Safety Precautions

• Always wear the provided work gloves to protect your hands during the repair process.
• Ensure the vehicle or equipment is stable and properly supported before attempting any tire repair.
• Avoid repairing punctures larger than 1/4 inch (6mm) or those located in the tire sidewall. These types of damage require professional assessment and repair.
• Tire plugs are intended for temporary repairs. Seek professional tire service as soon as possible after using the kit.
• Keep all tools and materials out of reach of children.

Operating Instructions: Flat Tire Repair

Step 1: Locate and Prepare the Puncture

1. Identify the puncture location on the tire tread.
2. Using the provided pliers, carefully remove the foreign object (nail, screw, etc.) from the tire.
3. Insert the T-handle reamer tool into the puncture. Work the reamer tool in and out of the hole several times to clean and enlarge the puncture to the appropriate size for the repair plug. Ensure the hole is clean and free of debris.

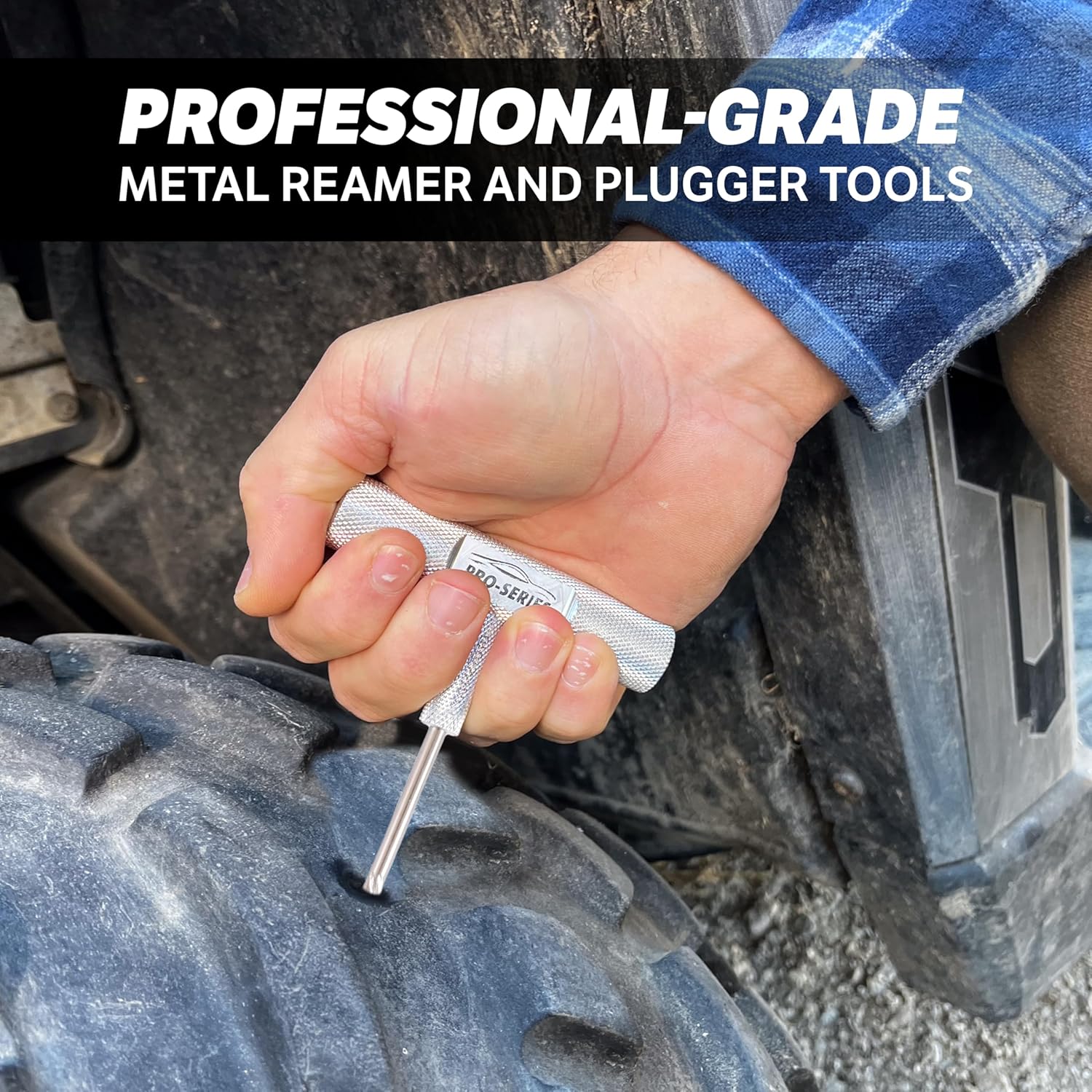

Image: A hand demonstrating the use of the T-handle reamer tool to prepare a tire puncture for repair.

Step 2: Prepare the Repair Plug

1. Take one heavy duty black tire string (repair plug) from the kit.
2. Apply a generous amount of Plug Bond (rubber cement) to the entire surface of the repair plug. This helps create a strong seal.
3. Thread the lubricated repair plug halfway through the eye of the T-handle plugger tool.

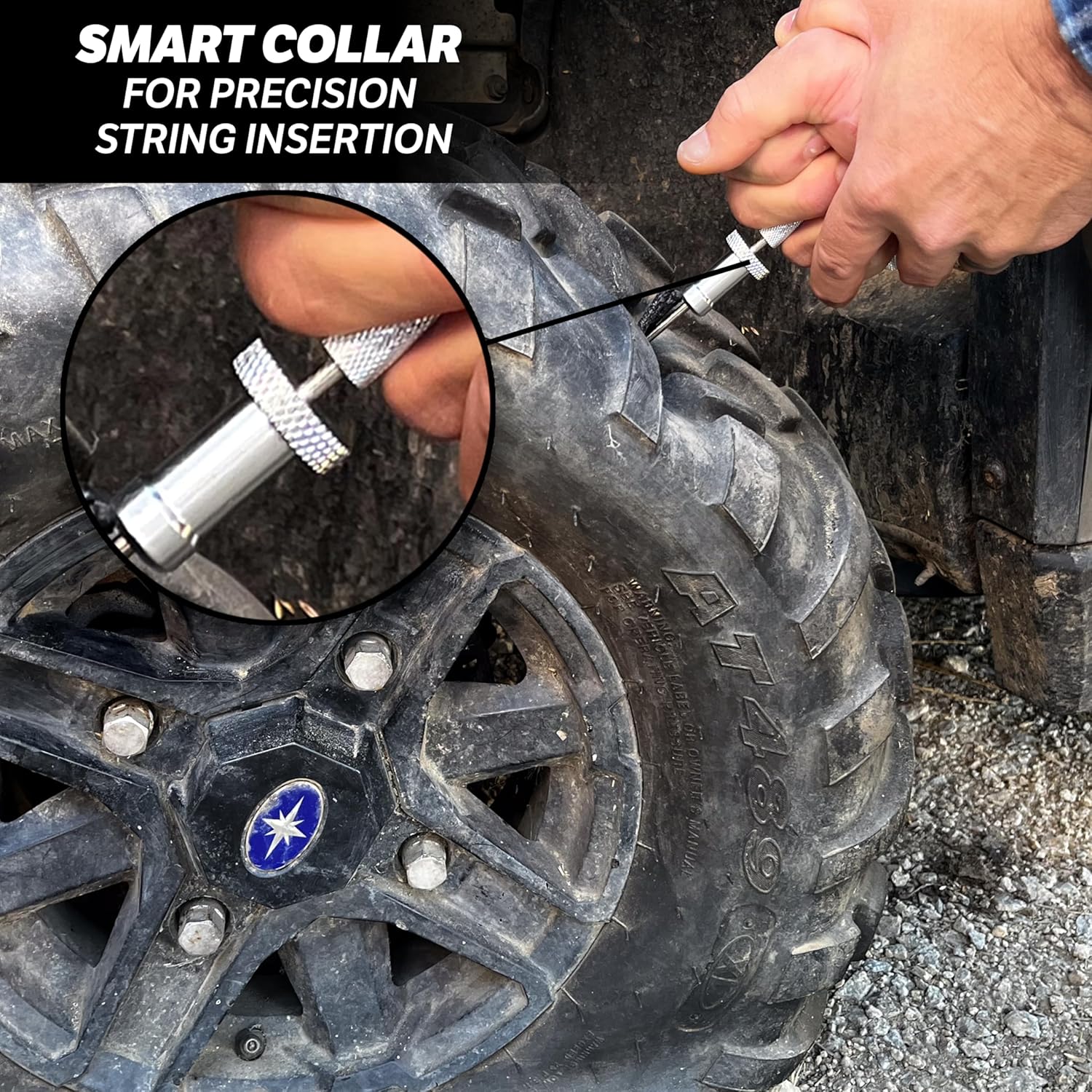

Image: A close-up of a hand inserting a black tire string into the eye of the T-handle plugger tool, ready for insertion into the tire.

Step 3: Insert the Repair Plug

1. Firmly push the T-handle plugger tool, with the repair plug, into the prepared puncture until approximately 1/2 inch of the plug is visible outside the tire.
2. Quickly pull the plugger tool straight out of the tire, leaving the repair plug securely in place. Do not twist the tool during removal.

Step 4: Finish the Repair

1. Using the utility knife, carefully trim any excess repair plug material flush with the tire tread.
2. Inflate the tire to the manufacturer's recommended pressure using a separate tire inflator (not included in this kit).
3. Check for leaks by applying a soapy water solution to the repaired area. If bubbles appear, the repair may need to be redone or professional assistance sought.

Official Slime Tire Plugging Video

General Tire Repair Demonstration

Maintenance

• After each use, clean the reamer and plugger tools to remove any rubber residue or dirt.
• Store all components neatly in the provided hardshell case to prevent damage and loss.
• Keep the Plug Bond tubes tightly sealed to prevent drying out. Replace if the cement hardens.
• Store repair plugs in a cool, dry place away from direct sunlight to maintain their tackiness and flexibility.

Image: The Slime tire repair kit stored securely in its hardshell case in the back of a truck, ready for transport and easy access.

Troubleshooting

• Difficulty inserting plug: Ensure the puncture hole has been adequately reamed. Apply more Plug Bond to the plug and the reamer tool for better lubrication.
• Plug not holding air: The puncture might be too large, in the sidewall, or the plug was not inserted correctly. Remove the old plug, re-ream the hole, and attempt the repair with a new plug. If the issue persists, seek professional tire service.
• Tools feel stiff: Clean tools thoroughly after each use. A small amount of lubricant can be applied to moving parts if necessary.

Specifications

Warranty and Support

For specific warranty information or technical support regarding your Slime 20503 Flat Tire Repair Kit, please refer to the product packaging or contact Slime customer service directly. Contact details can typically be found on the manufacturer's website or product documentation.

Always retain your proof of purchase for warranty claims.
