Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your CollaredEagle Full Bed Frame. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Tighten all screws and bolts securely, but do not overtighten. Periodically check and retighten fasteners.
- Do not exceed the maximum weight capacity of 1200 lbs (544.3 kg).
- Keep small parts away from children during assembly.
- Ensure proper electrical connections for the charging station and LED lights. Do not overload outlets.
Package Contents
Before beginning assembly, verify that all components listed below are included in your package:
- Headboard and Footboard components
- Side Rails
- Steel Slat Support System
- Central Support Legs
- Charging Station Unit (pre-installed or separate)
- LED Lighting Kit (including light strips, remote control, and power adapter)
- Assembly Hardware (screws, bolts, washers, Allen key)
- Installation Manual
Setup and Assembly
The CollaredEagle bed frame is designed for straightforward assembly with clearly labeled parts and minimal screws. Follow these general steps for a smooth setup:
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface. Identify each part by its corresponding label as per the included installation manual.
- Assemble Headboard and Footboard: Attach the headboard and footboard components together using the provided hardware. Ensure all connections are firm.
- Connect Side Rails: Attach the side rails to the assembled headboard and footboard. Make sure the connections are secure and the frame is stable.
- Install Slat Support System: Place the steel slats across the frame, ensuring they are evenly spaced and securely fastened to the side rails. Install any central support legs as indicated in the manual to provide additional stability.
- Install Charging Station: If the charging station is not pre-installed, follow the manual's instructions to attach it to the designated area, typically on the headboard or side rail.
- Install LED Lighting Kit: Adhere the LED light strips to the designated areas on the headboard and footboard. Connect the light strips to the power adapter and remote control receiver.
- Final Check: Once assembled, double-check all connections to ensure they are tight and secure. The bed frame should be stable and free of wobbles.

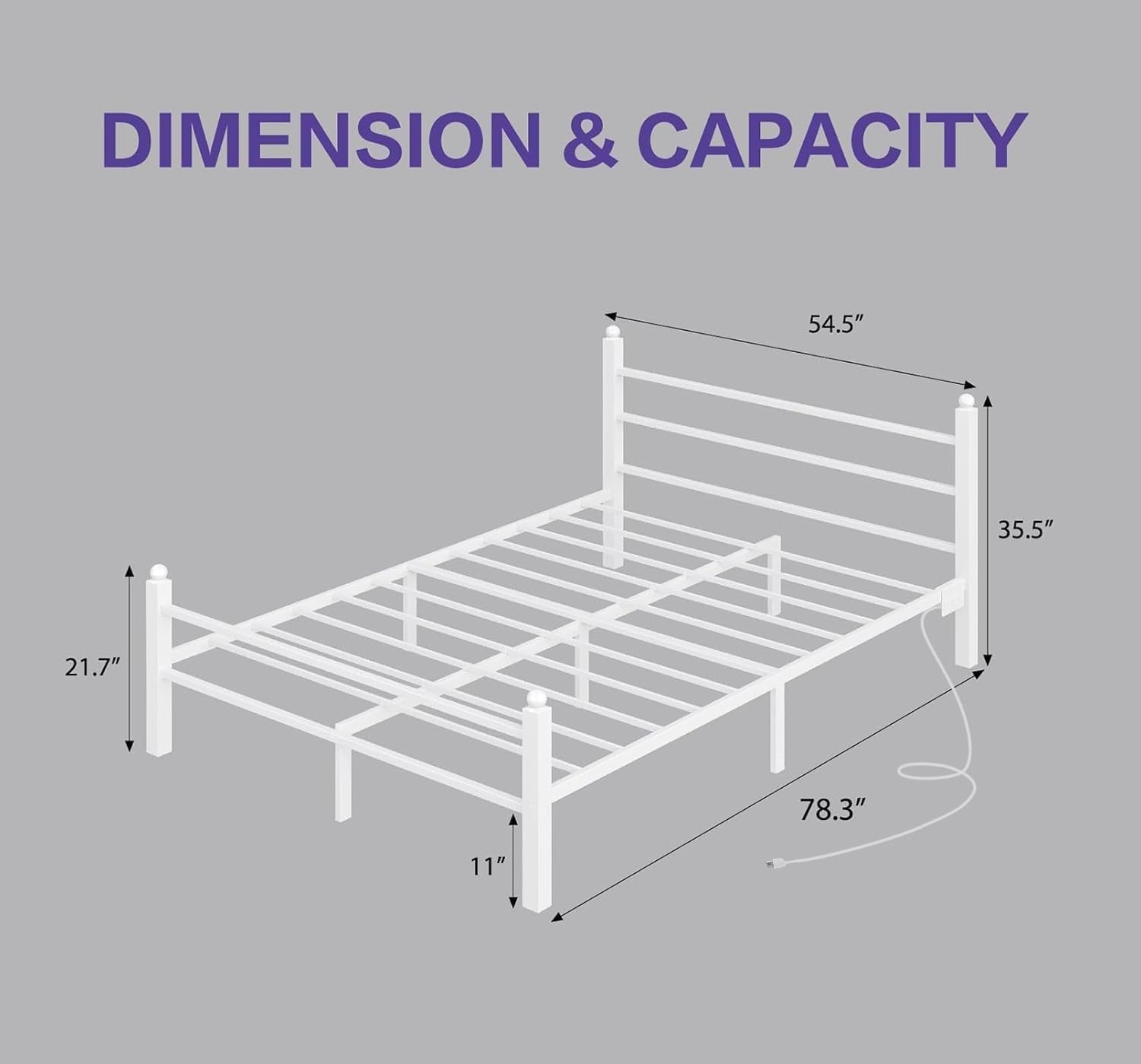

Figure 1: Dimensions and Capacity Overview. This diagram illustrates the overall dimensions of the bed frame, including length, width, and height, along with its structural support.
Figure 2: Assembled Bed Frame with LED Lighting. This image shows the fully assembled CollaredEagle bed frame in a bedroom setting, highlighting the integrated LED lighting feature.
Operating Instructions
Charging Station
The integrated charging station provides convenient power access for your devices. It includes 2 AC outlets, 1 USB-A port, and 1 USB-C port.
- Plug the bed frame's power cord into a standard wall outlet.
- Connect your electronic devices (phones, tablets, laptops, etc.) to the available AC outlets or USB ports.
- Ensure devices are compatible with the charging station's power output.
Figure 3: Integrated Charging Station. This image provides a detailed view of the charging station, showing its AC outlets, USB-A, and USB-C ports.
RGB LED Lights
The bed frame features RGB LED lights with various control options for customizable ambiance.
- Remote Control: Use the provided remote control to turn the lights on/off, change colors (over 60,000 options), adjust brightness, and select various modes (e.g., static color, fade, jump).
- App Control: Download the dedicated mobile application (refer to the LED kit's specific instructions for app name and QR code) to control the lights via your smartphone. The app typically offers more advanced features like custom color mixing, music synchronization (Music Mode), microphone input reaction (Mic Mode), and scheduled on/off times (Timing Mode).
- Ensure the LED light power adapter is plugged into an active outlet, either directly or via the bed frame's charging station.
Figure 4: RGB LED Light Features. This graphic illustrates the various functionalities of the LED lights, including app control, remote control, color options, and sound-activated modes.
Figure 5: Bed Frame with Warm LED Lighting. This image displays the bed frame with its LED lights set to a warm white color, demonstrating the versatility of the lighting system.
Maintenance
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Fastener Check: Periodically (e.g., every 3-6 months) check all screws, bolts, and connections to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaking.
- Under-Bed Area: Utilize the generous under-bed storage space to keep your room tidy. Regular cleaning of this area will prevent dust accumulation.
Figure 6: Under-Bed Storage. This image highlights the ample 11-inch clearance beneath the bed frame, ideal for storage solutions like baskets.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame squeaks or wobbles. | Loose fasteners; uneven assembly. | Check and tighten all screws and bolts. Ensure the bed frame is on a level surface. |
| LED lights do not turn on. | Power adapter unplugged; remote control battery dead; faulty connection. | Ensure the power adapter is securely plugged into a working outlet. Replace remote control battery. Check all LED strip connections. |
| Charging station not working. | Bed frame power cord unplugged; device not properly connected; overloaded circuit. | Verify the bed frame's main power cord is plugged in. Ensure devices are fully inserted into outlets/ports. Avoid plugging in too many high-power devices simultaneously. |
| Mattress slides on the frame. | Lack of anti-slip measures. | Consider placing a non-slip mat or rubber grippers between the mattress and the slats. |
Specifications
- Brand: CollaredEagle
- Model Number: BF002-WH-F-CE4
- Color: White
- Material: Metal
- Product Dimensions (L x W x H): 198.88 x 138.43 x 90.17 cm (78.3 x 54.5 x 35.5 inches)
- Item Weight: 18.55 kg (40.9 lbs)
- Maximum Weight Recommendation: 544.3 kg (1200 lbs)
- Special Features: Integrated Charging Station (2 AC, 1 USB-A, 1 USB-C), RGB LED Lighting Kit (App & Remote Control)
Warranty and Support
Specific warranty information for this product is not provided in the available data. For detailed warranty terms, spare parts availability, or technical support, please contact CollaredEagle customer service directly or refer to their official website.
For general inquiries or assistance, you may also refer to the product's listing page on Amazon or contact Amazon customer support.
