SINSED Wheelbarrow Bearing User Manual

Product Overview

This manual provides comprehensive instructions for the SINSED Wheelbarrow Bearing, a precision-engineered 20 x 35 x 11 mm ball bearing designed with a flange for secure mounting. It is primarily intended for use in wheelbarrows, garden carts, and similar light-duty agricultural or domestic equipment. This bearing facilitates smooth rotation and reduces friction, ensuring efficient operation of your equipment.

Figure 1: A set of SINSED Wheelbarrow Bearings, showcasing their flanged design and compact size.

Setup and Installation

Proper installation is crucial for the longevity and performance of your bearing. Ensure the wheel hub or housing is clean and free from debris before installation.

1. Preparation: Clean the bearing housing and axle thoroughly. Remove any old grease, dirt, or rust. Ensure the surfaces are smooth and free of burrs.
2. Lubrication: Apply a thin layer of appropriate bearing grease to the inner and outer races of the bearing, if not pre-lubricated. Ensure the grease is suitable for the operating conditions (e.g., water resistance for outdoor use).
3. Insertion: Carefully press the bearing into the wheel hub or housing. Use a bearing press tool or a block of wood and a mallet to apply even pressure to the outer race. Do not strike the inner race or the bearing shield directly, as this can damage the bearing.
4. Axle Installation: Once the bearing is seated, slide the axle through the inner race. Ensure the axle is aligned correctly to avoid binding.
5. Securing: Secure the wheel assembly according to the equipment manufacturer's instructions. Ensure all nuts and bolts are tightened to the specified torque.

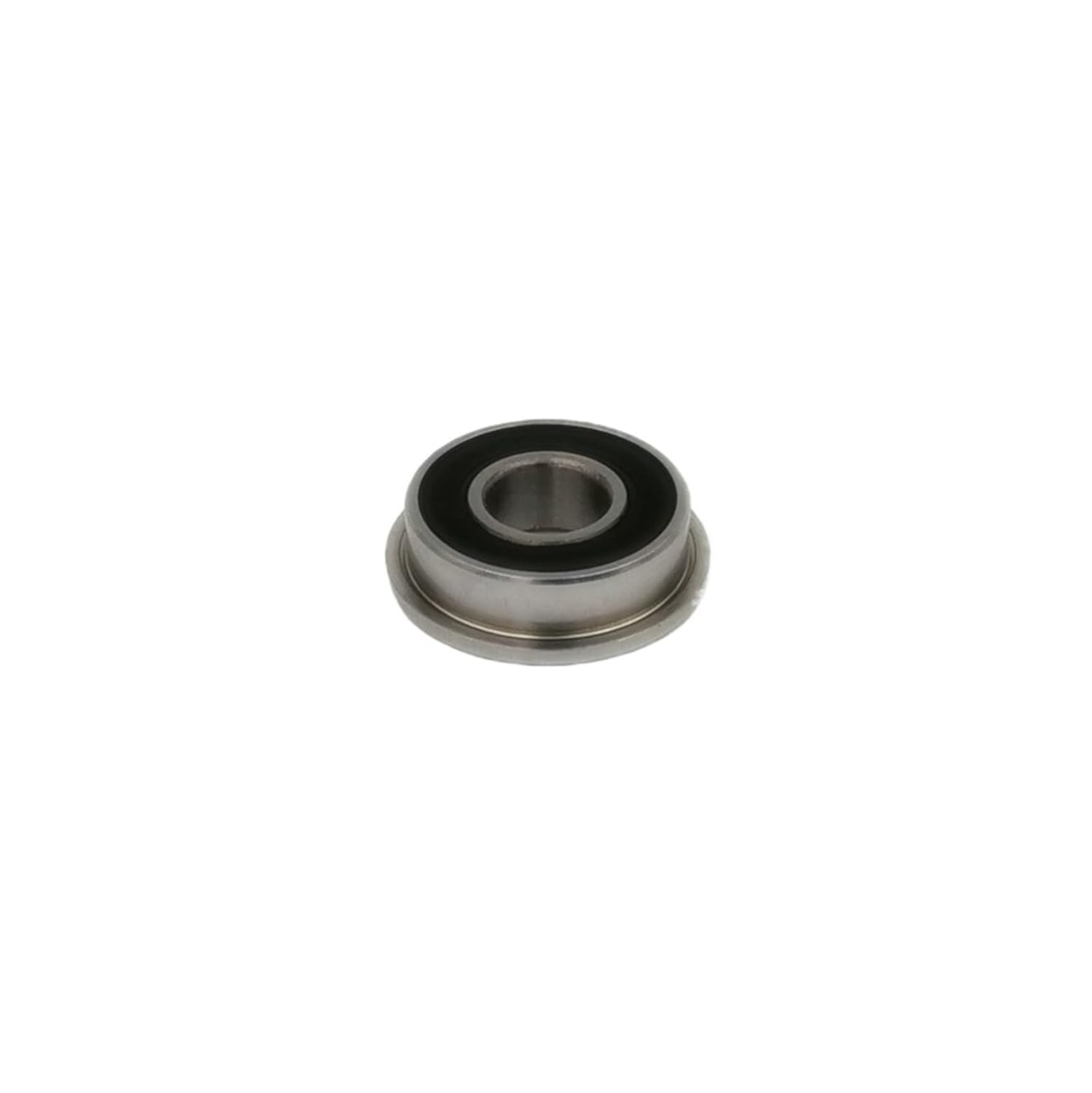

Figure 2: A single SINSED Wheelbarrow Bearing, highlighting its compact design and integrated flange for easy mounting.

Operating Guidelines

The SINSED Wheelbarrow Bearing is designed for smooth and reliable operation under normal load conditions for wheelbarrows and garden carts. While operating your equipment:

• Avoid Overloading: Do not exceed the weight capacity of your wheelbarrow or garden cart, as this can put undue stress on the bearings and lead to premature wear.
• Smooth Movement: Operate the equipment with smooth, controlled movements. Avoid sudden impacts or jarring motions that could damage the bearings or axle.
• Environmental Factors: While the bearings are sealed, prolonged exposure to excessive moisture, dirt, or abrasive materials can reduce their lifespan. Clean the area around the bearings regularly.

Figure 3: Two SINSED Wheelbarrow Bearings, demonstrating their stackable nature and the prominent flange.

Maintenance

Regular maintenance extends the life of your bearings and ensures optimal performance.

• Periodic Inspection: Periodically inspect the bearings for signs of wear, such as excessive play, grinding noises, or visible damage to the seals.
• Cleaning: Keep the area around the bearings clean. Remove any accumulated dirt, mud, or debris that could compromise the seals.
• Lubrication (if applicable): While these bearings are typically sealed and pre-lubricated for life, if your specific bearing model has a grease fitting, re-lubricate with appropriate grease as per the equipment manufacturer's recommendations. Do not over-grease.
• Storage: If the equipment is stored for extended periods, especially in damp conditions, ensure the bearings are clean and protected from moisture.

Figure 4: A SINSED Wheelbarrow Bearing with one side disassembled, revealing the internal ball bearings that facilitate smooth rotation.

Troubleshooting

If you encounter issues with your wheelbarrow bearings, refer to the table below for common problems and their potential solutions.

Specifications

Key technical specifications for the SINSED Wheelbarrow Bearing:

Warranty and Support

SINSED products are manufactured to high quality standards. Specific warranty terms and conditions are typically provided with your purchase documentation or can be found on the official SINSED website. Please retain your proof of purchase for any warranty claims.

For technical support, replacement parts, or further inquiries, please refer to the contact information provided by your retailer or visit the manufacturer's official support channels.
