1. Introduction
This manual provides essential information for the safe and efficient use of your DiHines 20W USB-C Fast Charger with 6FT Lightning Cable. Please read these instructions carefully before use and retain them for future reference.
2. Product Overview
The DiHines 20W USB-C Fast Charger is designed to provide rapid and reliable charging for a wide range of compatible Apple devices. It features a 20W USB-C power delivery (PD 3.0) wall adapter and a durable 6-foot (1.8-meter) USB-C to Lightning cable.
Key features include MFi certification for guaranteed compatibility and safety, a robust cable design tested for over 12,000 bends, and a multi-protection system to prevent over-voltage, over-charge, and over-heating.
The charger supports fast charging, capable of charging compatible iPhone models up to 50% in approximately 30 minutes, which is significantly faster than standard 5W chargers. It also supports data transfer.

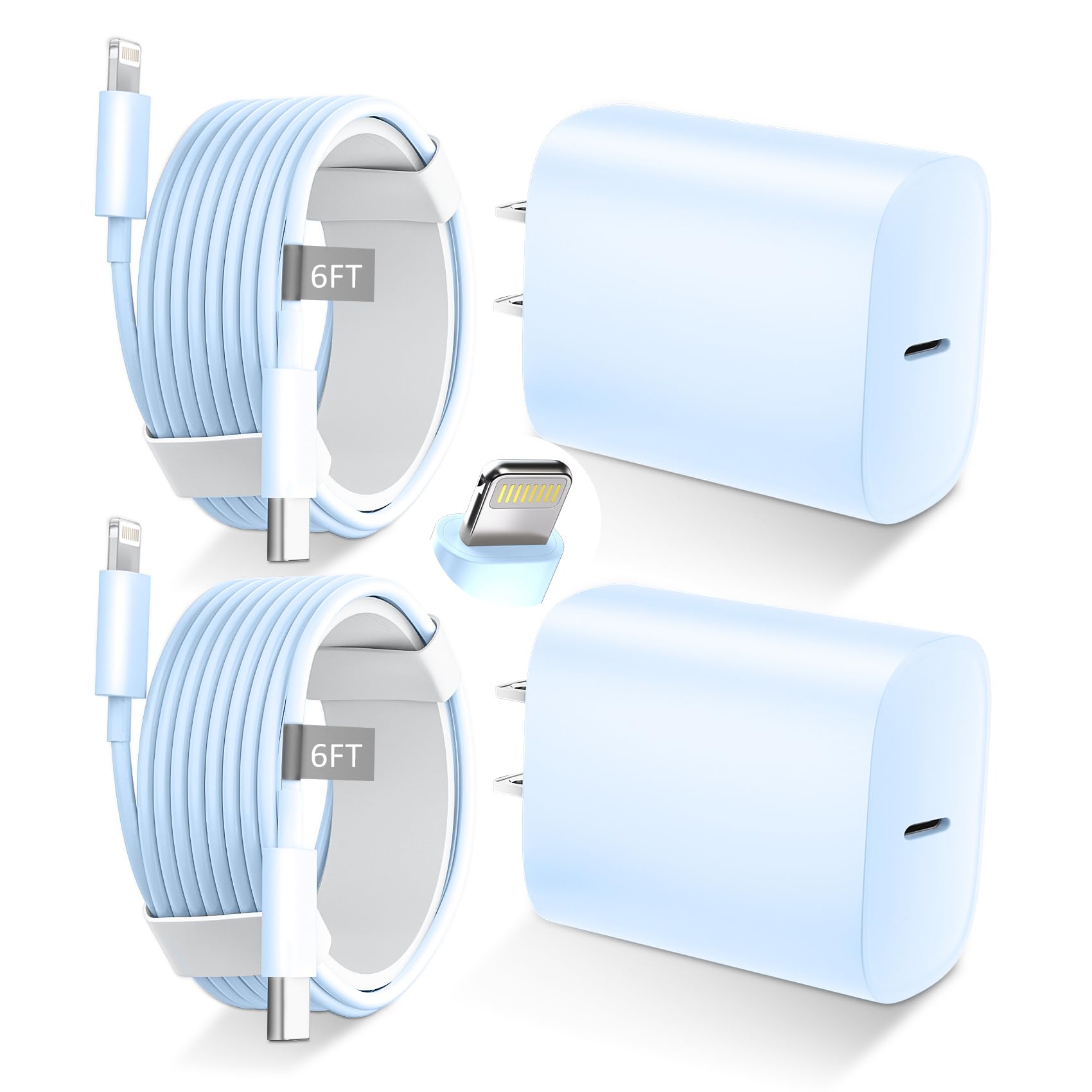

Image 2.1: DiHines 20W USB-C Fast Charger and 6FT Lightning Cable.
Image 2.2: The DiHines 20W USB-C Fast Charger block and the 6FT USB-C to Lightning cable.
Image 2.3: Diagram illustrating MFi certification for the Lightning cable, ensuring compatibility and safety.
Image 2.4: Internal view of the 20W USB-C charger highlighting its multi-protection system against overload, over-current, over-voltage, and short-circuit.
Image 2.5: Compatibility chart showing various iPhone series (14, 13, 12, 11, X, 8, 7, 6) supported by the charger.
Video 2.1: An overview of the DiHines 20W USB-C Fast Charger and Lightning Cable, demonstrating its fast charging capabilities and MFi certification.
3. Setup
- Unpack the charger block and the 6FT USB-C to Lightning cable from the packaging.
- Insert the USB-C end of the cable into the USB-C port on the 20W charger block.
- Plug the charger block into a standard wall outlet (AC 100-240V).
- Connect the Lightning end of the cable to your compatible iPhone or iPad device.
4. Operating Instructions
Charging Your Device
Once connected, your device will begin charging automatically. For optimal fast charging, ensure your device supports USB Power Delivery (PD).
Image 4.1: A comparison showing the DiHines PD charger achieving 60% charge in 30 minutes versus a 5W original charger achieving 15% in the same time.
Data Transfer
The cable also supports data transfer between your compatible Apple device and a computer with a USB-C port. Connect the Lightning end to your device and the USB-C end to your computer's USB-C port.
5. Maintenance
To ensure the longevity and performance of your charger and cable, follow these guidelines:
- Keep the charger and cable dry and away from moisture.
- Avoid extreme temperatures.
- Do not bend the cable sharply or apply excessive force to the connectors.
- Disconnect by pulling the plug, not the cable.
- Clean the connectors periodically with a dry, soft cloth to remove dust or debris.
6. Troubleshooting
Device not charging:
- Ensure the charger is securely plugged into a working wall outlet.
- Verify the cable is firmly connected to both the charger block and your device.
- Try using a different wall outlet.
- Inspect the cable and connectors for any visible damage. If damaged, discontinue use.
Slow charging:
- Confirm your device supports fast charging via USB Power Delivery (PD).
- Ensure no other high-power devices are connected to the same electrical circuit, which might reduce available power.
- Close unnecessary applications on your device to reduce power consumption during charging.
'Accessory not supported' message:
- This product is MFi certified. If you encounter this message, disconnect and reconnect the cable. If the issue persists, ensure your device's software is up to date.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | DiHines |
| Model Name | AC182 |
| Connector Type | USB Type C (Charger), Lightning (Cable) |
| Cable Type | Lightning (USB-C to Lightning) |
| Cable Length | 6 Feet (approx. 1.8 meters) |
| Wattage | 20 Watts |
| Maximum Voltage | 5 Volts |
| Special Feature | Data Transfer, Fast Charging (PD 3.0) |
| Specification Met | MFI Certified |
| Compatible Devices | iPhone 14, 14 Pro, 14 Pro Max, 13, 13 Pro, 13 Pro Max, 12, 12 Pro, 12 Pro Max, 12 mini, 11, 11 Pro, 11 Pro Max, SE (2nd generation), XS, XS Max, XR, X, 8, 8 Plus, and compatible iPad models. |
| Number of Items | 2 (Charger Block + Cable) |
8. Warranty Information
DiHines products are covered by a limited warranty. For specific warranty terms and conditions, please refer to the product packaging or contact DiHines customer support. Please retain your proof of purchase for warranty claims.
9. Support
For further assistance, technical support, or inquiries regarding your DiHines 20W USB-C Fast Charger and Lightning Cable, please contact DiHines customer service through the retailer's platform where you purchased the product or visit the official DiHines website for contact details.
