Important Safety Information
- Read all instructions before installation and use.
- Professional Installation Recommended: For safety, especially with hardwired connections, it is strongly recommended to have this product installed by a qualified electrician.
- Ensure power is disconnected at the circuit breaker before installation or maintenance.
- Do not modify the mirror or its electrical components.
- This mirror is designed for indoor use in bathrooms. Do not expose to direct water spray or extreme humidity beyond normal bathroom conditions.
- The mirror is made of tempered glass, which is more resistant to breakage than ordinary glass. However, handle with care.
Product Overview and Features
The S'bagno LED Lighted Bathroom Mirror (Model M3015-6080) offers advanced lighting and convenience features for your bathroom. It combines both frontlit and backlit illumination, adjustable color temperatures, dimming capabilities, and an anti-fog function.
Image Description: A rectangular S'bagno LED lighted bathroom mirror, 24 inches by 32 inches, installed horizontally above a modern bathroom sink. The mirror features both front and back illumination, casting a bright glow. The reflection shows a modern bathroom interior with a large window overlooking a city skyline.
Key Features
- Dual Illumination: Frontlit and Backlit LED strips for comprehensive lighting.
- Adjustable Color Temperature: Three settings (3000K Warm Light, 4500K Natural Light, 6000K White Light).
- Dimmable Lighting: Adjust brightness from 10% to 100%.
- Anti-Fog Function: Integrated defogger ensures a clear reflection after hot showers.
- Memory Function: Retains preferred brightness and color temperature settings.
- Tempered Glass: Enhanced durability and safety against breakage.
- Flexible Installation: Can be mounted horizontally or vertically, with options for plug-in or hardwired connection.
Image Description: A graphic illustrating the key features of the S'bagno LED mirror, including adjustable lighting, 3 color temperatures, anti-fog, touch button controls, horizontal/vertical installation, memory function, hardwire/plug-in options, reinforced glass, HD silver mirror, and IP44 waterproof rating.
Image Description: A detailed view of the S'bagno LED mirror's edge, highlighting the unique curved design and the separate control of the widened luminous surface on the front and the soft ambient lighting around the sides.
Image Description: An image showing a hammer impacting the S'bagno LED mirror, with an inset illustrating how tempered glass shatters into small, blunt pieces, contrasting with ordinary glass that breaks into sharp shards, emphasizing the mirror's enhanced durability and safety.
Package Contents
Verify that all components are present before beginning installation.
- S'bagno LED Lighted Bathroom Mirror (1 unit)
- Mounting Hardware (screws, anchors)
- Installation Instructions (this manual)
Installation
Pre-Installation Considerations
- Location: Choose a suitable wall location, ensuring adequate space for the mirror's dimensions (24"L x 32"W).
- Power Source: Decide between plug-in or hardwired connection. For hardwiring, consult a qualified electrician.
- Mirror Sizing: For optimal aesthetics, the mirror's height should be 1.2 to 3.2 inches above the faucet. The length should be slightly narrower than or the same width as the vanity.
Image Description: A diagram showing recommended mirror sizing guidelines. For a single mirror, the height should be 1.2-3.2 inches above the faucet, and the width should be slightly narrower than or the same as the vanity. Similar guidelines are shown for double mirrors over a double vanity.
Mounting Instructions
- Measure: Measure the distance between the mirror hangers on the back of the mirror.
- Mark: Mark the positions for drilling on the wall according to your measurements and desired orientation (horizontal or vertical).
- Drill & Install Anchors: Drill holes at the marked locations and insert wall anchors (if required for your wall type).
- Secure Screws: Screw the mounting screws into the anchors, leaving a small portion exposed for hanging.
- Hang Mirror: Carefully hang the mirror onto the secured screws, ensuring it is level and stable.
Image Description: A four-step visual guide for mirror installation. Step 1 shows measuring hanger distance. Step 2 shows marking wall positions. Step 3 shows drilling and screwing. Step 4 shows hanging the mirror.
Image Description: Two identical S'bagno LED mirrors displayed side-by-side in a bathroom setting. One is mounted horizontally above a double vanity, and the other is mounted vertically above a single vanity, demonstrating flexible installation options.
Electrical Connection
The mirror supports two connection methods:
- Plug-in: Connect the mirror's power cord directly to a standard electrical outlet.
- Hardwired: For a seamless look, the mirror can be hardwired directly into your home's electrical system. This procedure should only be performed by a qualified electrician. Ensure power is off at the circuit breaker before attempting any hardwiring.
Image Description: A visual comparison of two installation methods. One image shows a power cord plugged into a wall outlet (Plug-in). The other image shows electrical wires being connected with wire nuts (Hardwired).
Operating Instructions
The mirror features touch-sensitive controls located on the mirror surface.
Image Description: A close-up view of the lower right corner of the S'bagno LED mirror, showing three illuminated touch control icons: Power, Light Mode/Brightness, and Anti-Fog. The image highlights the individual control for face and backlight.
Power On/Off and Brightness Adjustment
- Power: Touch the ⏻ (Power) button to turn the mirror lights on or off.
- Brightness: With the lights on, long-press the ⏻ (Power) button to adjust the brightness level. The brightness will cycle through 100%, 70%, 40%, and 10%.
Image Description: A series of four mirror images demonstrating brightness levels (100%, 70%, 40%, 10%). Text indicates that a long press adjusts brightness and that the mirror has a memory function to remember preferred settings.
Color Temperature Selection
- Change Color: Short-press the ⌖ (Light Mode) button to cycle through the three color temperatures: 3000K (Warm Light), 4500K (Natural Light), and 6000K (White Light).
- The front and backlight can be controlled separately for color temperature.
Image Description: Three distinct images of the S'bagno LED mirror, each illuminated with a different color temperature: 3000K Warm Light, 4500K Natural Light, and 6000K White Light. Text explains that a short press switches the color temperature and that front and backlight have separate controls.
Anti-Fog Function
- Activate Anti-Fog: Touch the ⌘ (Anti-Fog) button to activate the defogger. The indicator light will illuminate.
- The anti-fog function will clear condensation from the mirror surface, providing a clear reflection.
- Touch the button again to deactivate the anti-fog function.
Image Description: A split image showing the anti-fog feature. The left side depicts a foggy mirror, while the right side shows a clear central area of the mirror with a smiling woman's reflection, indicating the anti-fog function is active.
Memory Function
The mirror's memory function automatically saves your last used brightness and color temperature settings. If the LED was kept on for less than 3 seconds the last time the mirror was used, it will remember the previous settings.
Image Description: A side-by-side comparison of the mirror in an 'OFF' state and an 'ON Again' state, demonstrating the memory function. The 'ON Again' state shows the mirror returning to its previously set brightness (80%) and color temperature (6000K) with the defogging also active.
Care and Maintenance
- Cleaning: Use a soft, damp cloth and a mild glass cleaner to clean the mirror surface. Avoid abrasive cleaners or harsh chemicals that could damage the mirror or its components.
- Electrical Components: Do not spray water directly onto the electrical components or wiring.
- Inspection: Periodically inspect the mirror and its wiring for any signs of damage. If damage is found, disconnect power and contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mirror lights do not turn on. | No power supply; Loose connection; Faulty LED driver. | Check power outlet/circuit breaker. Ensure all connections are secure. If hardwired, consult an electrician. Contact customer support if problem persists. |
| Lights are dim or flickering. | Low power; Faulty LED component. | Ensure stable power supply. Try adjusting brightness. Contact customer support. |
| Anti-fog function not working. | Anti-fog not activated; Faulty defogger element. | Ensure the anti-fog button is pressed and its indicator light is on. Contact customer support. |
| Touch controls are unresponsive. | Temporary software glitch; Moisture on sensor. | Wipe the mirror surface clean and dry. Disconnect power for 1 minute and reconnect. Contact customer support. |
Specifications
- Model: M3015-6080
- Brand: S'bagno
- Dimensions: 24"L x 32"W (60.96 cm L x 81.28 cm W)
- Thickness: 1.1 inches (2.79 cm)
- Weight: 16.66 pounds (7.56 kg)
- Frame Material: Glass
- Glass Type: Tempered Silver Glass
- Lighting: Frontlit & Backlit LED
- Color Temperatures: 3000K (Warm), 4500K (Natural), 6000K (White)
- CRI: >95
- Features: Dimmable, Anti-Fog, Memory Function, Horizontal/Vertical Installation
- Mounting Type: Wall Mount
- Power Connection: Plug-in or Hardwired
- IP Rating: IP44 Waterproof

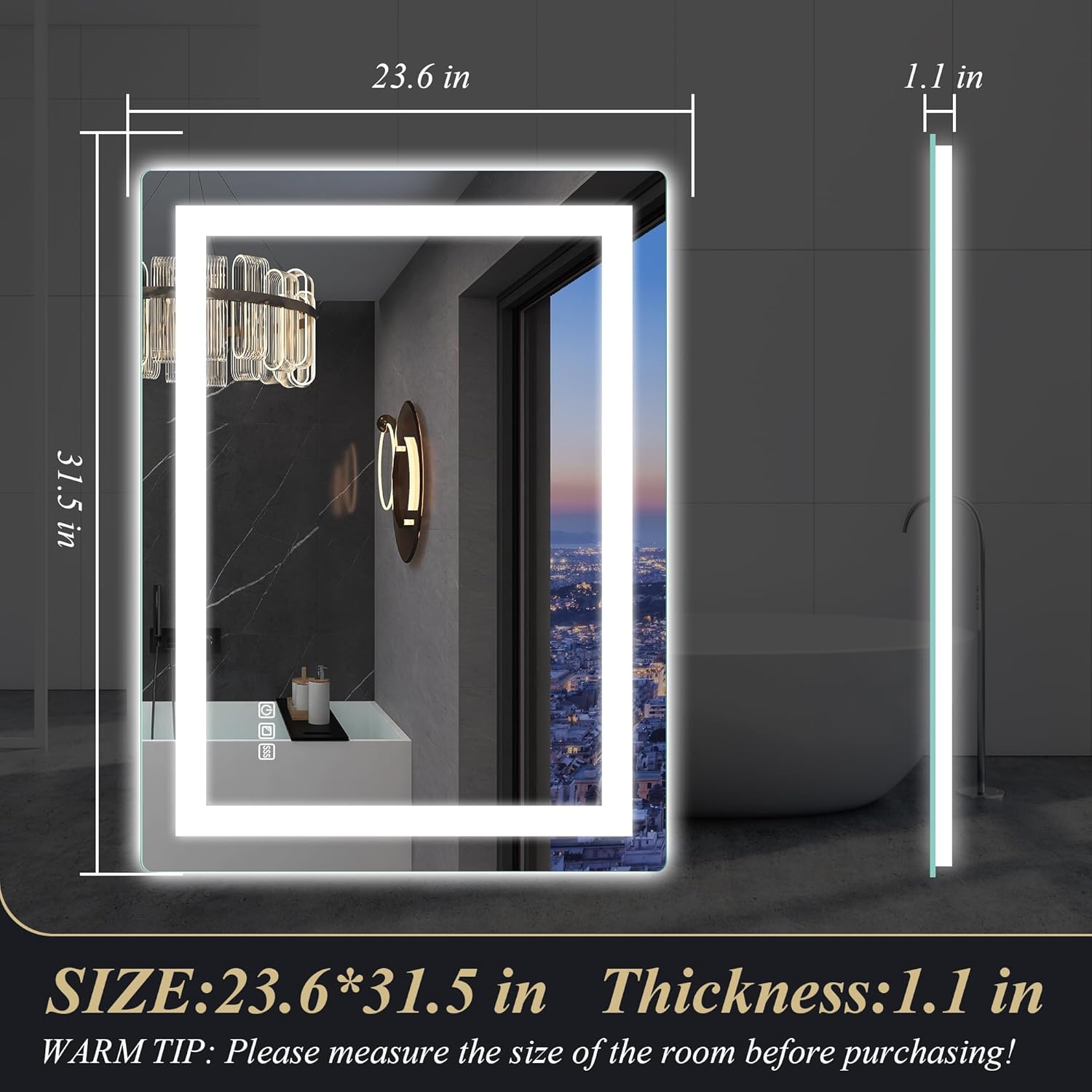

Image Description: A diagram illustrating the dimensions of the S'bagno LED mirror, showing a length of 23.6 inches, a width of 31.5 inches, and a thickness of 1.1 inches.
Warranty and Customer Support
S'bagno offers a 24-month service warranty for this product.
- Damaged Products: In case of any damage upon arrival, please contact customer support immediately. A free replacement or other solutions will be provided without requiring a return of the damaged item.
- Customer Service: For any inquiries, issues, or support needs, please contact S'bagno customer service. We aim to provide a prompt response within 24 hours.
- All installation accessories and instructions are included in the package.
For further assistance, please visit the official S'bagno store or contact your retailer.
