Hawkley Front Bumper Skid Plate and Winch Plate

1. Product Overview

This Hawkley Front Bumper Skid Plate and Winch Plate is designed to provide enhanced protection and utility for your truck's front end. It integrates a skid plate for undercarriage protection and a winch plate for mounting a recovery winch. Constructed from durable Q235A steel with a black powder-coated finish, it offers resistance against rust and corrosion.

Important Note: This product is designed for installation exclusively with a Hawkley front bumper body. It is not compatible with original factory bumpers or other aftermarket bumper products.

2. Compatibility

• 2013-2018 Dodge Ram 1500 Pickup Truck (Excluding Rebel models)
• 2019-2023 Dodge Ram 1500 Classic (Excluding Warlock models)

Please verify your vehicle's make, model, and year against this list to ensure proper fitment before proceeding with installation.

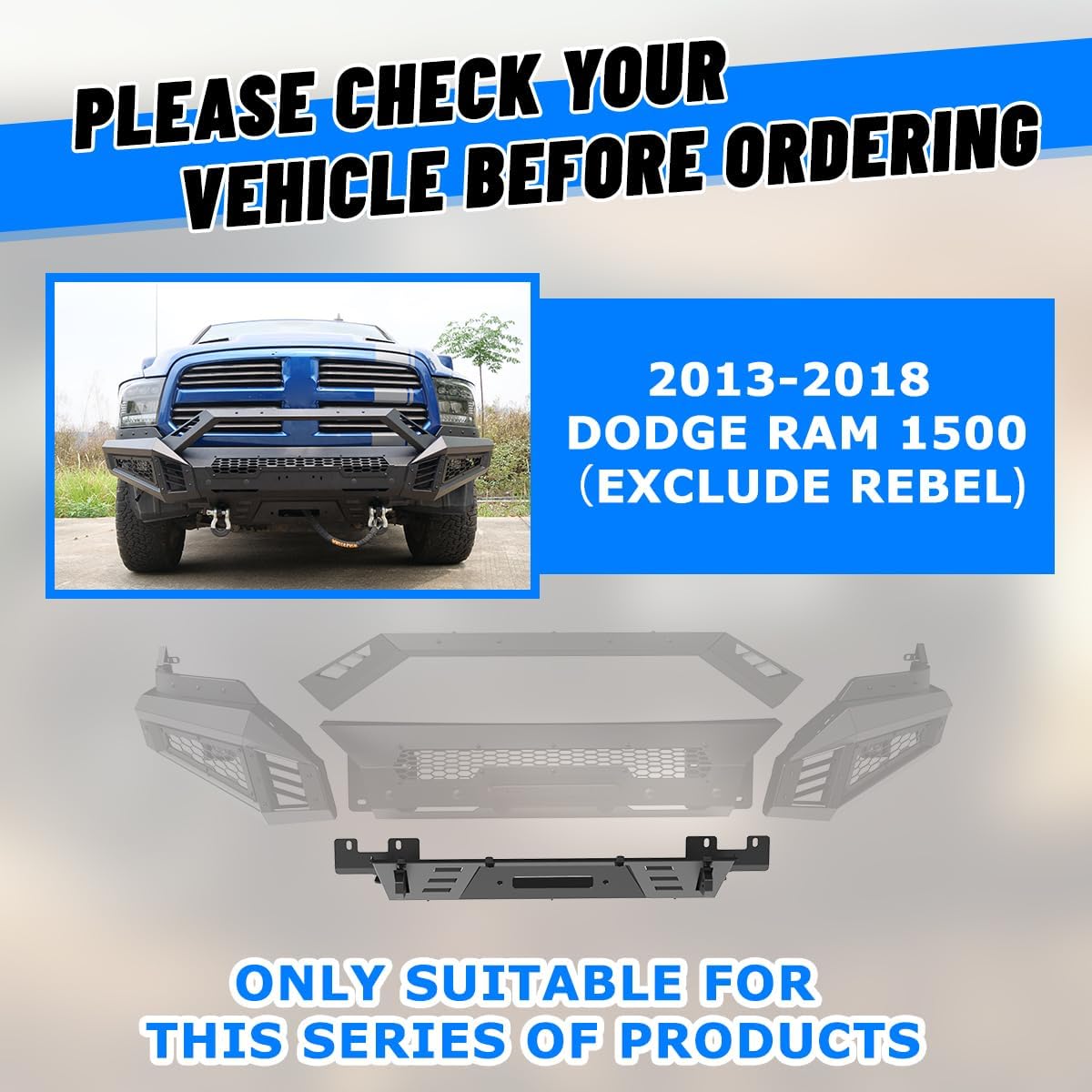

Figure 2.1: Vehicle Compatibility Check. Ensure your vehicle matches the specified models and years.

3. Package Contents

The package includes the following components:

• 1 x Front Bumper Skid Plate & Winch Plate assembly
• All necessary mounting hardware

Please inspect all components upon receipt to ensure everything is present and undamaged.

4. Product Features and Components

The Hawkley Skid Plate and Winch Plate features several key components for off-road functionality:

• Winch Cable Guide Mounting Hole: Designed to accommodate a winch rope cable lead guide (not included).
• Shackle Mounting Bracket: Provides attachment points for recovery shackles (shackles not included).
• Winch Mounting Screw Hole: Supports bumper-mountable winches weighing up to 12,000 pounds.
• Mounting Bracket: Directly installs to the vehicle's body frame for stability.

Figure 4.1: Key components of the Skid Plate and Winch Plate.

Figure 4.2: Winch mounting screw hole detail.

Figure 4.3: Capstan guide port for winch cable management.

5. Setup and Installation

This Front Bumper Skid Plate and Winch Plate is designed for a direct bolt-on installation, requiring no drilling or modifications to your vehicle. It reuses the original factory mounting locations.

Installation Steps:

1. Ensure your vehicle is parked on a level surface and the engine is off.
2. If applicable, remove any existing components that would obstruct the installation of the new skid plate and winch plate.
3. Position the Hawkley Skid Plate and Winch Plate assembly onto the designated mounting points on your Hawkley front bumper body.
4. Align the mounting holes on the skid plate with the vehicle's frame mounting points.
5. Secure the assembly using the provided mounting hardware. Hand-tighten all bolts initially.
6. Once all bolts are in place, progressively tighten them to the manufacturer's recommended torque specifications (if available, otherwise tighten securely).
7. Double-check all connections to ensure they are secure before operating the vehicle.

For any installation doubts, professional technical support is available from Hawkley.

6. Operating Instructions

Once installed, the skid plate provides protection to the undercarriage of your vehicle during off-road driving by deflecting impacts from rocks, debris, and uneven terrain. The integrated winch plate allows for the secure mounting and operation of a recovery winch (sold separately).

• Skid Plate Function: The skid plate acts as a protective barrier. While it is designed to withstand impacts, avoid intentionally striking obstacles at high speeds.
• Winch Operation: If a winch is installed, refer to the winch manufacturer's instructions for safe and proper operation. Ensure the winch cable is routed correctly through the cable guide.
• Shackle Use: When using recovery shackles with the mounting brackets, ensure they are rated for the intended load and are properly secured.

7. Maintenance

Regular maintenance will help prolong the life and appearance of your skid plate and winch plate:

• Cleaning: Periodically clean the surface with mild soap and water to remove dirt, mud, and road grime. Rinse thoroughly and dry to prevent water spots.
• Inspection: After off-road use or periodically, inspect the skid plate and winch plate for any signs of damage, such as dents, cracks, or bent components. Check all mounting hardware for tightness and re-tighten if necessary.
• Corrosion Protection: The black powder-coated finish provides corrosion resistance. If the coating is scratched or chipped, touch up with appropriate rust-inhibiting paint to prevent rust formation.

8. Troubleshooting

If you encounter any issues during or after installation, consider the following:

• Fitment Issues: Double-check the compatibility section (Section 2) to ensure the product is correct for your vehicle model and year. Confirm that you are installing it with a Hawkley front bumper body.
• Loose Components: If any part feels loose, re-check all mounting hardware and ensure they are tightened securely.
• Unusual Noises: Investigate any new noises coming from the front bumper area. This could indicate loose hardware or contact with other vehicle components.

For persistent issues or concerns, please contact Hawkley customer service.

9. Specifications

10. Warranty and Customer Support

All Hawkley products come with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.

For any questions regarding installation, product functionality, warranty claims, or general inquiries, please contact Hawkley customer service. Our team is available to provide professional technical support and assist with any issues you may encounter.

Please retain your proof of purchase for warranty purposes.
