WELLFIT Walking Pad User Manual

1. Introduction

The WELLFIT Walking Pad is a compact and portable under-desk treadmill designed for both home and office use. It features a powerful yet quiet motor, adjustable incline levels, and multiple control options including a remote and a smart application. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your walking pad to ensure a safe and effective workout experience.

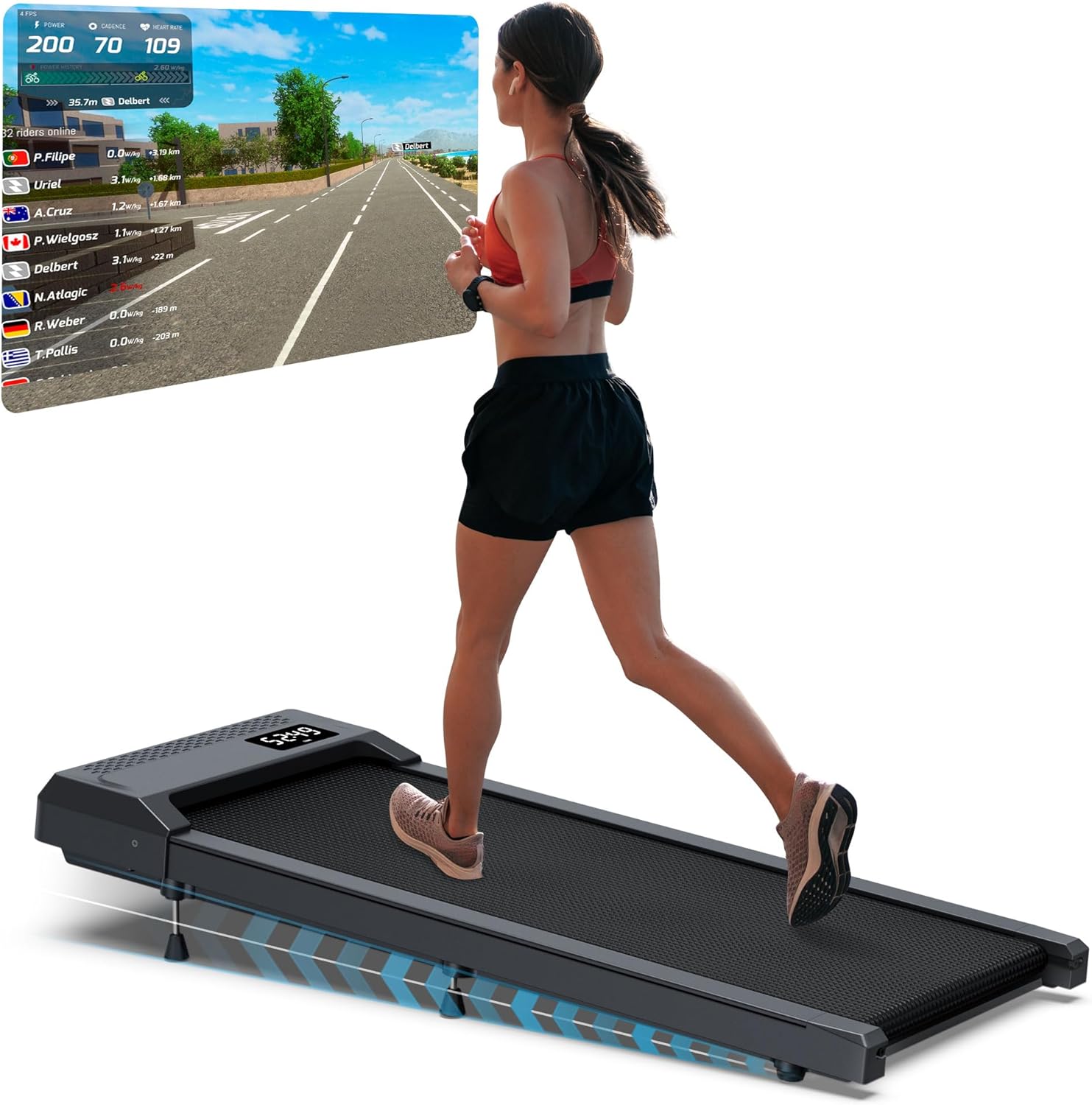

Image: The WELLFIT Walking Pad, showcasing its compact design and suitability for under-desk use.

2. Package Contents

Before beginning assembly or operation, please verify that all components are present and undamaged. The package should include the following items:

• User Manual
• Power Cord
• Remote Control
• Lubricant (2 bottles)
• Tool Kit (including L-shaped hexagon wrench and wrench)
• Foot Pads (10 pieces)

Image: Visual representation of all items included in the WELLFIT Walking Pad package.

3. Setup

The WELLFIT Walking Pad requires minimal assembly. Follow these steps for quick setup:

1. Unpack the Treadmill: Carefully remove the walking pad and all accessories from its packaging. Ensure no components are left inside the box.
2. Position the Treadmill: Place the walking pad on a flat, stable surface. Ensure there is adequate clear space around the unit for safe operation.
3. Connect Power: Locate the power input port on the treadmill and connect the provided power cord. Plug the other end of the power cord into a standard electrical outlet.
4. Remote Control Setup: The remote control may require pairing. Refer to the remote's instructions (usually on the back) for specific pairing steps. Typically, this involves holding a button on the remote while the treadmill is powered on until a confirmation beep is heard.
5. Adjust Incline (Optional): If you wish to use the incline feature, manually adjust the incline feet located at the front of the treadmill to your desired level (3%, 6%, or 10%).

4. Operating Instructions

The WELLFIT Walking Pad offers various modes and control options for a customized workout.

4.1 Speed Modes

The treadmill supports a speed range of 1.0 to 4.0 mph, categorized into three primary modes:

• Working Mode: 1.0-1.5 mph (Ideal for light activity while working or reading).
• Walking Mode: 1.5-2.5 mph (Suitable for a brisk walk).
• Running Mode: 2.5-4.0 mph (For light jogging or running).

Image: Illustration of the three distinct speed modes for varied exercise intensity.

4.2 Incline Levels

The treadmill features 3-level manual incline selection (3%, 6%, or 10%). Adjusting the incline can increase calorie burn and simulate a more challenging workout. To change the incline, lift the front of the treadmill and adjust the support feet to the desired height.

Image: Visual guide to adjusting the manual incline levels on the walking pad.

4.3 Control Methods

Control your walking pad using the included remote control or the dedicated WELLFIT mobile application.

• Remote Control: Use the remote to start/stop the treadmill and adjust speed within the 1.0-4.0 mph range.
• Smart APP (WELLFIT APP): Connect your walking pad to the WELLFIT APP via Bluetooth for advanced control, real-time data logging (speed, time, distance, calories), and voice control features. The app supports data memory, allowing you to continue your exercise after a pause.

Image: Overview of the remote control and smart app interface for the walking pad.

4.4 LED Display

The integrated LED display clearly shows key workout metrics, including speed, time, distance, and calories burned, allowing you to monitor your progress in real-time.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your WELLFIT Walking Pad.

5.1 Lubrication

The running belt requires periodic lubrication to reduce friction and wear. Use the provided lubricant and follow these general steps:

1. Turn off and unplug the treadmill.
2. Carefully lift the edge of the running belt.
3. Apply a small amount of lubricant in a Z-pattern directly onto the center of the deck, underneath the belt.
4. Lower the belt and turn on the treadmill at a low speed (e.g., 1.0 mph) for a few minutes to evenly distribute the lubricant.

Refer to the specific instructions in your user manual for recommended lubrication frequency based on usage.

6. Troubleshooting

If you encounter any issues with your WELLFIT Walking Pad, try the following basic troubleshooting steps:

• No Power: Ensure the power cord is securely plugged into both the treadmill and the wall outlet. Check if the power switch on the treadmill is in the 'ON' position.
• Treadmill Not Responding to Remote: Verify the remote control's battery. Re-pair the remote with the treadmill as per the setup instructions.
• App Connectivity Issues: Ensure Bluetooth is enabled on your device and the treadmill is within range. Restart both the app and the treadmill.
• Unusual Noises: Check the running belt for proper alignment and tension. Refer to the maintenance section for lubrication. If noises persist, discontinue use and contact customer support.

For persistent issues or complex problems, please contact WELLFIT customer service.

7. Specifications

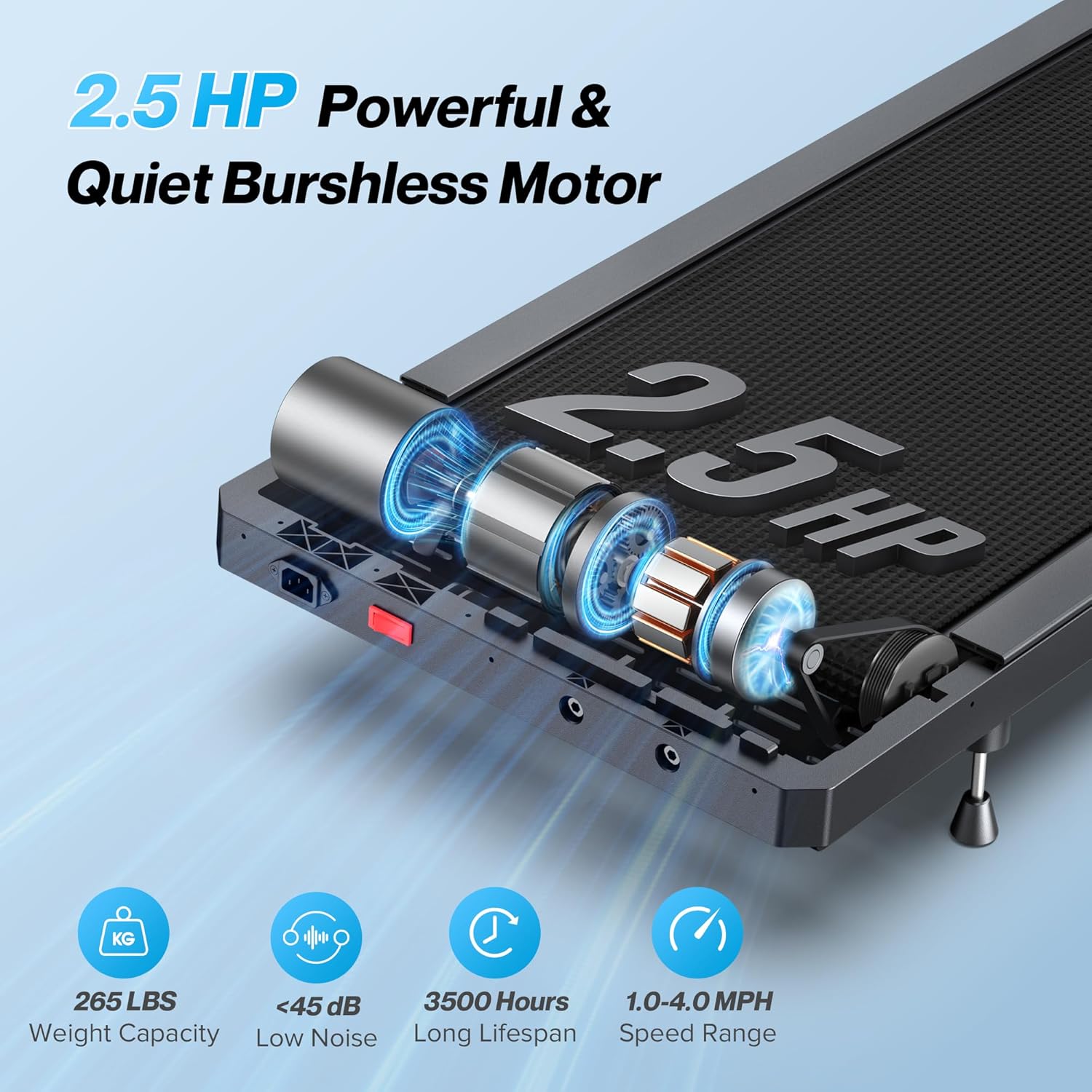

Image: Internal view highlighting the 2.5 HP powerful and quiet motor.

8. Warranty and Support

WELLFIT is committed to customer satisfaction. If you require any assistance or have questions regarding your walking pad, please do not hesitate to contact our after-sales service team.

• Customer Service: Our team is available to answer your questions within 24 hours.
• Warranty: The product comes with a 2-Year Frame Warranty and a 1-Year Motor Warranty.
• Returns: Enjoy 30-Days Free Return.
• Accessories: For purchasing remote controls or other accessories, please visit our store or contact customer service.

Image: Information regarding WELLFIT's customer service and warranty policies.
