NSXAYIWE P700 Professional Cordless Hair Clippers Instruction Manual

1. Introduction

Thank you for choosing the NSXAYIWE P700 Professional Cordless Hair Clippers. This manual provides essential information for the safe and effective use, maintenance, and care of your new grooming tool. Please read these instructions thoroughly before first use and retain them for future reference.

2. Safety Instructions

To reduce the risk of electric shock, injury, or fire, always follow these basic safety precautions:

• Do not immerse the clipper in water or use it near water (e.g., bathtub, shower).
• Keep the appliance away from heated surfaces.
• Do not use the clipper if it has a damaged cord or plug, or if it is not working properly.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use only the charger supplied with the appliance.
• Unplug the clipper from the power outlet immediately after charging and before cleaning.
• Avoid contact with moving parts.

3. Package Contents

Upon unpacking, please verify that all the following items are included:

• NSXAYIWE P700 Hair Clipper
• Charging Adapter (US Plug 100-240V)
• Cleaning Brush
• Screwdriver (for blade adjustment/maintenance)
• Instruction Manual

Figure 3.1: NSXAYIWE P700 Hair Trimmer and included accessories.

4. Product Overview

The NSXAYIWE P700 is a professional-grade cordless hair clipper designed for versatile grooming. It features a durable full-metal body and a powerful motor for efficient and precise cutting.

4.1 Key Features

• Powerful Motor: Ensures fast and efficient hair cutting without snagging.
• Detachable Cutter Head: Allows for easy cleaning and maintenance.
• Durable Construction: Crafted from high-quality, wear-resistant materials for long-term performance.
• Ergonomic Design: Provides a comfortable grip for effortless use.
• Cordless Operation: Offers flexibility and convenience during use.

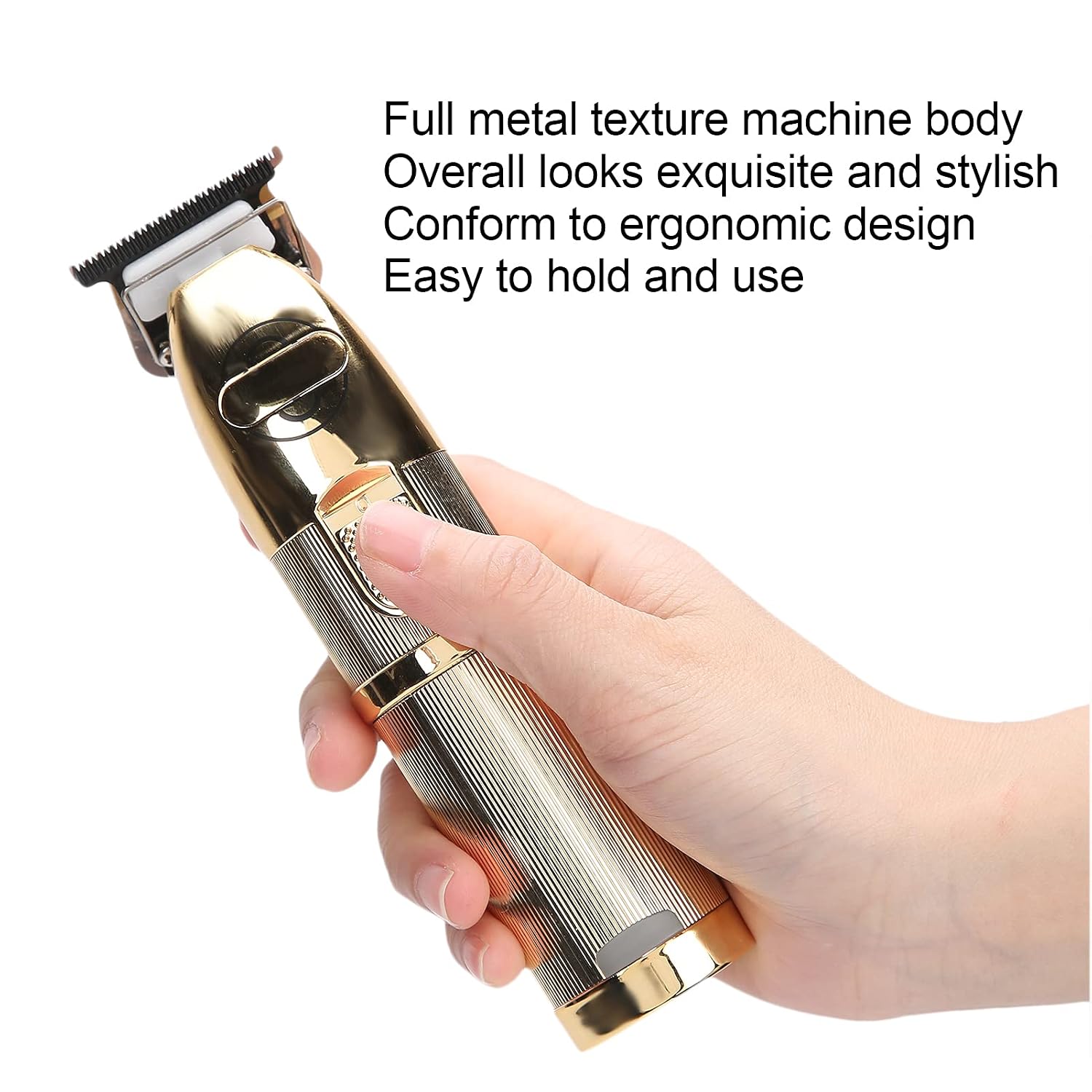

Figure 4.1: Ergonomic design of the NSXAYIWE P700 hair trimmer.

Figure 4.2: Illustration of the powerful motor for efficient cutting.

5. Setup

5.1 Initial Charging

1. Before first use, fully charge the hair clipper.
2. Connect the charging adapter to the clipper's charging port.
3. Plug the adapter into a standard 100-240V US power outlet.
4. The charging indicator light will illuminate. A full charge typically takes approximately 2 hours.
5. Once fully charged, the clipper provides up to 120 minutes of cordless operation.

Figure 5.1: Charging information for the NSXAYIWE P700.

5.2 Attaching/Detaching the Cutter Head

The cutter head is designed to be easily detachable for cleaning and replacement.

• To Detach: Gently push the blade assembly forward or upward until it clicks off the clipper body. Refer to the diagram in Section 7.1 for visual guidance.
• To Attach: Align the blade assembly with the clipper body and push it down or backward until it clicks securely into place.

6. Operating Instructions

6.1 Basic Operation

1. Ensure the clipper is fully charged or connected to power if using it corded.
2. Press the power button to turn the clipper ON.
3. Hold the clipper firmly and position the blade against the hair at the desired angle.
4. Move the clipper slowly and steadily against the direction of hair growth for an even cut.
5. Press the power button again to turn the clipper OFF after use.

6.2 Hair Cutting Tips

• For best results, ensure hair is clean and dry before cutting.
• Start with a longer setting or a higher guard comb if you are unsure of the desired length.
• Comb hair in the direction of growth to remove tangles before trimming.
• Work in small sections, overlapping strokes to ensure an even cut.

7. Maintenance and Cleaning

Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your hair clipper.

7.1 Cleaning the Cutter Head

1. Turn off the clipper and unplug it from the power source.
2. Detach the cutter head as described in Section 5.2.
3. Use the provided cleaning brush to remove any loose hair from the blades and the clipper body.
4. The detachable blade head is washable. Rinse the blade assembly under running water to remove stubborn hair and debris. Ensure the clipper body remains dry.
5. Allow the blade assembly to air dry completely before reattaching it to the clipper.

Figure 7.1: Detachable cutter head for easy cleaning.

Figure 7.2: Visual guide for detachable and washable blade.

7.2 Blade Lubrication

For optimal performance, it is recommended to periodically lubricate the blades with a few drops of clipper oil (not included) after cleaning. Turn the clipper on for a few seconds to distribute the oil evenly, then wipe off any excess.

7.3 Storage

Store the clipper in a dry, cool place, away from direct sunlight and out of reach of children. Ensure the clipper is turned off and unplugged before storing.

8. Troubleshooting

9. Specifications

• Model: P700
• Brand: NSXAYIWE
• Battery Capacity: 1400mAH (Rechargeable)
• Charging Time: Approximately 2 hours
• Operating Time: Up to 120 minutes (cordless)
• Power Input: 100-240V (US Plug)
• Product Dimensions: 8.27 x 7.87 x 2.36 inches
• Product Weight: 1.34 Pounds

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official NSXAYIWE website. Keep your proof of purchase for any warranty claims.
