1. Introduction
Thank you for choosing the Fridge Fixer Refrigerator Door Latch. This product is specifically designed to secure the doors of your Furrion FCR20DCAFA refrigerator during travel in RVs, boats, yachts, food trucks, and fifth wheelers. It also provides a convenient way to hold refrigerator doors open during storage, preventing moisture buildup and odors.
This manual provides essential information for the proper installation, operation, and maintenance of your new refrigerator door latch. Please read it thoroughly before installation and keep it for future reference.
2. Product Features
- Designed for Specific Models: Exclusively engineered for the Furrion FCR20DCAFA refrigerator model.
- One-Hand Operation: Engages and disengages with a single, fluid motion for ease of use.
- Travel Security: Securely holds refrigerator doors closed to prevent accidental opening during vehicle movement.
- Storage Ventilation: Features a mechanism to hold doors slightly ajar during storage, promoting air circulation and preventing mildew and odors.
- Quick Installation: Installation typically takes less than 10 minutes and requires minimal tools.
- Durable Construction: Made from high-quality plastic and metal components for long-lasting performance.
3. What's Included
Your Fridge Fixer Refrigerator Door Latch package includes the following components:
- Adjustable width bars
- Platforms
- Wrench
- Installation spacer
- Adhesion promoter
- Alcohol swab
- Door blocks

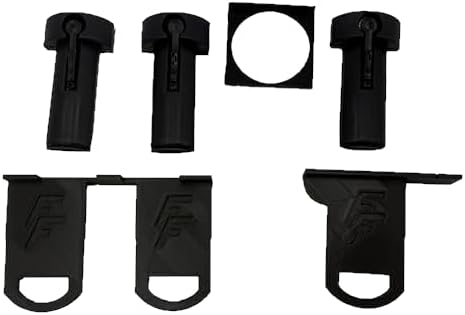

Figure 3.1: All components included in the Fridge Fixer Refrigerator Door Latch kit. This image displays the various parts such as the latch mechanisms, bars, and installation aids.
4. Compatibility and Important Notes
This Fridge Fixer model (FF-FCR20DCAFA) is designed exclusively for the Furrion FCR20DCAFA refrigerator. It is crucial to verify your refrigerator model before installation to ensure proper fit and function.
Figure 4.1: Compatibility information for the Fridge Fixer model FF-FCR20DCAFA, showing it is designed for the Furrion FCR20DCAFA refrigerator. This image also includes important warnings regarding fitment.
⚠ CAUTION: If you have anything added to the front of your refrigerator doors, such as wood panels, this fixed-depth device will not work. Please ensure your refrigerator doors are clear of obstructions.
If your refrigerator model is not listed or if you have any fitment concerns, please contact us via "Seller Communication" before attempting installation. We can assist in selecting the correct design or resolve any issues.
For a complete listing of Fridge Fixer designs compatible with various refrigerators, please visit our Fridge Fixer Store or scan the QR code below:
Figure 4.2: QR code linking to the Fridge Fixer Designs page, where you can find other compatible models. This image also states that Fridge Fixer designs are compatible with many refrigerators.
Link: https://qrco.de/bewtr1
5. Setup and Installation
The Fridge Fixer Refrigerator Door Latch is designed for self-adhesive and screw-mounted installation. The process is straightforward and typically takes less than 10 minutes.
Installation Steps:
- Prepare the Surface: Use the included alcohol swab to thoroughly clean the area on your refrigerator door where the latch will be mounted. Ensure the surface is dry and free of dust, grease, or debris.
- Apply Adhesion Promoter: Carefully apply the adhesion promoter to the cleaned surface. Allow it to dry completely as per the instructions on its packaging. This step is crucial for strong adhesive bonding.
- Position the Latch: Use the installation spacer to correctly position the latch components on the refrigerator door. Ensure proper alignment before proceeding.
- Apply Adhesive: Remove the backing from the self-adhesive pads on the latch components. Carefully press the components firmly onto the prepared surface, holding for at least 30 seconds to ensure good contact.
- Secure with Screws (Optional/Recommended): For enhanced security and durability, use the provided screws and wrench to further secure the latch components to the refrigerator door. Drill pilot holes if necessary, taking care not to damage internal components of the refrigerator.
- Install Adjustable Bars and Door Blocks: Attach the adjustable width bars and door blocks as per the design to ensure the latch functions correctly with your specific refrigerator door configuration.
Once installed, allow the adhesive to cure for at least 24 hours before applying significant force or relying solely on the latch for security, especially if screws were not used.
Figure 5.1: The Fridge Fixer Refrigerator Door Latch installed on a Furrion FCR20DCAFA refrigerator, demonstrating its appearance and placement.
6. Operating Instructions
Engaging the Latch (Travel Mode):
To secure your refrigerator doors for travel, simply push the latch mechanism into its locked position. The design allows for engagement with one hand in a single motion. Ensure the latch is fully engaged and the refrigerator doors are firmly held closed before moving your vehicle.
Disengaging the Latch:
To open your refrigerator doors, disengage the latch by pulling or sliding the mechanism as designed. This can also be done with one hand.
Using for Storage Ventilation:
When storing your RV or boat for extended periods, it is recommended to hold the refrigerator doors slightly open to allow air circulation and prevent mold, mildew, and odors. The Fridge Fixer latch is designed to hold the doors in a partially open position for this purpose. Consult the specific design of your latch for the exact method to achieve this ventilation mode.
7. Maintenance
The Fridge Fixer Refrigerator Door Latch requires minimal maintenance to ensure its longevity and proper function.
- Cleaning: Periodically wipe down the latch components with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the plastic and metal surfaces.
- Inspection: Regularly inspect the latch for any signs of wear, damage, or loosening of the adhesive or screws. If any issues are observed, address them promptly to maintain security.
- Lubrication: No lubrication is typically required for the moving parts of this latch.
8. Troubleshooting
If you encounter any issues with your Fridge Fixer Refrigerator Door Latch, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Latch does not hold doors securely. | Incorrect installation, adhesive failure, or incompatible refrigerator model. |
|
| Difficulty engaging or disengaging the latch. | Misalignment during installation or debris in the mechanism. |
|
For further assistance or if your issue is not listed, please contact Fridge Fixer customer support.
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Fridge Fixer |
| Model Name | FF-FCR20DCAFA |
| Compatible Refrigerator | Furrion FCR20DCAFA |
| Material Type | Plastic, Metal |
| Installation Type | Self-Adhesive and Screw Mounted |
| Color | Black |
| Special Features | One-hand operation, holds doors open for storage, residential refrigerator latch for travel. |
10. Support and Contact
For any questions, concerns, or assistance with your Fridge Fixer Refrigerator Door Latch, please contact us directly through Amazon's "Seller Communication" feature. This is the most effective way to receive support for fitment issues, wrong design orders, or any other product-related inquiries.
You can also visit the official Fridge Fixer Store on Amazon for more product information and to explore other compatible designs.
