1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your Ledvion Black 4-Light LED Ceiling Spot, Model LV10069-2700K. Please read these instructions carefully before installation and retain them for future reference.
Image 1.1: Ledvion Black 4-Light LED Ceiling Spot overview.
2. Safety Information
- Ensure the power supply is disconnected before installation, maintenance, or bulb replacement.
- Installation should be performed by a qualified electrician if you are unsure.
- Do not modify the product in any way.
- This product is designed for indoor use only (IP20 rating).
- Keep away from water and high humidity.
- Do not cover the light fixture with insulating material.
3. What's in the Box
Verify that all components are present before beginning installation:
- 1x Ledvion 4-Light Ceiling Spot Fixture
- 4x GU10 LED Bulbs (2700K)
- 2x Screws
- 2x Screw Wall Plugs
- 1x Instruction Manual (this document)

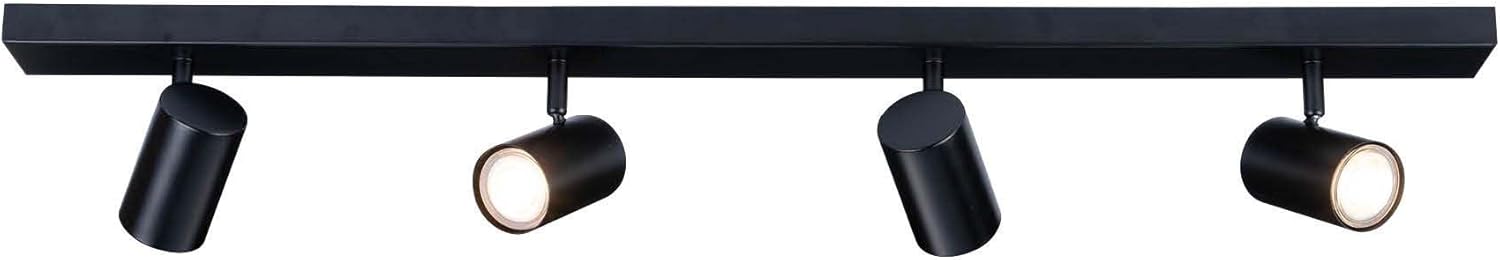

Image 3.1: Contents of the product packaging.
4. Setup and Installation
The Ledvion ceiling spot is designed for straightforward installation. Follow these general steps:
- Prepare the Installation Area: Ensure the power supply to the installation area is turned off at the main circuit breaker.
- Mount the Bracket: Use the supplied screws and wall plugs to securely attach the mounting bracket to the ceiling. The bracket and junction box facilitate quick installation.
- Connect Wiring: Connect the electrical wires from the ceiling to the fixture's wiring terminals according to local electrical codes. Ensure all connections are secure.
- Attach the Fixture: Secure the ceiling spot fixture to the mounted bracket.
- Insert Bulbs: Install the GU10 LED bulbs into each spot. The fixture is compatible with any standard GU10 LED spotlight.
Image 4.1: Illustration of the quick installation process.
Image 4.2: The ceiling light is equipped with a GU10 fitting, suitable for any GU10 LED spotlight.
After installation, restore power and test the light fixture.
5. Operating Instructions
The Ledvion ceiling spot offers flexible lighting options:
- Power On/Off: Control the light using a standard wall switch connected to the fixture.
- Dimmable Functionality: The included GU10 LED bulbs are dimmable. To utilize this feature, connect the fixture to a compatible dimmer switch (not included). Adjust the dimmer to achieve your desired brightness level.
- Adjustable Light Direction: Each light source can be individually tilted up to 90 degrees and rotated up to 350 degrees. This allows you to direct the light precisely where needed.
Image 5.1: Each light source can be tilted up to 90 degrees and rotated up to 350 degrees.
6. Maintenance
To ensure the longevity and optimal performance of your Ledvion ceiling spot:
- Cleaning: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Bulb Replacement: Ensure power is off. Allow bulbs to cool before handling. Twist the GU10 bulb counter-clockwise to remove and clockwise to install a new one. Use only GU10 LED bulbs.
7. Troubleshooting
If you encounter issues with your ceiling spot, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, loose wiring, faulty bulb. | Check circuit breaker. Verify wiring connections. Replace bulb. |
| Light flickers. | Loose connection, incompatible dimmer, faulty bulb. | Check wiring. Ensure dimmer is compatible with LED bulbs. Replace bulb. |
| Dimming not working. | Incompatible dimmer switch. | Ensure a compatible LED dimmer switch is installed. |
If the problem persists, contact Ledvion customer support or a qualified electrician.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Ledvion |
| Model Number | LV10069-2700K |
| Dimensions (L x W x H) | 90 x 20 x 17 cm |
| Weight | 2 Kilograms |
| Material | Metal |
| Color | Black |
| Number of Bulbs | 4 |
| Bulb Type | GU10 LED |
| Wattage (per bulb) | 3 Watts |
| Luminous Flux (per bulb) | 345 Lumens |
| Color Temperature | 2700K (Warm White) |
| Voltage | 230 Volts |
| Special Features | Dimmable, Tiltable, Rotatable |
| Installation Type | Ceiling Mount (Semi-flush) |
| Usage | Indoor Use Only |
Energy Efficiency
Image 8.1: Energy label for the Ledvion LED Ceiling Spot.
For detailed energy information, refer to the official EU EPREL database: https://eprel.ec.europa.eu/qr/2042892
Dimensions Diagram
Image 8.2: Detailed dimensions of the Ledvion 4-light ceiling spot.
9. Warranty and Support
Ledvion products are manufactured to high-quality standards and are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Ledvion customer support.
