LZ LEISURE ZONE Twin Over Twin Bunk Bed Instruction Manual

1. Safety Information

Please read and understand all instructions before beginning assembly and use of this bunk bed. Failure to follow these instructions can result in serious injury.

• Maximum Weight Recommendation: This bunk bed has a maximum weight recommendation of 250 pounds for each bunk. Do not exceed this limit.
• Guardrails: The top bunk is equipped with fence-shaped guardrails for safety. Ensure all guardrails are securely installed before use.
• Age Restriction: The top bunk is not suitable for children under 6 years of age.
• Mattress Size: Use only mattresses that are 75 inches long and 38.6 inches wide for the twin size. The mattress thickness should not exceed 6 inches for the top bunk to ensure adequate guardrail height.
• No Jumping: Do not allow jumping on the bed.
• Ladder Safety: Always use the provided ladder for access to the top bunk. Ensure the ladder is securely attached.
• Ventilation: Ensure adequate ventilation around the bed.
• Regular Checks: Periodically check all connections and hardware to ensure they remain tight and secure. Tighten as necessary.

2. Setup and Assembly

This bunk bed is designed for straightforward assembly. All necessary parts, tools, and detailed instructions are included in the packaging. It is recommended to assemble the bed with at least two adults.

2.1 Before You Begin

• Unpack all components and lay them out on a clean, soft surface to prevent scratches.
• Verify that all parts and hardware listed in the included assembly manual are present. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
• Ensure you have sufficient space for assembly.

2.2 Assembly Steps

Refer to the step-by-step assembly instructions provided in the box. Follow the diagrams carefully, ensuring all screws and fasteners are tightened securely at each stage. Do not overtighten screws to avoid damaging the wood.

Figure 1: Product Dimensions. This diagram illustrates the overall length (77"), width (41.7"), and height (49.2") of the bunk bed, along with specific measurements for the ladder, guardrails, and mattress support areas.

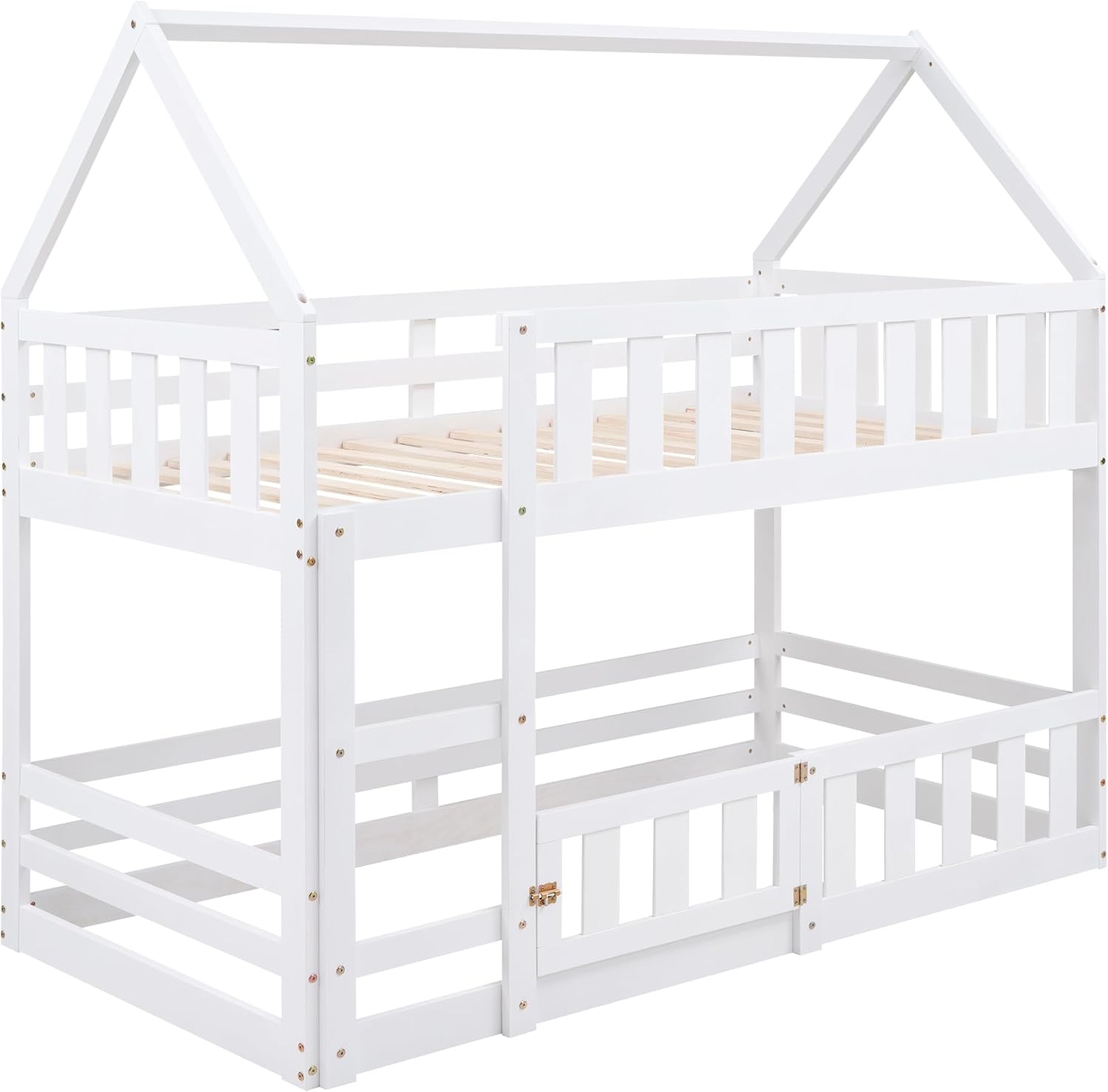

Figure 2: Assembled Bunk Bed Structure. This image provides an angled view of the bunk bed, highlighting the house-shaped roof frame, the ladder, and the guardrails on both the upper and lower bunks.

3. Operating Instructions

The LZ LEISURE ZONE Twin Over Twin Bunk Bed is designed for comfortable sleeping and imaginative play.

3.1 Using the Bunks

• Top Bunk: Access the top bunk using the integrated ladder. Ensure the mattress is properly seated within the guardrails.
• Lower Bunk: The lower bunk features a small door for easy access. This area can serve as a sleeping space or a versatile play area when not in use for sleeping.

Figure 3: Side View with Ladder and Door. This image shows the side of the bunk bed, clearly displaying the ladder for the top bunk and the small, hinged door on the lower bunk for easy entry and exit.

Figure 4: Lower Bunk Door Latch. A detailed view of the latch mechanism on the small door of the lower bunk, demonstrating how it secures the door.

4. Maintenance

Proper maintenance ensures the longevity and safety of your bunk bed.

• Cleaning: Wipe the bed frame with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the painted finish.
• Hardware Checks: Regularly inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity and prevent squeaking.
• Wood Care: Protect the wood from extreme temperature changes and direct sunlight to prevent warping or fading.

5. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

• Squeaking Noises: Squeaking often indicates loose hardware. Re-tighten all bolts and screws, especially those connecting the main frame components.
• Instability/Wobbling: Ensure the bed is placed on a level surface. Check that all structural bolts are fully tightened. If the issue persists, disassemble and reassemble, paying close attention to each connection.
• Missing Parts: If you discover missing parts during assembly, do not attempt to substitute with other hardware. Contact customer support for replacement parts.
• Damaged Components: If any part of the bed frame is damaged, discontinue use immediately and contact customer support for assistance.

6. Specifications

7. Warranty and Support

For information regarding warranty coverage or to obtain customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt for warranty claims.

Manufacturer: LZ LEISURE ZONE

For further assistance, please visit the LZ LEISURE ZONE Store on Amazon.
