Advanblack Razor Tour Pack Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Advanblack Razor Tour Pack. Please read these instructions thoroughly before use to ensure optimal performance and longevity of your product. Retain this manual for future reference.

Product Overview

The Advanblack Razor Tour Pack is a motorcycle luggage solution designed for Harley Touring, Low Rider, and Indian Chief models. It offers convenient storage and is constructed from durable Acrylonitrile Butadiene Styrene (ABS) material. Key features include:

• Capacity: Provides up to 50 liters of storage space.
• Organization: Features multiple compartments, pockets, and sleeves for organizing belongings.
• Mounting: Designed for easy attachment and detachment from the motorcycle via a rack mount system.
• Weather Protection: Constructed with materials to protect contents from environmental elements.

Figure 1: The Advanblack Razor Tour Pack, a compact motorcycle luggage solution.

Specifications

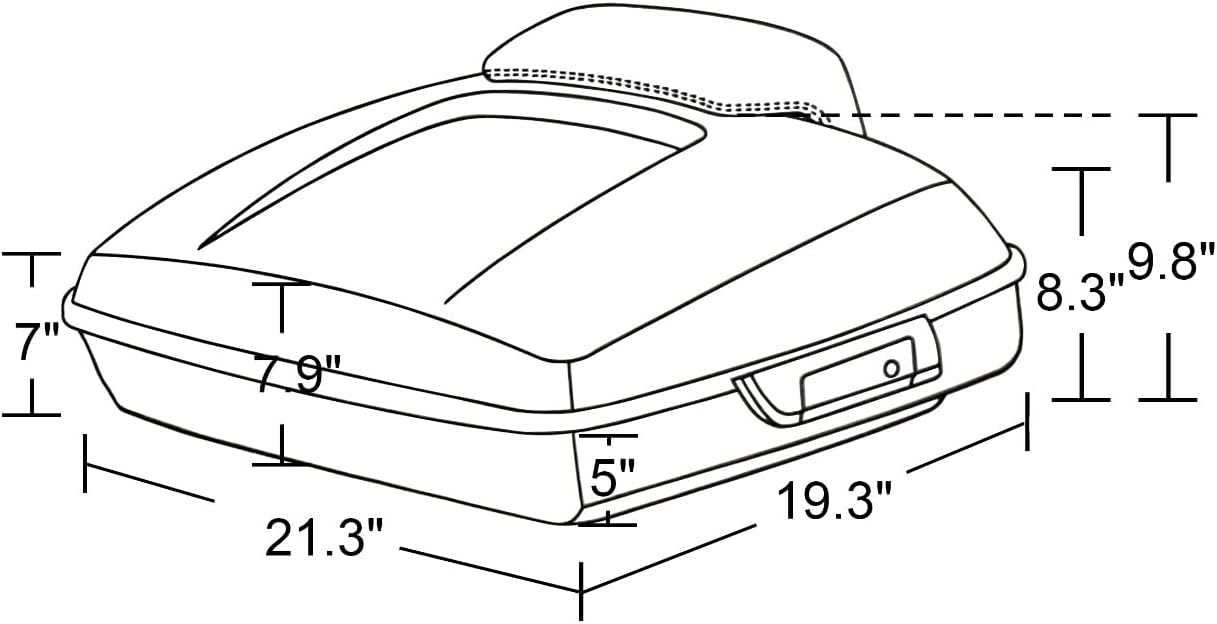

Figure 2: Technical diagram showing the dimensions of the Razor Tour Pack.

Setup and Installation

The Advanblack Razor Tour Pack is designed for straightforward installation onto compatible motorcycle rack mounts. The package includes necessary components for assembly.

Components Overview

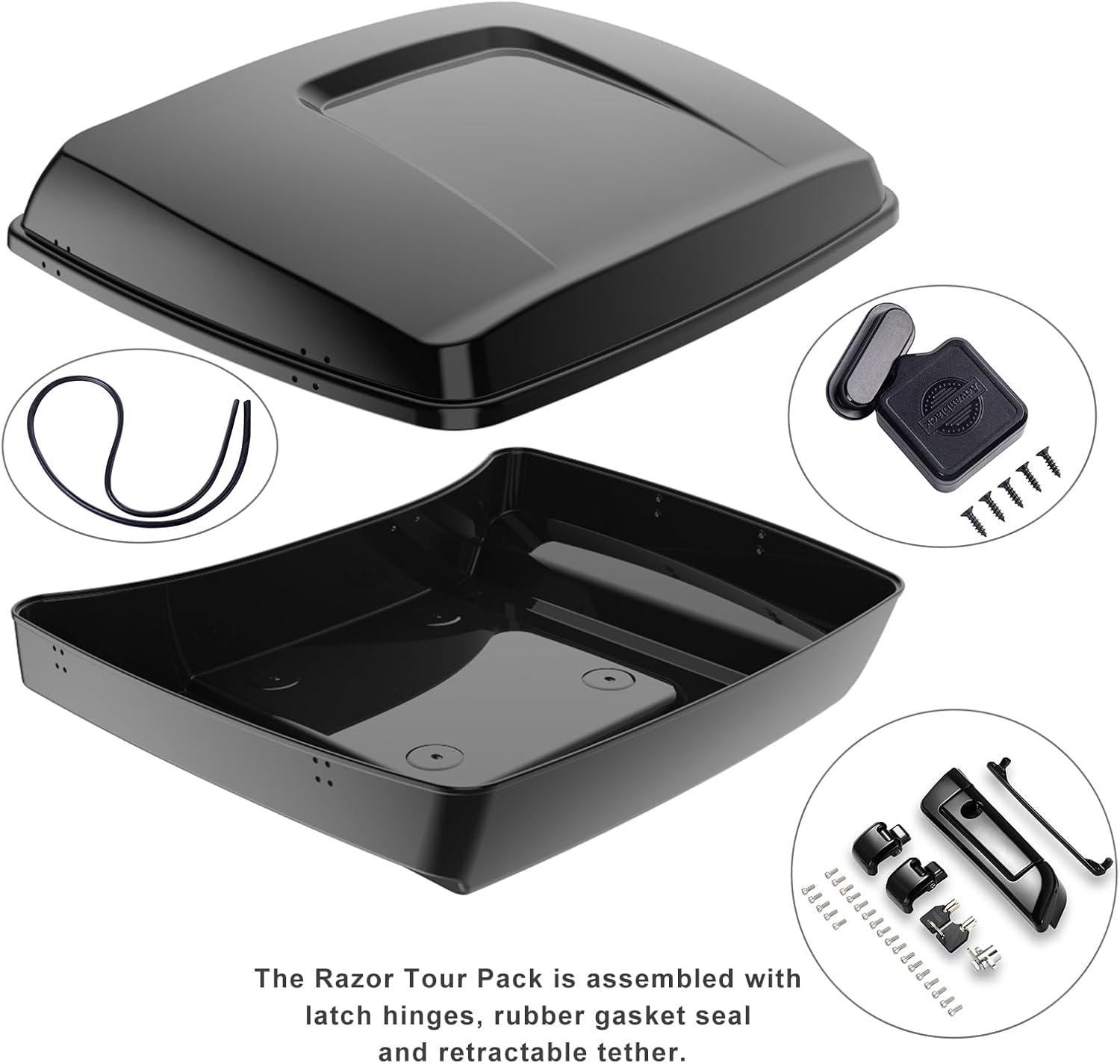

Figure 3: Components of the Razor Tour Pack, including the lid, base, latch hinges, rubber gasket, and retractable tether.

Backrest Pad Installation

The chopped backrest pad is included with the tour pack. Mounting holes for the backrest are pre-drilled on the tour pack lid for easy attachment.

Figure 4: The Razor Tour Pack shown with the included chopped backrest pad.

Mounting Plate

A black metal plate and associated hardware are provided for securing the tour pack to your motorcycle's rack mount. Ensure all hardware is tightened securely according to your motorcycle's specific mounting instructions.

Figure 5: The black metal plate included for mounting the tour pack, shown with hardware.

Video Reference

Operation

The Razor Tour Pack is designed for ease of use. To open, unlock the latch mechanism and lift the lid. To close, ensure the lid is properly aligned with the base and press down until the latch engages securely. Utilize the internal compartments and straps to organize and secure your belongings during travel.

Maintenance

Regular maintenance ensures the longevity and appearance of your tour pack.

• Cleaning: Clean the exterior with a mild soap and water solution. Avoid abrasive cleaners or solvents that may damage the finish.
• Weather Protection: While designed for weather resistance, prolonged exposure to extreme conditions may require additional protection. Ensure the lid is securely closed to prevent water ingress.
• Hardware Check: Periodically inspect all mounting hardware and latch mechanisms for tightness and proper function. Tighten any loose fasteners as needed.

Troubleshooting

Latching Mechanism Issues

If the latch mechanism becomes difficult to operate or fails to secure the lid:

• Inspect the latch for any obstructions or debris.
• Check if the lid is properly aligned with the base before attempting to close and latch.
• Ensure all screws and fasteners associated with the latch mechanism are secure. Avoid over-tightening.
• If the mechanism is damaged, contact customer support for assistance.

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the documentation provided at the time of purchase or contact Advanblack customer service directly. Contact details can typically be found on the manufacturer's official website or through your retailer.
