RESKIU TUF-2000H Handheld Digital Ultrasonic Flow Meter

1. Introduction

This manual provides detailed instructions for the proper use, setup, operation, and maintenance of the RESKIU TUF-2000H Handheld Digital Ultrasonic Flow Meter. This device is designed for non-contact measurement of liquid flow within pipes, offering high accuracy and portability. Please read this manual thoroughly before operating the instrument to ensure safe and effective use.

2. Product Overview

The TUF-2000H is a portable ultrasonic flow meter that utilizes clamp-on transducers to measure liquid flow without interrupting the pipeline. Its design emphasizes ease of use and reliability for various industrial applications.

2.1 Key Features

• Non-Contact Measurement: Transducers clamp onto the outer wall of the pipe, eliminating the need to cut into the pipeline or stop production.
• High Accuracy: Measurement accuracy is ±1% of indication, with linearity of 0.5% and repeatability of 0.2%.
• Wide Measuring Range: Supports various transducer types for pipe sizes from DN15mm to DN6000mm.
• Powerful Functions: Includes 4-20mA current output, two OCT outputs, three 4-20mA current inputs, and two PT100 resistance signal inputs.
• Data Logging: Built-in data logger capable of recording 2000 lines of data.
• Portable Design: Compact and lightweight (0.5 kg) for easy transport and field use.

2.2 Components

The RESKIU TUF-2000H system typically includes the main unit, TM-1 standard transducers, signal cables, a charger, and a measuring tape, all housed in a protective carrying case.

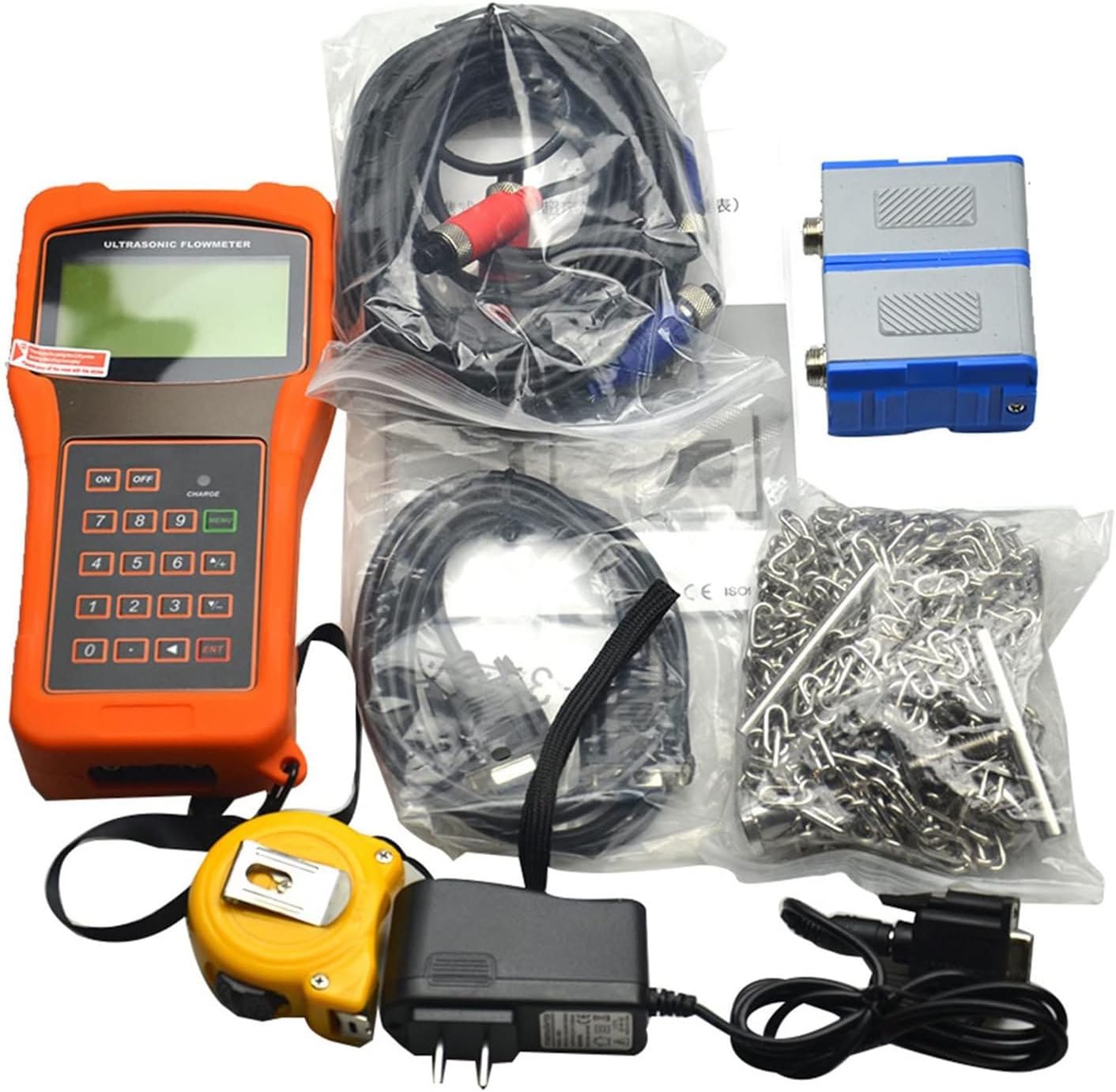

Image 2.2.1: Overview of the TUF-2000H flow meter and its accompanying components, including the main unit, transducers, cables, and accessories.

Image 2.2.2: The TUF-2000H main unit held by hand, with transducers clamped onto a vertical pipe, demonstrating a typical measurement setup. A carrying case is visible in the background.

Image 2.2.3: An internal view of the TUF-2000H main unit, showcasing its advanced and stable integrated circuits and microprocessors designed for extended life expectancy.

3. Specifications

The following table details the technical specifications of the RESKIU TUF-2000H Handheld Digital Ultrasonic Flow Meter:

Image 3.1: The TUF-2000H main unit with its 4x16 character LCD display and two TM-1 standard transducers. The display supports English and provides an accuracy of ±1%.

Image 3.2: Detailed view of the TUF-2000H main unit, highlighting its working environmental conditions: Main unit temperature -20~60°C, humidity 85%RH; Transducer temperature -30~160°C, protection level IP67.

Image 3.3: The TUF-2000H main unit showing its signal output capabilities (1-way OCT pulse output) and the insulated RS232 serial data interface for software upgrades via computer.

4. Setup

4.1 Initial Charging

1. Connect the provided charger to the TUF-2000H main unit.
2. Plug the charger into an AC100-240V power outlet.
3. Allow approximately 8 hours for a full charge. A fully charged battery provides up to 12 hours of operation.

4.2 Transducer Installation

The accuracy of measurements heavily relies on correct transducer installation. Ensure the pipe surface is clean and free of rust, paint, or debris.

1. Select Measurement Point: Choose a straight section of pipe, away from pumps, valves, and bends, to ensure stable flow.
2. Clean Pipe Surface: Thoroughly clean the outer surface of the pipe where the transducers will be mounted.
3. Apply Coupling Gel: Apply a generous amount of coupling gel to the contact surfaces of both transducers and the pipe. This is crucial for effective ultrasonic signal transmission.
4. Mount Transducers: Attach the transducers to the pipe using the provided clamps or chains. Ensure they are firmly secured and in direct contact with the pipe surface, with no air gaps. The distance between transducers depends on the pipe diameter and material, which should be calculated using the meter's internal functions or a separate guide.
5. Connect Cables: Connect the transducer cables to the corresponding ports on the TUF-2000H main unit. Ensure a secure connection.

5. Operating Instructions

5.1 Power On/Off

• Power On: Press the 'ON' button on the main unit. The LCD display will illuminate.
• Power Off: Press the 'OFF' button.

5.2 Basic Measurement

1. Enter Pipe Parameters: Navigate through the menu using the keypad to input essential pipe parameters such as outer diameter, wall thickness, pipe material, and liquid type. Accurate input is vital for precise measurements.
2. Set Transducer Spacing: The meter will calculate the optimal transducer spacing based on the entered pipe parameters. Adjust the physical distance between the clamped transducers on the pipe to match this calculated value.
3. Verify Signal Quality: The display will show signal strength and quality indicators. Adjust transducer position slightly if necessary to achieve optimal signal.
4. Start Measurement: Once the signal quality is good, the meter will begin displaying real-time flow velocity and accumulated flow.

5.3 Data Logging

The TUF-2000H features a built-in data logger.

• Access the data logging menu to configure logging intervals and start/stop data recording.
• The device can store up to 2000 lines of data.
• Logged data can be retrieved via the RS-232 interface for analysis on a computer.

5.4 Communication Interface

The RS-232 port allows connection to a computer for data transfer and software updates. Refer to the accompanying software manual for detailed instructions on using the communication features.

6. Maintenance

6.1 Cleaning

• Wipe the main unit and transducers with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.
• Ensure no liquid enters the device's ports or openings.
• Clean off any residual coupling gel from transducers and pipe surfaces after use.

6.2 Storage

• Store the TUF-2000H and its components in the provided carrying case when not in use.
• Store in a cool, dry place, away from direct sunlight and extreme temperatures.
• For long-term storage, ensure the battery is partially charged (around 50%) and recharge every few months to maintain battery health.

6.3 Battery Care

• Avoid fully discharging the battery frequently.
• Use only the charger supplied with the device.
• If the battery performance degrades significantly, contact customer support for replacement options.

7. Troubleshooting

This section addresses common issues you might encounter with the TUF-2000H flow meter.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact RESKIU customer service through the retailer where the product was purchased. Please have your model number (TUF-2000H) and purchase date available when contacting support.
