1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the DNYSYSJ M120A-501 120W Speed Gear Reduction Motor with Speed Controller. Please read this manual thoroughly before using the product to ensure safe and efficient operation.
2. Safety Information
- Ensure all electrical connections are made by a qualified professional and comply with local electrical codes.
- Always disconnect power before performing any installation, maintenance, or troubleshooting.
- Avoid touching moving parts during operation.
- Do not operate the motor in wet or explosive environments.
- Wear appropriate personal protective equipment (PPE) when handling and operating the motor.
3. Package Contents
Verify that all items are present in the package:
- 1x Gear Reducer Motor (M120A-501)
- 1x Speed Controller
Note: Power cords are not included and must be purchased separately.
4. Setup and Installation
Follow these steps for proper assembly and connection of the motor and speed controller.
4.1 Motor and Gearbox Assembly
- Remove the protective holster from the motor shaft before installation.
- Carefully install the reduction gearbox onto the motor.
- Secure the gearbox to the motor using the four provided screws.
- Insert the keyway into the keyway opening on the motor shaft.
Image: The DNYSYSJ M120A-501 gear reduction motor and its speed controller, ready for assembly.
4.2 Electrical Connections
- Connect the main wire from the motor to the corresponding main wire connector on the speed controller. Ensure a secure connection.
- Unscrew the two AC terminal screws located on the back of the speed controller.
- Connect single-phase power to these two AC ports. There is no need to distinguish between live and neutral wires. Tighten the screws securely.
Image: Close-up of the wiring connector, showing colored wires for easy identification and connection.
4.3 Mounting the Motor (Optional)
If mounting is required, attach the bracket to the motor using appropriate fasteners.

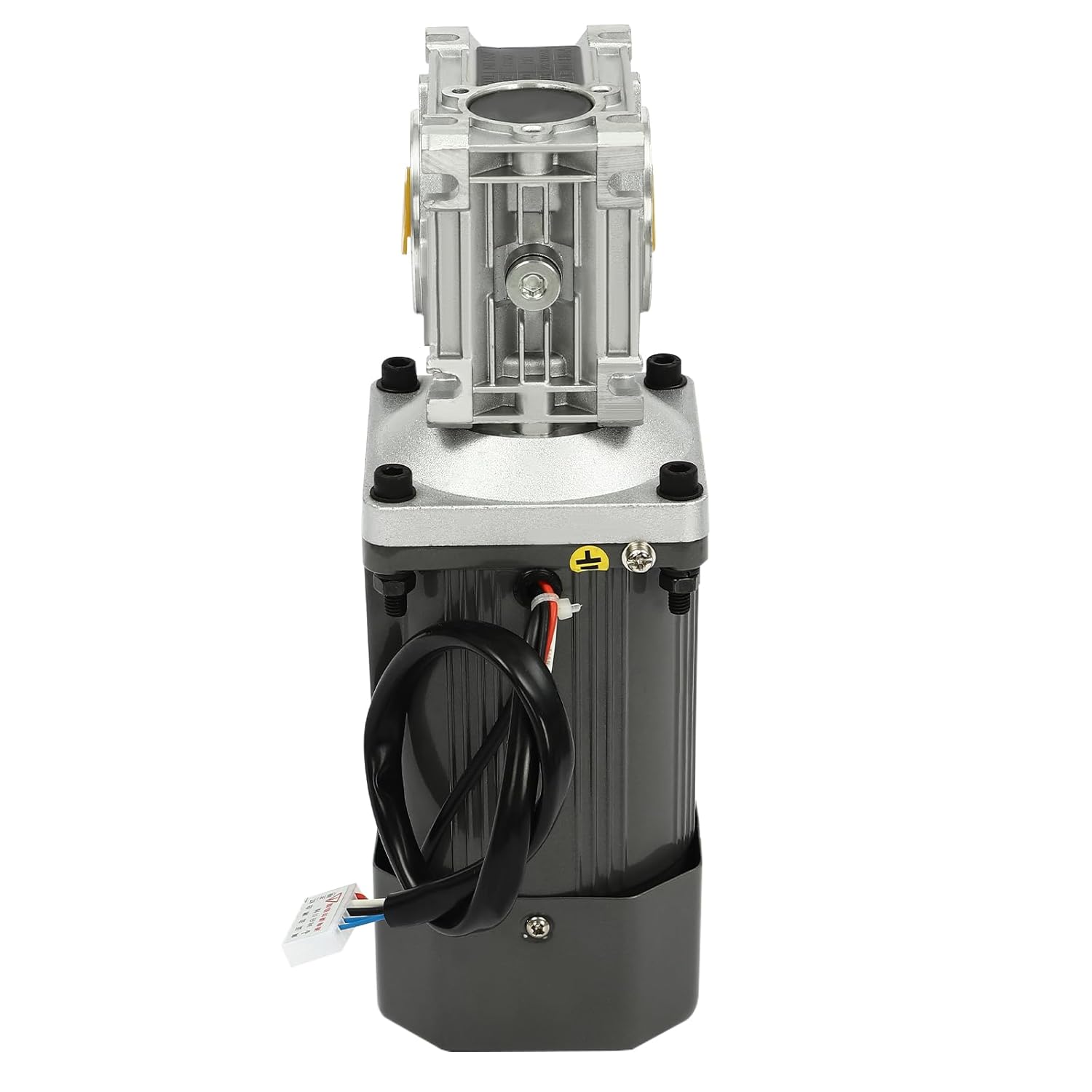

Image: Rear view of the motor and gearbox, showing mounting points for a bracket.
4.4 Installation Video Guide
Video: A step-by-step guide demonstrating the installation process of the motor and speed controller, including assembly of the gearbox, wiring, and initial setup.
5. Operating Instructions
The speed controller allows for precise adjustment of the motor's rotational speed.
5.1 Speed Adjustment
- The speed controller features a knob for adjusting motor speed.
- One mode of adjustment is scaled from 10% to 90%, where each mark represents a 10% increment of the maximum speed.
- An alternative infinite adjustment mode is available with 'HIGH', 'RUN', and 'LOW' settings for fine-tuning.
- The indicator light on the speed controller shows whether the unit is energized.
Image: Close-up of the speed controller, showing the adjustment knob, power switch, and indicator light.
5.2 Reversible Function
The motor supports reversible operation, allowing for changes in rotational direction as needed for various applications.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your motor.
- The gearbox is pre-greased from the factory. However, it is recommended to refill the gearbox with appropriate lubricant after approximately 100 hours of use.
- Periodically inspect all connections and fasteners to ensure they remain secure.
- Keep the motor and controller free from dust and debris.
7. Troubleshooting
Refer to the following guidelines if you encounter issues during operation.
- Motor Not Operating: Ensure all wires are correctly connected and power is supplied to the speed controller.
- Motor Overheating or Reduced Performance:
- If the motor is lightly loaded and not running for extended periods, the controller can be adjusted to 50% of full speed.
- When the motor is under load and operating continuously for a long duration, the controller speed should not be set below 70% of full speed. Reducing the speed too much under load can decrease torque, potentially leading to overload. This increases current, worsens heat dissipation, and can cause severe motor heating, shortening its service life.
- Incorrect Output Shaft Speed: The output shaft speed is determined by the motor speed divided by the reduction ratio. Verify the correct reduction ratio for your application.
8. Specifications
Technical specifications for the DNYSYSJ M120A-501 Gear Reduction Motor:
| Feature | Specification |
|---|---|
| Model | M120A-501 |
| Brand | DNYSYSJ |
| Power | 120W |
| Voltage | 110V |
| Motor Type | Pure Copper Wire |
| Material | Aluminum Alloy, 40cr Alloy Steel |
| Process | Tempering Treatment, Fine Finish, Nitrogen Treatment |
| Reduction Ratio | 1:80 (80K) |
| Motor Speed (50Hz) | 90-1350 r/min |
| Motor Speed (60Hz) | 90-1650 r/min |
| No-load Speed | 1350 r/min |
| Rated Torque | 25NM |
| Shaft Bore Diameter | 14mm / 0.55 inch |
| Capacitance | 25μF |
| Total Length of Wire | Approx. 1m / 3.28ft |
| Motor Size | 9 x 9 x 25 cm / 3.54 x 3.54 x 9.84 inch |
| Speed Control Unit Size | 6 x 10 x 9 cm / 2.4 x 3.9 x 3.5 inch |
| Gross Weight | 6 kg / 13.23 lbs |
| Reversible | Yes |
Image: Diagram illustrating the dimensions of the motor and speed control unit.
9. Application
This motor is suitable for various industrial applications, including but not limited to:
- Packaging machinery
- Printing equipment
- Food processing machinery
- Textile machinery
- Engineering machinery
- CNC equipment
- Grinding machines
- Milling machines
- Production workshops and assembly lines
Image: The motor and controller shown in contexts such as textile production and a treadmill, illustrating diverse applications.
10. Warranty and Support
Information regarding product warranty and customer support was not provided in the available product details. Please refer to the seller or manufacturer's official website for specific warranty terms and support contact information.
