vidaXL Smoke Cabinet with Cold Smoke Generator User Manual

Introduction

This manual provides essential instructions for the safe and efficient use of your vidaXL Smoke Cabinet with Cold Smoke Generator. Please read this manual thoroughly before assembly and operation, and retain it for future reference.

Important Safety Information

WARNING: Do not use this barbecue in tight spaces or in living spaces such as houses, tents, caravans, motorhomes, and boats. There is a risk of death caused by carbon monoxide poisoning.

• Always operate the smoke cabinet outdoors in a well-ventilated area.
• Keep children and pets away from the smoke cabinet during operation.
• Ensure the smoke cabinet is placed on a stable, non-combustible surface.
• Do not leave the smoke cabinet unattended while in use.
• Wear protective gloves when handling hot components.

Product Overview and Components

The vidaXL Smoke Cabinet is designed for cold smoking various food items. It features a galvanized steel construction for durability and includes a separate cold smoke generator.

Included Components:

• 1 x Smoke Barrel (Cabinet)
• 12 x S-hooks
• 2 x Grilles
• 1 kg Wood Chips
• 1 x Cold Smoke Generator

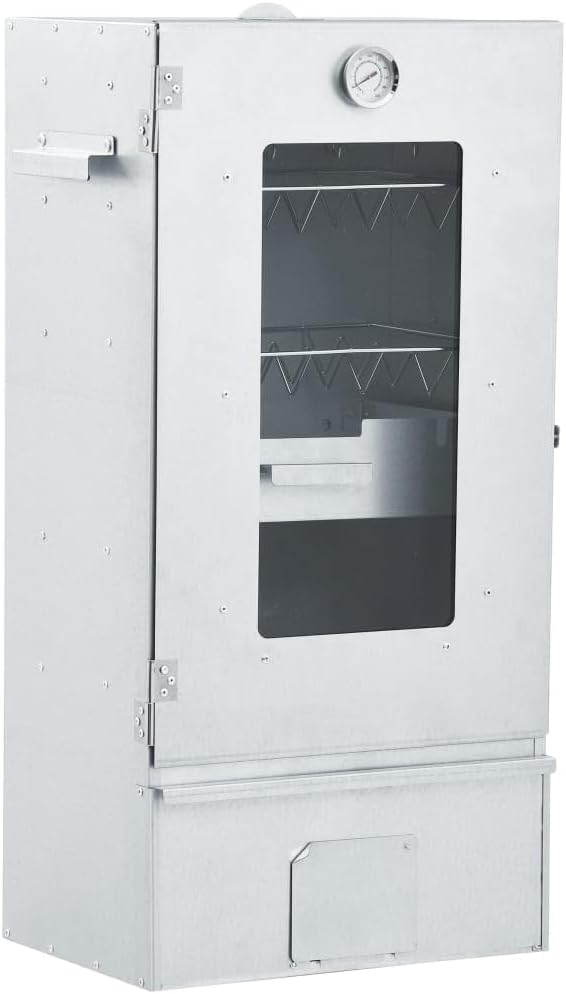

Image 1: Front view of the vidaXL Smoke Cabinet, showing the glass window and thermometer.

Image 2: Interior view of the smoke cabinet with the door open, displaying S-hooks for hanging food and two grilles.

Image 3: Detailed view of the S-hooks and grilles positioned inside the smoke cabinet, ready for food placement.

Image 4: A bag of wood chips, typically used with the cold smoke generator.

Setup and Assembly

The smoke cabinet requires assembly. Follow these steps carefully:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all listed components are present.
2. Assemble Smoke Cabinet: Follow the manufacturer's specific assembly instructions provided with the product. Ensure all panels are securely fastened.
3. Install Grilles and S-hooks: Place the grilles onto the designated supports inside the cabinet. Hang the S-hooks from the top bars as desired for your smoking needs.
4. Position Cold Smoke Generator: The cold smoke generator is a separate unit. It should be placed at the bottom of the smoke cabinet or in a designated area as per the specific design.
5. Placement: Position the assembled smoke cabinet outdoors on a flat, stable, and non-combustible surface, away from flammable materials and structures.

Image 5: Diagram illustrating the dimensions of the smoke cabinet: 44.5 cm (17.5") width, 29 cm (11.4") depth, and 83 cm (32.7") height.

Operating Instructions

Preparing the Cold Smoke Generator:

1. Fill with Sawdust: Fill the cold smoke generator with sawdust or wood chips (1 kg wood chips included). Ensure the sawdust is dry and packed loosely enough for air circulation.
2. Light the Sawdust: Use a tea light or a small torch to ignite the sawdust in one corner of the generator. Allow it to burn for a few minutes until it starts to smolder and produce smoke.
3. Remove Tea Light: Once the sawdust is smoldering consistently, carefully remove the tea light. The square, compact mesh design of the generator is intended to allow the smoke chips to burn evenly and slowly for up to 12 hours.
4. Place in Cabinet: Position the smoldering cold smoke generator inside the smoke cabinet.

Smoking Process:

1. Prepare Food: Prepare your meat, fish, sausage, or other items for smoking. Ensure they are properly cured or brined if required for cold smoking.
2. Load Cabinet: Place the food items on the grilles or hang them from the S-hooks inside the smoke cabinet. Ensure there is adequate space between items for smoke circulation.
3. Monitor Temperature: The smoke cabinet is equipped with a thermometer to monitor the internal temperature. For cold smoking, maintain a low temperature, typically below 30°C (86°F), to prevent cooking the food.
4. Observe Progress: Utilize the glass window to observe the food and smoke levels without opening the door, which helps maintain a consistent smoking environment.
5. Smoking Duration: The duration of smoking depends on the type of food and desired flavor intensity. Refer to specific recipes or guidelines for cold smoking.

Maintenance and Care

• Cleaning: After each use, allow the smoke cabinet and generator to cool completely. Remove ash and unburnt sawdust from the generator. Clean the interior of the smoke cabinet, grilles, and S-hooks with warm soapy water. Rinse thoroughly and dry completely to prevent rust.
• Storage: Store the smoke cabinet in a dry, protected area when not in use to prolong its lifespan.
• Inspection: Periodically inspect all components for wear or damage. Replace any damaged parts immediately.

Troubleshooting

Specifications

• Smoke Cabinet Dimensions (W x D x H): 44.5 x 29 x 83 cm
• Glass Window Size (L x W): 19.5 x 41.5 cm
• Material (Smoke Cabinet): Galvanized steel + glass
• Material (Fire Plate, Lattice & Ashes Box): Zinc Plating
• Cold Smoke Generator Dimensions (L x W x H): 21 x 21 x 4.5 cm
• Cold Smoke Generator Material: Stainless Steel 304
• Weight: Approximately 15.48 kg (total product)
• Features: Thermometer, Glass window, Box with Handle, Suitable for outdoor use

Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact vidaXL customer service directly. Keep your proof of purchase for warranty claims.
