1. Important Safety Instructions
Welding operations can be hazardous. It is crucial to read and understand all safety precautions before operating this equipment. Failure to follow these instructions may result in serious injury or death.
- Electric Shock: Welding current can cause fatal electric shock. Ensure the welder is properly grounded. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
- Fumes and Gases: Welding produces fumes and gases that can be hazardous to your health. Work in a well-ventilated area. Use an exhaust fan or fume extractor if necessary.
- Arc Rays: Arc rays can burn eyes and skin. Always wear a welding helmet with appropriate shade filter and protective clothing.
- Fire and Explosion: Welding sparks and hot metal can cause fires or explosions. Keep flammable materials away from the welding area. Have a fire extinguisher readily available.
- Burns: Hot metal and slag can cause severe burns. Wear protective gloves, long sleeves, and other appropriate clothing.
- Moving Parts: Keep hands and body away from moving parts like wire feed rolls.
Always ensure all safety devices are in place and functioning correctly before operation. If you are unsure about any aspect of safe operation, consult a qualified professional.
2. Package Contents
Carefully unpack the box and ensure all items listed below are present and undamaged. If any items are missing or damaged, please contact your retailer.

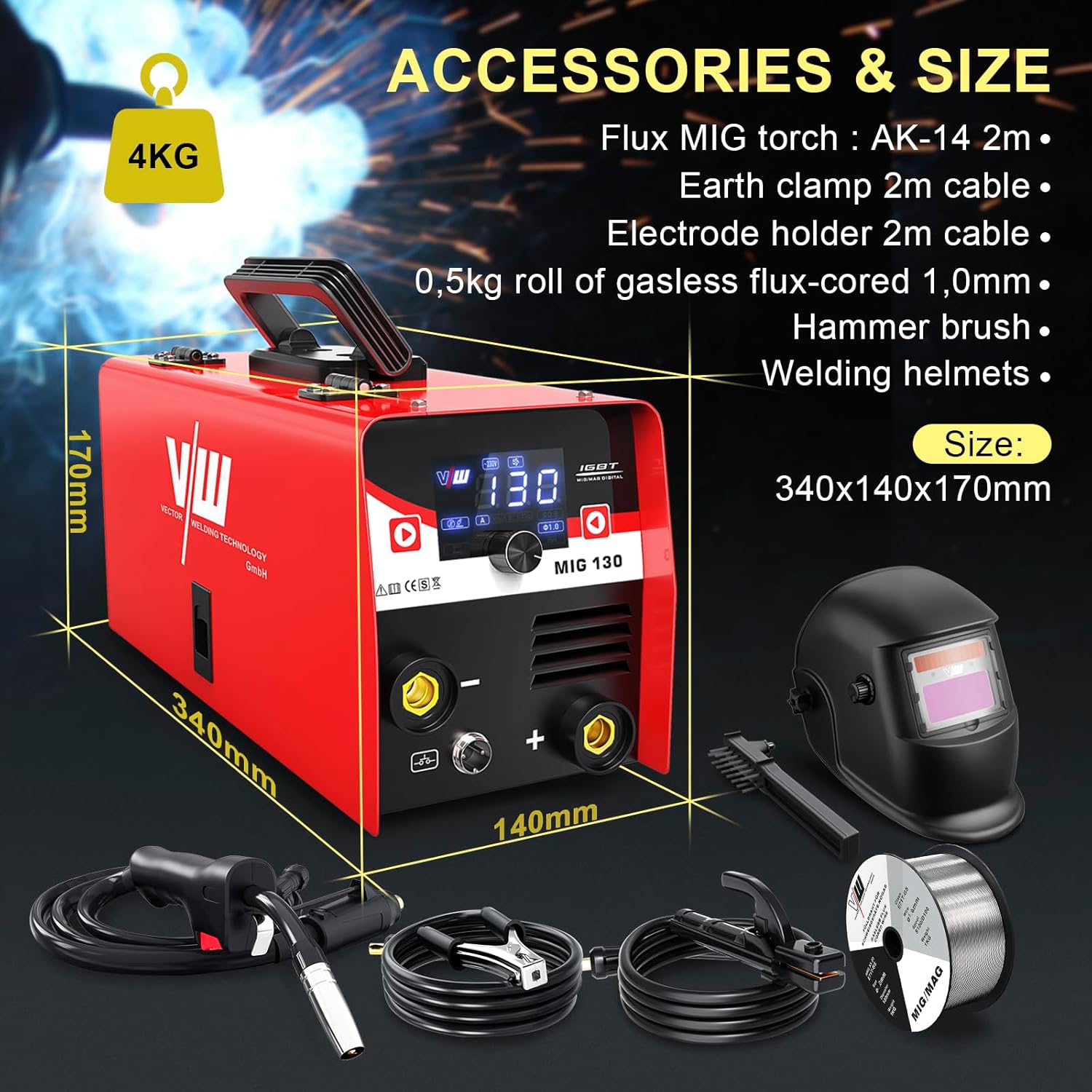

Image 2.1: The VECTOR WELDING MIG-130 welder with its complete set of accessories.
- VECTOR WELDING MIG-130 Welding Machine
- Flux MIG Torch (AK-14, 2m cable)
- Earth Clamp (2m cable)
- Electrode Holder (2m cable)
- 0.5kg Roll of Gasless Flux-Cored Wire (1.0mm)
- Hammer Brush
- Welding Helmet (basic)
Image 2.2: Detailed view of the accessories provided with the welding machine, including the MIG torch, earth clamp, electrode holder, flux-cored wire, hammer brush, and welding helmet.
3. Product Overview
The VECTOR WELDING MIG-130 is a versatile 130A inverter welding machine designed for both gasless Flux-Cored MIG and MMA (Stick) welding. It features IGBT technology for stable performance and an automatic compensation function for voltage fluctuations, ensuring a consistent arc and low spatter.
Image 3.1: The MIG-130 welder, emphasizing its dual functionality for gasless cored wire MIG and MMA welding, powered by IGBT inverter technology.
3.1. Machine Components
Familiarize yourself with the various parts of the welding machine:
Image 3.2: Labeled diagram of the MIG-130 welder's front and rear panels, showing connections and controls.
- Negative Welded Connection
- Function Switch Buttons (MIG/ARC)
- Torch Switch Interface
- Current Adjustment Knob
- Wire Diameter Selection (Ø0.8/Ø1.0mm) and "+1" Button
- Positive Welding Connection
- Earth Screw
- Power Switch
- Cooling Fan
- Power Cord
4. Setup
4.1. Power Connection
- Ensure the power switch (8) is in the OFF position.
- Connect the power cord (10) to a suitable AC 230V power outlet.
4.2. Connecting Welding Cables
- For MIG Welding:
- Connect the MIG torch to the Torch Switch Interface (3).
- Connect the Earth Clamp to the Negative Welded Connection (1).
- For MMA Welding:
- Connect the Electrode Holder to the Positive Welding Connection (6).
- Connect the Earth Clamp to the Negative Welded Connection (1).
4.3. Installing Flux-Cored Wire (MIG Mode)
The MIG-130 supports wire spools with an outer diameter of 100mm and a maximum weight of 1KG. Applicable wire diameters are 0.8mm and 1.0mm.
Image 4.1: Illustration of how to correctly install the wire spool, including the coil, coil spacer, spring, and coil lock.
- Open the side panel of the welder.
- Place the wire spool onto the spindle, ensuring it rotates freely.
- Secure the spool with the coil spacer, spring, and coil lock.
- Feed the wire through the wire feed mechanism and into the MIG torch liner.
- Close the side panel.
5. Operating Instructions
5.1. General Operation
- Turn on the power switch (8). The digital display will illuminate.
- Select the desired welding mode (MIG or ARC/MMA) using the Function Switch Buttons (2).
- Adjust the current using the Current Adjustment Knob (4). For MIG, also select the wire diameter (0.8mm or 1.0mm) using button (5).
- Always wear appropriate Personal Protective Equipment (PPE), including a welding helmet, gloves, and protective clothing.
5.2. Gasless Flux-Cored MIG Welding
This mode uses flux-cored wire which produces its own shielding gas, eliminating the need for an external gas cylinder.
- Ensure the machine is set to MIG mode.
- Set the wire diameter (0.8mm or 1.0mm) according to the installed wire.
- Adjust the current (wire feed speed) based on the material thickness and desired penetration. Start with lower settings and increase gradually.
- Position the earth clamp securely to the workpiece.
- Hold the MIG torch at a 10-15 degree angle to the workpiece.
- Press the torch trigger to initiate the arc and begin welding. Maintain a consistent travel speed and arc length.
5.3. MMA (Stick) Welding
MMA welding is suitable for various materials and conditions, often preferred for outdoor use or thicker materials.
- Ensure the machine is set to ARC/MMA mode.
- Select an appropriate electrode for your material and application.
- Secure the electrode in the electrode holder.
- Adjust the current based on the electrode type and diameter, and the material thickness.
- Position the earth clamp securely to the workpiece.
- Strike the arc by lightly tapping or scratching the electrode against the workpiece.
- Maintain a consistent arc length and travel speed to achieve a stable weld bead.
Image 5.1: Examples of common applications for the MIG-130 welder, demonstrating its versatility for DIY projects, domestic repairs, industrial tasks, and vehicle maintenance.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your welding machine.
- Cleaning: Regularly clean the machine's exterior with a dry cloth. Use compressed air to clear dust from the cooling fan and internal components, ensuring the machine is unplugged first.
- Cable Inspection: Periodically inspect all welding cables, torch, and earth clamp for damage, cuts, or loose connections. Replace damaged parts immediately.
- Wire Feed Mechanism: Keep the wire feed rollers clean and free of debris. Ensure the wire liner is not clogged.
- Storage: Store the welder in a dry, dust-free environment when not in use.
7. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to the machine | Power cord unplugged, power switch off, circuit breaker tripped. | Check power connections, turn on switch, reset circuit breaker. |
| No arc when welding | Poor earth clamp connection, incorrect mode selected, wire feed issue (MIG), electrode not making contact (MMA). | Ensure earth clamp is on bare metal, select correct mode, check wire feed, ensure electrode contact. |
| Poor weld quality / Excessive spatter | Incorrect current/wire speed settings, improper technique, dirty workpiece. | Adjust settings, improve technique, clean workpiece thoroughly. |
| Machine overheats | Exceeding duty cycle, blocked cooling fan. | Allow machine to cool down, ensure proper ventilation and clear fan. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | MIG 130 |
| Manufacturer | VECTOR WELDING |
| Dimensions (L x W x H) | 34 x 14 x 17 cm |
| Weight | 7.5 kg |
| Welding Modes | Gasless Flux-Cored MIG, MMA (Stick) |
| Max Current | 130A |
| Applicable Wire Diameter | 0.8mm / 1.0mm |
| Max Wire Spool Size | 100mm diameter, 1KG |
| Welding Thickness | 0.5-3mm |
| Input Voltage | AC 230V |
9. Warranty and Support
The VECTOR WELDING MIG-130 comes with a 5-year warranty, covering manufacturing defects and malfunctions under normal use. This warranty ensures peace of mind regarding the quality and durability of your welding machine.
For technical assistance, warranty claims, or any questions regarding the operation or maintenance of your welder, please contact VECTOR WELDING customer support through your purchase platform or the official VECTOR WELDING website. Please have your model number (MIG 130) and purchase details ready when contacting support.
