Dualtron Mini Front Rim and Tire User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Dualtron Mini Front Rim and Tire. Please read it thoroughly before use to ensure optimal performance and safety.

Product Overview

The Dualtron Mini Front Rim and Tire is designed for enhanced durability and ease of maintenance for your electric scooter. It features a two-part rim design for simplified tire changes.

Package Contents:

• 1x Complete two-part rim with two bearings
• 1x 39mm Valve Extension
• 6x Screws
• 6x Nuts
• 1x VTT Tire
• 1x 8.5x2-90° Inner Tube

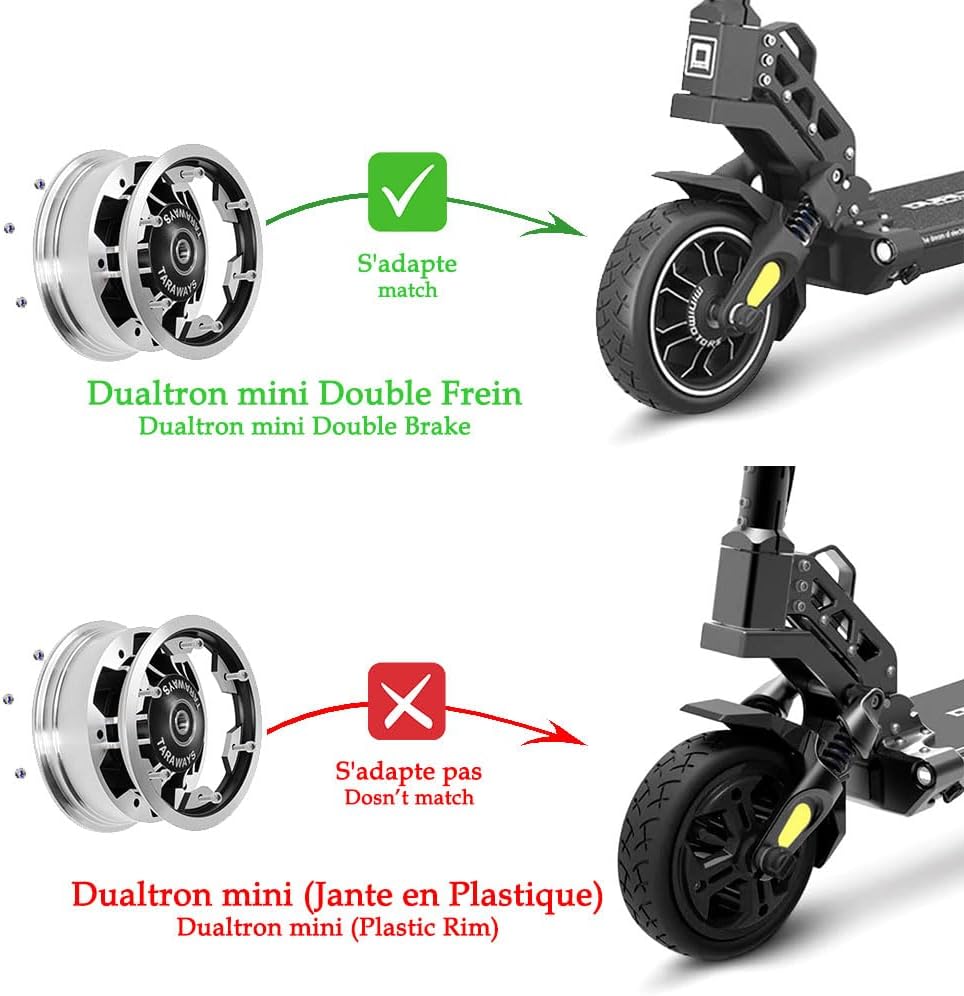

Compatibility

This front rim and tire assembly is specifically designed for Dualtron mini electric scooters equipped with a double brake system. It is not compatible with Dualtron mini models that have a plastic rim.

Setup and Installation

The two-part rim design significantly simplifies tire and inner tube replacement, making it a much quicker process compared to traditional single-piece rims.

Installation Steps:

1. Preparation: Ensure your scooter is stable and powered off. Remove the existing front wheel.
2. Disassembly (if replacing): If replacing an old wheel, carefully remove the tire and inner tube from the old rim.
3. Rim Assembly: The new rim comes in two parts. Place the inner tube inside the tire.
4. Tire Mounting: Position one side of the tire onto one half of the rim. Insert the inner tube valve through the designated hole in the rim.
5. Secure Rim Halves: Align the second half of the rim with the first, ensuring the tire and inner tube are properly seated between them.
6. Fasten Screws: Insert and tighten the six screws and nuts to secure the two rim halves together. Tighten them evenly to ensure a balanced fit.
7. Inflate Tire: Use the provided valve extension to inflate the tire to the recommended pressure (refer to tire sidewall for pressure specifications).

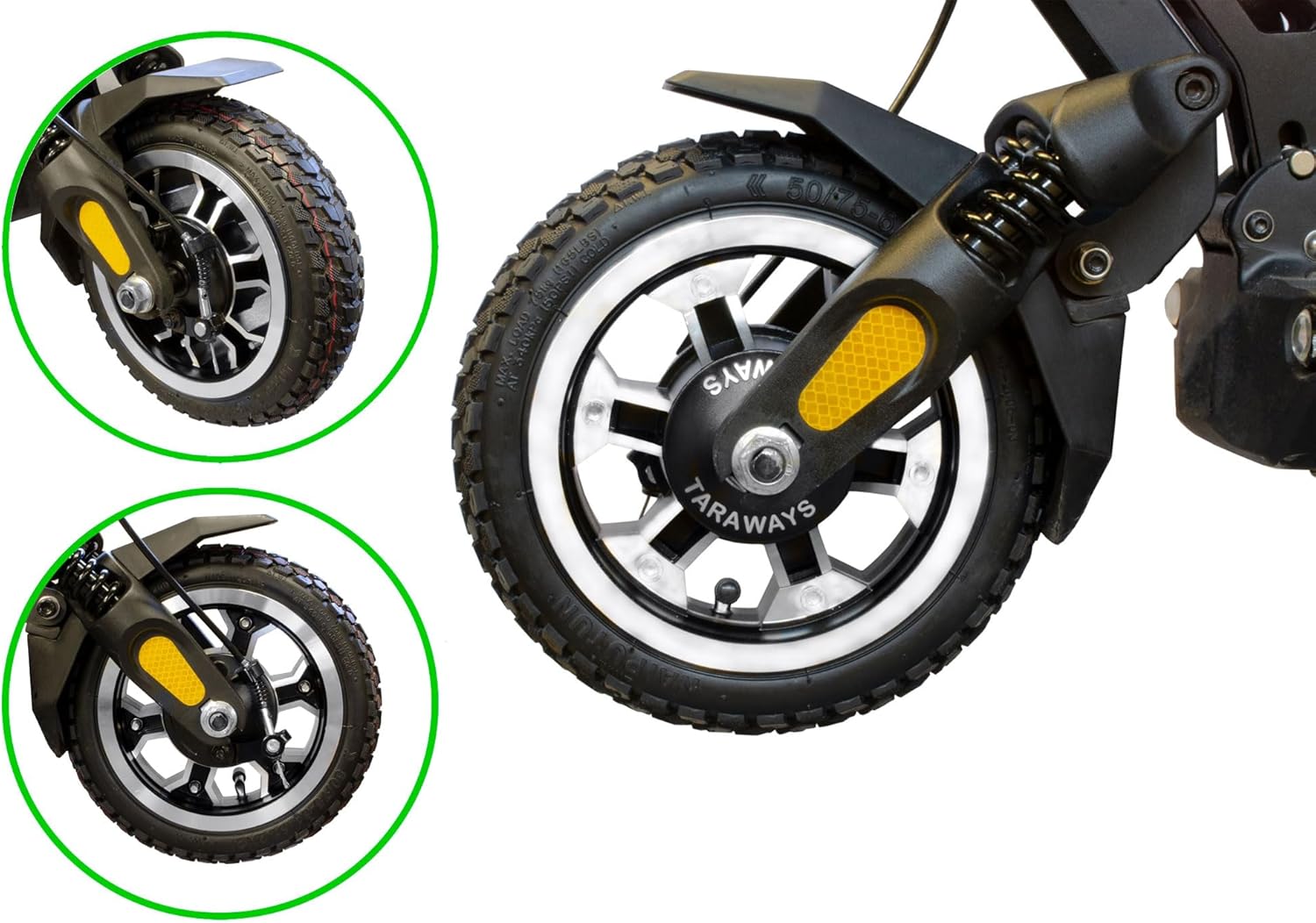

8. Re-installation: Mount the new wheel assembly onto your Dualtron mini scooter's front fork, ensuring all components are correctly aligned and secured.
9. Final Check: Before riding, ensure the wheel spins freely and there is no wobble. Check brake functionality.

Operation

Once installed, the front wheel operates as a standard component of your Dualtron mini scooter. Ensure proper tire pressure is maintained for optimal performance, safety, and tire longevity. Regularly inspect the tire for wear and tear, and the rim for any damage.

Maintenance

Regular maintenance is crucial for the longevity and safe operation of your front wheel assembly.

• Tire Pressure: Check tire pressure weekly and inflate to the manufacturer's recommended PSI (usually found on the tire sidewall).
• Tire Inspection: Periodically inspect the tire for cuts, punctures, excessive wear, or embedded debris. Remove any sharp objects carefully.
• Rim Inspection: Check the rim for any signs of damage, cracks, or loose screws. Tighten screws if necessary.
• Bearing Check: Listen for unusual noises from the bearings. If you hear grinding or feel excessive play, the bearings may need replacement.
• Puncture Repair: The two-part rim design makes puncture repair significantly easier. Simply unbolt the rim halves to access and replace the inner tube.

Troubleshooting

Specifications

Warranty and Support

This product is covered by a standard return policy, typically allowing returns or replacements within 30 days of purchase. For specific warranty details or technical support, please refer to the seller's information on the product page or contact M365Lyon directly.

You can visit the official M365Lyon store for more information and support: M365Lyon Store
