1. Introduction
This manual provides essential information for the safe and efficient use of your KEPWORTH 12.8V 180Ah LiFePO4 Deep Cycle Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of the battery.
Image: Front view of the KEPWORTH 12.8V 180Ah LiFePO4 Deep Cycle Battery, showcasing its blue and black casing with the KEPWORTH logo and battery specifications.
The KEPWORTH 12.8V 180Ah LiFePO4 battery is designed for deep cycle applications, offering a long lifespan and stable performance. It is suitable for various uses including RVs, solar energy systems, marine applications, trolling motors, and off-grid power solutions.
2. Safety Information
Adhering to safety precautions is critical when handling and operating lithium iron phosphate batteries. Failure to follow these guidelines can result in personal injury or damage to the battery and connected equipment.
- Initial Charge: After receiving the battery, fully charge it before first use.
- Avoid Short-Circuiting: Do not short-circuit the battery terminals.
- Charger Compatibility: Use only a charger that supports LiFePO4 batteries or a special LiFePO4 battery charger. Incorrect charging types can prevent the battery from fully charging or cause damage.
- Temperature: Avoid exposing the battery to fire or soaking it in water. Operate within the specified temperature range.
- Storage: Store the battery indoors and recharge it regularly (every 3 months) for long-term storage.
- Discharge Protection: Recharge the battery within 12 hours if it is totally discharged to prevent deep discharge damage.
- Wiring: Ensure the battery is properly wired to the load. Do not reverse the positive and negative connections.
- Load Matching: Before connecting the load, ensure the battery power matches the load wattage demand.
Image: Rear view of the KEPWORTH battery, showing a yellow warning label with important safety and usage notes regarding charging, short-circuit prevention, and storage.
3. Setup and Installation
Proper setup ensures safe and efficient operation of your LiFePO4 battery.
3.1 Initial Charging
Upon receiving your KEPWORTH LiFePO4 battery, it is recommended to fully charge it before its first use. Use a compatible LiFePO4 charger with a recommended charging voltage of 14.6V.
3.2 Connecting the Battery
Ensure all connections are secure and correctly polarized (positive to positive, negative to negative). The battery features marine terminals for robust connections. Always use appropriate gauge wiring for your application to prevent overheating and ensure efficient power transfer.
3.3 Inverter Settings (for Solar/Off-Grid Systems)
If integrating with an inverter, configure the settings as follows for optimal performance and battery protection:
- Charge Voltage: 14.6V
- Over Voltage Disconnect Voltage: 15V
- Float Charging Voltage: 14.6V
- Low Voltage Disconnect Voltage: 10.8V
- Low Voltage Reconnect Voltage: 12.4V
Image: Diagram illustrating recommended inverter settings for a 12V LiFePO4 battery, including charge, disconnect, and reconnect voltages. Also shows icons for solar panel, charger, and generator as charging methods.
4. Operating the Battery
The KEPWORTH 12.8V 180Ah LiFePO4 battery is designed for deep cycle applications, providing reliable power for extended periods.
4.1 General Usage
This battery is ideal for powering various systems, including:
- Home storage systems
- Off-grid systems
- Recreational Vehicles (RVs)
- Trolling Motors
- Boats and Marine applications
- Solar Systems
- Camping and outdoor activities
- Fishfinders and Alarm Systems
Image: A collage of images showing the KEPWORTH LiFePO4 battery being used in various applications, including with a solar panel, in an RV, on a sailboat, with a trolling motor, in a golf cart, and for camping.
4.2 Capacity Expansion (Series and Parallel)
The 12.8V 180Ah LiFePO4 battery supports both parallel and series connections, allowing for flexible expansion of your battery system. This enables you to increase voltage or capacity based on your specific power requirements.
Note: When connecting batteries in series or parallel, ensure all batteries are of the same voltage, capacity, and chemistry, and are fully charged to the same voltage before connection. Consult a qualified electrician if unsure.
5. Maintenance and Storage
Proper maintenance and storage will extend the lifespan of your KEPWORTH LiFePO4 battery.
- Regular Recharging: For long-term storage, recharge the battery every 3 months to maintain its health.
- Clean Terminals: Periodically inspect and clean the battery terminals to ensure good conductivity and prevent corrosion.
- Temperature Control: Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. The wide working temperature range is -20°C to 60°C, but storage should be within a more moderate range.
- Avoid Deep Discharge: While the battery has low discharge rate, avoid leaving it in a fully discharged state for extended periods. Recharge within 12 hours if completely drained.
6. Troubleshooting
This section addresses common issues you might encounter with your LiFePO4 battery.
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Incorrect charger type; charger not connected; BMS protection activated (over-discharge, low temp) | Ensure using a LiFePO4 compatible charger. Check connections. Allow battery temperature to normalize if too cold/hot. |
| Battery not providing power | Battery discharged; BMS protection activated (over-discharge, over-current, short circuit); incorrect wiring | Recharge the battery. Check for short circuits or excessive load. Verify positive and negative connections. |
| Reduced capacity/runtime | Partial charging; aging; extreme temperatures | Ensure full charges. Operate within optimal temperature range. |
If issues persist, refer to the warranty and support section for assistance.
7. Specifications
Detailed technical specifications for the KEPWORTH 12.8V 180Ah LiFePO4 Battery.
| Feature | Specification |
|---|---|
| Model | KEP12180C332-CLS |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 180Ah |
| Battery Cell Composition | Lithium Iron Phosphate (LiFePO4) Grade A Cells |
| Product Dimensions (L x W x H) | 13.11 x 6.93 x 8.54 inches (333 x 176 x 217 mm) |
| Max Continuous Discharging Current | 100A |
| Max Inrush Current | 200A (within 3-5 seconds) |
| Recommended Charging Voltage | 14.6V |
| Built-in BMS | 100A (Overcharge, Over-discharge, Over-current, Short Circuit, High/Low Temperature Protection) |
| Deep Cycles | Up to 4000+ cycles |
| Terminal Type | Marine Terminal |
| Working Temperature Range | -20°C to 60°C |

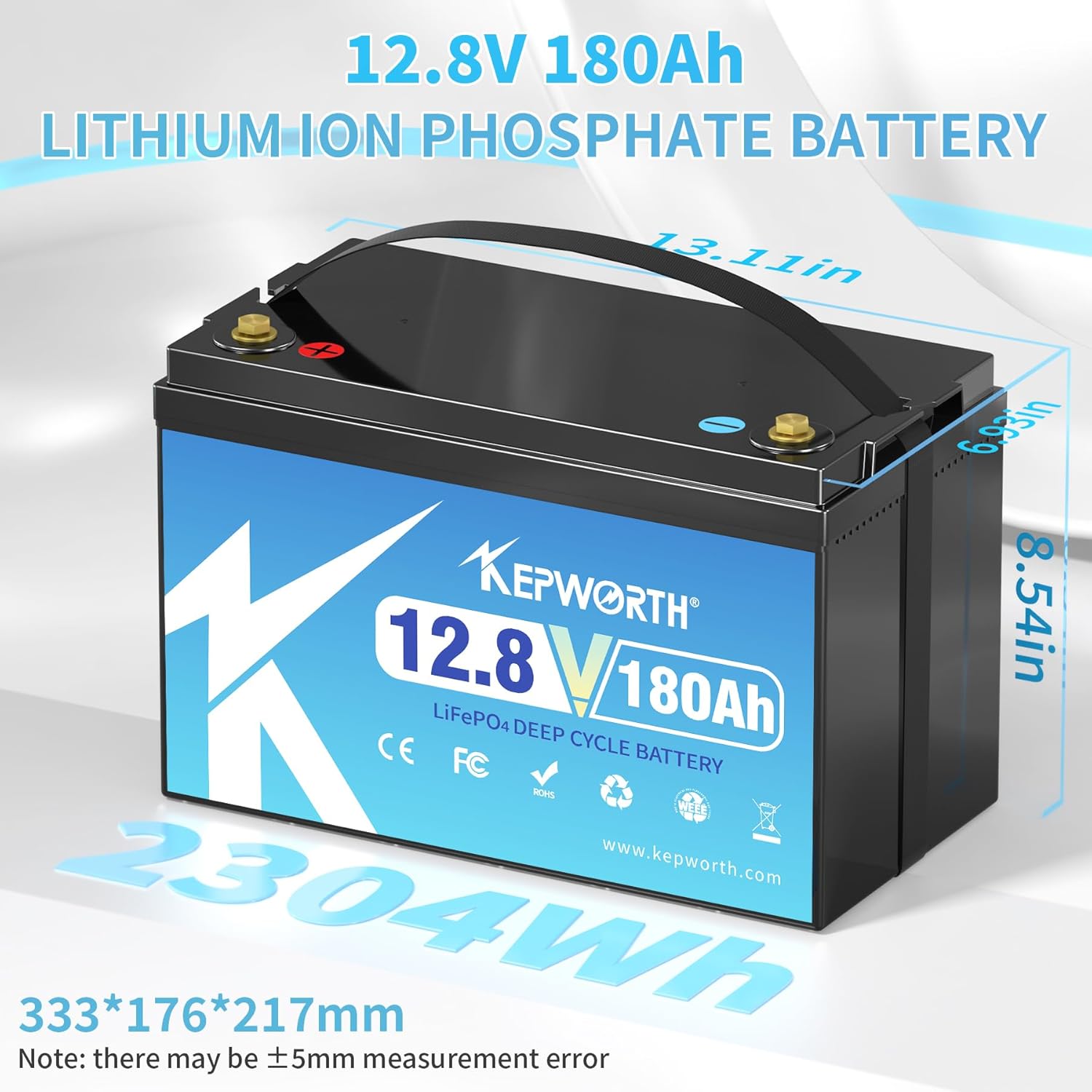

Image: A diagram showing the dimensions of the KEPWORTH 12.8V 180Ah LiFePO4 battery, with measurements in inches (13.11" L x 6.93" W x 8.54" H) and a note about potential measurement error.
Image: An exploded view diagram highlighting the 100A upgraded Battery Management System (BMS) and its protection features: Overcharge, Overdischarge, Overcurrent, Short Circuit, High Temperature, and Low Temperature Protection.
Image: Illustrates the use of Superior Quality Grade A LiFePO4 Battery Cells, highlighting a wide working temperature range (-20°C to 60°C), a maximum continuous discharge current of 100A, and a maximum inrush current of 200A within 3-5 seconds.

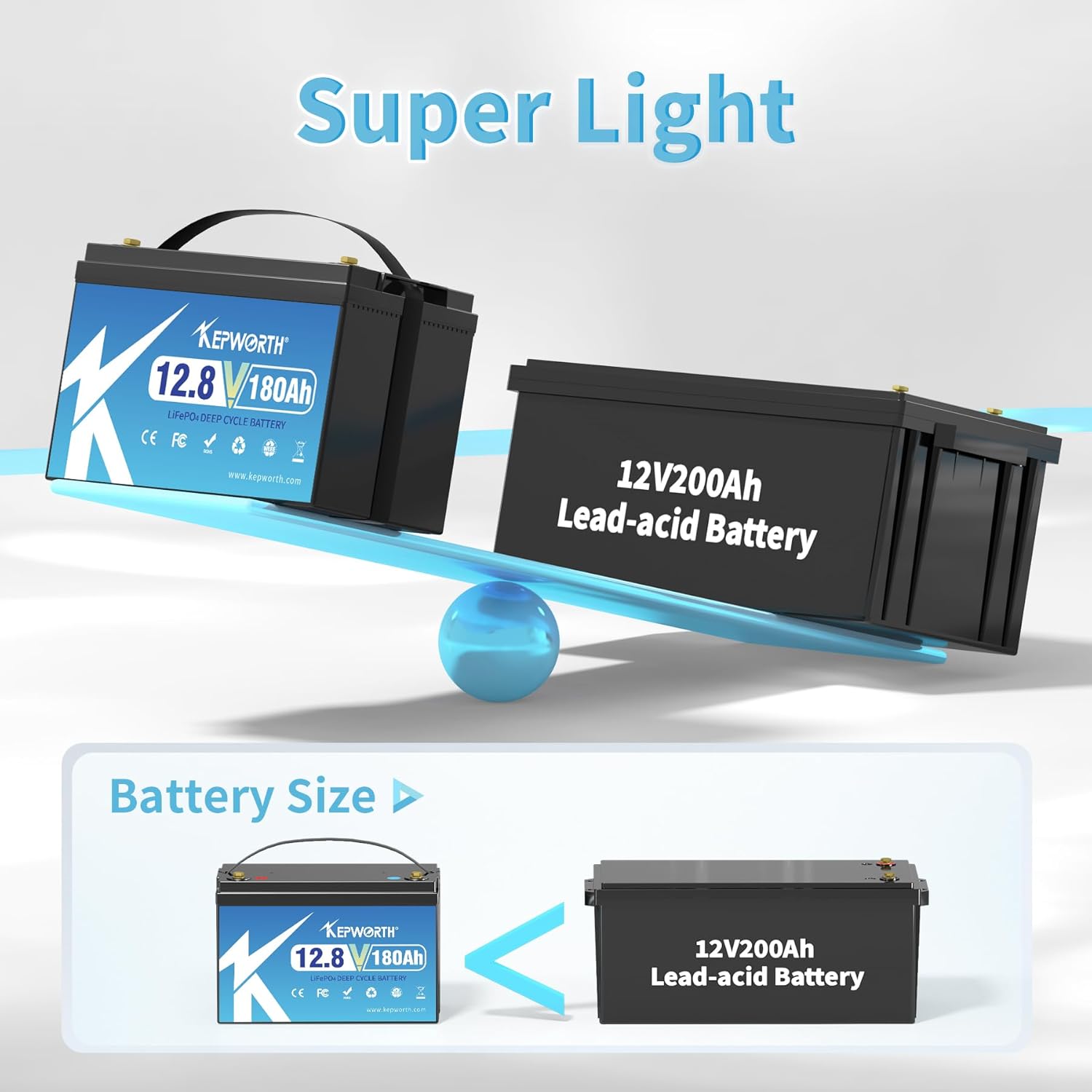

Image: A visual comparison showing the KEPWORTH 12.8V 180Ah LiFePO4 battery is significantly lighter and more compact than a traditional 12V 200Ah lead-acid battery, while offering similar or greater power.
8. Warranty and Support
KEPWORTH aims to provide satisfactory service to its consumers. This 12.8V 180Ah Lithium battery comes with a 5-Year Warranty.
For any issues regarding delivery, battery performance, or other concerns, please contact KEPWORTH customer service. You can typically find contact options on the platform where you purchased the product, such as "Contact Seller" in your order history or "Ask a question" on the storefront page. A proper solution will be provided within 24 hours.
For additional information and resources, please visit the official KEPWORTH store: KEPWORTH Store.
