Introduction
This manual provides essential information for the safe and effective use of your Coonyard 7.4V 1500mAh Li-ion Battery Pack. These batteries are designed as a replacement for the HONGXUNJIE HJ806 RC Boat and other compatible remote-controlled vehicles, offering reliable power and extended run-time. Please read this manual thoroughly before first use to ensure proper operation and longevity of your batteries.
Image: Overview of the Coonyard 7.4V 1500mAh Li-ion Battery Pack, including four batteries and two USB charging cables.
Image: Coonyard (ELXJAR) batteries are trusted by RC hobbyists for consistent quality and dependable power in both land and water vehicles.
Safety Information
Lithium-ion batteries require careful handling. Adhere to the following safety guidelines to prevent injury or damage:
- Charging: Always use the provided USB charging cables or a compatible Li-ion charger. Do not charge overnight or leave unattended.
- Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
- Handling: Do not puncture, disassemble, short-circuit, or expose batteries to fire or water.
- Damage: If a battery appears damaged, swollen, or leaks, discontinue use immediately and dispose of it properly.
- Disposal: Li-ion batteries must be recycled or disposed of properly according to local regulations. Do not dispose of in household waste.
Important: Upon delivery, battery is not fully charged. Charge overnight before initial use to prevent injury or burns. Do not allow metal objects to contact or short circuit the battery terminals.
Product Overview and Components
Each Coonyard battery pack consists of two 18650 Li-ion cells in series, providing 7.4V output. The batteries are equipped with a Standard Tamiya connector for broad compatibility with RC vehicles.
Package Contents:
- 4 x 7.4V 1500mAh Li-ion Battery (with Standard Tamiya Connector)
- 2 x USB Charging Cable
Image: Ensure both the battery model and compatible part numbers match your device before purchasing. This image shows the Standard Tamiya male and female connectors.
Specifications
| Attribute | Detail |
|---|---|
| Battery Type | Li-ion |
| Voltage | 7.4V |
| Capacity | 1500mAh |
| Composition | 2 x 18650 cells in series |
| Connector Type | Standard Tamiya |
| Weight (per battery) | Approx. 3.53 oz (100g) |
| Dimensions (L x W x H) | 2.80" x 1.67" x 0.75" (71.00mm x 42.50mm x 19.00mm) |
| Recommended Use | Remote Control Vehicle (e.g., HONGXUNJIE HJ806 RC Boat) |

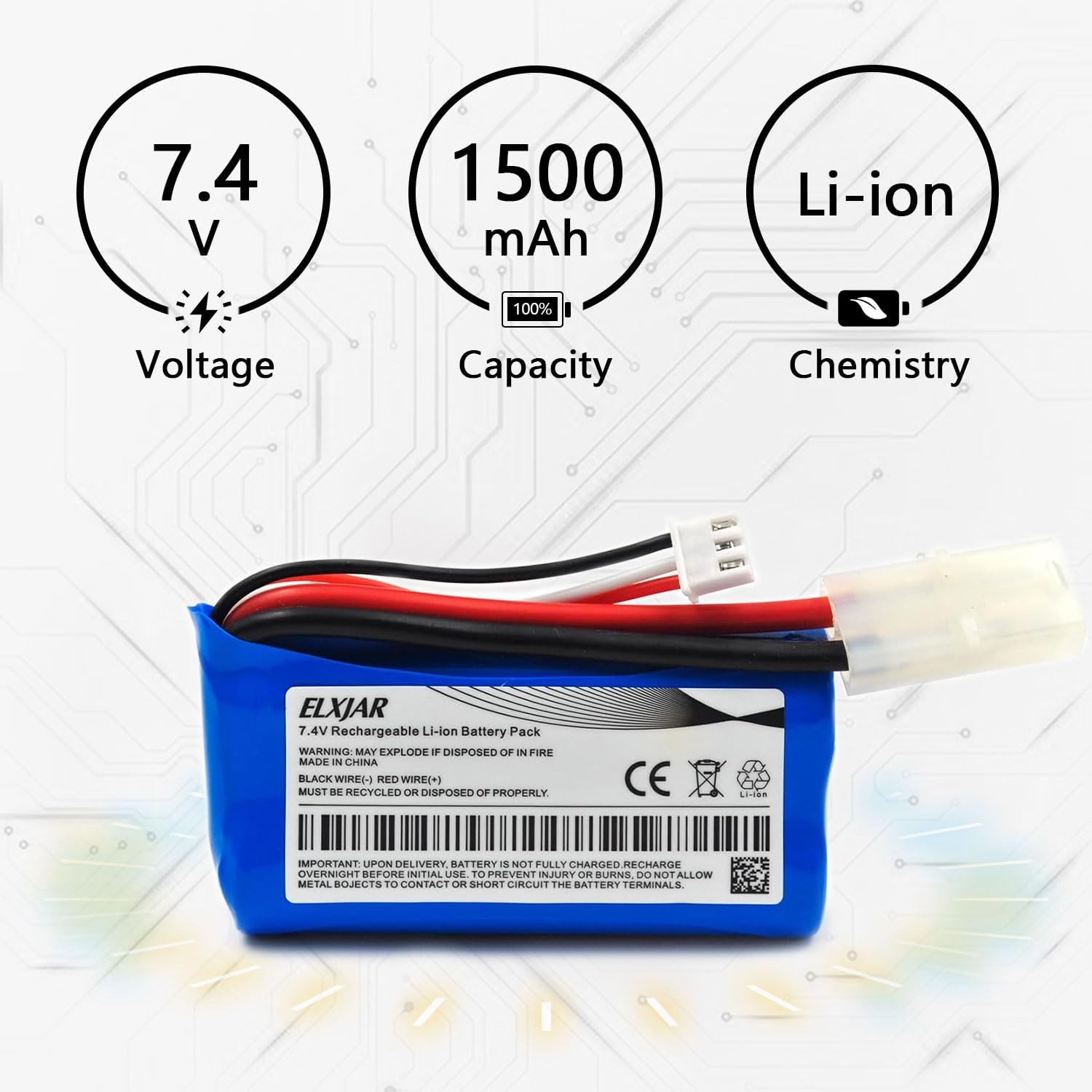

Image: Key specifications of the battery: 7.4V Voltage, 1500mAh Capacity, and Li-ion Chemistry.

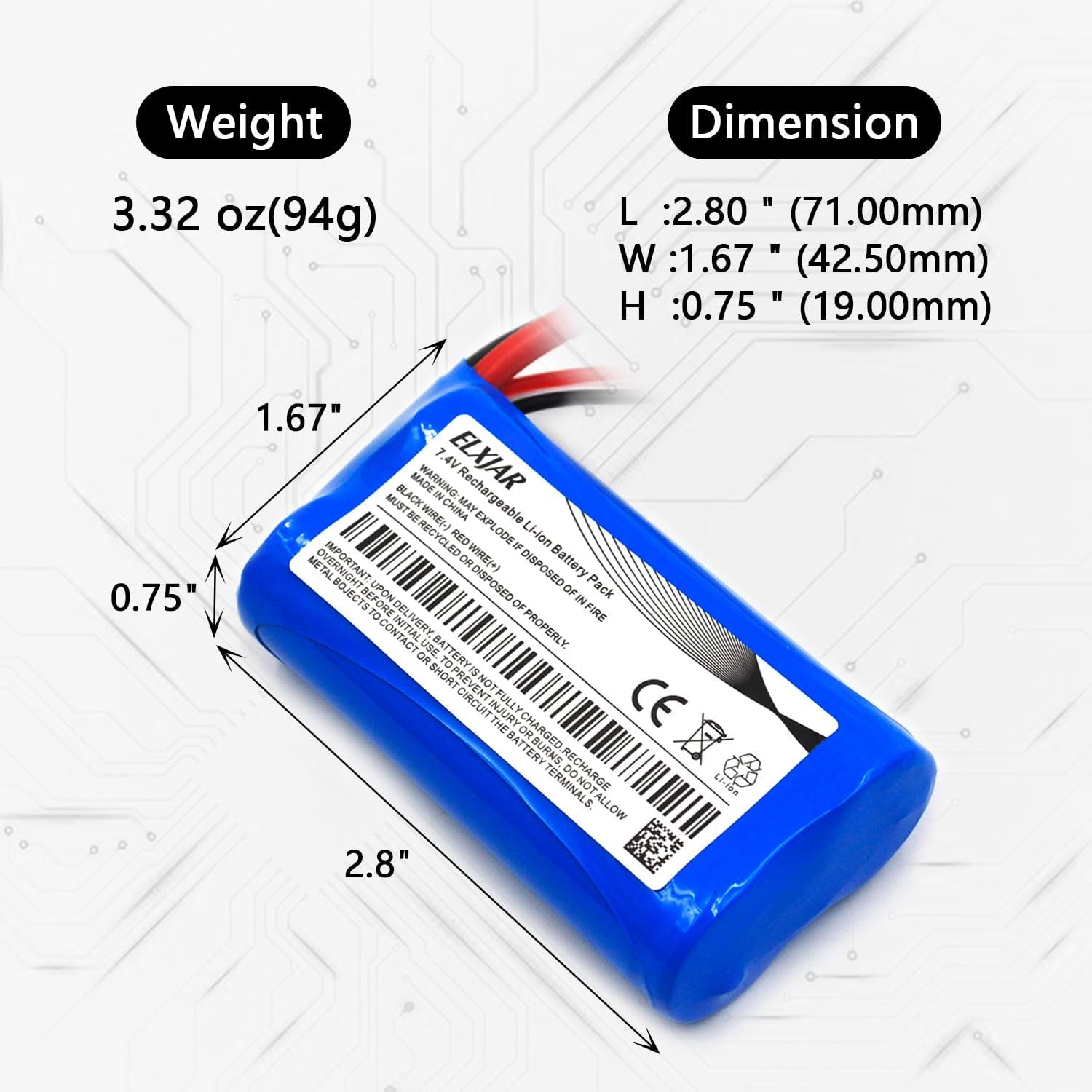

Image: Physical specifications of the battery, including its weight and precise dimensions.
Setup: Initial Charging
Before first use, it is crucial to fully charge the batteries. The battery packs are not fully charged upon delivery.
- Connect the Standard Tamiya connector of the battery to the corresponding port on one of the provided USB charging cables. Ensure the connection is secure.
- Plug the USB end of the charging cable into a standard USB power adapter (e.g., phone charger, computer USB port, power bank).
- Observe the indicator light on the USB charging cable. Typically, a red light indicates charging, and it will turn green when charging is complete. Refer to the charger's specific instructions if available.
- Allow the battery to charge until the indicator light signals a full charge. For initial use, an overnight charge is recommended.
- Once fully charged, disconnect the battery from the charging cable and the USB power source.
Image: Illustration of connecting the battery to the USB charging cable and a power source for charging.
Operating Instructions
These batteries are designed to power compatible RC vehicles, such as the HONGXUNJIE HJ806 RC Boat.
- Ensure the RC vehicle is powered off before connecting the battery.
- Locate the battery compartment in your RC vehicle.
- Carefully connect the Standard Tamiya connector of the charged Coonyard battery to the corresponding connector inside the RC vehicle's battery compartment. Ensure a firm and secure connection.
- Secure the battery within the compartment, ensuring it does not shift during operation. Close the battery compartment cover.
- Power on your RC vehicle and operate as per its specific instructions.
- When the RC vehicle's performance begins to diminish, it indicates the battery is running low. Power off the vehicle and disconnect the battery.
Image: The 7.4V output of the battery ensures strong and consistent power delivery for high-speed water racing, with built-in safety features protecting against overcharging, over-discharging, short circuits, and overheating.
Maintenance and Storage
Proper maintenance and storage will extend the lifespan of your Li-ion batteries.
- Regular Charging: Do not allow batteries to fully discharge for extended periods. Recharge them after each use.
- Long-Term Storage: For storage longer than a few days, charge the batteries to approximately 50-60% capacity. Storing fully charged or fully discharged can degrade battery health.
- Temperature: Store in a cool, dry environment, ideally between 5°C and 20°C (41°F and 68°F). Avoid extreme heat or cold.
- Inspection: Periodically inspect batteries for any signs of damage, swelling, or leakage. Discontinue use if any issues are observed.
- Cleaning: Keep battery terminals clean and free of debris. Use a dry cloth to wipe them if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging. | Loose connection, faulty USB cable/adapter, or damaged battery. | Ensure all connections are secure. Try a different USB port or power adapter. If the issue persists, the cable or battery may be faulty. |
| Short run-time. | Battery not fully charged, aged battery, or high power demand from device. | Ensure battery is fully charged before use. Li-ion batteries degrade over time; consider replacement if significantly old. |
| Battery gets hot during use/charging. | Overload, internal short, or faulty charger. | Discontinue use/charging immediately. Allow to cool. If overheating persists, the battery or charger may be defective. Do not use a swollen battery. |
| Battery does not fit in device. | Incorrect battery model or slight size variation. | Verify compatibility with your device's specifications. Some devices may have tight tolerances. |
Warranty and Support
Your Coonyard 7.4V 1500mAh Li-ion Battery Pack is backed by a 24-month worry-free warranty. This warranty covers manufacturing defects and ensures reliable performance under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact Coonyard customer support through the retailer's platform where you purchased the product. Please have your order details and product model number ready when contacting support.
Additional protection plans may be available for purchase:
- 1-Year Protection Plan: Provides extended coverage for your product.
- Complete Protect: A comprehensive plan covering eligible past and future purchases.
Note: Protection plan availability and terms may vary. Refer to the specific plan details at the time of purchase.
