1. Introduction
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Parryware Linea Plus Concealed Flush Tank. This product is designed for wall-hung commodes, offering a space-saving and modern aesthetic for your bathroom. It features a dual-flush mechanism for efficient water usage and is constructed from durable materials for long-lasting performance.
Figure 1.1: Parryware Linea Plus Concealed Flush Tank with Half Frame and Flush Plate.
The Linea Plus system integrates seamlessly into modern bathroom designs, concealing the flush tank within the wall. This not only enhances the visual appeal but also contributes to a quieter flushing experience.
2. Setup and Installation
The Parryware Linea Plus Concealed Flush Tank is designed for straightforward installation. It is crucial to follow these instructions carefully to ensure proper function and prevent damage. Professional installation is recommended.
2.1. Components Included
- 1 Unit of Concealed Flush Tank (with half frame)
- 1 Unit of Square Push Plate
- Necessary hardware for installation
2.2. Pre-Installation Checks
- Ensure the wall structure can support the weight of the flush tank and the wall-hung commode when filled with water.
- Verify that water supply lines and drainage connections are available at the installation site.
- Unpack all components and check for any damage or missing parts.
2.3. Installation Steps
- Frame Mounting: Securely mount the half frame of the concealed flush tank to the wall according to the provided dimension diagram. Ensure it is level and at the correct height for your wall-hung commode.
- Water Connection: Connect the water supply to the inlet valve of the flush tank. Ensure all connections are tight to prevent leaks.
- Drainage Connection: Connect the flush tank outlet to the commode's drainage system.
- Tank Enclosure: Once the tank and connections are secure and tested, enclose the tank within the wall structure.
- Flush Plate Installation: Install the square push plate onto the wall, connecting it to the flush mechanism of the tank.
- Final Checks: Test the flush mechanism multiple times to ensure proper operation and check for any leaks.
Figure 2.1: Product Dimension Diagram (SKU Code: E812599).
Figure 2.2: Concealed Cistern with Half Frame, showing silent filling tank.
3. Operating Instructions
The Parryware Linea Plus Concealed Flush Tank features a dual flushing mechanism designed for water efficiency.
3.1. Dual Flush Mechanism
The flush plate includes two buttons for different flushing volumes:
- Half Flush (Smaller Button): Designed for liquid waste, this option uses a reduced amount of water (typically 3 liters) to conserve water.
- Full Flush (Larger Button): Designed for solid waste, this option uses the full tank volume (typically 6 liters) for thorough cleaning.
Figure 3.1: Dual Flushing Mechanism.
To operate, simply press the desired button on the flush plate. The tank is designed for silent filling, ensuring a quiet bathroom experience.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your concealed flush tank.
4.1. Cleaning the Flush Plate
- Clean the flush plate regularly with a soft cloth and mild, non-abrasive cleaner.
- Avoid using harsh chemicals or abrasive pads, as these can damage the finish.
4.2. Filter Net Cleaning
The flush tank is equipped with a fine filter net to prevent debris from entering the mechanism. This filter may require periodic cleaning, especially in areas with hard water or water impurities.
- To access the filter net, it may be necessary to remove the flush plate and access panel. Refer to the installation guide for specific access instructions.
- Carefully remove the filter net and rinse it under running water to remove any accumulated debris.
- Reinstall the clean filter net and reassemble the components.
4.3. General Inspection
- Periodically check for any signs of leaks around the connections.
- Ensure the flush mechanism operates smoothly. If it feels stiff, consult a professional plumber.
5. Troubleshooting
This section addresses common issues you might encounter with your concealed flush tank.
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak Flush / Insufficient Water Flow |
|
|
| Continuous Water Running |
|
|
| Flush Plate Not Responding |
|
|
| Visible Leaks |
|
|
If you are unable to resolve an issue using these troubleshooting steps, please contact customer support or a qualified plumber.
6. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Parryware |
| Model Numbers | E812599 / E8221A1 |
| Material | High Density Polyethylene (HDPE), Stainless Steel |
| Item Weight | 4 Kilograms |
| Shape | Rectangular |
| Unit Count | 1 Piece (Concealed Flush Tank with Half Frame and Flush Plate) |
| Flushing Type | Dual Flush (3/6 Litres) |
| Design | Concealed, Space-Saving |
| Features | Noiseless Flushing, Multilayer Chrome Plating (on flush plate), Corrosion Resistant |

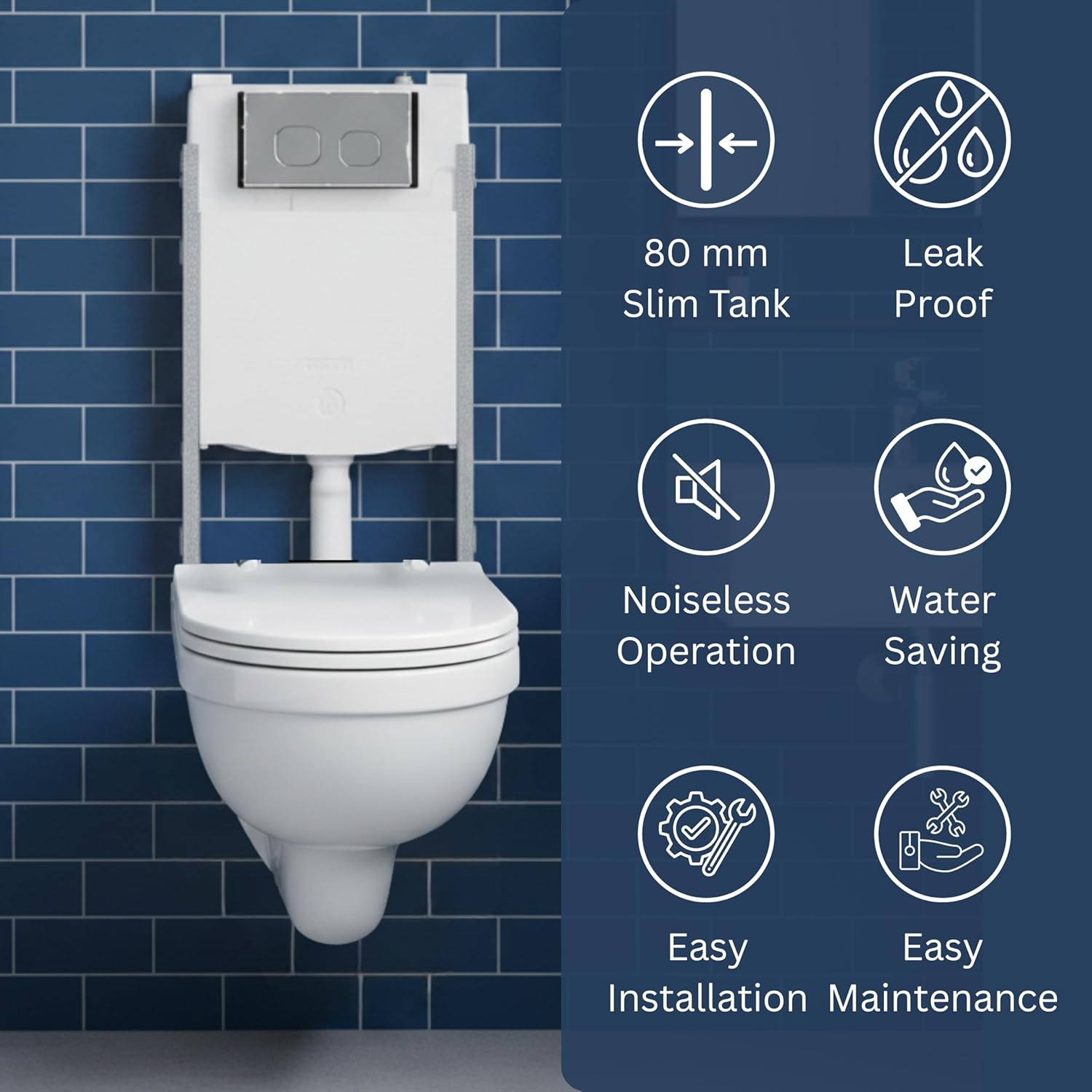

Figure 6.1: Key Features of the Linea Plus Concealed Flush Tank.
7. Warranty Information
The Parryware Linea Plus Concealed Flush Tank comes with a 10-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use and service.
Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs.
Figure 7.1: 10-Year Warranty Badge.
8. Customer Support
For any queries, technical assistance, or warranty claims, please contact Parryware customer support:
- Customer Care Number: +91 7301 274 274
- Manufacturer: PARRYWARE
- Packer Contact Information: Roca Bathroom Products Private Limited, The Heritance, 41, Haddows Road Nungambakkam, Chennai - 600006.
When contacting support, please have your product model number (E812599 / E8221A1) and proof of purchase readily available.
