1. Important Safety Information
Please read these instructions carefully before installing and using the appliance. Keep this manual for future reference. Improper installation, use, or maintenance can cause injury or damage.
- Electrical Safety: Ensure the oven is correctly earthed and connected to a suitable power supply. Do not use adapters or extension cords. Disconnect power before any maintenance or cleaning.
- Hot Surfaces: The oven and its accessible parts become very hot during use. Always use oven mitts when handling hot items or surfaces. Keep children away from the appliance.
- Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Cleaning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Ventilation: Ensure adequate ventilation around the appliance as specified in the installation instructions.
- Flammable Materials: Do not store flammable materials in or near the oven.
2. Product Overview
The Gorenje BOS6737E20FBG is a multifunctional built-in electric oven designed for modern kitchens. It features a spacious 77-liter capacity and a sleek black finish with a dark grey brushed stainless steel handle. The control panel is made of glass and incorporates an IconLED display for intuitive operation.
Key Features:
- BigSpace 77-liter Capacity: Offers ample cooking space for large meals.
- HomeMade Plus Design: Inspired by traditional wood-fired ovens for optimal air circulation.
- EcoClean Enamel & Catalytic Coating: Facilitates easier cleaning of the oven interior.
- GentleClose Door: Soft-closing glass oven door for quiet and safe operation.
- IconLED Display: Clear and easy-to-read digital display for settings and time.
- Retractable Handle: A sleek, integrated handle design.
- Two-level Telescopic Guides: For safe and easy handling of hot baking trays.
- Maximum Oven Temperature: Up to 300 °C.
- Dynamic Cooling Fan (DC+): Ensures efficient cooling of the oven exterior.
Figure 2.1: Front view of the Gorenje BOS6737E20FBG built-in oven, showcasing its black finish and control panel.
Figure 2.2: Angled view of the Gorenje BOS6737E20FBG built-in oven, highlighting its integrated design.
Figure 2.3: Close-up of the oven's control panel with IconLED display and rotary knobs.
3. Setup and Installation
The Gorenje BOS6737E20FBG is designed for built-in installation. Proper installation is crucial for the safe and efficient operation of the oven. It must be installed by a qualified technician in accordance with local regulations and the provided installation diagram.
Installation Requirements:
- Cabinet Dimensions: Ensure the cabinet opening meets the specified dimensions for a secure fit. Refer to the installation diagram for precise measurements.
- Electrical Connection: The oven requires a dedicated electrical circuit. The electrical supply must match the voltage and frequency specified on the rating plate.
- Ventilation: Adequate ventilation must be provided around the oven to prevent overheating. Do not obstruct ventilation openings.
- Leveling: The oven must be installed level to ensure even cooking and proper door operation.
Figure 3.1: Installation diagram showing the required dimensions for the oven cavity and surrounding cabinetry. Dimensions are in millimeters.
4. Operating Instructions
This section describes how to use the various functions of your Gorenje BOS6737E20FBG oven. The oven is controlled via rotary knobs and the IconLED display.
Basic Operation:
- Turning On/Off: Rotate the function selector knob to the desired cooking function to turn on the oven. Rotate to the 'Off' position to turn off.
- Setting Temperature: Use the temperature selector knob to set the desired cooking temperature. The IconLED display will show the set temperature.
- Setting Time: Use the timer function on the IconLED display to set cooking duration or a delayed start.
Oven Functions:
- FastPreheat: Quickly heats the oven to the desired temperature.
- Top and Bottom Heat with Fan: Ideal for baking pastries, cakes, and roasting meat on multiple levels.
- Large Surface Grilling with Fan: For grilling larger quantities of food, ensuring even browning.
- AirFry: A healthy alternative for frying, using intense hot air circulation.
- Hot Air with Steam (ExtraSteam): Combines hot air with steam for perfectly baked bread and juicy roasts.
- Top and Bottom Heat with Steam: For dishes that benefit from added moisture during cooking.
- Large Surface Grilling (Gratin PerfectGrill): For powerful grilling and achieving a crispy crust.
- GentleBake: A gentle cooking function for delicate dishes, ensuring even cooking and moisture retention.
- Pizza Function: Optimized settings for baking perfect pizzas.
- FrozenBake (Defrost Program): For gentle thawing of frozen foods.
- AquaClean: A steam-assisted cleaning program (see Maintenance section).

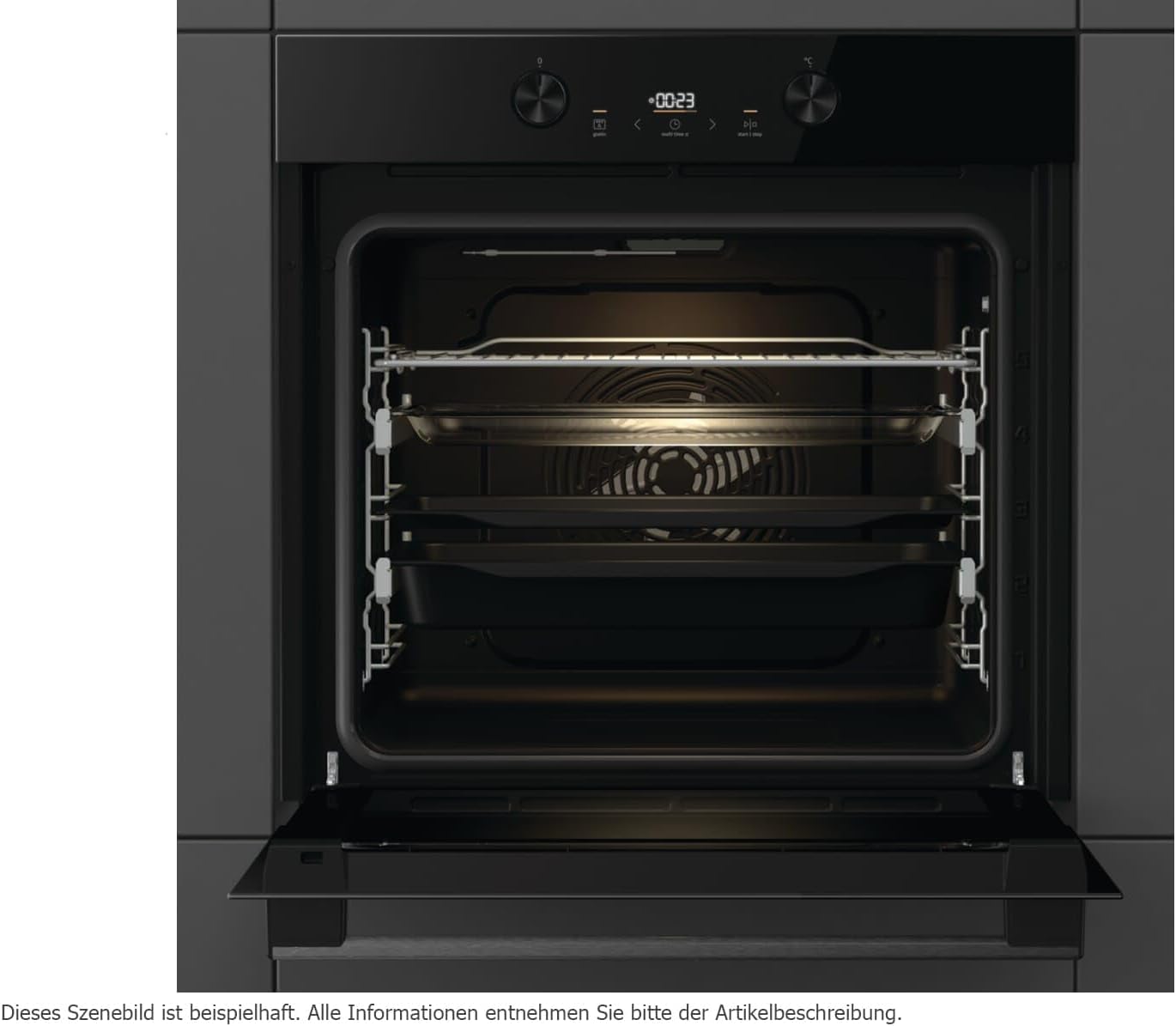

Figure 4.1: Oven interior with the door open, showing the telescopic guides and multiple rack positions.
Figure 4.2: Close-up of the oven's interior, highlighting the fan and EcoClean enamel coating.
Figure 4.3: Illustration of the oven racks and baking trays, including the two-level telescopic guides.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Gorenje oven.
Cleaning the Oven Interior:
- AquaClean Function: Pour approximately 0.5 liters of water into a baking tray and place it on the lowest rack. Select the AquaClean function and run for 30 minutes. The steam will soften grease and food residues, making them easier to wipe away with a soft cloth.
- EcoClean Enamel and Catalytic Coating: The oven interior features a special EcoClean enamel and catalytic coating on some surfaces, which helps to absorb and break down grease during cooking. For stubborn stains, use a mild oven cleaner specifically designed for enamel surfaces.
- Do Not Use: Abrasive cleaners, wire wool, or sharp objects, as these can damage the enamel and catalytic surfaces.
Cleaning the Exterior:
- Wipe the control panel and exterior surfaces with a soft cloth dampened with warm water and a mild detergent.
- For stainless steel parts, use a specialized stainless steel cleaner.
- Ensure no water enters the ventilation openings.
Replacing the Oven Light:
Ensure the oven is disconnected from the power supply before attempting to replace the oven light bulb. Consult a qualified technician if you are unsure.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not heat up. | No power supply; oven settings incorrect; fuse tripped. | Check power connection; ensure correct function and temperature are set; check household fuse box. |
| Oven light is not working. | Light bulb is faulty. | Replace the light bulb (refer to Maintenance section or contact service). |
| Uneven cooking results. | Incorrect rack position; oven not preheated; food quantity too large. | Use recommended rack position; always preheat the oven; adjust cooking time/temperature for larger quantities. |
| Smoke or strong odors during first use. | Residues from manufacturing process. | This is normal. Run the oven empty at maximum temperature for about an hour before first use to burn off residues. Ensure good ventilation. |
If the problem persists after checking these points, please contact Gorenje customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model | BOS6737E20FBG (739549) |
| Brand | Gorenje |
| Type | Built-in Electric Oven |
| Color | Black |
| Capacity | 77 Liters |
| Heating Method | Convection |
| Max. Oven Temperature | 300 °C |
| Finish Type | Brushed |
| Control Panel Material | Glass |
| Item Weight | 30 Kilograms |
| Defrost System Type | Automatic Defrost (FrozenBake) |
| Door Orientation | Drop-down |
| Special Features | EcoClean-enameled catalytic coated, GentleClose Door, Extra Steam, Gratin PerfectGrill, FastPreheat, AirFry, Dynamic Cooling Fan (DC+), AquaClean |
| Timer Function | Available |
| GTIN (Global Trade Item Number) | 03838782557712 |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your appliance or visit the official Gorenje website for your region. In case of technical issues or if you require assistance, please contact Gorenje customer support.
Gorenje Customer Support: Please visit www.gorenje.com for contact details and service information in your country.
