Instruction Manual: Flat Blade Fuse Strip Set

1. Introduction

This manual provides essential information for the proper use, installation, and maintenance of your LT Easiyl Flat Blade Fuse Strip Set. This set includes 10 pieces of flat blade fuses with various amperage ratings (40A, 50A, 60A, 80A, 110A), designed for automotive electrical systems. These fuses are compatible with Opel and VW vehicles, among others, and are crucial for protecting your vehicle's electrical circuits from overcurrents.

Image 1.1: A complete set of 10 flat blade fuse strips, showing two pieces each of 40A, 50A, 60A, 80A, and 110A ratings. These fuses are designed to protect automotive electrical systems.

2. Safety Information

Always prioritize safety when working with electrical components. Failure to follow these safety guidelines may result in injury, damage to property, or damage to the vehicle's electrical system.

• Disconnect Power: Before inspecting or replacing any fuse, always ensure the vehicle's ignition is off and, if possible, disconnect the negative terminal of the battery to prevent accidental short circuits.
• Use Correct Amperage: Always replace a blown fuse with a new fuse of the exact same amperage rating as specified by the vehicle manufacturer. Using a fuse with a higher amperage rating can lead to serious electrical damage or fire.
• Inspect Fuse Box: Before replacing, visually inspect the fuse box for any signs of damage, corrosion, or melting. Address any underlying issues before installing a new fuse.
• Professional Assistance: If you are unsure about any step or suspect a more complex electrical issue, consult a qualified automotive technician.
• Keep Away from Children: Fuses are small parts and can be a choking hazard. Store them out of reach of children.

3. Product Features

• Compatibility: This flat fuse strip set is compatible with Opel and VW vehicles, designed to fit their specific fuse box configurations.
• Amperage Range: Includes a comprehensive range of common automotive amperages: 40A, 50A, 60A, 80A, and 110A, with 2 pieces of each rating.
• Voltage Rating: Designed for DC 32V systems, providing protection against short circuits and overloads.
• Durable Material: Each blade fuse strip is constructed from high-quality zinc alloy, ensuring corrosion resistance, rust resistance, and long-lasting durability in automotive environments.
• Standard Dimensions: Each fuse measures approximately 41.8mm x 12mm, with a hole diameter of 6.5mm and a hole spacing of 29mm, ensuring a precise fit.

4. Installation Instructions

Follow these steps to safely replace a flat blade fuse in your vehicle:

1. Locate the Fuse Box: Refer to your vehicle's owner's manual to find the location of the fuse box. Vehicles typically have multiple fuse boxes (e.g., under the hood, inside the cabin).
2. Identify the Blown Fuse: Once the fuse box is located, identify the specific fuse that needs replacement. A blown fuse will typically have a broken or melted metal strip inside.
3. Disconnect Power: Turn off the vehicle's ignition and remove the key. For added safety, disconnect the negative terminal of the vehicle's battery.
4. Remove the Blown Fuse: Use a fuse puller tool (often found in the fuse box lid or vehicle's toolkit) or small pliers to carefully pull out the blown fuse. Avoid using excessive force.
5. Insert New Fuse: Select a new fuse from your LT Easiyl set with the exact same amperage rating as the one you removed. Carefully push the new fuse into the empty slot until it is firmly seated.
6. Reconnect Power: Reconnect the negative terminal of the battery (if disconnected) and turn the ignition on to test the circuit.

Image 4.1: An automotive fuse box showing various types of fuses. An 80A flat blade fuse is displayed alongside a separate fuse holder, illustrating the context of fuse installation.

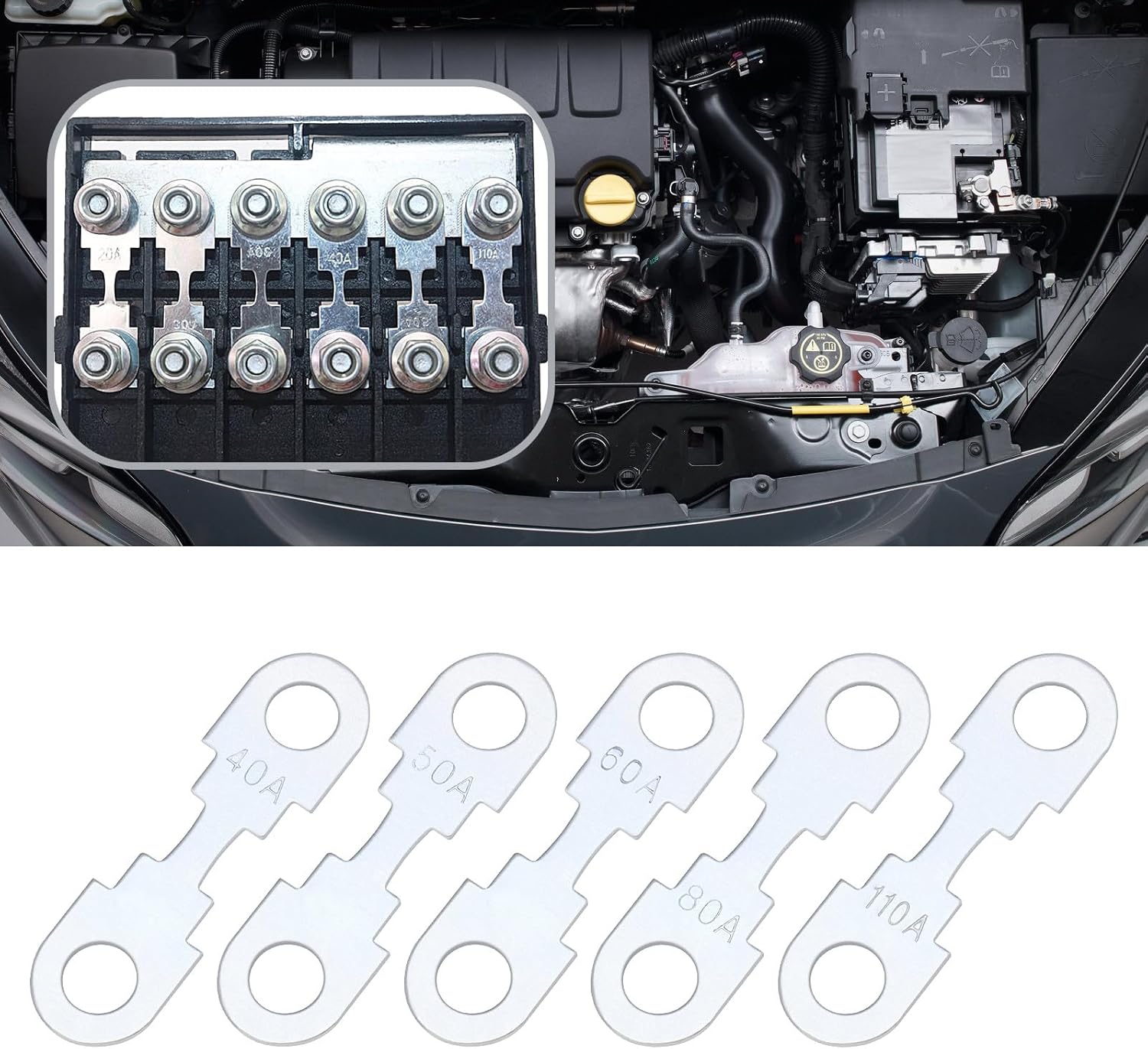

Image 4.2: A detailed view of flat blade fuses securely installed within an automotive fuse box, demonstrating how they fit into the vehicle's electrical system.

5. Operating Principle

Flat blade fuses are safety devices designed to protect electrical circuits from excessive current. When the current flowing through a circuit exceeds the fuse's rated amperage, the metal strip inside the fuse melts and breaks the circuit, preventing damage to sensitive electrical components or wiring. This sacrificial action safeguards the vehicle's electrical system from overloads and short circuits.

6. Maintenance

Flat blade fuses are maintenance-free components. Their primary function is to act as a sacrificial link in an electrical circuit. Once a fuse blows, it must be replaced. Do not attempt to repair a blown fuse, as this can compromise its protective function and lead to serious electrical hazards.

Regularly inspect your vehicle's fuse box for any signs of corrosion or loose connections, especially if you experience recurring electrical issues. Ensure the fuse box cover is properly secured to protect fuses from dirt and moisture.

7. Troubleshooting

If an electrical component in your vehicle stops working, a blown fuse is often the cause. Here's how to troubleshoot:

• Identify the Affected Circuit: Consult your vehicle's owner's manual or the fuse box diagram (usually on the inside of the fuse box cover) to identify which fuse protects the malfunctioning component.
• Inspect the Fuse: Carefully remove the suspected fuse and hold it up to the light. A good fuse will have an intact metal strip. A blown fuse will show a visible break or discoloration in the metal strip.
• Check for Underlying Issues: If a new fuse blows immediately after installation, it indicates a persistent short circuit or overload in the system. Do not continue replacing fuses without addressing the root cause, as this can lead to more severe damage. In such cases, professional diagnosis is recommended.
• Correct Amperage: Always ensure you are replacing the fuse with one of the correct amperage rating. Using a lower amperage fuse will cause it to blow prematurely, while a higher amperage fuse will not provide adequate protection.

8. Specifications

Image 8.1: A technical diagram illustrating the precise dimensions of a single flat blade fuse, including its overall length (41.8mm), hole diameter (6.5mm), and the spacing between the two mounting holes (29mm).

9. Warranty and Support

For any questions, concerns, or support regarding your LT Easiyl Flat Blade Fuse Strip Set, please contact the manufacturer directly through their official channels or the retailer from whom you purchased the product. Please refer to your purchase documentation for specific warranty terms and conditions, as these may vary by region and retailer.
