1. Introduction
This manual provides essential information for the proper handling, installation, and maintenance of the XILENY Engine Wiring Cable Harness. This product is designed as a replacement part for specific Volvo FM11 Truck and Renault vehicle models. Please read these instructions carefully before proceeding with installation or any related procedures.
2. Product Overview
The XILENY Engine Wiring Cable Harness is a critical component for vehicle engine systems, facilitating electrical connections. It is engineered for durability and reliable performance.
2.1 Key Features
- Durability: Constructed with materials designed for long service life and resistance to wear.
- Reliability: Engineered to ensure consistent electrical connectivity.
- Design: Compact and functional design for efficient integration.
- Performance: Optimized for effective operation within compatible vehicle systems.
- Compatibility: Direct replacement for specified original equipment.
2.2 Components
The package typically includes the main engine wiring cable harness and various accessories for installation.
Figure 1: Main Engine Wiring Cable Harness. This image displays the complete wiring harness, featuring multiple connectors and protective conduit.
Figure 2: Engine Wiring Harness with Accessories. This image shows the wiring harness alongside additional components such as cable ties and protective caps, which are included for installation.
3. Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | XILENY |
| Model Numbers | 22347607, 21822967 |
| Item Model Number | XILENY124 |
| Material | ABS (as per product description) |
| Color | Black (as per product description) |
| Compatibility | Volvo FM11 Truck, Renault vehicles |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Weight | 1.76 ounces |
| Assembly Required | No (for the harness itself) |
| Number of Pieces | 1 (set of harness and accessories) |
4. Installation Guidelines
Warning: Professional installation is highly recommended for this product. Improper installation can lead to vehicle damage or personal injury.
This engine wiring cable harness is a direct replacement part. Ensure the OE (Original Equipment) number of the part being replaced matches the numbers 22347607 or 21822967 to ensure compatibility.
4.1 Pre-Installation Steps
- Safety First: Disconnect the vehicle's battery before beginning any electrical work to prevent short circuits or electrical shock.
- Identify Original Part: Locate the existing engine wiring harness that needs replacement.
- Verify Compatibility: Double-check that the OE number on the old part matches the specifications of this XILENY harness.
- Documentation: It is advisable to take photos or make diagrams of the existing connections before removal to aid in correct reassembly.
4.2 Installation Procedure
- Remove Old Harness: Carefully disconnect all connectors and mounting points of the old wiring harness.
- Install New Harness: Position the new XILENY harness in the same manner as the old one.
- Connectors: Connect each terminal and connector securely. Ensure all connections are firm and properly seated.
- Secure Harness: Use the provided cable ties and mounting points to secure the harness, preventing it from rubbing against moving parts or hot surfaces.
- Final Check: Visually inspect all connections and routing to ensure everything is correctly installed and secured.

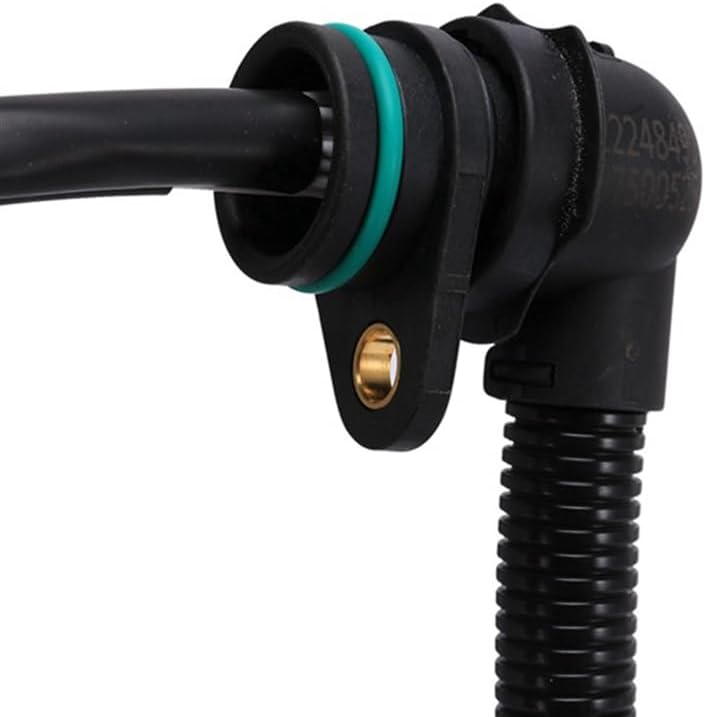

Figure 3: Close-up of a Wiring Harness Connector. This image highlights the detail of a connector, emphasizing the importance of secure and correct connections during installation.
Figure 4: Engine Wiring Harness with Visible Part Numbers. This image displays the harness along with a label indicating part numbers, crucial for verifying compatibility before installation.
5. Operation
The XILENY Engine Wiring Cable Harness is a passive component that facilitates electrical signals and power within the engine system. It does not have user-operable functions. Its proper "operation" is ensured by correct installation and the integrity of its connections.
6. Maintenance
Regular inspection of the engine wiring harness can help ensure its longevity and prevent potential issues.
- Visual Inspection: Periodically check the harness for any signs of wear, fraying, cracks in insulation, or damage to connectors.
- Connection Integrity: Ensure all connectors remain firmly seated and free from corrosion.
- Cleanliness: Keep the harness free from excessive dirt, oil, and debris. Use a clean, dry cloth for cleaning. Avoid using harsh chemicals that could damage the insulation.
- Routing: Confirm that the harness remains properly routed and secured, away from hot engine components or moving parts.
7. Troubleshooting
If electrical issues arise after installation, consider the following basic troubleshooting steps:
- Check Connections: Re-verify that all connectors are fully seated and locked into place.
- Inspect for Damage: Look for any visible damage to the harness, such as cuts, pinches, or burnt sections.
- Verify Compatibility: Confirm that the installed harness OE numbers match the vehicle's requirements.
- Professional Diagnosis: If issues persist, it is recommended to consult a qualified automotive technician for a thorough diagnosis.
8. Safety Information
- Always disconnect the vehicle's battery before working on electrical systems.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Ensure the work area is well-lit and free from hazards.
- Do not attempt to modify the wiring harness. Use only as intended.
- Keep children and unauthorized personnel away from the work area.
9. Warranty and Support
For warranty information or technical support regarding your XILENY Engine Wiring Cable Harness, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
