Introduction
This instruction manual provides comprehensive guidance for the safe and effective use of your IMAYCC Wall-Mounted Adjustable Boxing Speed Bag. Please read all instructions carefully before installation and operation to ensure proper setup and to maximize your training experience.
Package Contents
Verify that all components listed below are present in your package:
- 1 x Wall-Mounted Bracket
- 1 x Speed Bag (Punching Ball)
- 1 x Elastic Spring
- 1 x Inflation Pump (for speed bag)
- 1 x Set of Expansion Bolts (for concrete walls)
- 1 x Set of Lag Screws (for wood walls)
- 1 x Hex Wrench
- Detailed Installation Instructions

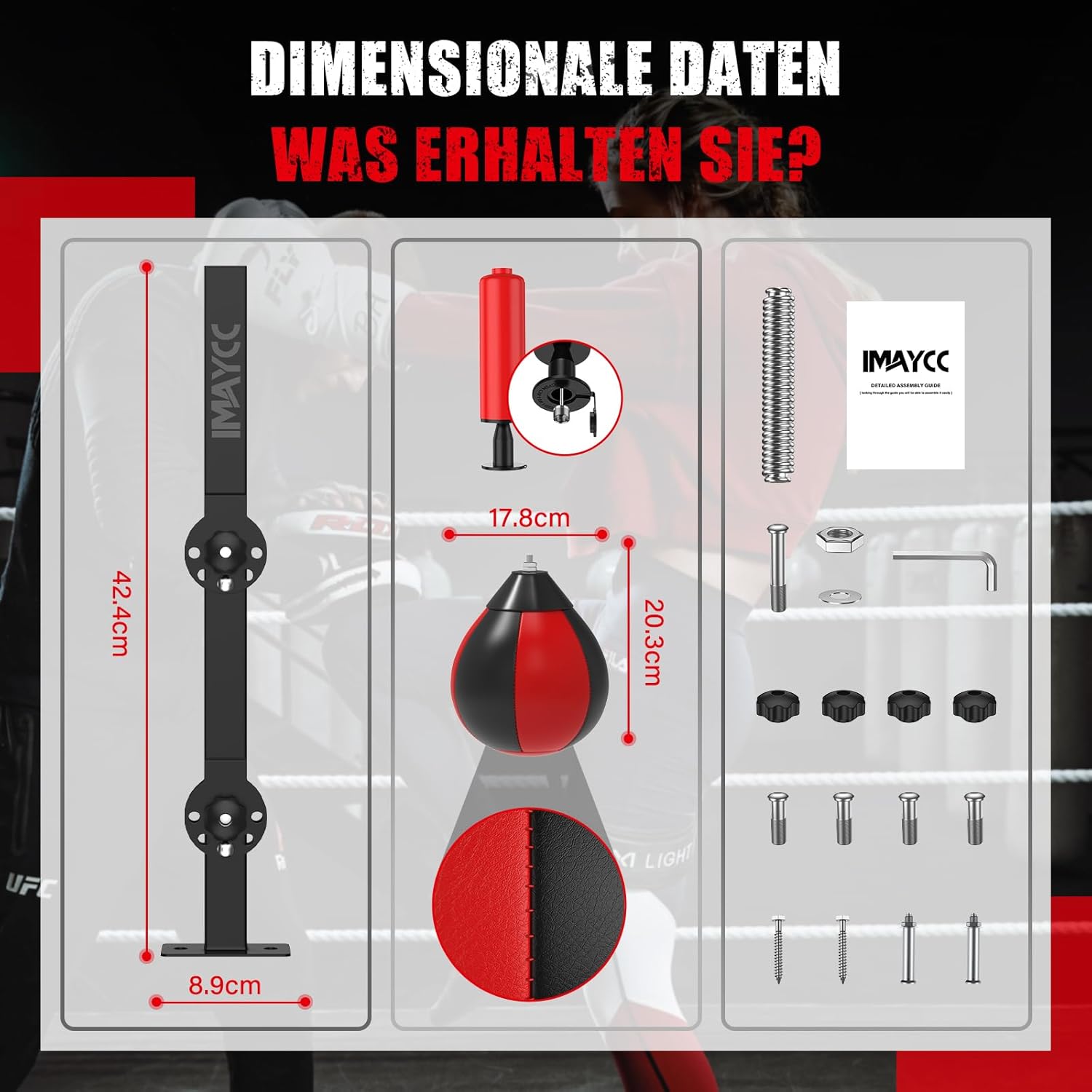

Image: Overview of all included parts and their respective dimensions. This includes the wall bracket, speed bag, spring, and mounting hardware.
Setup and Installation
Follow these steps to properly install your IMAYCC Boxing Speed Bag:
1. Choose a Mounting Location
Select a sturdy wall surface. The bracket can be mounted on either concrete or wood walls. Ensure there is sufficient space around the installation area for safe training.
Image: Visual guide for mounting the speed bag bracket on concrete walls using expansion bolts and on wood walls using lag screws.
2. Mark Drilling Points
Hold the wall bracket against the desired mounting location. Use a pencil to mark the positions for drilling holes. Ensure the bracket is level before marking.
3. Drill Holes
- For Concrete Walls: Use a drill with an appropriate masonry bit to drill holes at the marked points. Insert the expansion bolts into the drilled holes.
- For Wood Walls: Use a drill with an appropriate wood bit to drill pilot holes at the marked points.
4. Mount the Bracket
- For Concrete Walls: Align the bracket with the expansion bolts and secure it firmly using the provided nuts and washers.
- For Wood Walls: Align the bracket with the pilot holes and secure it firmly using the provided lag screws.
5. Assemble Speed Bag and Spring
Attach the elastic spring to the bottom of the wall bracket. Then, attach the speed bag to the bottom of the elastic spring. Ensure all connections are tight and secure.
6. Inflate the Speed Bag
Use the included inflation pump to inflate the speed bag to a firm but not over-inflated state. Do not over-inflate, as this can damage the bag.
7. Adjust Height
The wall bracket features 5 adjustable height settings. Loosen the manual knob, adjust the bracket arm to your desired height, and then tighten the knob securely. This allows for customization for different users (children, teenagers, adults).
Image: The wall bracket showing five distinct height adjustment points, allowing users to customize the speed bag's position.
Operating Instructions
The IMAYCC Boxing Speed Bag is designed for various training purposes, including improving reflexes, hand-eye coordination, arm strength, precision, and rhythm. It also serves as an effective tool for stress relief.
1. Proper Stance and Technique
Stand in a balanced boxing stance, facing the speed bag. Begin with light taps to get a feel for the bag's rebound. Focus on rhythmic striking, using your fists to hit the bag from different angles.
2. Training Benefits
- Reflexes and Coordination: The rapid rebound of the speed bag helps to sharpen your reflexes and improve hand-eye coordination.
- Arm Strength and Endurance: Continuous striking engages arm and shoulder muscles, building strength and endurance.
- Precision and Rhythm: Developing a consistent striking pattern enhances precision and timing.
- Stress Relief: Engaging in physical activity like speed bag training can effectively reduce stress and tension.
Image: An adult and a child demonstrating the use of the speed bag, highlighting its suitability for various age groups and training levels.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your speed bag:
- Cleaning: Wipe the speed bag with a damp cloth to remove sweat and dirt after each use. Avoid harsh chemicals.
- Inflation: Periodically check the inflation level of the speed bag. Re-inflate as needed to maintain firmness, but do not over-inflate.
- Hardware Check: Regularly inspect all bolts, screws, and connections on the wall bracket and spring to ensure they remain tight. Tighten any loose fasteners.
- Storage: When not in use for extended periods, the bracket can be folded to save space. Ensure it is clean and dry before folding.
Image: Detailed view of the speed bag's durable PU leather material and the robust elastic spring, emphasizing the quality components that require minimal maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speed bag feels soft or lacks rebound. | Under-inflated. | Use the included pump to inflate the speed bag to the recommended firmness. |
| Bracket feels unstable after installation. | Mounting hardware not fully tightened or incorrect hardware used for wall type. | Ensure all bolts/screws are securely tightened. Verify that the correct expansion bolts (concrete) or lag screws (wood) were used. |
| Speed bag does not return quickly after striking. | Spring issue or bag not properly inflated. | Check inflation. Inspect the elastic spring for any damage or deformation. |
Specifications
| Feature | Detail |
|---|---|
| Brand | IMAYCC |
| Model Number | B0CNLN8L18 |
| Color | Red and Black |
| Outer Material | Polyurethane (PU) Leather |
| Bracket Material | High-hardness Steel Alloy |
| Item Weight | Approximately 1.3 Kilograms |
| Speed Bag Dimensions (Diameter x Height) | 17.8 cm x 20.3 cm (7 x 8 inches) |
| Wall Bracket Dimensions (Height x Width) | 42.4 cm x 8.9 cm (16.7 x 3.5 inches) |
| Height Adjustment | 5 adjustable positions |
| Compatibility | Suitable for concrete and wood walls |
Warranty Information
IMAYCC products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your product or contact IMAYCC customer support. Please retain your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance with installation, or encounter any issues with your IMAYCC Boxing Speed Bag, please do not hesitate to contact our customer support team. Your satisfaction is our primary goal.
Contact information can typically be found on the product packaging or on the official IMAYCC website.
