Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your BarcaLounger Tomas Power Recliner. Please read all instructions carefully before use to ensure safe and proper functioning of your recliner. Keep this manual for future reference.
The BarcaLounger Tomas is a stately, larger-scale triple power wall proximity recliner, featuring power recline, power headrest, and power lumbar support. It is designed for comfort and convenience, incorporating an inside-the-arm power controller with a USB port for charging devices.
Safety Information
WARNING: Failure to follow these safety instructions could result in injury or damage to the product.
- Keep children and pets away from the recliner's moving parts. Ensure no obstructions are present when operating the recline mechanism.
- Do not allow children to play on or with the recliner.
- Ensure the power cord is not pinched or damaged. Do not place heavy objects on the cord.
- Only use the recliner on a flat, stable surface.
- Do not stand on the footrest or armrests.
- Disconnect power before cleaning or performing any maintenance.
- This recliner is designed for indoor use only.
Setup
Your BarcaLounger Tomas Power Recliner requires some assembly. Please follow these steps carefully.
Unpacking
- Carefully remove all components from the packaging.
- Inspect all parts for any damage. If any parts are damaged or missing, do not proceed with assembly. Contact customer support immediately.
- Ensure all packing materials are removed from the recliner mechanism.
Assembly Steps
- Attach the Backrest: Align the metal receivers on the backrest with the posts on the base of the recliner. Push down firmly until the backrest locks into place. You should hear a click.
- Connect Power Cables: Locate the power cables extending from the back of the recliner base and the backrest. Connect them securely.
- Connect Power Adapter: Plug the power adapter into the recliner's main power input, then plug the adapter into a standard wall outlet.
Placement
This is a wall proximity recliner. For optimal function and to prevent damage, ensure there is a minimum clearance of 4.5 inches (11.4 cm) between the back of the recliner and any wall or obstruction.

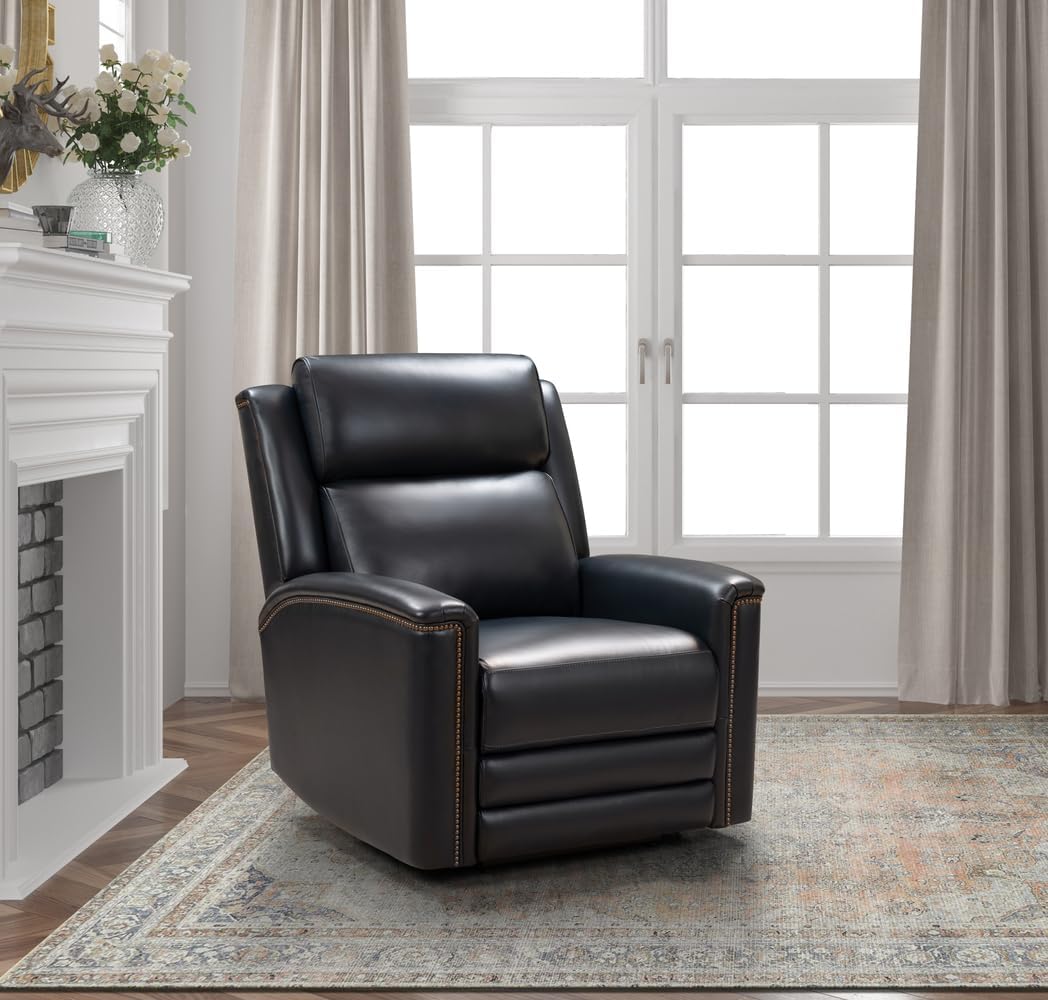

Image: The BarcaLounger Tomas Power Recliner in an upright position, showcasing its design and suitable placement in a room.
Operating Instructions
Your BarcaLounger Tomas Power Recliner features an intuitive power controller located on the inside of the armrest.
Image: A close-up view of the power control panel, showing the USB port and control buttons integrated into the armrest.
Power Controller Functions
- Recline Button: Press and hold the recline button (usually the largest or most prominent) to extend the footrest and recline the backrest. Release the button at your desired position. Press and hold again to return to the upright position. The recliner offers multiple reclining positions.
- Power Headrest Button: Use the dedicated headrest button to adjust the angle of the headrest independently. Press and hold to move the headrest forward or backward. Release when the desired angle is achieved.
- Power Lumbar Button: Use the dedicated lumbar button to adjust the lumbar support. Press and hold to increase or decrease the lumbar support. Release when the desired comfort level is achieved.
- USB Charging Port: Plug your USB-compatible devices into the USB port to charge them while relaxing.
Image: The recliner shown in a fully reclined position, demonstrating the extended footrest and laid-back backrest.
Image: A detailed view of the adjustable power headrest, highlighting its ergonomic design.
Image: A detailed view of the adjustable power lumbar support, showing its contoured shape for back comfort.
Maintenance
Proper care and maintenance will extend the life and appearance of your BarcaLounger Tomas Power Recliner.
Cleaning Instructions
- General Cleaning: For routine cleaning, wipe the leather surface with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals.
- Spills: Blot spills immediately with a clean, dry cloth. Do not rub, as this can spread the stain. For stubborn stains, consult a professional leather cleaning service.
- Dusting: Regularly dust the recliner with a soft, dry cloth to prevent dust buildup.
Mechanism Care
- Periodically inspect all bolts and screws to ensure they are tight. Retighten as necessary.
- Keep the recliner mechanism free of dust and debris. Do not lubricate the mechanism unless specifically instructed by the manufacturer.
Troubleshooting
If you encounter issues with your recliner, refer to the following common problems and solutions.
Recliner Not Responding to Controls
- Check Power Connection: Ensure the power cord is securely plugged into both the recliner and the wall outlet. Verify the wall outlet is functional by plugging in another device.
- Check Internal Connections: Ensure all internal power cables (connecting the backrest to the base) are securely connected.
- Reset Power: Unplug the recliner from the wall outlet for 5 minutes, then plug it back in. This can sometimes reset the power mechanism.
Recliner Making Unusual Noises
- Check for Obstructions: Inspect the recliner mechanism for any foreign objects that might be interfering with its movement.
- Tighten Fasteners: Ensure all assembly bolts and screws are tight. Loose fasteners can cause creaking or squeaking.
USB Port Not Charging
- Verify Recliner Power: Ensure the recliner is powered on and functioning.
- Test with Another Device/Cable: Try charging a different device or using a different USB cable to rule out issues with your device or cable.
If these steps do not resolve the issue, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | BarcaLounger |
| Model Name | Tomas |
| Model Number | 9PHL-1168-3479-47 |
| Color | Midnight Blue |
| Material | Leather (Seat), Aluminum (Frame), Wood (Frame) |
| Product Dimensions (D x W x H) | 41.7"D x 35.8"W x 42.5"H (105.9 cm D x 90.9 cm W x 108 cm H) |
| Item Weight | 124 Pounds (56.2 kg) |
| Seat Height | 20 Inches (50.8 cm) |
| Seat Depth | 22 Inches (55.9 cm) |
| Arm Height | 25 Inches (63.5 cm) |
| Reclining Positions | 3 (Power Recline, Power Headrest, Power Lumbar) |
| Wall Proximity | 4.5 Inches (11.4 cm) |
| Assembly Required | Yes |
| UPC | 850028888827 |
Warranty Information
BarcaLounger products are typically covered by a manufacturer's warranty. For specific details regarding the warranty period, coverage, and claims process for your Tomas Power Recliner, please refer to the warranty card included with your purchase or contact your retailer. Keep your proof of purchase for warranty claims.
Customer Support
If you have any questions, require assistance with assembly, or need troubleshooting beyond what is covered in this manual, please contact your retailer or the manufacturer directly.
Manufacturer: BarcaLounger
Please have your model number (Tomas, 9PHL-1168-3479-47) and proof of purchase ready when contacting support.
