DAYUDDRICAR ALZRC R42 RC Helicopter Plastic Landing Gear Replacement Manual

1. Introduction

This manual provides essential information for the installation, usage, and maintenance of the DAYUDDRICAR Plastic Landing Gear Replacement for the ALZRC R42 RC Helicopter. Please read these instructions carefully to ensure proper handling and to maximize the lifespan of your product.

2. Product Description

The DAYUDDRICAR Plastic Landing Gear (Model: DAYUDDRICAR) is a direct replacement part designed specifically for the ALZRC R42 RC Helicopter. Manufactured from high-quality, durable, and wear-resistant plastic, this component ensures stable landings and protects the helicopter's undercarriage. This package includes one (1) plastic landing gear unit.

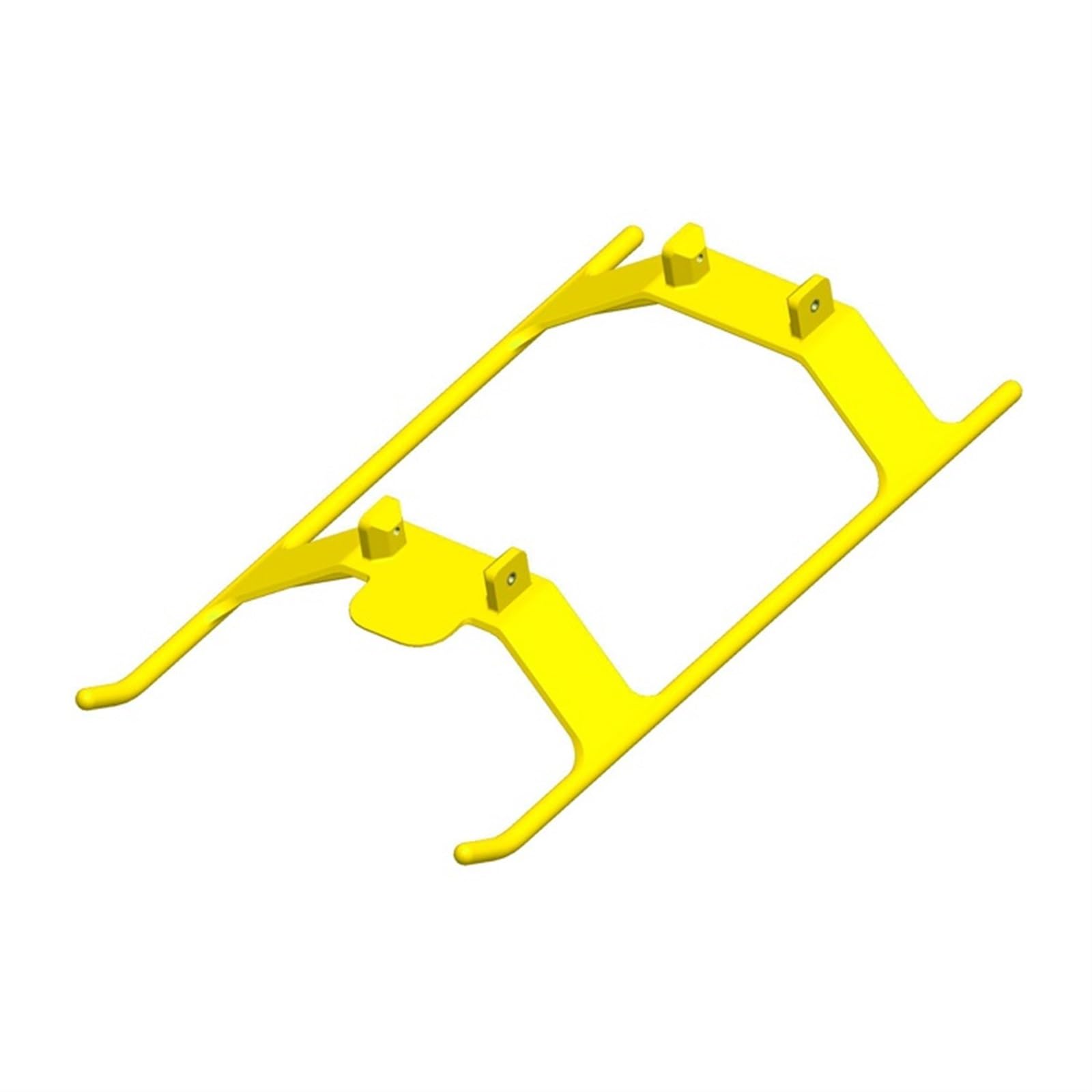

Figure 1: Image of the yellow plastic landing gear, designed as a replacement part for the ALZRC R42 RC helicopter.

3. Installation Instructions

Follow these steps to correctly install the replacement landing gear on your ALZRC R42 RC Helicopter:

1. Preparation: Ensure the RC helicopter is powered off and the battery is disconnected before beginning any installation or maintenance. Place the helicopter on a clean, stable surface.
2. Remove Old Landing Gear: Carefully identify the attachment points of the existing landing gear. Using appropriate small tools (e.g., a miniature screwdriver), unfasten any screws or clips securing the old landing gear to the helicopter frame. Gently remove the damaged or old landing gear.
3. Inspect Attachment Points: Before installing the new part, inspect the helicopter's frame for any damage or debris at the landing gear attachment points. Clean if necessary.
4. Position New Landing Gear: Align the new DAYUDDRICAR plastic landing gear with the corresponding attachment points on the ALZRC R42 helicopter frame. Ensure it fits snugly and correctly.
5. Secure New Landing Gear: Fasten the new landing gear using the original screws or clips. Do not overtighten, as this can strip threads or crack the plastic. Ensure the landing gear is securely attached and does not wobble.
6. Final Check: Once installed, gently test the stability of the landing gear by placing the helicopter on a flat surface. Verify that all connections are secure and the helicopter sits level.

4. Usage and Function

The landing gear provides essential support and protection for your ALZRC R42 RC Helicopter during takeoff and landing. It absorbs impact, preventing damage to the helicopter's main body, delicate electronics, and rotor blades. Proper functioning of the landing gear is crucial for safe operation and stability on the ground.

5. Care and Maintenance

• Regular Inspection: Periodically inspect the landing gear for any signs of cracks, bends, or wear, especially after hard landings.
• Cleaning: Keep the landing gear free from dirt, dust, and debris. A soft, damp cloth can be used for cleaning. Avoid harsh chemicals that may degrade the plastic.
• Storage: Store your helicopter in a safe place where the landing gear is not subjected to undue pressure or impact.
• Replacement: If significant damage is observed, replace the landing gear promptly to prevent further damage to the helicopter during operation.

6. Troubleshooting

If you encounter issues with your landing gear, consider the following:

• Wobbly or Loose Landing Gear: Ensure all screws are securely fastened. If the plastic attachment points are stripped, the part may need replacement.
• Cracked or Broken Landing Gear: This indicates impact damage. The landing gear should be replaced immediately to maintain flight safety and protect other components.
• Difficulty during Installation: Double-check that you have the correct replacement part for the ALZRC R42 model. Ensure proper alignment before fastening.

7. Specifications

8. Customer Support

DAYUDDRICAR is committed to customer satisfaction. If you encounter any issues with your product or require assistance, please contact our customer support team. We are dedicated to providing a satisfactory resolution to any concerns you may have.

For support, please refer to the contact information provided with your purchase or visit the official DAYUDDRICAR website.
