Product Overview
The GUSUHAWK 51510000 Spindle Assembly is a direct replacement part designed for various Ariens Zoom and Mini-Zoom series lawn mower decks. This assembly replaces original part numbers 51510000, 61543800, and 61527600, ensuring compatibility and proper fit for your equipment. It features pre-greased, double-sealed bearings for enhanced durability and includes essential tools for a convenient installation process.
Compatible Ariens Models
This spindle assembly is compatible with a wide range of Ariens lawn mower models, including but not limited to:
- Ariens Zoom Series: 1634, 1640, 1740, 1744, 1840, 1842, 1844, 1844 XL, 1944, 2040, 2044, 2044 XL, 2048, 2148, 2148 XL, 2150, 2250, 2252, 2348, 2348 XL, 2350, 2352, 2448, 2450, 2552.
- Ariens Zoom XL Series: 2042, 2242, 2548, 42, 48, 54, CE Zero Turn Mower models.
- Ariens Mini-Zoom Series: 1434 Ce, 1434, 1534, 1540.
- Ariens WAW Series: 1334, 1034 CE, 1034.
Refer to your mower's manual or the product specifications for a complete list of compatible model numbers (e.g., 915035, 915037, 915051, etc.).
Figure 1: The GUSUHAWK 51510000 Spindle Assembly, shown with the accompanying installation tools and safety gloves.
Figure 2: The spindle assembly is a critical component of the lawn mower deck, responsible for holding and rotating the cutting blades.
Installation Guide
Replacing a lawn mower spindle assembly requires basic mechanical skills and adherence to safety precautions. Always ensure the mower is turned off, the spark plug wire is disconnected, and the deck is safely raised or removed before beginning work.
Included Assembly Tool Kit:
- 1x 22x24mm Forged Double Head Open End Spanner
- 1x 14mm L Shaped Angled Hex Socket Wrench
- 1x Anti-slip Cotton Knit Safety Work Gloves
Figure 3: The complete assembly tool kit provided for convenient installation.
Step-by-Step Replacement:
- Safety First: Disconnect the spark plug wire and ensure the mower cannot accidentally start. Wear the provided safety gloves.
- Access the Deck: Depending on your mower model, you may need to remove the entire mower deck or simply raise it to access the underside.
- Remove Blades: Carefully remove the cutting blades from the old spindle. Note the orientation of the blades for correct reinstallation.
- Remove Old Spindle: Use the appropriate wrenches from the tool kit to unbolt the old spindle assembly from the mower deck. There are typically several bolts securing it.
- Clean Mounting Area: Clean any debris or rust from the mounting surface on the mower deck to ensure a flush fit for the new spindle.
- Install New Spindle: Position the new GUSUHAWK 51510000 Spindle Assembly onto the deck. Align the bolt holes and secure it with the provided bolts and washers. Tighten bolts evenly and securely using the 0.34" bolts and 0.35" hex bolts as indicated in the diagram. The 0.58" hex bolt and 0.69" washer are for the top pulley attachment.
- Reattach Blades: Reinstall the cutting blades onto the new spindle, ensuring they are correctly oriented and tightened to the manufacturer's specifications.
- Reassemble Deck: Reattach the mower deck if it was removed, and reconnect the spark plug wire.
- Test Operation: Before full use, perform a brief test run to ensure the blades spin freely and there are no unusual noises or vibrations.
Figure 4: Visual guide for the easy installation process, showing components and tool usage.
Operation
Once the GUSUHAWK 51510000 Spindle Assembly is correctly installed, the lawn mower deck should operate as intended, providing smooth rotation for the cutting blades. Ensure all bolts are securely fastened before operating the mower. Listen for any unusual noises during operation, which could indicate an issue with installation or a component.
Maintenance
The GUSUHAWK 51510000 Spindle Assembly features double-sealed bearings that are pre-greased at the factory. This design minimizes the need for regular lubrication. However, periodic inspection is recommended:
- Visual Inspection: Regularly check the spindle assembly for any signs of damage, cracks, or excessive wear.
- Bearing Condition: While sealed, listen for any grinding or squealing noises during operation, which may indicate bearing wear over time.
- Bolt Tightness: Periodically check and ensure all mounting bolts remain tight to prevent vibration and premature wear.
- Cleanliness: Keep the area around the spindle free of grass clippings and debris to prevent buildup that could affect performance or cause corrosion.
Figure 5: The double-sealed bearing design ensures long-lasting performance with minimal maintenance.
Troubleshooting
If you experience issues after installing the new spindle assembly, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Vibration or Noise | Loose mounting bolts, unbalanced blade, debris in deck, damaged bearing (unlikely for new part). | Check and tighten all mounting bolts. Inspect blades for damage or imbalance. Clear deck of debris. |
| Poor Cut Quality | Dull or improperly installed blades, incorrect blade height, bent spindle shaft (unlikely for new part). | Sharpen or replace blades. Ensure blades are installed correctly. Adjust deck height. |
| Spindle Overheating | Excessive friction, lack of lubrication (unlikely for sealed bearings), heavy load. | Ensure no binding. While bearings are pre-greased, if issues persist, contact support. Avoid prolonged heavy use if overheating occurs. |
Specifications
| Feature | Detail |
|---|---|
| Part Number | 51510000 |
| Replaces OEM Parts | Ariens 51510000, 61543800, 61527600 |
| Compatibility | Ariens Zoom, Zoom XL, Mini-Zoom, WAW series lawn mower decks (various models) |
| Bearing Type | Double Sealed, Pre-greased |
| Package Dimensions | 11.1 x 8.31 x 6.3 inches |
| Item Weight | 4.13 pounds |
| Manufacturer | GUSUHAWK |
| ASIN | B0CNJQCKBN |

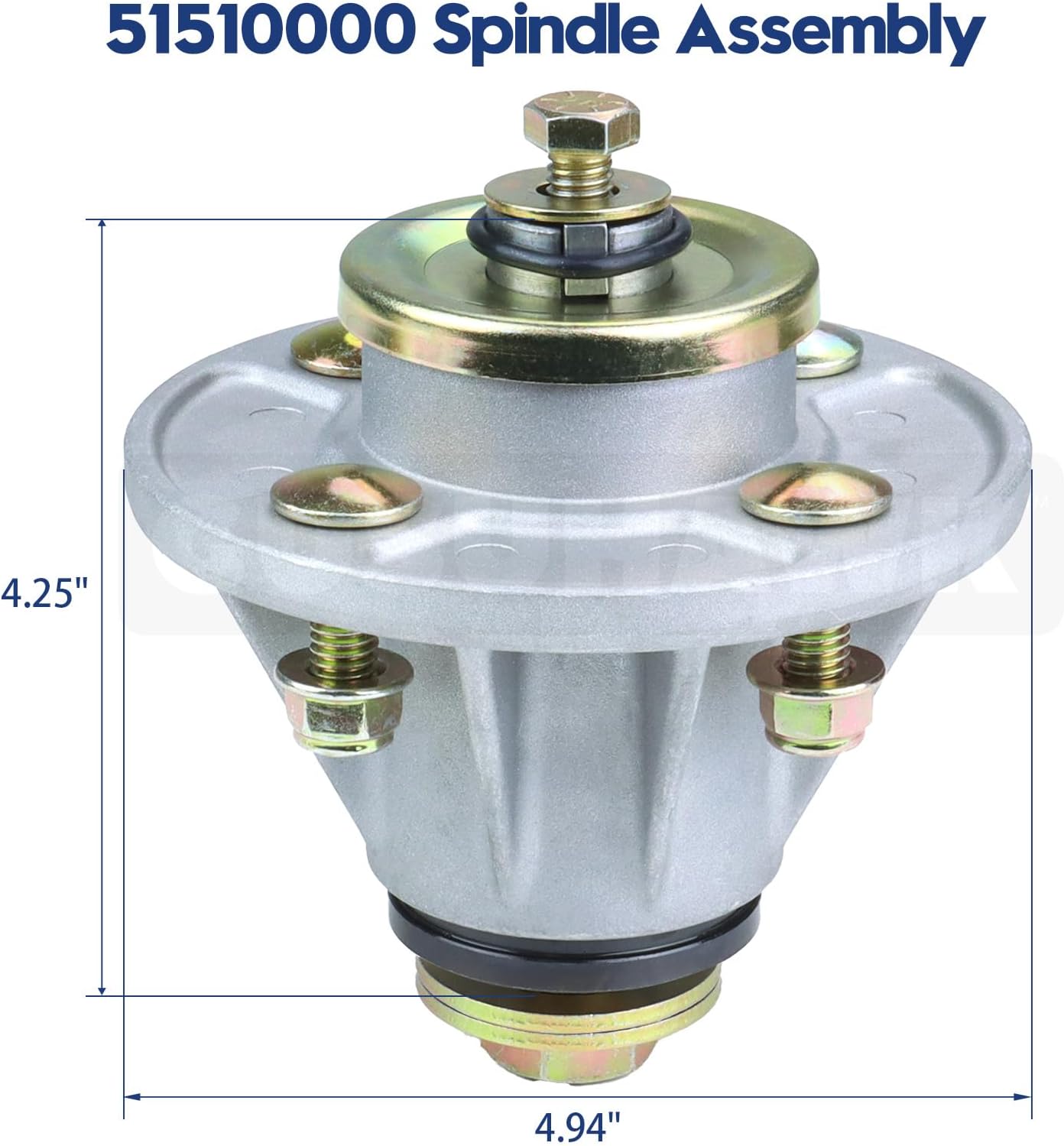

Figure 6: Key dimensions of the 51510000 Spindle Assembly.
Figure 7: Various detailed views of the spindle assembly components.
Warranty and Support
For specific warranty information regarding your GUSUHAWK 51510000 Spindle Assembly, please refer to the product packaging or contact the manufacturer directly. GUSUHAWK is committed to providing quality replacement parts.
For technical support or inquiries, please reach out to the seller, Gusuhawk, through the platform where the purchase was made or via their official contact channels. You can often find seller contact information on your order details page.
Seller: Gusuhawk
