MDHL 8109 Brushless Motor Electric Pressure Washer User Manual

Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your MDHL 8109 Brushless Motor Electric Pressure Washer. Designed for household applications such as cleaning vehicles, patios, windows, and garden areas, this portable unit features a high-efficiency brushless motor, a versatile 6-in-1 rotatable spray nozzle, and three adjustable pressure levels. Please read this manual thoroughly before first use to ensure proper handling and to maximize the lifespan of your device.

Package Contents and Setup

Upon unpacking, ensure all components listed below are present. The MDHL 8109 pressure washer is designed for quick and easy assembly.

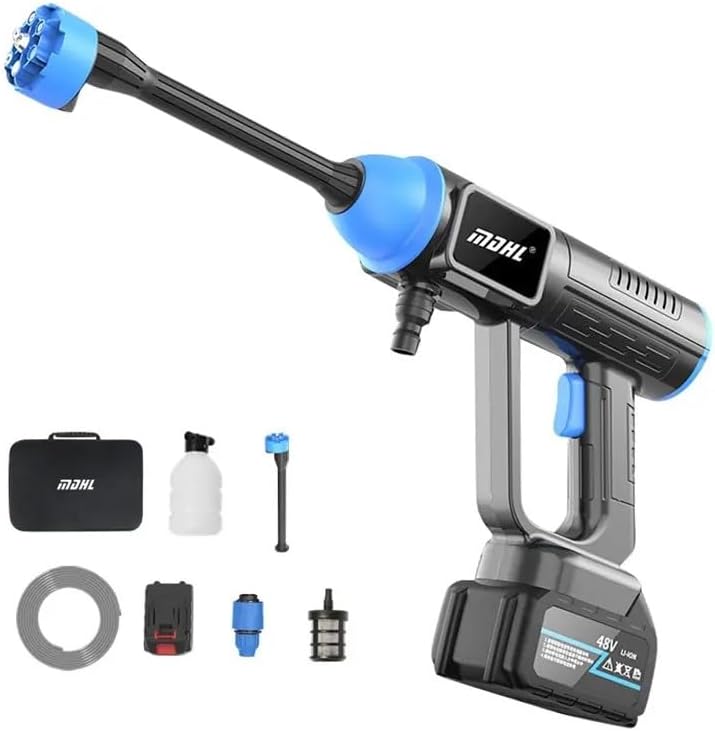

Image: The MDHL 8109 pressure washer along with its complete set of accessories, including the main unit, nozzle, filter mesh, foam bottle, power charger, 10m water pipe, long pole, battery, English manual, and storage box.

Components Included:

• 1 x Main Part (Pressure Washer Unit)
• 1 x Nozzle (6-in-1 Multi-Function)
• 1 x Filter Mesh
• 1 x Foam Bottle
• 1 x Power Charger
• 1 x 10m Water Pipe
• 1 x Long Pole
• 1 x Battery (48VH 15000mAh Lithium)
• 1 x English Manual
• 1 x Storage Box

Assembly Steps:

1. Charge the Battery: Before first use, fully charge the 48VH lithium battery using the provided power charger. The battery indicator will show charging status.
2. Attach the Battery: Slide the charged battery into the base of the pressure washer handle until it clicks securely into place.
3. Connect the Water Pipe: Attach one end of the 10-meter water pipe to the water inlet on the pressure washer unit. Ensure a tight connection to prevent leaks. Place the other end of the water pipe, with the filter mesh attached, into a water source (e.g., bucket, pool).
4. Attach the Long Pole and Nozzle: Connect the long pole to the front of the main unit. Then, attach the 6-in-1 multi-function nozzle to the end of the long pole. Ensure both connections are firm.
5. Optional: Attach Foam Bottle: For car washing, fill the foam bottle with appropriate car wash solution and attach it to the nozzle or designated port if applicable.

Operating Instructions

The MDHL 8109 offers flexible operation with adjustable pressure and spray patterns for various cleaning tasks.

Powering On and Pressure Adjustment:

• Press the power button to turn on the unit.
• The unit features a smart LCD display. Use the '+' and '-' buttons on the touchscreen to cycle through the 3 available pressure levels. Select the appropriate pressure for your cleaning task.

Image: Close-up of the LCD Smart Display on the pressure washer, indicating strength levels and battery status, with one-click adjustment buttons.

Using the 6-in-1 Rotatable Spray Nozzle:

The unique 6-in-1 nozzle eliminates the need to change nozzles for different tasks. Simply rotate the nozzle head to select your desired spray pattern.

Image: A detailed view of the 6-in-1 rotatable spray nozzle, highlighting its multi-functionality and ease of switching between different water modes.

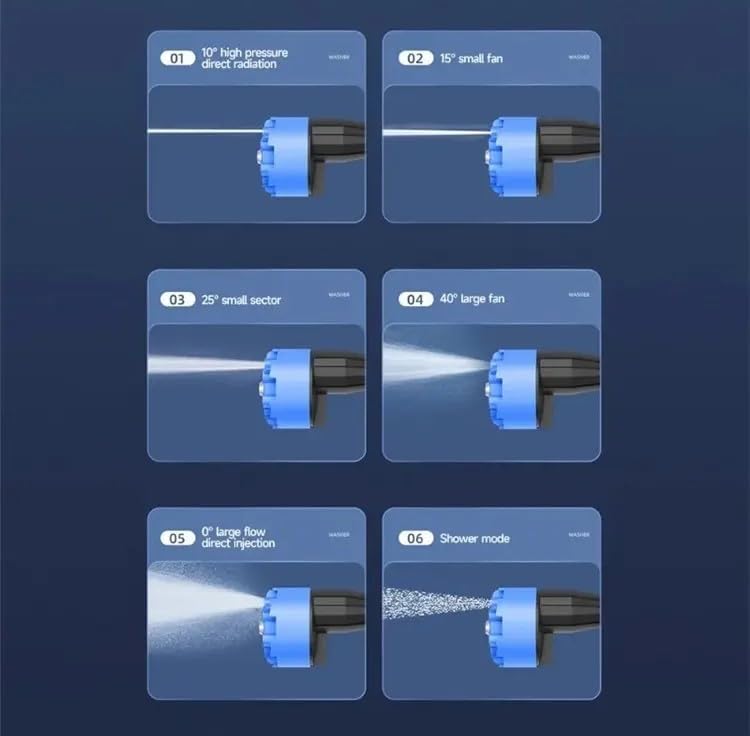

Image: Illustrations of the six distinct spray patterns available on the 6-in-1 nozzle: 10° high pressure direct radiation, 15° small fan, 25° small sector, 40° large fan, 0° large flow direct injection, and shower mode.

• 10° High Pressure Direct Radiation: For concentrated, powerful cleaning of stubborn dirt.
• 15° Small Fan: A narrow fan spray for focused cleaning on smaller areas.
• 25° Small Sector: A wider fan spray for general cleaning tasks.
• 40° Large Fan: A broad fan spray for rinsing and covering larger surfaces quickly.
• 0° Large Flow Direct Injection: For maximum water volume, ideal for quick rinsing or filling.
• Shower Mode: A gentle, wide spray suitable for watering plants or light rinsing.

Applications:

The MDHL 8109 is versatile for various cleaning needs:

• Vehicle Washing: Use the foam bottle with car wash solution, then rinse with appropriate spray patterns.
• Patio and Floor Cleaning: Utilize fan sprays for effective cleaning of hard surfaces.
• Window Cleaning: Use a gentle fan spray to avoid damage.
• Garden Green Works: The shower mode is ideal for watering plants and delicate garden tasks.

Image: Demonstrations of the pressure washer in action, showing its use for watering saplings, rinsing floors, and thorough long-term cleaning of vehicle tires.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your pressure washer.

• After Each Use:
• Disconnect the water supply and run the unit for a few seconds to clear any remaining water from the pump and hose.
• Wipe down the exterior of the unit with a damp cloth to remove dirt and debris.
• Filter Mesh Cleaning: Periodically inspect and clean the filter mesh at the end of the water pipe to prevent blockages and ensure consistent water flow. Rinse it under running water to remove any accumulated particles.
• Nozzle Maintenance: If the nozzle becomes clogged, use a small pin or needle to clear any obstructions from the spray orifices.
• Battery Care:
• Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
• For long-term storage, charge the battery to approximately 50% capacity. Avoid storing a fully discharged or fully charged battery for extended periods.
• Storage: Store the pressure washer and all accessories in the provided storage box in a dry, frost-free environment.

Troubleshooting

If you encounter issues with your pressure washer, refer to the following common problems and solutions:

Specifications

Detailed technical specifications for the MDHL 8109 Brushless Motor Electric Pressure Washer:

Dimensions:

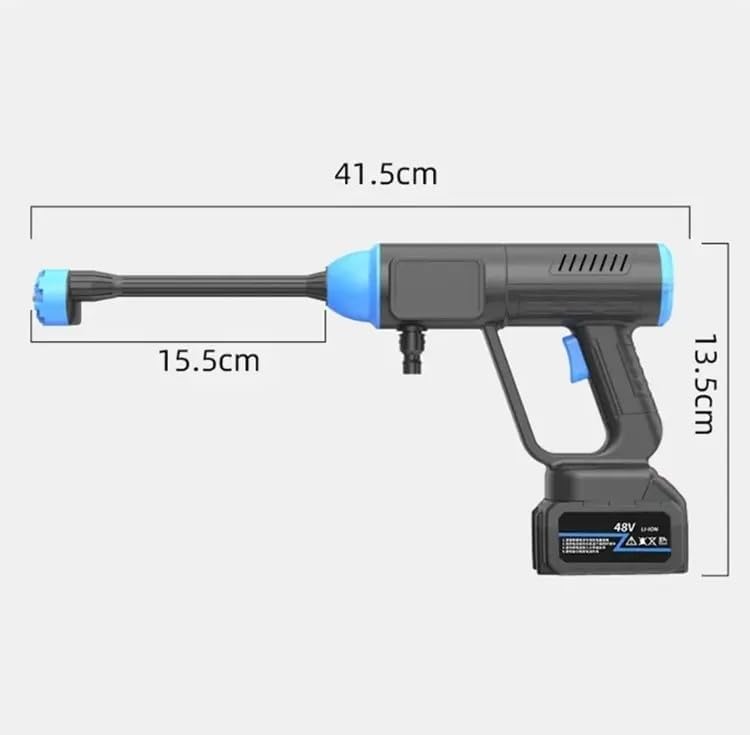

Image: Diagram showing the approximate dimensions of the MDHL 8109 pressure washer: 41.5 cm (total length), 15.5 cm (nozzle extension), and 13.5 cm (height of main body).

Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the specific terms provided by your retailer or contact the manufacturer directly. The included English Manual may contain additional contact details or warranty information.
