Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new TCL 775L Side by Side Refrigerator, Model C775SBIM. Please read this manual thoroughly before using the appliance and retain it for future reference.
The TCL 775L Side by Side Refrigerator features a Twin Eco Inverter motor for efficient cooling, an integrated ice maker, mini bar, and water dispenser for convenience. It includes Power Cool and Power Freeze functions for rapid chilling, Total No Frost technology to prevent ice build-up, and bright LED lighting. For enhanced safety, it is equipped with an alarm function and child lock. The sleek black finish adds a modern touch to any kitchen.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the refrigerator is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments.
- Unplug the appliance before cleaning or performing maintenance.
- Keep ventilation openings clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Setup and Installation
1. Unpacking
Carefully remove all packaging materials, including tape and protective films. Dispose of packaging responsibly. Inspect the refrigerator for any shipping damage.
2. Placement
Place the refrigerator on a flat, stable surface strong enough to support its weight when fully loaded. Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides to allow for proper air circulation and heat dissipation.

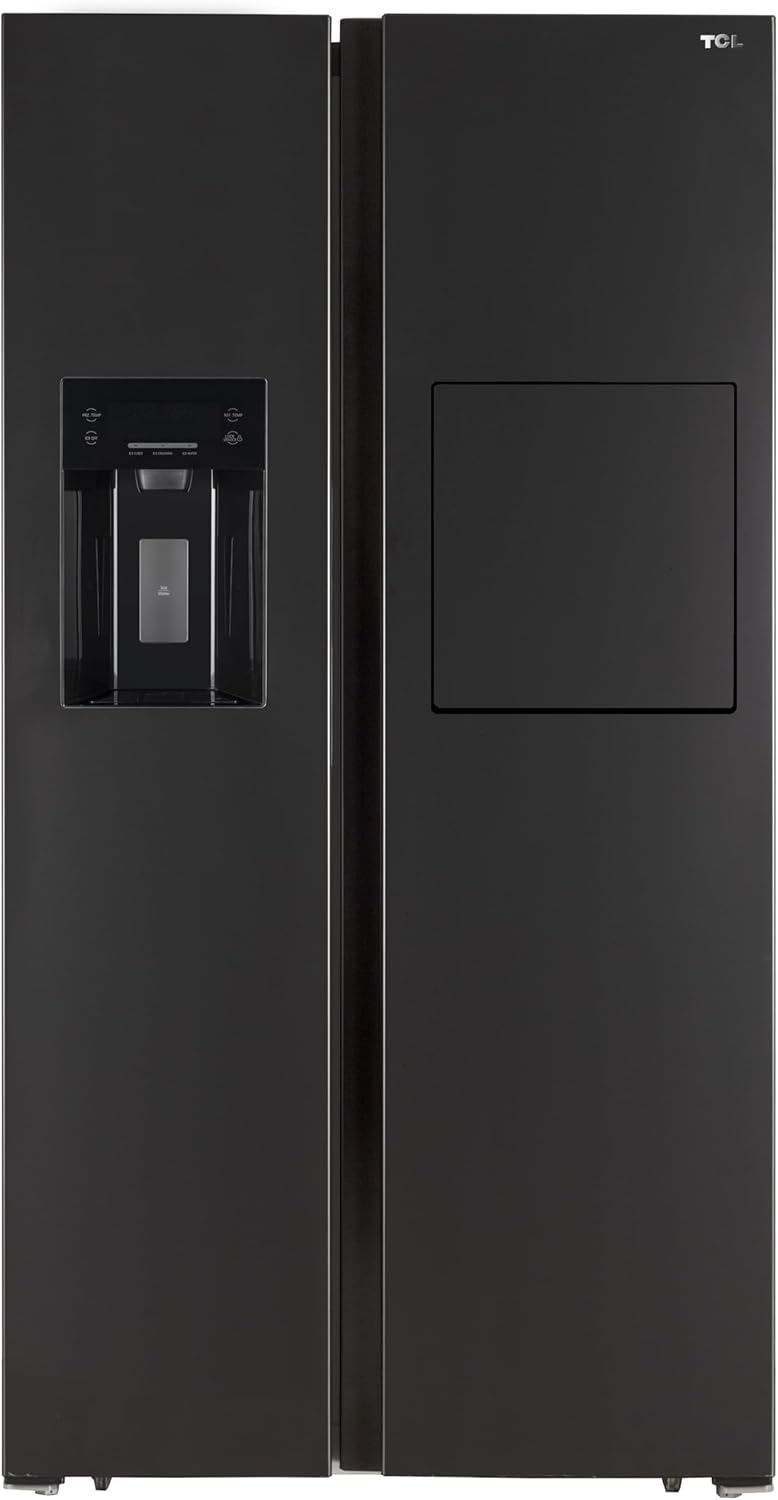

Figure 1: Front view of the TCL 775L Side by Side Refrigerator.
3. Leveling
Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
4. Power Connection
Connect the refrigerator to a dedicated, grounded electrical outlet. Ensure the voltage matches the appliance's requirements (240 Volts). Do not use extension cords or adapters.
5. Water Line Connection (for Ice Maker & Water Dispenser)
For the ice maker and water dispenser to function, connect the refrigerator to a potable water supply. It is recommended to have this connection performed by a qualified technician. Ensure the water pressure is within the recommended range.
6. Initial Operation
After connecting to power, allow the refrigerator to stand for at least 2-4 hours before loading food. This allows the refrigerant to settle. The appliance will begin cooling automatically. The initial cooling period may take several hours to reach optimal temperatures.
Operating Instructions
1. Control Panel
The control panel is located on the exterior of the freezer door, providing easy access to temperature settings and dispenser controls.
Figure 2: Water and Ice Dispenser Control Panel.
- FRZ_TEMP / REF_TEMP: Buttons to adjust freezer and refrigerator temperatures.
- ICE OFF: Button to deactivate the ice maker.
- ICE CUBES / ICE CRUSHING / ICE WATER: Buttons to select the type of ice or dispense water.
- LOCK / UNLOCK: Button to activate or deactivate the child lock function.
2. Temperature Control (Power Cool & Power Freeze)
Use the FRZ_TEMP and REF_TEMP buttons to set desired temperatures. The display will show the current settings. The Power Cool and Power Freeze functions rapidly lower the temperature in their respective compartments, ideal for quickly chilling new groceries or making ice.
3. Ice Maker & Water Dispenser
Press the appropriate button on the control panel to dispense ice cubes, crushed ice, or chilled water. Ensure the water line is connected and the ice maker is activated (ICE OFF light is off).
4. Child Lock
Activate the child lock by pressing and holding the LOCK/UNLOCK button. This prevents accidental changes to settings or dispensing. Press and hold again to unlock.
5. LED Lighting
The interior is illuminated by bright LED lights, providing clear visibility of contents. These lights are energy-efficient and long-lasting.

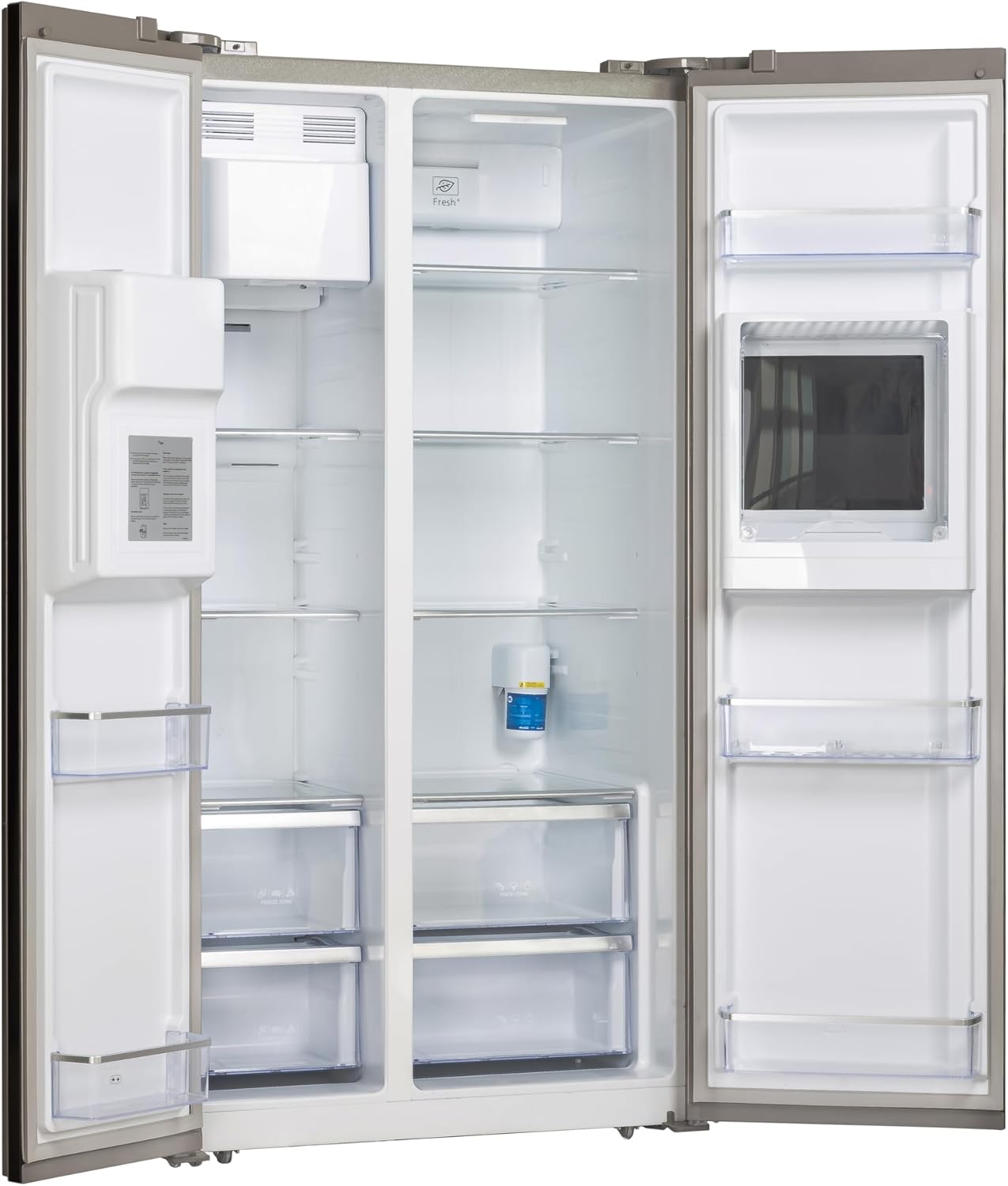

Figure 3: Interior view showing shelves, drawers, and door bins.
6. Storage Features
- Adjustable Shelves: The refrigerator features multiple shelves for flexible storage.
- Crispers/Drawers: Dedicated drawers, including a "Fresh+" drawer, help maintain optimal humidity for fruits and vegetables.
- Door Bins: Multiple door bins provide convenient storage for bottles and smaller items.
Figure 4: Detail of an adjustable shelf.

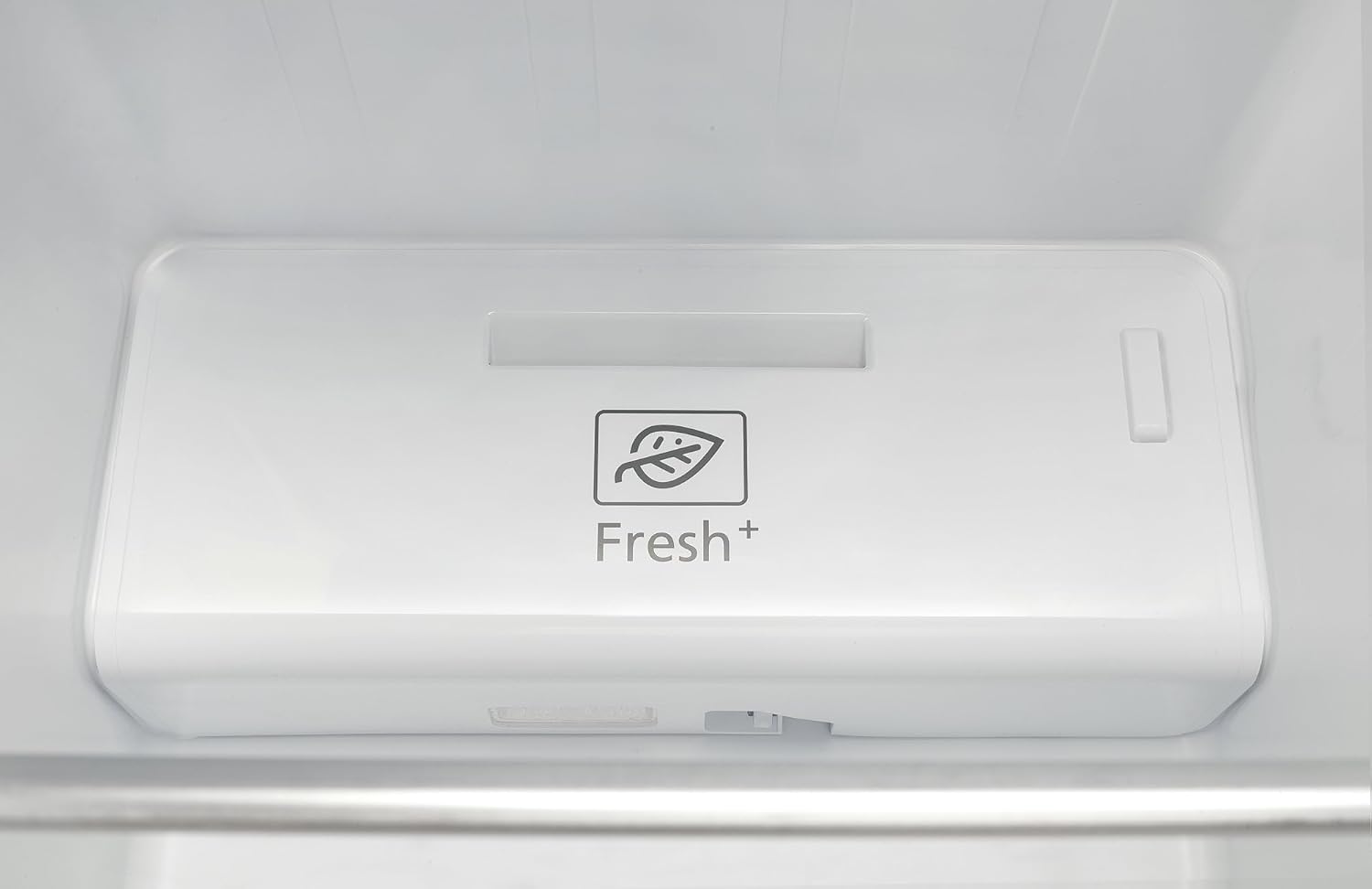

Figure 5: The Fresh+ drawer for produce storage.

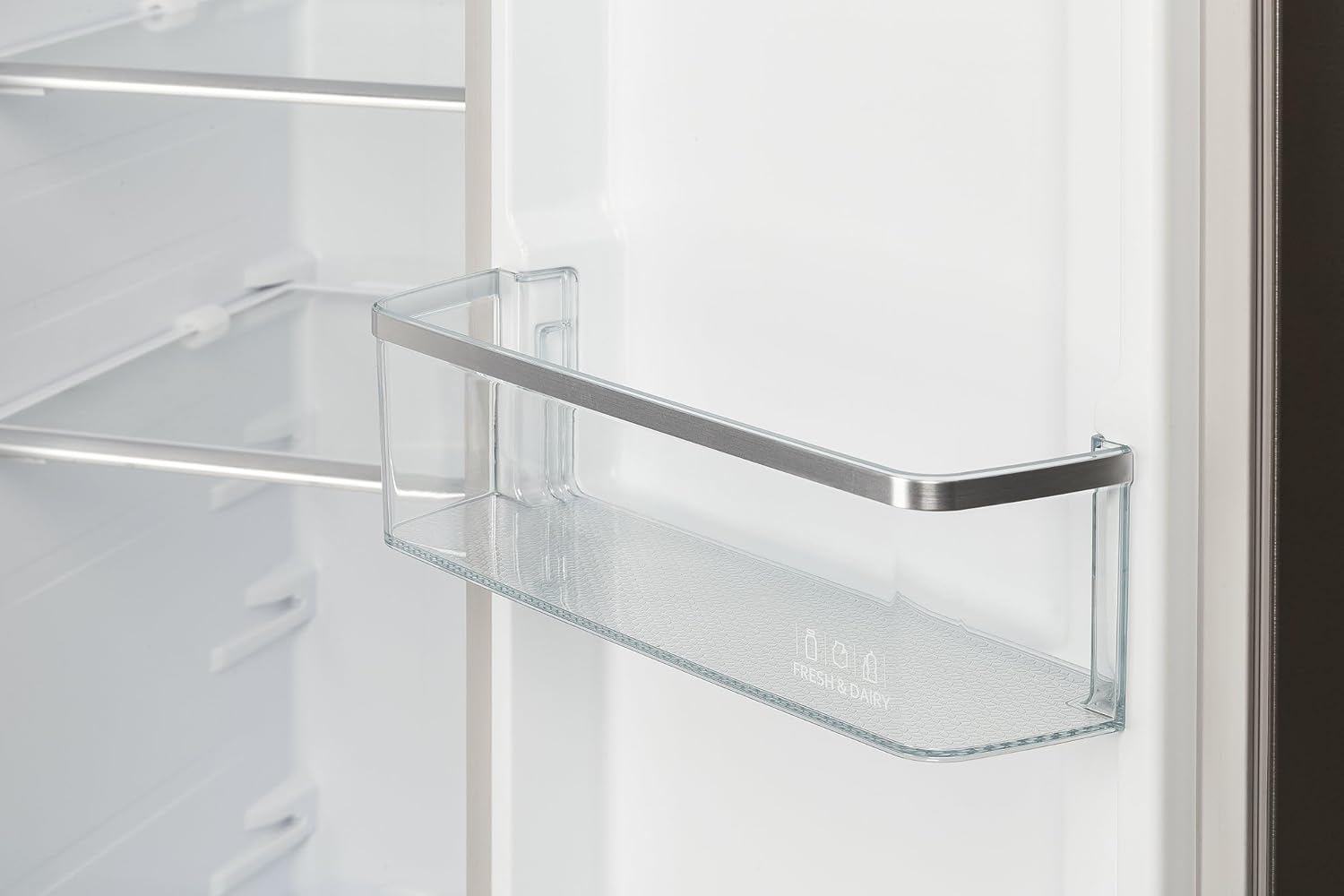

Figure 6: A typical door bin for bottle storage.
Maintenance
1. Cleaning the Interior
Unplug the refrigerator before cleaning. Use a soft cloth and a mild, non-abrasive detergent with warm water. Wipe down all surfaces, shelves, and drawers. Rinse with clean water and dry thoroughly. Do not use harsh chemicals or abrasive cleaners.
2. Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with warm water and a mild detergent. For the black stainless steel finish, use a suitable cleaner if necessary, following the product instructions. Dry thoroughly to prevent streaks.
3. Total No Frost Technology
This refrigerator features Total No Frost technology, which prevents ice build-up in both the freezer and refrigerator compartments, eliminating the need for manual defrosting. Ensure the doors are properly sealed to maintain efficiency.
4. Door Seal Maintenance
Regularly inspect the door gaskets for cracks or damage. Clean them with warm water and a mild detergent to ensure a tight seal, which is crucial for energy efficiency and proper cooling.
5. Water Filter Replacement (if applicable)
If your model includes a replaceable water filter for the dispenser and ice maker, refer to the filter's specific instructions for replacement frequency and procedure. Typically, filters should be replaced every 6 months or as indicated by the appliance.
Troubleshooting
Before contacting service, review the following common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power cord unplugged; temperature set too high; door not closed properly; poor ventilation. | Check power connection; adjust temperature settings; ensure door is fully closed; clear obstructions around the appliance. |
| Ice maker not producing ice | Water supply off; ice maker switch off; clogged water filter. | Ensure water supply is connected and turned on; check if ICE OFF light is on (press to deactivate); replace water filter if necessary. |
| Water dispenser not working | Water supply off; water filter clogged; child lock activated. | Check water supply; replace water filter; deactivate child lock. |
| Unusual noises | Appliance not level; items vibrating inside; normal operating sounds. | Level the refrigerator; rearrange items; some sounds (e.g., refrigerant flow, fan) are normal. |
| Door not sealing properly | Gasket dirty or damaged; items blocking door closure. | Clean or inspect gasket for damage; remove any obstructions. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
Key specifications for the TCL 775L Side by Side Refrigerator (Model C775SBIM):
| Feature | Detail |
|---|---|
| Brand | TCL |
| Model Number | C775SBIM |
| Product Dimensions (D x W x H) | 74.6 x 91.1 x 178 cm |
| Item Weight | 112 kg |
| Total Capacity | 596 Liters |
| Refrigerator Fresh Food Capacity | 401 Liters |
| Freezer Capacity | 195 Liters |
| Annual Energy Consumption | 780.74 Kilowatt Hours Per Year |
| Installation Type | Built-In |
| Form Factor | Side by Side Refrigerator |
| Special Features | Water Dispenser, Ice Maker, Mini Bar, No Frost, Power Cool & Freeze, Child Lock, LED Light, Twin Eco Inverter Motor |
| Color | Black |
| Voltage | 240 Volts |
| Defrost Type | Frost Free |
| Door Material Type | Stainless Steel |
| Included Components | Shelves, Ice Tray, Egg Tray, Drawers |
Warranty and Support
Warranty Information
This TCL refrigerator comes with a standard 1-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims. Extended warranty options may be available from your retailer.
Customer Support
For technical assistance, service requests, or questions regarding your TCL refrigerator, please contact TCL customer support. Refer to the contact information provided with your purchase documentation or visit the official TCL website for support details.
You can also visit the TCL Store on Amazon for more product information and support resources.
