LEDUPDATES KVG-24150-DWJ

LEDUPDATES Dimmable LED Driver

Model: KVG-24150-DWJ

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LEDUPDATES Dimmable LED Driver, Model KVG-24150-DWJ. This UL Listed transformer converts 110V-277V AC input to a stable 24V DC output, suitable for various LED lighting applications. It is designed for compatibility with a wide range of dimming systems, including Triac, 0-10V, ELV, and MLV dimmers.

2. Safety Information

WARNING: Risk of Electric Shock.

  • Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
  • Disconnect power at the circuit breaker before installation or servicing.
  • Ensure all wiring connections are secure and properly insulated.
  • Do not exceed the maximum load capacity of 150W.
  • This device is suitable for dry or damp locations only. Do not expose to direct water or immerse in liquid.
  • Verify input voltage (110V-277V AC) and output voltage (24V DC) compatibility with your LED fixtures.

3. Product Overview and Features

The LEDUPDATES Dimmable LED Driver is engineered for reliable performance and broad compatibility. Its robust design ensures stable power delivery for your LED lighting systems.

  • UL Listed: Certified for high quality and safety standards.
  • Wide Input Voltage: Accepts 110V-277V AC input.
  • Stable Output: Provides a consistent 24V DC, 150W output.
  • Broad Dimmer Compatibility: Works with Lutron, Leviton, Forward and Reverse phase, Triac, and 0-10V dimmers.
  • Protection Features: Includes short-circuit and over-load protection for enhanced safety and longevity.
  • Durable Design: Low-profile aluminum housing suitable for dry or damp environments.
LEDUPDATES Dimmable LED Driver with cover removed, showing internal components and wiring compartments.

Figure 1: Internal view of the LED Driver with cover removed.

4. Specifications

FeatureSpecification
Model NumberKVG-24150-DWJ
Input Voltage110V-277V AC
Output Voltage24V DC
Output Power150W
Output Current6.25A
Output Frequency50/60Hz
Dimming TypeTriac, 0-10V, ELV/MLV (5-in-1 Dimming)
Dimensions (L x W x H)10.25" x 4" x 1.78"
Item Weight4.24 pounds
CertificationUL Listed
EnvironmentDry or Damp Locations
LEDUPDATES Dimmable LED Driver with dimensions labeled: 10.25 inches length, 4 inches width, 1.78 inches height.

Figure 2: Product dimensions of the LED Driver.

5. Installation and Setup

Follow these steps for proper installation of the LEDUPDATES Dimmable LED Driver. Ensure power is disconnected before beginning.

5.1 Wiring Diagram

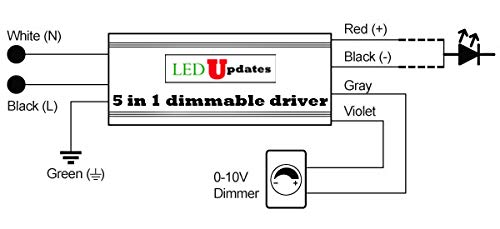

Wiring diagram for the LEDUPDATES 5-in-1 dimmable driver. Input: White (N), Black (L), Green (Ground). Output: Red (+), Black (-) to LED. Dimming: Gray, Violet to 0-10V Dimmer.

Figure 3: Wiring diagram for the LEDUPDATES Dimmable LED Driver.

5.2 Wiring Instructions

  1. Input Wiring (AC 110V-277V):
    • Connect the Black (L) wire from the AC power source to the driver's Black (L) input terminal.
    • Connect the White (N) wire from the AC power source to the driver's White (N) input terminal.
    • Connect the Green (Ground) wire from the AC power source to the driver's Green (Ground) input terminal.
    • Ensure that the branch circuit wiring is a maximum of 12 AWG.
  2. Output Wiring (DC 24V):
    • Connect the Red (+) wire from the driver's output to the positive (+) terminal of your 24V DC LED fixture.
    • Connect the Black (-) wire from the driver's output to the negative (-) terminal of your 24V DC LED fixture.
  3. Dimming Wiring (0-10V Dimmer):
    • Connect the Gray wire from the driver to the 0-10V dimmer's common terminal.
    • Connect the Violet wire from the driver to the 0-10V dimmer's control terminal.
    • For Triac/ELV/MLV dimming, these wires may not be used, or the driver will automatically detect the dimming signal from the AC input. Consult your dimmer's instructions for specific wiring.
  4. Mounting: Securely mount the driver using appropriate hardware. The unit is designed for wall mount applications.

6. Operation

Once properly installed and wired, restore power to the circuit. The LEDUPDATES Dimmable LED Driver will power your 24V DC LED fixtures. Use your compatible dimmer switch (Triac, 0-10V, ELV/MLV) to adjust the brightness of the connected LED lights. Ensure the dimmer is rated for the total wattage of the connected LED load.

7. Maintenance

The LEDUPDATES Dimmable LED Driver requires minimal maintenance. Periodically inspect the unit and its connections for any signs of damage, loose wiring, or overheating. Ensure the driver's ventilation is not obstructed. Clean the exterior with a dry, soft cloth if necessary. Do not use abrasive cleaners or solvents.

8. Troubleshooting

  • No Power to LEDs:
    • Check if the circuit breaker is ON.
    • Verify all input and output wiring connections are secure.
    • Ensure the input voltage is within the 110V-277V AC range.
    • Confirm the LED load does not exceed 150W.
  • LEDs Not Dimming or Flickering:
    • Ensure the dimmer is compatible with the driver's dimming types (Triac, 0-10V, ELV/MLV).
    • Check the dimming control wiring (Gray and Violet wires for 0-10V).
    • Verify the dimmer's minimum load requirement is met by the connected LEDs.
    • Some dimmers may require calibration; refer to your dimmer's instruction manual.
  • Driver Overheating:
    • Ensure adequate ventilation around the driver.
    • Confirm the LED load does not exceed 150W.
    • If overheating persists, disconnect power and contact support.

9. Warranty and Support

This LEDUPDATES product is manufactured to high-quality standards. For technical assistance, troubleshooting, or warranty inquiries, please contact our U.S.-based support team. We are located in Illinois and aim to answer your questions the same day.

For support, please refer to the contact information provided with your purchase or visit the official LEDUPDATES website.
