Refrigerator Sensor User Manual
Model: prca3350 | Part Number: 4216600285
1. Introduction
This user manual provides essential information for the installation, operation, and maintenance of the prca3350 Refrigerator Sensor. Please read this manual thoroughly before attempting to install or use the product to ensure proper function and safety.
This sensor is a replacement part designed for compatibility with various refrigerator models, including those specified by part number 4216600285.
2. Product Overview
The prca3350 Refrigerator Sensor is a critical component for monitoring temperature within your refrigerator, ensuring optimal performance and food preservation. It is a white goods spare part.

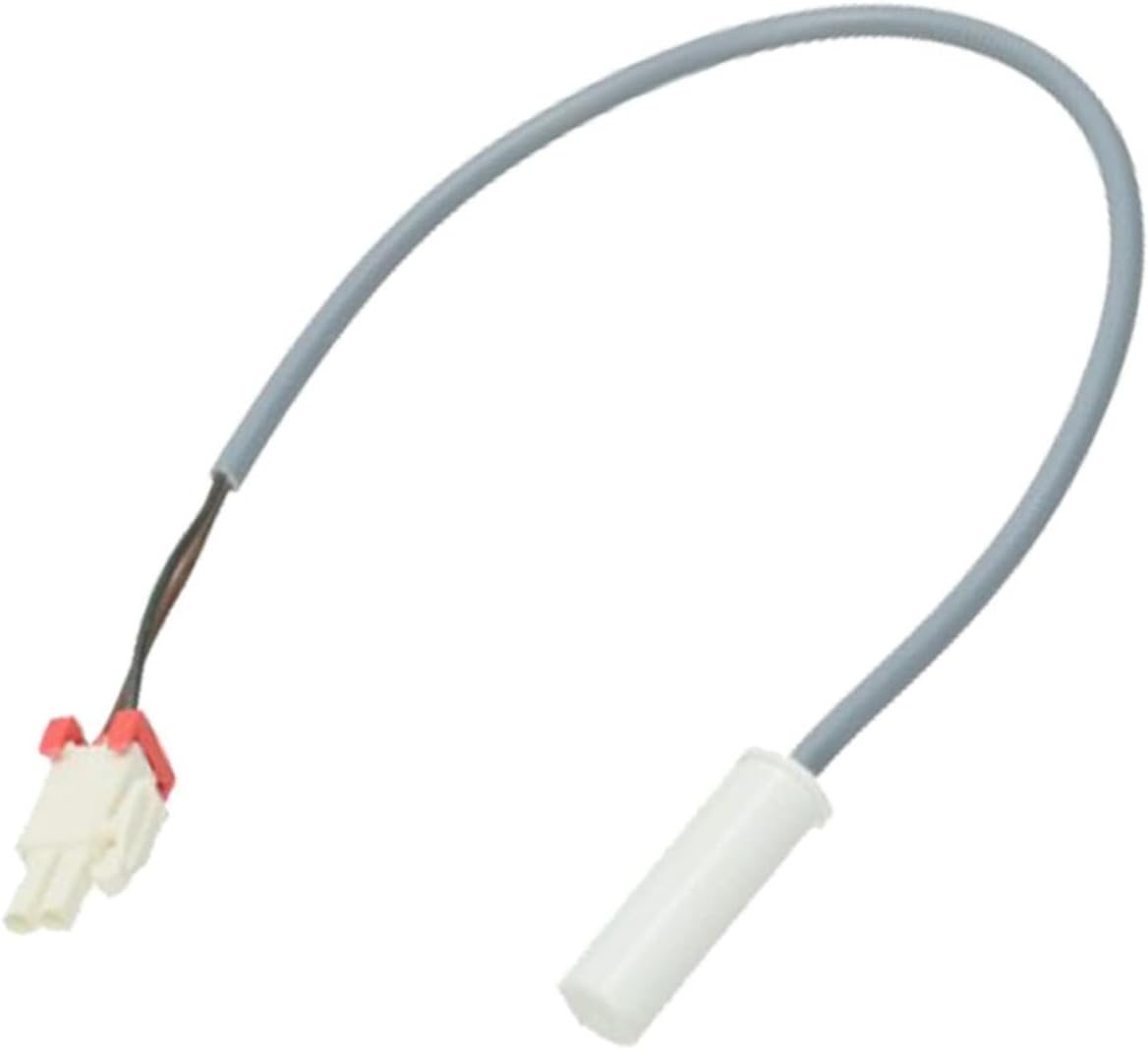

Figure 2.1: The prca3350 Refrigerator Sensor. This image shows the sensor unit, which is a small white cylindrical component, connected to a gray wire that terminates in a white and red connector.
3. Safety Information
Always disconnect power to the appliance before attempting any installation or maintenance. Failure to do so may result in electric shock or injury.
- Ensure the replacement part is compatible with your refrigerator model.
- Handle the sensor carefully to avoid damage to the component or its wiring.
- If you are unsure about the installation process, consult a qualified technician.
4. Setup and Installation
Follow these steps for proper installation of the refrigerator sensor:
- Disconnect Power: Unplug the refrigerator from the power outlet or turn off the circuit breaker supplying power to the appliance.
- Locate Old Sensor: Identify the location of the existing temperature sensor within your refrigerator. This often requires removing internal panels or covers. Refer to your refrigerator's specific service manual for exact location.
- Remove Old Sensor: Carefully disconnect the wiring harness from the old sensor and unmount it from its position. Note the orientation and routing of the old sensor for correct installation of the new one.
- Install New Sensor: Connect the new prca3350 sensor's wiring harness to the corresponding connector in the refrigerator. Ensure the connection is secure. Mount the new sensor in the same location and orientation as the old one.
- Reassemble: Replace any panels or covers that were removed during the process.
- Restore Power: Plug the refrigerator back into the power outlet or turn on the circuit breaker.
After installation, allow some time for the refrigerator to stabilize its temperature and for the new sensor to register correctly.
5. Operating Principles
The prca3350 Refrigerator Sensor is a passive component that measures the ambient temperature inside the refrigerator compartment. It sends resistance readings to the refrigerator's control board, which then adjusts the cooling cycle to maintain the desired temperature settings.
Once installed, the sensor operates continuously as part of the refrigerator's temperature regulation system. No user interaction is required for its operation.
6. Maintenance
The prca3350 Refrigerator Sensor is designed to be maintenance-free. However, to ensure its longevity and accurate readings:
- Keep the area around the sensor clean and free from ice buildup or debris.
- Avoid physical damage to the sensor or its wiring during routine cleaning of the refrigerator interior.
- If the refrigerator experiences inconsistent temperatures, the sensor may need to be checked or replaced.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator temperature is too high or too low. | Faulty sensor, loose connection, or control board issue. | Check sensor wiring connection. If problem persists, test sensor resistance (requires multimeter and specific resistance values for your model) or replace sensor. Consult a technician if control board is suspected. |
| Refrigerator runs constantly. | Sensor providing incorrect high temperature reading, or door seal issue. | Verify sensor function. Check door seals for leaks. |
| Refrigerator not cooling at all. | Sensor failure (rarely the sole cause), compressor issue, or power supply problem. | Ensure power is supplied. Check other components. Sensor replacement is a last resort for this symptom. |
For complex issues, it is recommended to contact a certified appliance repair technician.
8. Specifications
- Product Type: Refrigerator Temperature Sensor
- Model: prca3350
- Part Number: 4216600285
- Compatibility: Compatible with various refrigerator models (check your appliance's service manual for specific compatibility).
- Material: Durable plastic and electronic components
9. Warranty and Support
For warranty information or technical support regarding the prca3350 Refrigerator Sensor, please refer to the original purchase documentation or contact the seller directly. As this is a spare part, warranty terms may vary.
For further assistance, you may also visit the manufacturer's website or contact their customer service.
