Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the XYohykai 4TNV86 Fuel Injector. This component is designed for use with Yanmar Diesel Engines. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
Safety Information
Always observe standard safety precautions when working with fuel systems and diesel engines. Failure to do so may result in serious injury or damage to equipment.
- Ensure the engine is turned off and cooled down before beginning any work.
- Disconnect the battery to prevent accidental engine start-up.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Handle fuel with care in a well-ventilated area, away from open flames or sparks.
- Refer to the engine manufacturer's service manual for specific safety procedures related to your engine model.
Product Overview
The XYohykai 4TNV86 Fuel Injector is a precision component responsible for delivering atomized fuel into the engine's combustion chamber. It is critical for engine performance and fuel efficiency.

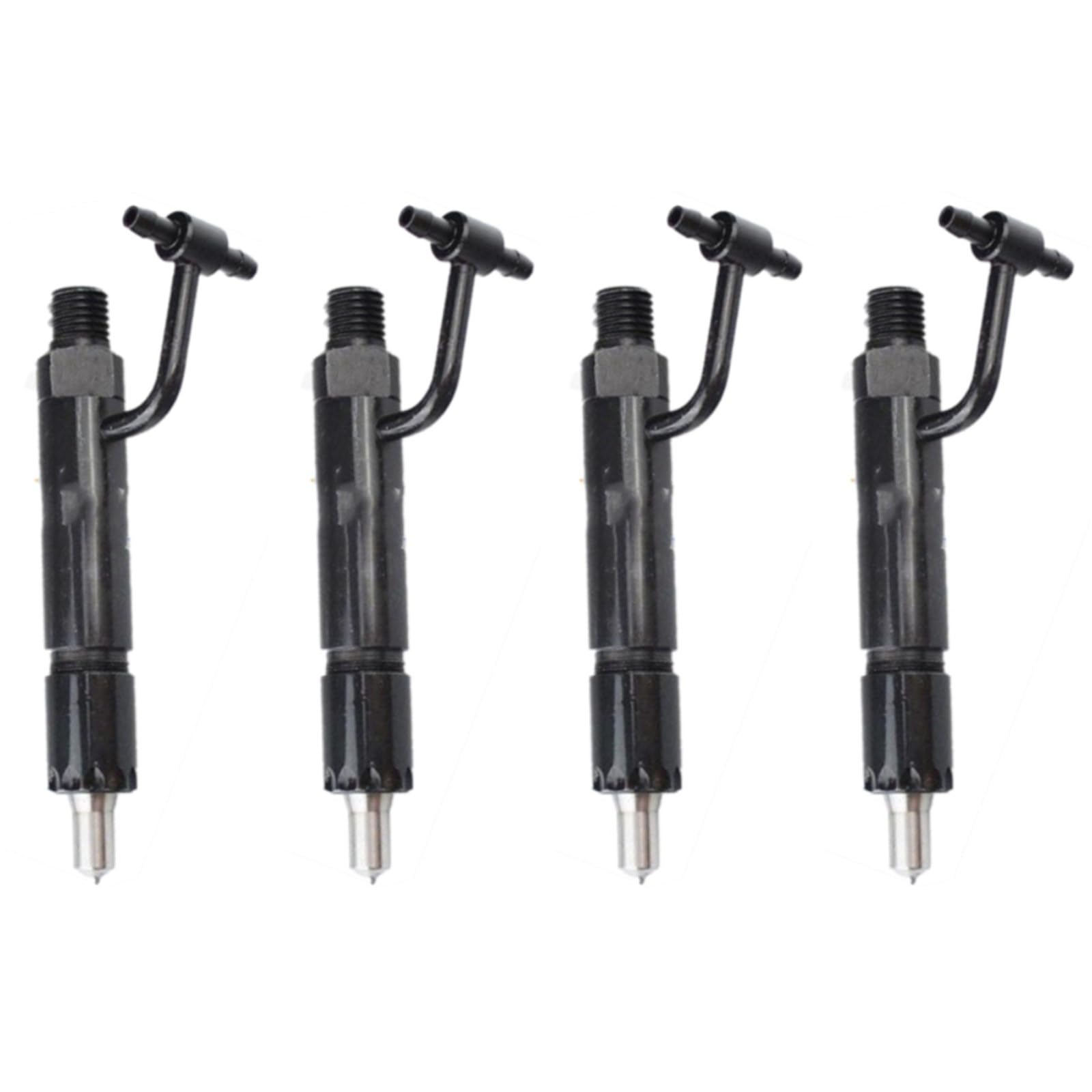

Figure 1: XYohykai 4TNV86 Fuel Injector. This image displays the complete fuel injector unit, highlighting its main body, nozzle, and electrical connector.
Part Name: Fuel Injector
Part Number: 4TNV86
Application: For Yanmar Diesel Engine
Installation
Proper installation is crucial for the correct function and longevity of the fuel injector. It is recommended that installation be performed by a qualified technician.
- Preparation:
- Ensure the engine is off and cool.
- Clean the area around the old injectors to prevent contaminants from entering the fuel system.
- Gather necessary tools, including wrenches, torque wrench, and a clean cloth.
- Removal of Old Injector:
- Carefully disconnect the fuel lines and electrical connectors from the old injector.
- Remove any retaining clips or bolts securing the injector.
- Gently pull out the old injector. Be prepared for residual fuel.
- Inspect the injector bore for debris or damage. Clean as necessary.
- Installation of New Injector:
- Ensure the new injector's O-rings and seals are correctly seated and lubricated with clean diesel fuel.
- Carefully insert the new 4TNV86 fuel injector into its bore, ensuring it is fully seated.
- Secure the injector with retaining clips or bolts, tightening to the engine manufacturer's specified torque. Do not overtighten.
- Reconnect the fuel lines and electrical connectors. Ensure all connections are secure and free from leaks.
- Post-Installation Check:
- Bleed the fuel system according to the engine manufacturer's instructions to remove any air.
- Start the engine and check for any fuel leaks or unusual noises.
- Monitor engine performance for smooth operation.
Notice: Application information provided is for reference only. Please confirm the part number and compare old parts before purchase. If you have any questions, please consult a qualified mechanic or contact customer support.
Operation
Once installed, the 4TNV86 Fuel Injector operates automatically as part of the engine's fuel system. Its primary function is to precisely meter and atomize fuel for efficient combustion. No user intervention is required during normal operation.
Key operational characteristics include:
- Precise Fuel Delivery: Ensures optimal fuel-air mixture for combustion.
- Atomization: Breaks fuel into fine droplets for efficient burning.
- Durability: Designed for stable performance and high reliability under typical operating conditions.
Maintenance
Regular maintenance of the fuel system is essential for the longevity and performance of the 4TNV86 Fuel Injector. While the injector itself is not typically a user-serviceable part, the following practices are recommended:
- Fuel Quality: Always use clean, high-quality diesel fuel. Contaminated fuel is a leading cause of injector failure.
- Fuel Filters: Regularly inspect and replace fuel filters according to the engine manufacturer's schedule. Clogged filters can restrict fuel flow and damage injectors.
- System Checks: Periodically check fuel lines and connections for leaks or damage.
- Professional Inspection: If engine performance issues arise, have the fuel system, including injectors, inspected by a qualified technician.
Troubleshooting
If you experience issues with your Yanmar Diesel Engine after installing or while using the 4TNV86 Fuel Injector, consider the following common problems and potential solutions. Always consult a professional mechanic for complex issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine Misfire or Rough Idling |
|
|
| Reduced Engine Power |
|
|
| Fuel Leaks Around Injector |
|
|
Specifications
- Part Name: Fuel Injector
- Part Number: 4TNV86
- Brand: XYohykai
- Application: Yanmar Diesel Engine
- ASIN: B0CN74PT23
Warranty and Support
Information regarding specific warranty terms for the XYohykai 4TNV86 Fuel Injector is not provided in this manual. For warranty inquiries or technical support, please refer to your purchase documentation or contact the seller directly.
For further assistance, please refer to the engine manufacturer's official service manual or consult a certified diesel engine technician.
