Soozier All-in-One Smith Machine User Manual

1. Important Safety Information

Before operating the Soozier All-in-One Smith Machine, carefully read and understand all instructions in this manual. Retain this manual for future reference. Failure to follow these instructions may result in serious injury or property damage.

• Consult a physician before beginning any exercise program.
• Ensure all parts are correctly assembled and secured before each use. Regularly inspect the machine for loose bolts, worn cables, or damaged components.
• Keep children and pets away from the equipment during operation.
• Do not exceed the maximum weight capacity of 242 lbs (110 kg).
• Use the equipment on a flat, stable surface. Ensure adequate clearance around the machine for safe operation.
• Wear appropriate athletic footwear and clothing during workouts.
• Stop exercising immediately if you feel pain, dizziness, or nausea.

2. Product Overview

The Soozier All-in-One Smith Machine is a versatile home gym system designed for comprehensive full-body training. It integrates multiple exercise stations into a compact footprint, allowing for a wide range of strength training exercises.

Figure 2.1: Overall view of the Soozier All-in-One Smith Machine.

Key Features:

• Variety of Exercises: Supports lat pull downs, chest press, leg extensions, preacher pad curls, sit-ups, dips, and push-ups.
• Adjustable Weight Stack: Includes a 99 lbs (45 kg) weight stack, adjustable to suit various skill levels.
• Ergonomic Design: Features a height-adjustable arm curl pad and elbow pads for user comfort and adaptability.
• Adjustable Sit-up Bench: The decline sit-up bench offers 4 adjustable heights for diverse exercise needs.
• Comfortable Padding: Thick padded seat and backrest ensure comfort during workouts.
• Compact Design: Space-saving design suitable for home use.

3. Package Contents and Assembly

3.1. Package Contents:

Upon unpacking, verify that all components are present. The package typically includes:

• Main Frame Components (Uprights, Base, Crossbars)
• Weight Stack Plates and Selector Pin
• Cables and Pulleys
• Seat and Backrest (Padded)
• Preacher Curl Pad
• Decline Sit-up Bench
• Dip Handles and Push-up Stand
• Various Attachments (Lat Bar, Straight Bar, Ankle Strap)
• Hardware Kit (Bolts, Nuts, Washers, Pins)
• Assembly Tools (Basic wrenches, Allen keys - may not be included)

3.2. Assembly Instructions:

Assembly of the Soozier All-in-One Smith Machine requires careful attention to detail. It is recommended to have at least two people for assembly. Follow the step-by-step instructions provided in the separate assembly manual that accompanies your product. Ensure all connections are secure before proceeding to the next step.

• Preparation: Clear a spacious area for assembly. Lay out all components and hardware, verifying against the parts list.
• Frame Assembly: Begin by assembling the main frame components, ensuring they are stable and aligned.
• Cable and Pulley System: Carefully route the cables through the designated pulleys. Refer to the diagrams for correct cable path to ensure smooth operation.
• Weight Stack Installation: Install the weight plates and guide rods according to the instructions.
• Attachment Installation: Attach the seat, backrest, preacher curl pad, and other accessories.
• Final Inspection: After assembly, perform a thorough inspection. Check all bolts and nuts for tightness. Test all moving parts and adjustments for smooth operation.

Figure 3.1: Details of the weight stack and pulley system, crucial for proper assembly.

4. Operating Instructions

The Soozier All-in-One Smith Machine offers a variety of exercises. Always perform exercises with controlled movements and proper form.

4.1. Adjusting Weight Stack:

To adjust the resistance, insert the selector pin into the desired weight plate in the stack. Ensure the pin is fully inserted before beginning your exercise. The weight stack provides up to 99 lbs (45 kg) of resistance.

Figure 4.1: Adjusting the weight stack using the selector pin.

4.2. Exercise Stations:

The machine supports various exercises, including:

• Lat Pull Down: Use the lat bar attachment with the upper pulley system. Sit on the seat, grasp the bar, and pull down towards your chest.
• Chest Press / Fly: Utilize the chest press arms. Adjust the seat height for proper alignment.
• Leg Extension: Sit on the main seat, place your shins behind the leg extension pad, and extend your legs.
• Preacher Pad Curls: Attach the preacher curl pad. Adjust its height for comfort. Perform bicep curls using a suitable attachment.
• Sit-up Bench: The decline sit-up bench can be adjusted to 4 different heights. Use it for abdominal exercises.
• Dip Stand: Use the integrated dip handles for triceps dips and other bodyweight exercises.
• Push-up Stand: The separate push-up stand allows for deeper push-ups, engaging more muscle fibers.

Figure 4.2: Front view illustrating various exercise options like preacher curls, chest press, leg raise, and lat pull down.

Figure 4.3: Right view highlighting the dip stand, adjustable elbow pads, and decline sit-up bench.

Figure 4.4: Demonstrating the use of the push-up stand.

4.3. Adjusting Ergonomic Components:

• Arm Curl Pad: Adjust the height of the arm curl pad to ensure your arms are comfortably positioned for preacher curls.
• Elbow Pads: The elbow pads are height-adjustable to provide proper support during exercises like chest press.
• Decline Sit-up Bench: Adjust the angle of the sit-up bench by selecting one of the 4 available height settings.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Soozier All-in-One Smith Machine.

• Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Lubrication: Periodically apply a silicone-based lubricant to the guide rods of the weight stack and any moving pivot points to ensure smooth operation.
• Cable Inspection: Regularly inspect all cables for fraying, kinks, or wear. Replace damaged cables immediately.
• Bolt and Nut Check: Routinely check all bolts, nuts, and fasteners for tightness. Tighten any loose connections to prevent instability and noise.
• Pad Condition: Inspect the padded seat, backrest, and other pads for tears or excessive wear.

6. Troubleshooting

This section addresses common issues you might encounter with your multi-gym.

7. Product Specifications

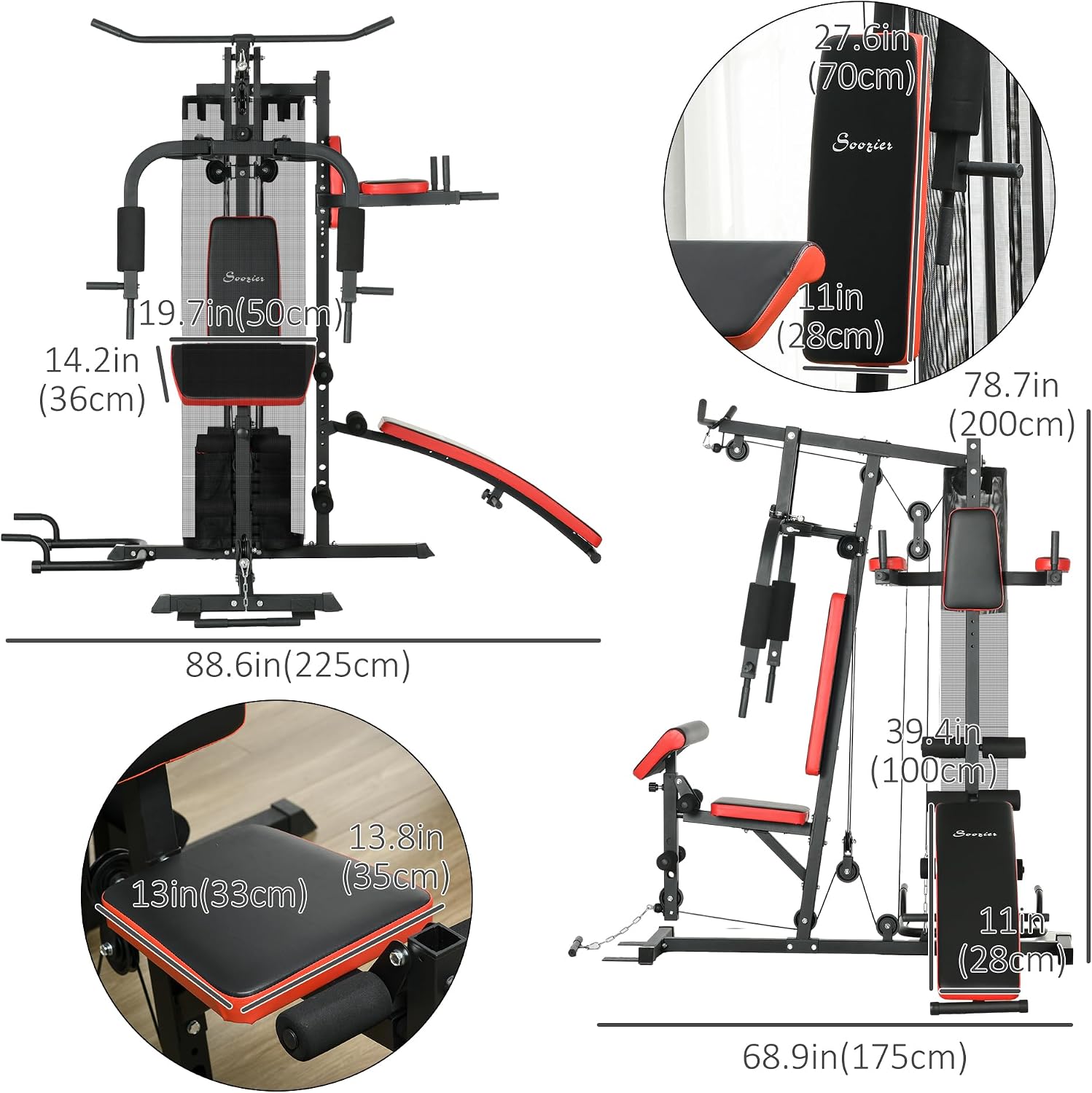

Figure 7.1: Detailed dimensions of the Soozier All-in-One Smith Machine.

8. Warranty and Support

For specific warranty details and terms, please refer to the documentation included with your purchase or contact the manufacturer directly. General return policies may apply as per the retailer's terms.

Customer Support:

For assistance with assembly, parts, or operational questions, please contact Aosom Canada, the manufacturer of this product.

• Manufacturer: Aosom Canada
• Phone: 1-416-792-6088
• Place of Business: Markham, Ontario, CA

9. Official Product Videos

No official product videos from the seller were available for embedding in this manual.
