Samoser Dishwasher Silverware Basket Instruction Manual

1. Product Overview

The Samoser Dishwasher Silverware Basket is a replacement part designed to hold silverware and small utensils securely during the dishwasher cleaning cycle. This basket ensures proper cleaning and organization of your cutlery, preventing items from falling to the bottom of the dishwasher tub.

Figure 1: Top view of the Samoser Dishwasher Silverware Basket. This image shows the overall design and compartments for cutlery.

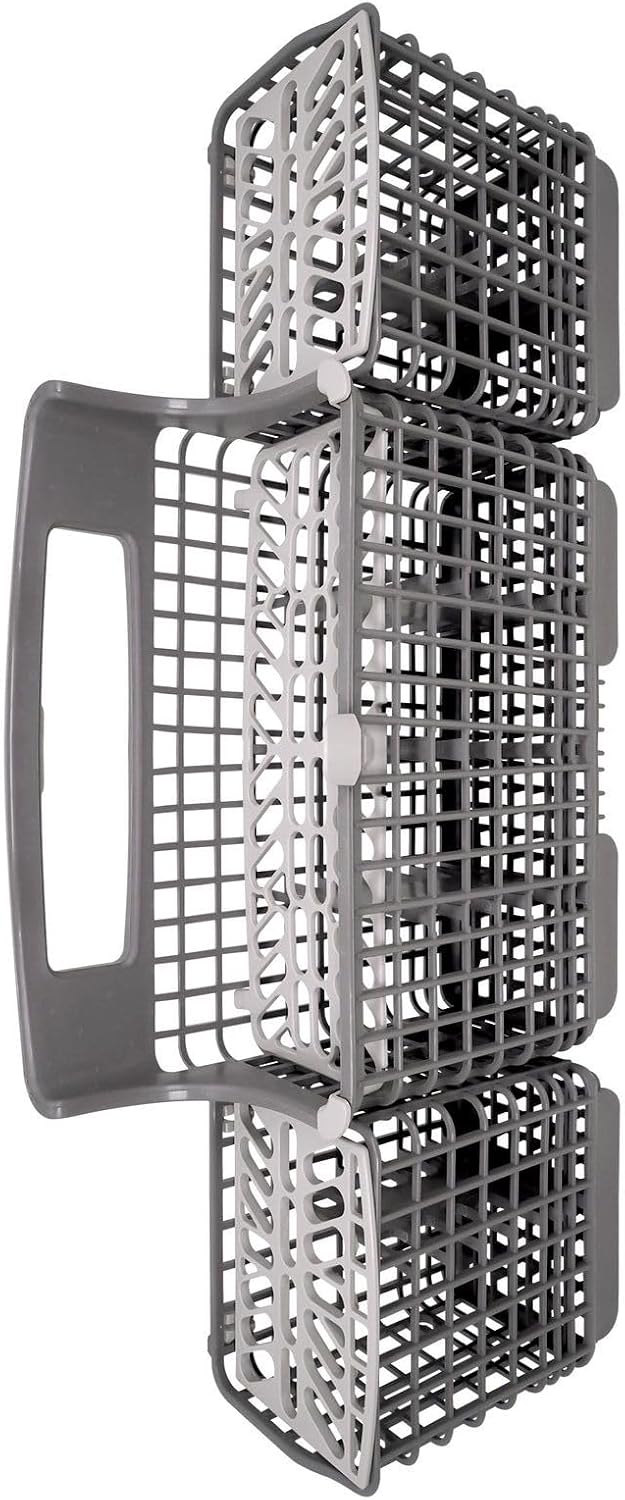

Figure 2: Angled view of the Samoser Dishwasher Silverware Basket, highlighting the modular sections and handle.

2. Compatibility

This silverware basket is an aftermarket replacement part compatible with various Kenmore and Whirlpool dishwasher models. To ensure compatibility with your specific appliance, please verify your dishwasher's model number against the list below. You can typically find your model number on a label inside the dishwasher door or along the tub's edge.

Compatible Kenmore Models include:

• 665.16463300, 665.16464300, 665.16469300, 665.16472300, 665.16473300, 665.16474300, 665.16479300, 665.16482300, 665.16483300, 665.16484300, 665.16489300, 665.16492300, 665.16493300, 665.16494300, 665.16499300
• 665.16502200, 665.16502201, 665.16503200, 665.16503201, 665.16504200, 665.16504201, 665.16509200, 665.16509201, 665.16512200, 665.16512201, 665.16512202, 665.16514200, 665.16514201, 665.16514202, 665.16517990, 665.16519200, 665.16519201, 665.16519202
• 665.16522000, 665.16524000, 665.16529000, 665.16532200, 665.16532201, 665.16532202, 665.16533200, 665.16533201, 665.16533202, 665.16534200, 665.16534201, 665.16534202, 665.16539200, 665.16539201, 665.16539202
• 665.16552200, 665.16552201, 665.16552202, 665.16559200, 665.16559201, 665.16559202
• 665.16572200, 665.16572201, 665.16572202, 665.16574200, 665.16574201, 665.16574202, 665.16579200, 665.16579201, 665.16579202
• 665.16582200, 665.16582201, 665.16582202, 665.16583200, 665.16583201, 665.16583202, 665.16584200, 665.16584201, 665.16584202, 665.16589200, 665.16589201, 665.16589202
• 665.16592200, 665.16592201, 665.16592202, 665.16593200, 665.16593201, 665.16593202, 665.16594200, 665.16594201, 665.16594202, 665.16599200, 665.16599201, 665.16599202
• 665.16602300, 665.16602301, 665.16604300, 665.16604301, 665.16609300, 665.16609301
• 665.16622000, 665.16624000, 665.16627000, 665.16629000, 665.16632000, 665.16634000, 665.16639000, 665.16682000, 665.16684000, 665.16689000, 665.16692200, 665.16692201, 665.16693200, 665.16693201, 665.16694200, 665.16694201, 665.16699200, 665.16699201
• 665.16701890, 665.16701891, 665.16701892, 665.16705890, 665.16705891, 665.16705892, 665.16708890, 665.16708891, 665.16708892
• 665.16712000, 665.16714000, 665.16717000, 665.16719000, 665.16722990, 665.16722992, 665.16727990, 665.16727992, 665.16729990

If you are unsure about compatibility, please contact the seller for assistance.

3. Setup and Installation

Installing the Samoser Dishwasher Silverware Basket is a straightforward process. Ensure your dishwasher is empty and turned off before proceeding.

1. Remove the Old Basket: If a previous silverware basket is present, carefully lift it out of its designated slot in the lower rack of your dishwasher.
2. Position the New Basket: Place the Samoser Dishwasher Silverware Basket into the lower rack of your dishwasher. The basket is designed to fit securely into the existing slots or guides.
3. Verify Fit: Gently push down on the basket to ensure it is seated properly and does not wobble. It should sit flush with the bottom of the dishwasher rack.

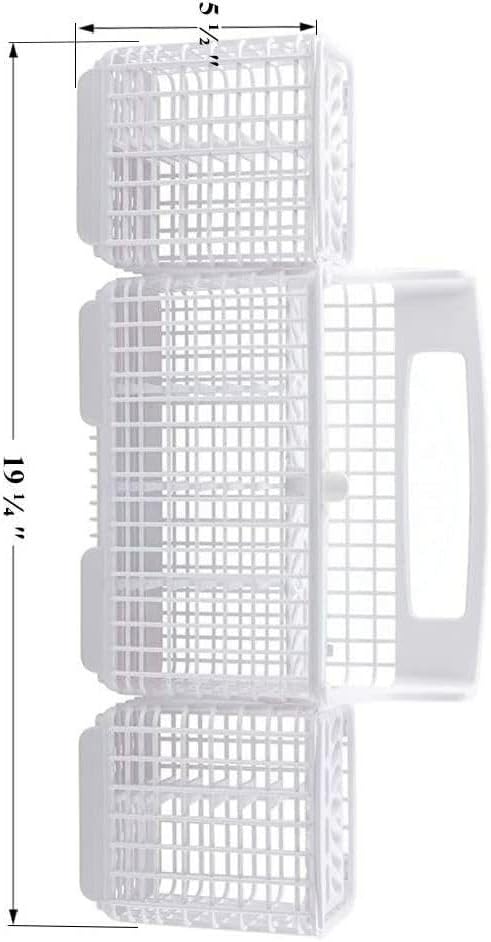

Figure 3: Top view of the basket showing its approximate length of 19 1/4 inches. This dimension is crucial for ensuring proper fit within your dishwasher's lower rack.

Figure 4: Side view of the basket showing its approximate height of 3 1/2 inches. This dimension helps confirm the basket will clear other components in the dishwasher.

4. Operating Instructions

Proper loading of the silverware basket is essential for effective cleaning and to prevent damage to your cutlery or dishwasher.

• Separate Silverware: For best results, separate different types of silverware (forks, spoons, knives) into different compartments.
• Handle Up/Down:
  • Place forks and spoons with handles down to ensure the eating surfaces are thoroughly cleaned.
  • Place knives with handles up for safety when unloading.
• Avoid Overcrowding: Do not overcrowd the basket. Allow space between items for water and detergent to circulate effectively.
• Small Items: Small items like bottle caps or small plastic lids should not be placed in the silverware basket as they may fall through or obstruct spray arms.

5. Maintenance and Care

To prolong the life of your silverware basket and ensure optimal cleaning performance, follow these simple maintenance tips:

• Regular Cleaning: Periodically remove the basket and rinse it under running water to remove any food debris or residue that may accumulate in the compartments.
• Inspect for Damage: Occasionally inspect the basket for any cracks, broken tines, or other damage. A damaged basket may not hold silverware securely or could potentially scratch the dishwasher tub.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals on the basket, as these can degrade the plastic material.

6. Troubleshooting

If you encounter issues with your new silverware basket, consider the following:

• Basket Does Not Fit: Double-check your dishwasher's model number against the compatibility list. Ensure the basket is oriented correctly and seated firmly in the lower rack. Refer to the dimensions provided in Section 3.
• Silverware Not Clean:
  • Ensure the basket is not overcrowded.
  • Verify that the spray arms are not obstructed by tall items in the lower rack or by the basket itself.
  • Check your dishwasher's detergent dispenser and ensure it is functioning correctly.
  • Confirm that your dishwasher's water temperature is adequate.
• Basket Moving During Cycle: Ensure the basket is properly seated in its designated location on the lower rack. If it continues to move, inspect the rack for any broken guides or supports.

7. Specifications

8. Warranty and Support

This product is an aftermarket replacement part. Specific warranty details may vary depending on the retailer and purchase date. For any questions regarding product compatibility, installation, or performance, please contact the seller directly through your purchase platform.

For general dishwasher maintenance or repair, refer to your dishwasher's original manufacturer manual or contact a qualified appliance technician.
