Samoser Dishwasher Door Gasket Seal: Installation and Compatibility Guide

1. Introduction

This manual provides instructions for the installation and maintenance of the Samoser Dishwasher Door Gasket Seal. This component is essential for maintaining a watertight seal around your dishwasher door, preventing leaks during operation. Proper installation ensures optimal dishwasher performance and longevity.

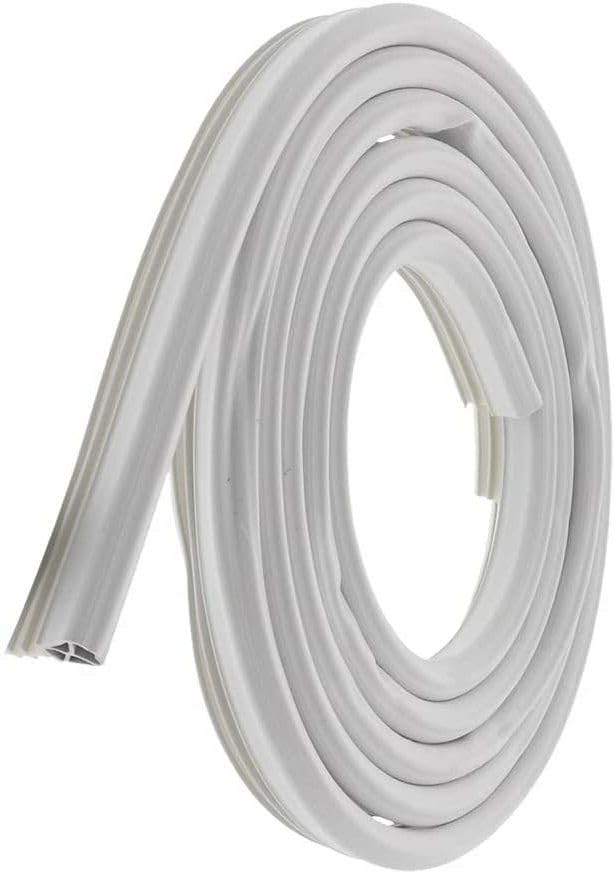

Image 1.1: The Samoser Dishwasher Door Gasket Seal, shown coiled for packaging. This seal is designed to fit around the perimeter of the dishwasher tub opening.

2. Compatibility

The Samoser Dishwasher Door Gasket Seal is designed as an aftermarket replacement part compatible with various GE, Hotpoint, and Kenmore dishwasher models. To ensure proper fit, verify your dishwasher's model number against the list below. The model number is typically located on a sticker inside the dishwasher door or on the side of the tub.

Compatible Models (Partial List):

• GSD3210Z00AA, GSD3210Z01AA, GSD3210Z02AA
• GSD2000Z00AD, GSD2000Z00WH, GSD2000Z01AD, GSD2000Z01WH, GSD2000Z02AD, GSD2000Z02WH
• GSD2230Z00WW, GSD2230Z01WW, GSD2230Z02WW
• GRU2004Y00WW, GSC3200Z01BL, GSC3200ZZ0BL, GSC3204X00WB, GSC4138X00WW
• GSD1920C02BB, GSD2020Z00BB, GSD3230Z02WW, GSD3304X01WW, GSD3310C02AA, GSD3830Z00WW
• GSD3910C02AA, GSD3920C02BB, GSD4138X00BB, GSD4138X00WW, GSD4138X01BB, GSD4138X01WW
• GSD4148X00BB, GSD4620Z00BB, GSD4620Z02BB, GSD4630Z00WW, GSD4630Z02WW, GSD4910Z00AA
• MRD2000X01WB, MRD2202X00WW, MRD2202X01WW, MSC3204X00WB, MSC3204X00WW
• MSD3407X00AB, MSD3407X00WB, MSD3407X00WW, MSD3407X01AB, MSD3407X01WB
• VRD2102X00WB, VRD2102X00WW, VRD2102X01BB, VRD2102X01WB, VRD2102X01WW
• YRD2000X01WB, YRD2202X00WB, YRD2202X00WW, YRD2202X01WB, YRD2202X01WW
• ZBD3500ZZ0BB, ZBD3500ZZ0WW, ZBD3540C00SS, ZBD3540C01SS, ZBD3900C00SS

If your model number is not listed or you are unsure about compatibility, please contact the seller for assistance.

3. Safety Information

• Disconnect Power: Always unplug the dishwasher or turn off the circuit breaker before beginning any repair or installation work.
• Wear Protective Gear: It is recommended to wear work gloves to protect your hands during the installation process.
• Handle with Care: The gasket material is flexible but can be damaged if stretched excessively or cut with sharp objects.

4. Tools Required

• Flat-head screwdriver or putty knife (for old gasket removal)
• Cleaning cloth or sponge
• Mild detergent and water

5. Installation Instructions (Setup)

Follow these steps carefully to replace your dishwasher door gasket seal:

1. Disconnect Power: Ensure the dishwasher is completely disconnected from its power source.
2. Open Dishwasher Door: Fully open the dishwasher door to access the old gasket.
3. Locate Old Gasket: The old gasket is typically seated in a channel around the perimeter of the dishwasher tub opening.
4. Remove Old Gasket: Carefully pull the old gasket out of its channel. You may need to use a flat-head screwdriver or putty knife to gently pry it out, starting from one corner. Dispose of the old gasket responsibly.
5. Clean Gasket Channel: Thoroughly clean the gasket channel with a cloth or sponge and mild detergent to remove any food debris, grime, or residue. A clean channel is crucial for the new gasket to seat properly and form a tight seal. Rinse and dry the channel completely.
6. Install New Gasket: Begin by pressing one end of the new gasket into the channel at the top center of the dishwasher tub. Work your way around the perimeter, gently pushing the gasket firmly into the channel. Ensure the gasket is fully seated and not twisted or kinked. The gasket should fit snugly without excessive stretching.

Image 5.1: The Samoser Dishwasher Door Gasket Seal uncoiled, showing its full circular form. This illustrates how the gasket will fit around the dishwasher tub opening.

7. Test for Leaks: Once the new gasket is fully installed, close the dishwasher door and apply gentle pressure around the perimeter to ensure it seals properly. Reconnect power to the dishwasher. Run a short cycle without dishes and observe for any leaks around the door.
8. Reconnect Power: If no leaks are detected, the installation is complete.

6. Maintenance

To ensure the longevity and effectiveness of your new dishwasher door gasket seal:

• Regular Cleaning: Periodically wipe down the gasket with a damp cloth and mild detergent to remove food particles, grease, and hard water deposits. This prevents buildup that can compromise the seal.
• Inspect for Damage: Routinely check the gasket for any signs of wear, tears, cracks, or hardening. A damaged gasket will not seal properly and should be replaced.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals on the gasket, as these can degrade the material.

7. Troubleshooting

If you experience issues after installing the new gasket, consider the following:

• Dishwasher Leaks:
  • Gasket Not Seated Properly: Open the door and re-examine the gasket. Ensure it is fully and evenly pressed into the channel all around the door opening.
  • Debris in Channel: Even small food particles or residue can prevent a proper seal. Clean the channel again thoroughly.
  • Door Latch Issue: Ensure the dishwasher door latch is engaging correctly and pulling the door tightly against the gasket.
• Door Not Closing Properly:
  • Gasket Twisted or Kinked: The gasket might be improperly installed, causing it to obstruct the door's closure. Re-seat the gasket, ensuring it lies flat within the channel.
  • New Gasket Stiffness: A new gasket may be slightly stiffer than the old one. It might take a few cycles for it to fully conform and soften. Gently press on the door after closing to help it seal.

8. Specifications

9. Support

For further assistance, compatibility questions, or if you encounter issues not covered in this manual, please contact the seller directly. They are available to help resolve your problem within 24 hours.

When contacting support, please have your dishwasher's model number and a description of the issue ready.
