Instruction Manual for auto paw Roof Rack System

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your auto paw Roof Rack System, designed specifically for the BMW 5 Series E60 (2003-2010) with a normal (bare) roof. This system allows for the secure transport of various cargo items on your vehicle's roof.

Product Overview

The auto paw Pro 4 roof rack system is engineered for optimal compatibility and performance on your vehicle's normal roof. It features an aerodynamic design to minimize wind noise and resistance, and includes a T-slot channel for easy accessory attachment.

Key Features:

• Custom Fit: Specifically designed for BMW 5 Series E60 (2003-2010) normal roofs.
• Aerodynamic Design: Engineered to reduce wind noise and drag.
• T-Slot Channels: Facilitates easy installation of various roof rack accessories.
• High-Grade Material: Constructed from lightweight, durable, rustproof aluminum alloy.
• Anti-Theft System: Integrated locking mechanism for security.
• High Load Capacity: Supports dynamic loads up to 75 kg and static loads up to 400 kg.

Package Contents:

• 2 x Aluminum Profiles (Cross Bars)
• 4 x Head Brackets
• 4 x Metal Brackets
• 2 x Metal Keys
• 2 x Suppositories (Rubber Strips)
• Hardware (Bolts/Nuts)
• User Guide (this manual)

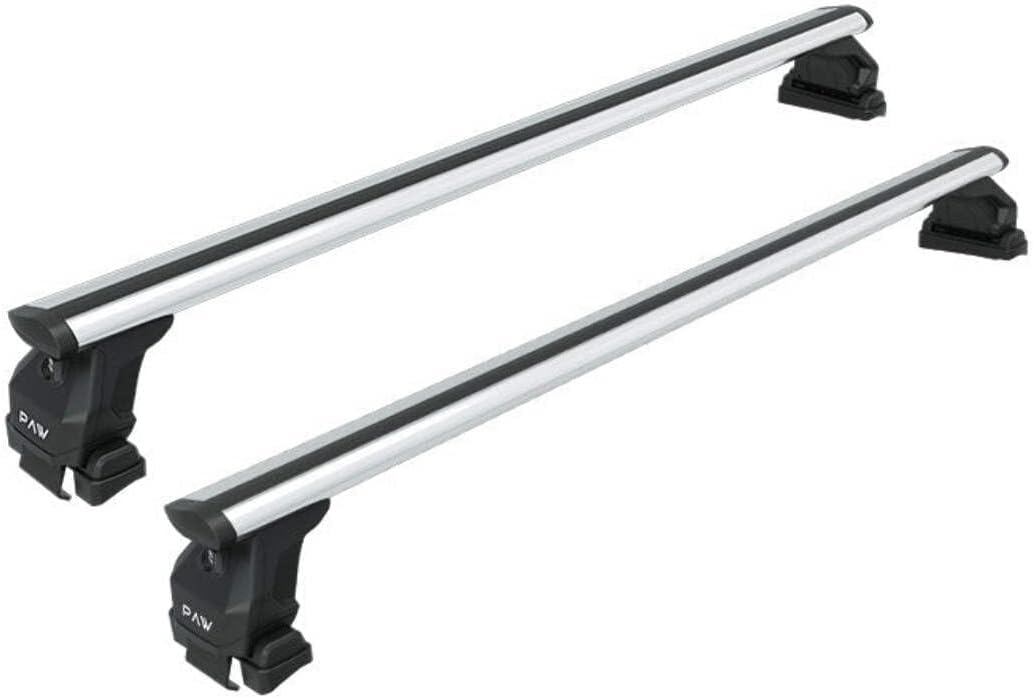

Image: The auto paw roof rack system components, showing the two cross bars and their mounting feet.

Image: Visual representation of the roof rack's key features, including its lockable design, aerodynamic profile, T-slot access, and robust metal brackets.

Setup and Installation

The auto paw roof rack system is designed for easy, tool-free installation. No drilling or cutting is required. The product is pre-assembled, and all necessary tools for installation are included in the package.

Installation Steps:

1. Prepare Your Vehicle: Ensure your vehicle's roof is clean and free of debris where the roof rack will be mounted.
2. Identify Front and Rear Bars: The cross bars may have a specific orientation or length for front and rear placement. Refer to any markings on the bars or the included user guide for proper identification.
3. Position the Brackets: Place the head brackets and metal brackets onto the vehicle's normal roof, aligning them with the designated mounting points or door frame edges. The clamping mechanism is designed to securely fasten to the door frame.
4. Attach Cross Bars: Carefully place the aluminum profiles (cross bars) onto the positioned brackets. Ensure the T-slot channels are facing upwards.
5. Secure the System: Tighten the hardware (bolts/nuts) to firmly secure the cross bars to the brackets and the brackets to the vehicle. Ensure all connections are snug and stable. Do not overtighten.
6. Insert Rubber Strips: Insert the provided rubber suppositories (strips) into the T-slots of the cross bars. These strips help reduce wind noise during travel.
7. Lock the System: Use the provided metal keys to lock the integrated anti-theft system on the head brackets. This secures the roof rack to your vehicle.
8. Final Check: Before driving, gently shake the installed roof rack to ensure it is securely fastened and does not wobble. Verify that all components are correctly installed and tightened.

Image: Detail of the roof rack's mounting foot securely clamped to the vehicle's roof edge.

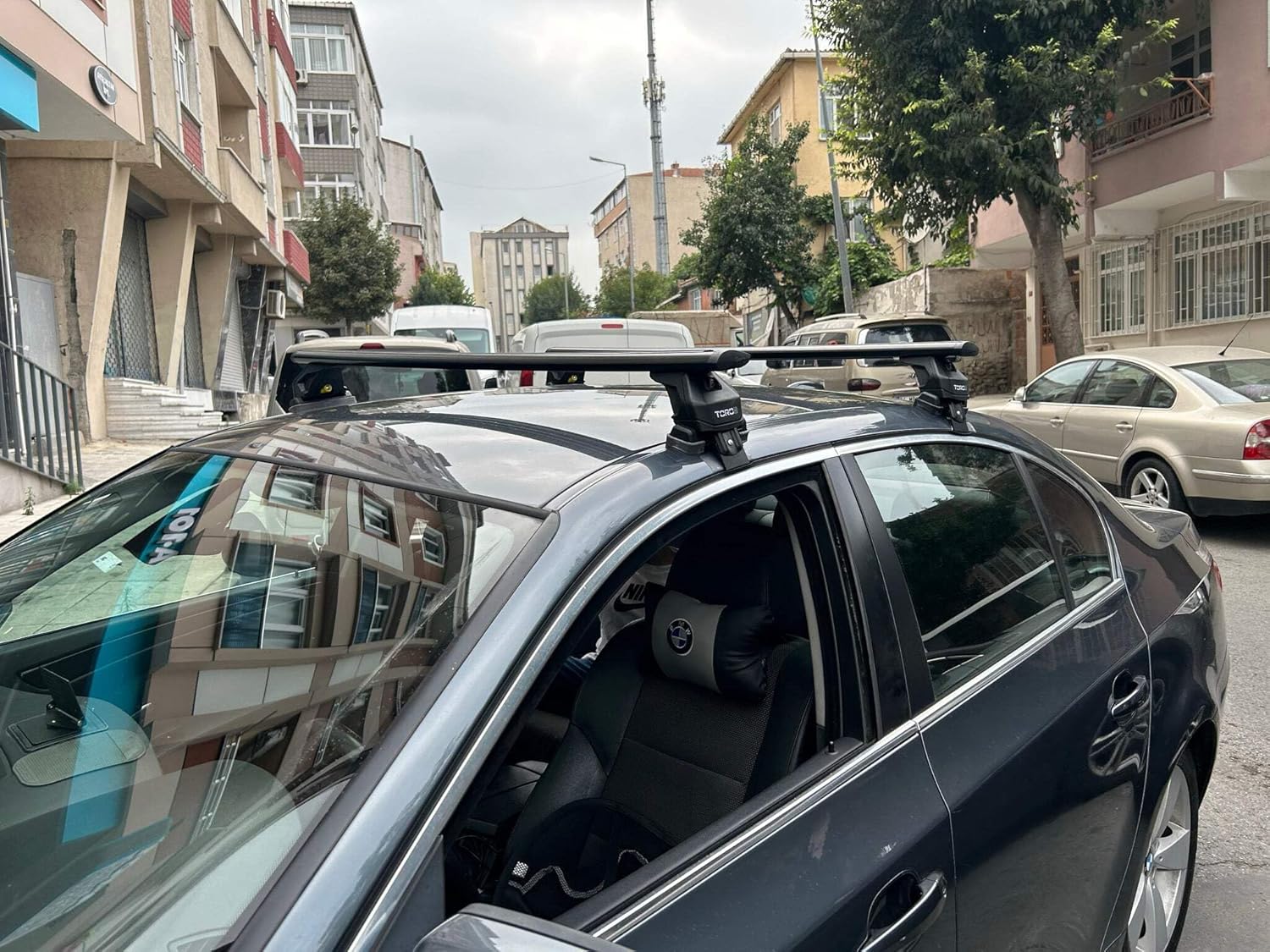

Image: Side profile of a vehicle with the roof rack system fully installed.

Operating and Usage

Once installed, your auto paw roof rack system is ready for use. It provides a versatile platform for transporting various items.

Load Capacity:

• Dynamic Load Capacity: Up to 75 kg (165 lbs) while the vehicle is in motion.
• Static Load Capacity: Up to 400 kg (880 lbs) when the vehicle is stationary (e.g., for roof tents).

Important: Always adhere to the lower of the roof rack's load capacity or your vehicle's manufacturer-specified roof load limit. Overloading can damage your vehicle and create unsafe driving conditions.

Recommended Uses:

The T-slot channels allow for easy attachment of various accessories (sold separately) to carry:

• Cargo Boxes and Cargo Carriers
• Kayaks and Canoes
• Bicycles (with bike carriers)
• Surfboards and Snowboards
• Skis
• Roof Tents and Camping Equipment
• Other appropriately sized and secured luggage

Image: Examples of various items that can be transported using the roof rack system, including water sports gear, bicycles, and cargo boxes.

Driving with a Roof Rack:

• Check Security: Always check that the roof rack and any attached cargo are securely fastened before each journey.
• Adjust Driving Style: Be aware that the vehicle's center of gravity, handling, and fuel consumption may change with a loaded roof rack. Drive cautiously, especially when cornering or in windy conditions.
• Clearance: Be mindful of increased vehicle height when entering garages, car washes, or low-clearance areas.

Maintenance

Regular maintenance will ensure the longevity and safe operation of your auto paw roof rack system.

• Regular Cleaning: Clean the aluminum profiles and plastic components with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspect Fasteners: Periodically check all bolts, nuts, and clamping mechanisms to ensure they remain tight. Retighten if necessary.
• Check Rubber Strips: Ensure the rubber sealing strips in the T-slots are intact and properly seated to maintain wind noise reduction.
• Lubricate Locks: If the locking mechanism becomes stiff, apply a small amount of graphite lubricant to the keyhole.
• Seasonal Removal: If the roof rack is not in use for extended periods, consider removing it to reduce wear and tear on the vehicle and the rack itself, and to improve fuel efficiency.

Troubleshooting

This section addresses common issues you might encounter with your roof rack system.

Specifications

Safety Information

• Always ensure the roof rack and any cargo are securely fastened before driving.
• Do not exceed the maximum load capacity of the roof rack or your vehicle's roof.
• Distribute weight evenly on the roof rack.
• Avoid sudden braking, acceleration, or sharp turns when carrying cargo on the roof.
• Be aware of increased vehicle height and width when driving with a loaded roof rack, especially under low bridges, in garages, or through car washes.
• Periodically check the tightness of all mounting hardware during long journeys.
• Remove the roof rack when not in use to reduce wind resistance and improve fuel efficiency.
