Cuisinart Precision Master Pro 6.5-QT Stand Mixer User Manual

1. Introduction

Thank you for purchasing the Cuisinart Precision Master Pro 6.5-QT Stand Mixer. This appliance is designed to provide powerful and efficient mixing for a variety of culinary tasks, from kneading dough to whipping cream. Please read this manual thoroughly before first use to ensure proper operation, maintenance, and safety.

This manual provides detailed instructions for setup, operation, cleaning, and troubleshooting to help you get the most out of your stand mixer.

2. Important Safety Information

READ ALL INSTRUCTIONS BEFORE USE.

• Always unplug the mixer from the outlet when not in use, before putting on or taking off parts, and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• The use of attachments not recommended or sold by Cuisinart may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Close supervision is necessary when any appliance is used by or near children.

3. Components and Accessories

Your Cuisinart Precision Master Pro Stand Mixer comes with the following standard components and accessories:

• Stand Mixer Base
• 6.5-Quart Stainless Steel Bowl
• Splash Guard
• Wire Whip (6-wire)
• Flat Mixing Paddle
• Dough Hook

Figure 3.1: The Cuisinart Precision Master Pro Stand Mixer with its 6.5-quart stainless steel bowl.

Figure 3.2: The mixer head tilted up, showing the attachment hub and a whisk accessory.

Figure 3.3: Detailed view of the 6-wire whisk attachment, ideal for aerating ingredients.

Figure 3.4: Detailed view of the flat mixing paddle, suitable for general mixing and creaming.

Figure 3.5: Detailed view of the dough hook, designed for kneading yeast doughs.

4. Setup and Assembly

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or shipping.
2. Clean: Before first use, wash the stainless steel bowl, splash guard, and all attachments (wire whip, flat mixing paddle, dough hook) in warm, soapy water. Rinse thoroughly and dry completely. Wipe the mixer base with a damp cloth.
3. Position the Mixer: Place the mixer on a clean, dry, flat, and stable surface. Ensure there is adequate space around the mixer for operation and ventilation.
4. Attach the Bowl: Place the 6.5-quart stainless steel bowl onto the base, aligning the tabs on the bowl with the slots on the base. Turn the bowl clockwise until it locks securely into place.
5. Install an Attachment:
   • Ensure the mixer is unplugged.
   • Lift the mixer head by pushing the head-lift lever.
   • Slide the desired attachment (wire whip, flat mixing paddle, or dough hook) onto the attachment shaft, aligning the pin on the shaft with the groove in the attachment.
   • Rotate the attachment counter-clockwise until it locks into place.
   • Lower the mixer head until it clicks into the locked position.
6. Attach the Splash Guard (Optional): If using, slide the splash guard over the mixer head and bowl before lowering the head.

5. Operating Instructions

5.1 Adding Ingredients

With the mixer head lowered and an attachment installed, you can begin adding ingredients to the bowl. The splash guard helps prevent splattering during mixing. For best results, add dry ingredients first, then wet ingredients.

5.2 Speed Control

The Cuisinart Precision Master Pro features an adjustable speed control knob. Turn the knob to select the desired speed setting. Start at a low speed and gradually increase as needed to prevent ingredients from splashing out of the bowl.

• Low Speeds (1-3): Ideal for gentle stirring, combining dry ingredients, mashing potatoes, or starting to mix heavy batters.
• Medium Speeds (4-6): Suitable for creaming butter and sugar, mixing cakes, or beating eggs.
• High Speeds (7-12): Best for whipping cream, egg whites, or light batters.

5.3 Using Attachments

• Wire Whip: Use for mixtures that need air incorporated, such as egg whites, heavy cream, and frostings.
• Flat Mixing Paddle: Use for normal to heavy mixtures, such as cakes, cookies, pastries, and icings.
• Dough Hook: Use for kneading yeast doughs for bread, pizza, and pasta.

5.4 Stopping Operation

To stop the mixer, turn the speed control knob to the 'OFF' position. Unplug the mixer from the power outlet before removing the bowl or attachments.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your stand mixer.

6.1 Cleaning the Mixer Base

• Always unplug the mixer before cleaning.
• Wipe the mixer base with a damp cloth. Do not immerse the mixer base in water or any other liquid.
• Do not use abrasive cleaners or scouring pads, as they may scratch the surface.

6.2 Cleaning the Bowl and Attachments

• The stainless steel bowl, wire whip, flat mixing paddle, and dough hook are dishwasher safe (top rack recommended) or can be washed by hand in warm, soapy water.
• Rinse thoroughly and dry immediately after washing to prevent water spots or corrosion.

6.3 Storage

Store the mixer and its attachments in a clean, dry place. Ensure all parts are completely dry before storing.

7. Troubleshooting

8. Product Specifications

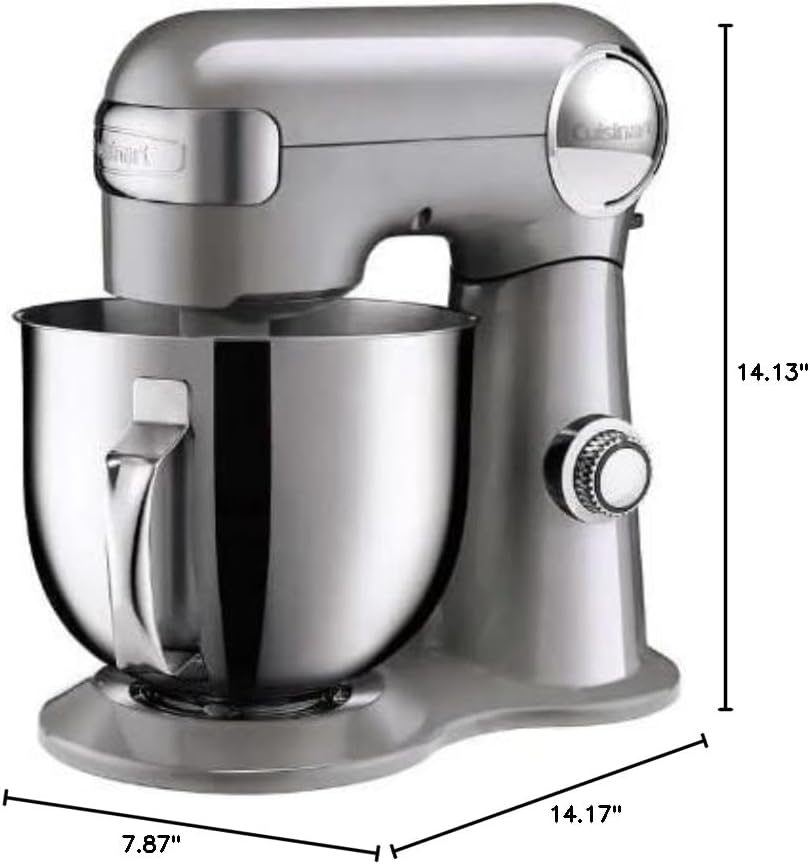

Figure 8.1: Dimensions of the Cuisinart Precision Master Pro Stand Mixer.

9. Warranty and Support

For information regarding warranty coverage, product registration, or customer support, please refer to the warranty card included with your product or visit the official Cuisinart website. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance or to order replacement parts, please contact Cuisinart Customer Service directly. Contact information can typically be found on the manufacturer's website or in the product packaging.
